Model #EHIA15HB10 Official ICP electric heater kit

Here are the diagrams and repair parts for ICP EHIA15HB10 electric heater kit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide

Showing 8 of 8 parts

Diode Board#3

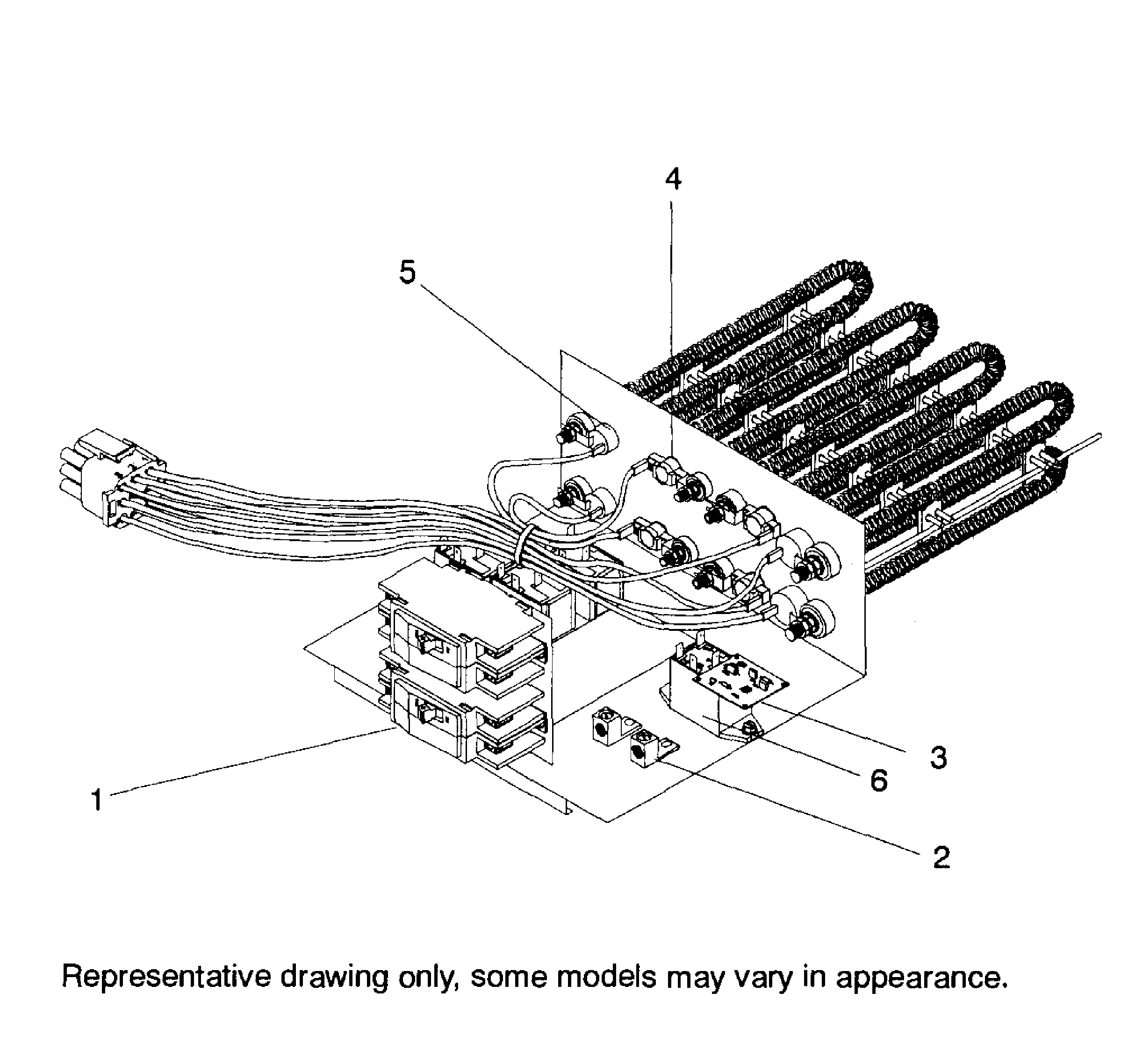

Heater assy Diagram

Diode board

Part #1171780
In Stock
$22.02
Seal,brekr#NI

Heater assy Diagram

Seal,brekr

Part #1087843
In Stock
$9.84
Pcb Rectif#3A

Heater assy Diagram

Pcb rectif

Part #1171906
In Stock
$89.75
Relay#6

Heater assy Diagram

Relay

Part #1172506
In Stock
$33.42 |
13% OFF
Phone Price: $38.42
Breaker 60#1

Heater assy Diagram

Circuit breaker

Part #1080913
Replaced by #QOU360
?
Manufacturer substitution
This part replaces 1080913. Substitute parts can look different from the original.
In Stock
$185.13
Lug Ground#2

Heater assy Diagram

Lug

Part #91590
Replaced by #1172300
?
Manufacturer substitution
This part replaces 91590. Substitute parts can look different from the original.
This item is not returnable
In Stock
$2.34
LIMIT THERMAL,L145-40F#4

Heater assy Diagram

Limit thermal,l145-40f

Part #1176271

The manufacturer no longer makes this part, and there's no substitute part

Thermal Cut-Off#5

Heater assy Diagram

Thermal cut-off

Part #1176269

The manufacturer no longer makes this part, and there's no substitute part
