Model #N4A336AKB200 Official ICP split-system air conditioner - r410a

Here are the diagrams and repair parts for ICP N4A336AKB200 split-system air conditioner - r410a, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Showing 10 of 34 parts

Central Air Conditioner Dual-Motor Run Capacitor#5

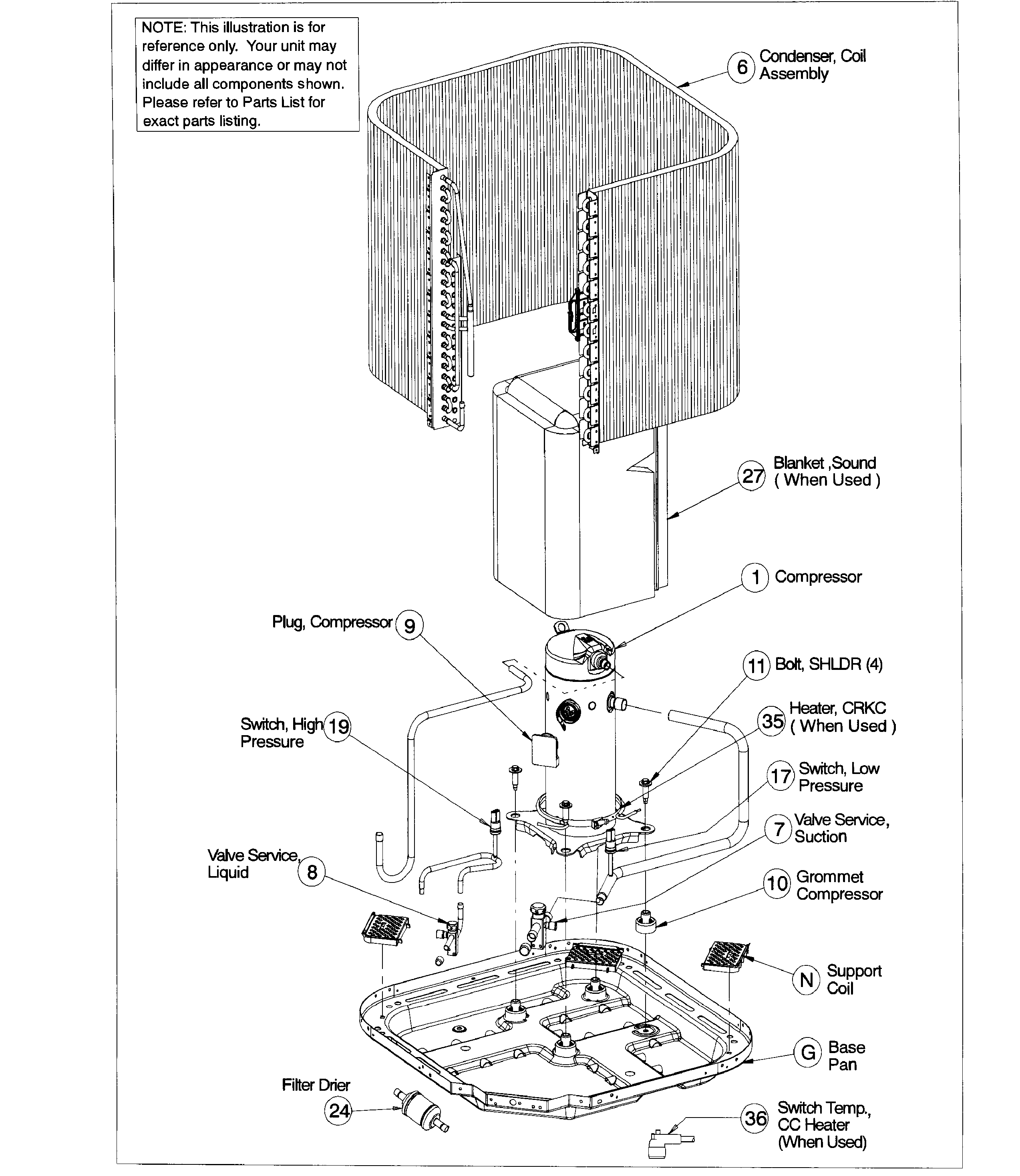

Main asy 1 Diagram

Central air conditioner dual-motor run capacitor

Part #1172124
This item is not returnable
In Stock
$26.59 |
16% OFF
Phone Price: $31.59
Plug Comp#9

Main asy 1 Diagram

Plug comp

Part #1172731
In Stock
$19.69
Cap Nut#B

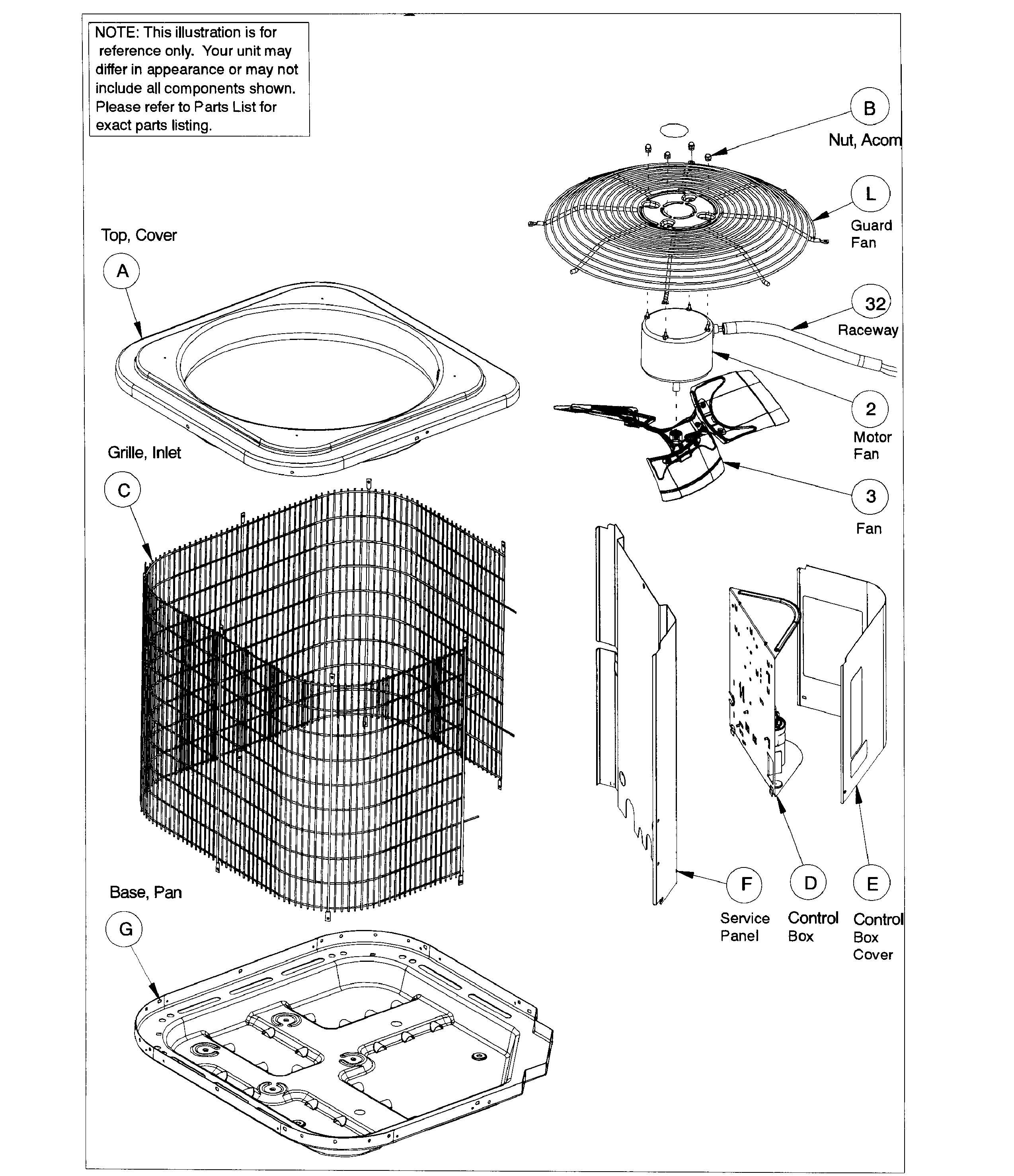

Main asy 2 Diagram

Cap nut

Part #1172740
This item is not returnable
In Stock
$2.16
Support#N

Main asy 1 Diagram

Support

Part #1174068
In Stock
$8.51
Pan Base#G

Main asy 1 Diagram

Pan base

Part #1178653
In Stock
$154.10
Grommet#10

Main asy 1 Diagram

Grommet

Part #1171270
This item is not returnable
In Stock
$2.16
Raceway#32

Main asy 2 Diagram

Raceway

Part #1173642
This item is not returnable
In Stock
$2.16
Fan#3

Main asy 2 Diagram

Fan

Part #1172714
In Stock
$118.71 |
8% OFF
Phone Price: $128.71
Central Air Conditioner Contactor#4

Main asy 1 Diagram

In Stock
$57.79 |
8% OFF
Phone Price: $62.79
Drier#NI

Main asy 1 Diagram

Drier

Part #1174194
In Stock
$89.38
