Model #655474230 Official Sears 26" men's 10-speed bicycle

Here are the diagrams and repair parts for Sears 655474230 26" men's 10-speed bicycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

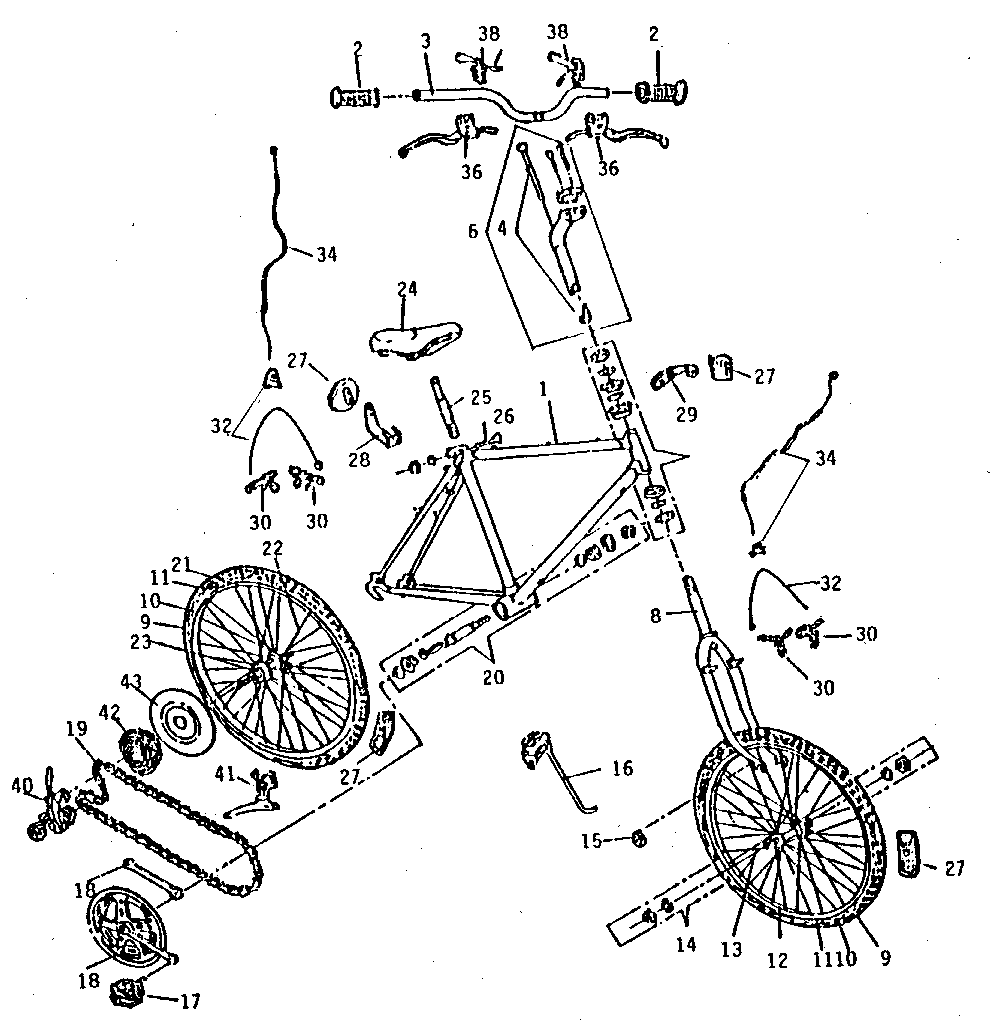

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 41 parts

Hngr Brg Set#20

Unit parts Diagram

Hngr brg set

Part #062003

The manufacturer no longer makes this part, and there's no substitute part

Handlebar#3

Unit parts Diagram

Handlebar

Part #009035

The manufacturer no longer makes this part, and there's no substitute part

Brake Tool

#NI

All parts Diagram

Brake tool

Part #103015

The manufacturer no longer makes this part, and there's no substitute part

Bicycle Tire, 26 x 1.5-in#9

Unit parts Diagram

Bicycle tire, 26 x 1.5-in

Part #040021

The manufacturer no longer makes this part, and there's no substitute part

Rear Axle and Bearing Set#23

Unit parts Diagram

Rear axle and bearing set

Part #054001

The manufacturer no longer makes this part, and there's no substitute part

Exp Blt/wedg#4

Unit parts Diagram

Exp blt/wedg

Part #008025

The manufacturer no longer makes this part, and there's no substitute part

Front Wheel Assembly#12

Unit parts Diagram

Front wheel assembly

Part #045016

The manufacturer no longer makes this part, and there's no substitute part

Derailleur#40

Unit parts Diagram

Derailleur

Part #085501

The manufacturer no longer makes this part, and there's no substitute part

Cable/casing

#NI

All parts Diagram

Cable/casing

Part #087502

The manufacturer no longer makes this part, and there's no substitute part

Kickstand#16

Unit parts Diagram

Kickstand

Part #076034

The manufacturer no longer makes this part, and there's no substitute part
