Sharp
LCD Television

Model # LC-70LE650U Official Sharp led television

Here are the diagrams and repair parts for Official Sharp LC-70LE650U led television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 50 parts  |
Television Power Supply Board RUNTKB131WJQZ
#P8

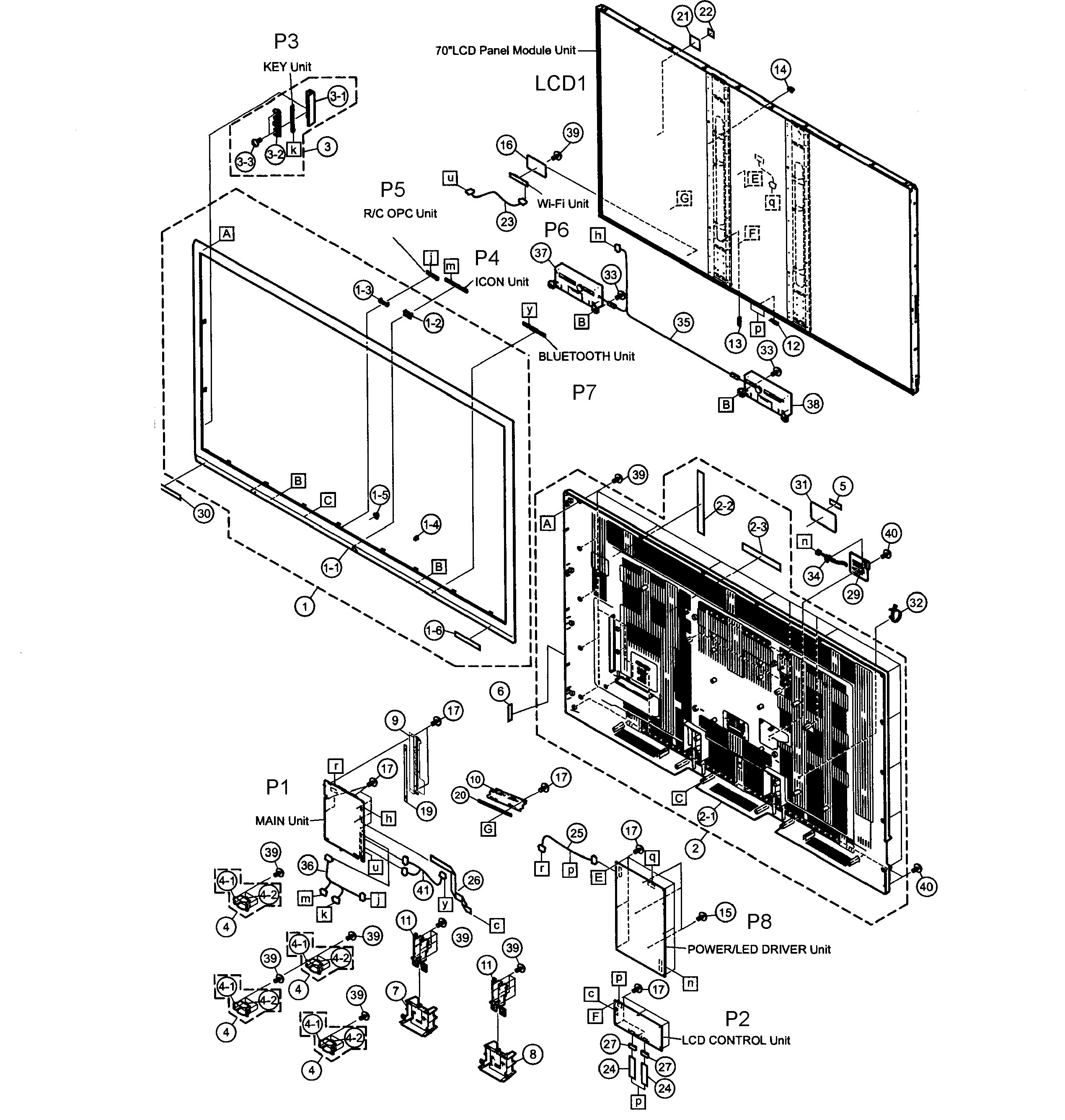

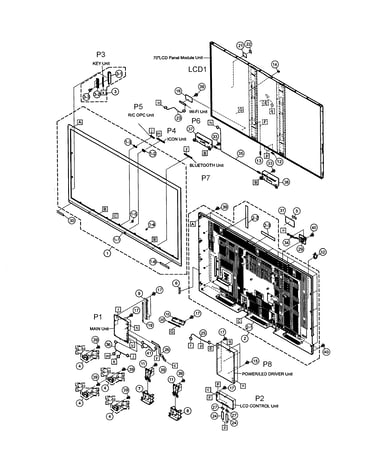

Cabinet parts diagram

Television power supply board

Part #RUNTKB131WJQZ

The manufacturer no longer makes this part, and there's no substitute part

Key Pcb DUNTKF800FM53
#P3

Cabinet parts diagram

Key pcb

Part #DUNTKF800FM53

The manufacturer no longer makes this part, and there's no substitute part

Television Main Control Board DKEYMF953FM06
#P1

Cabinet parts diagram

Television main control board

Part #DKEYMF953FM06

The manufacturer no longer makes this part, and there's no substitute part

Cable-ub QCNW-M544WJZZ
#23

Cabinet parts diagram

Cable-ub

Part #QCNW-M544WJZZ

The manufacturer no longer makes this part, and there's no substitute part

Lcd Pcb DUNTKF975FM20
#P2

Cabinet parts diagram

Lcd pcb

Part #DUNTKF975FM20

The manufacturer no longer makes this part, and there's no substitute part

Television Speaker RSP-ZA615WJZZ
#37

Cabinet parts diagram

Television speaker

Part #RSP-ZA615WJZZ

The manufacturer no longer makes this part, and there's no substitute part

Ferrite RCORFA061WJZZ
#27

Cabinet parts diagram

Ferrite

Part #RCORFA061WJZZ

The manufacturer no longer makes this part, and there's no substitute part

Television Power Cord QACCDA084WJPZ
#34

Cabinet parts diagram

Television power cord

Part #QACCDA084WJPZ

The manufacturer no longer makes this part, and there's no substitute part

Screw LX-EZA069WJF7
#33

Cabinet parts diagram

Screw

Part #LX-EZA069WJF7

The manufacturer no longer makes this part, and there's no substitute part

Holder LHLDWA318WJKZ
#32

Cabinet parts diagram

Holder

Part #LHLDWA318WJKZ

The manufacturer no longer makes this part, and there's no substitute part
