Model # LRFD25850TT/00 Official LG refrigerator

Here are the diagrams and repair parts for Official LG LRFD25850TT-00 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

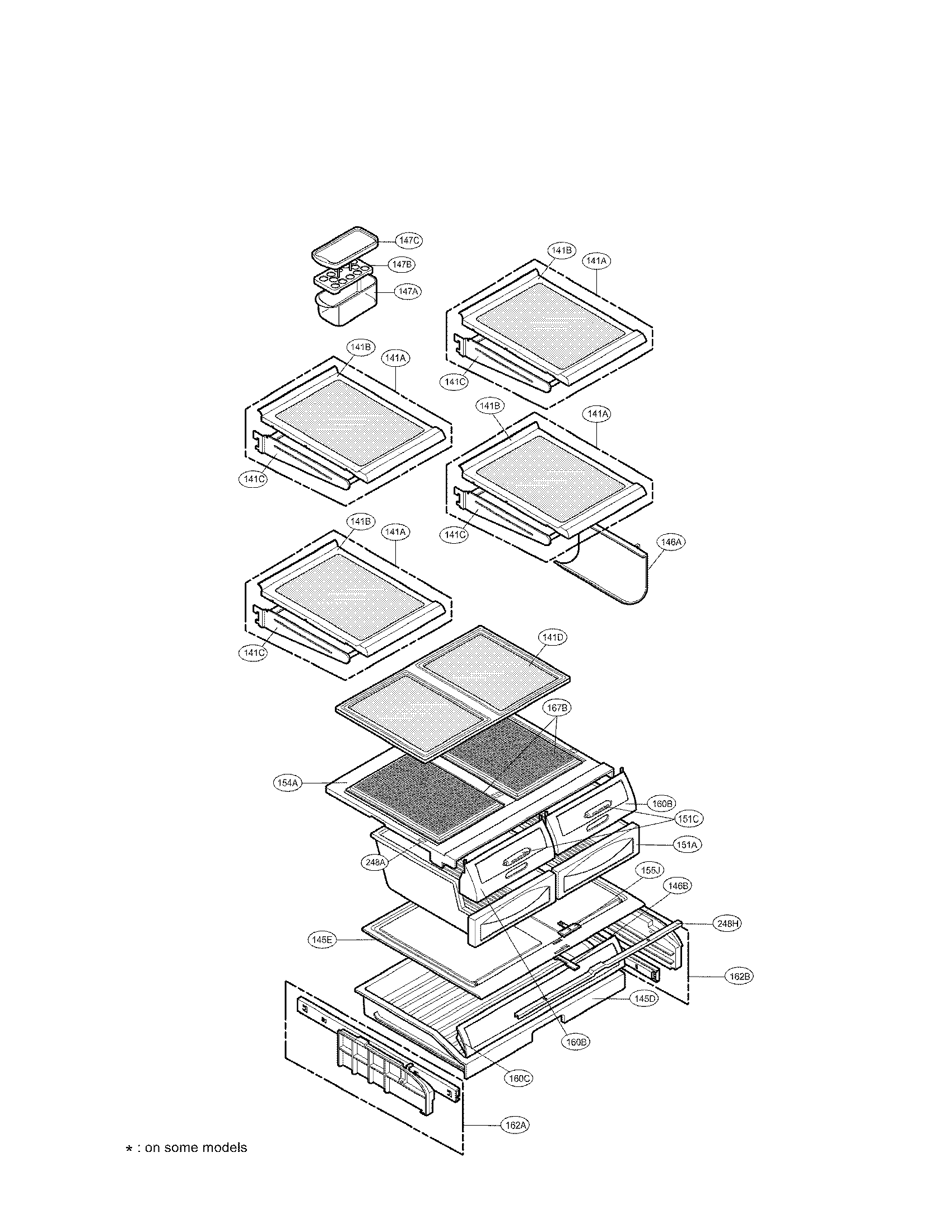

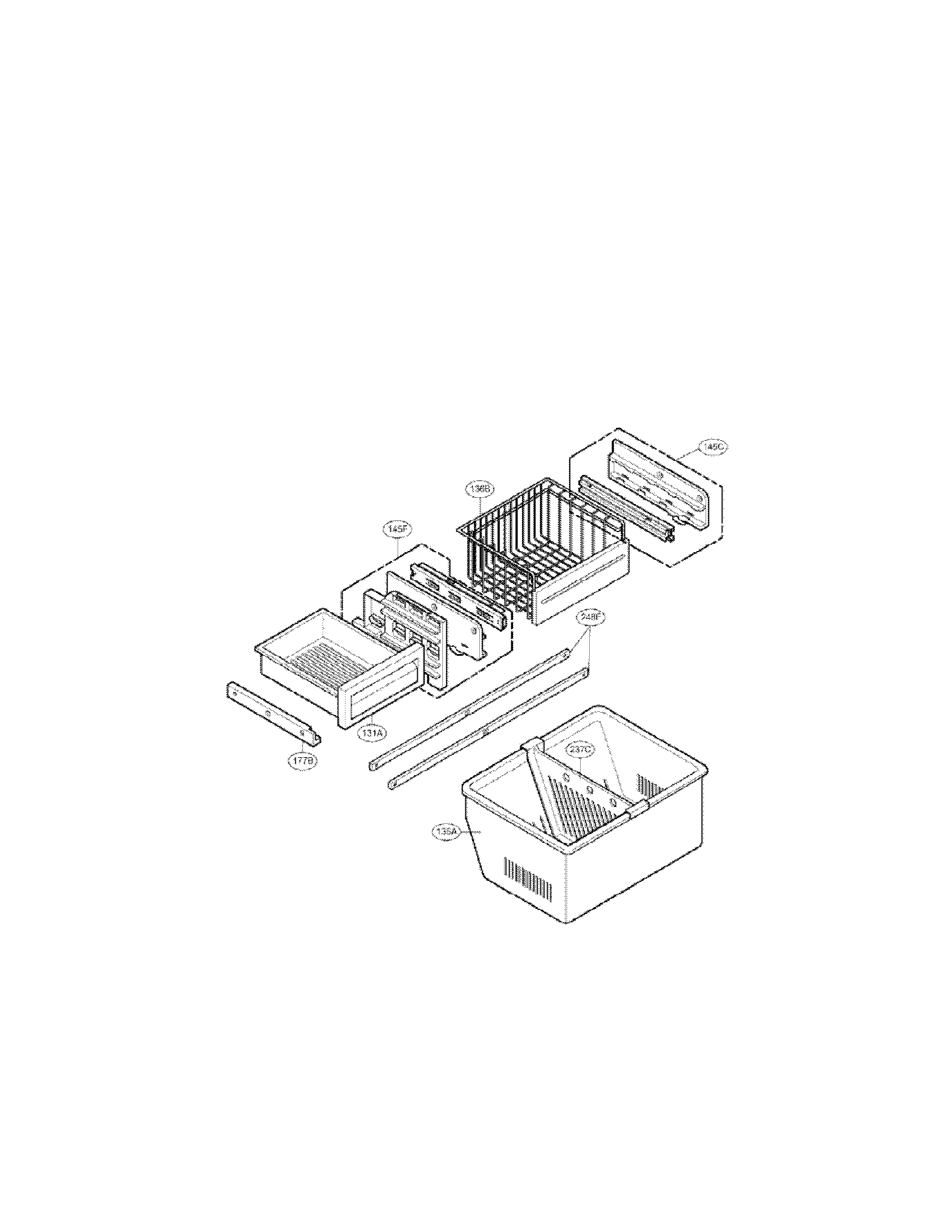

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 199 parts  |
Refrigerator Filter Dryer 5851JA2007E
#317A

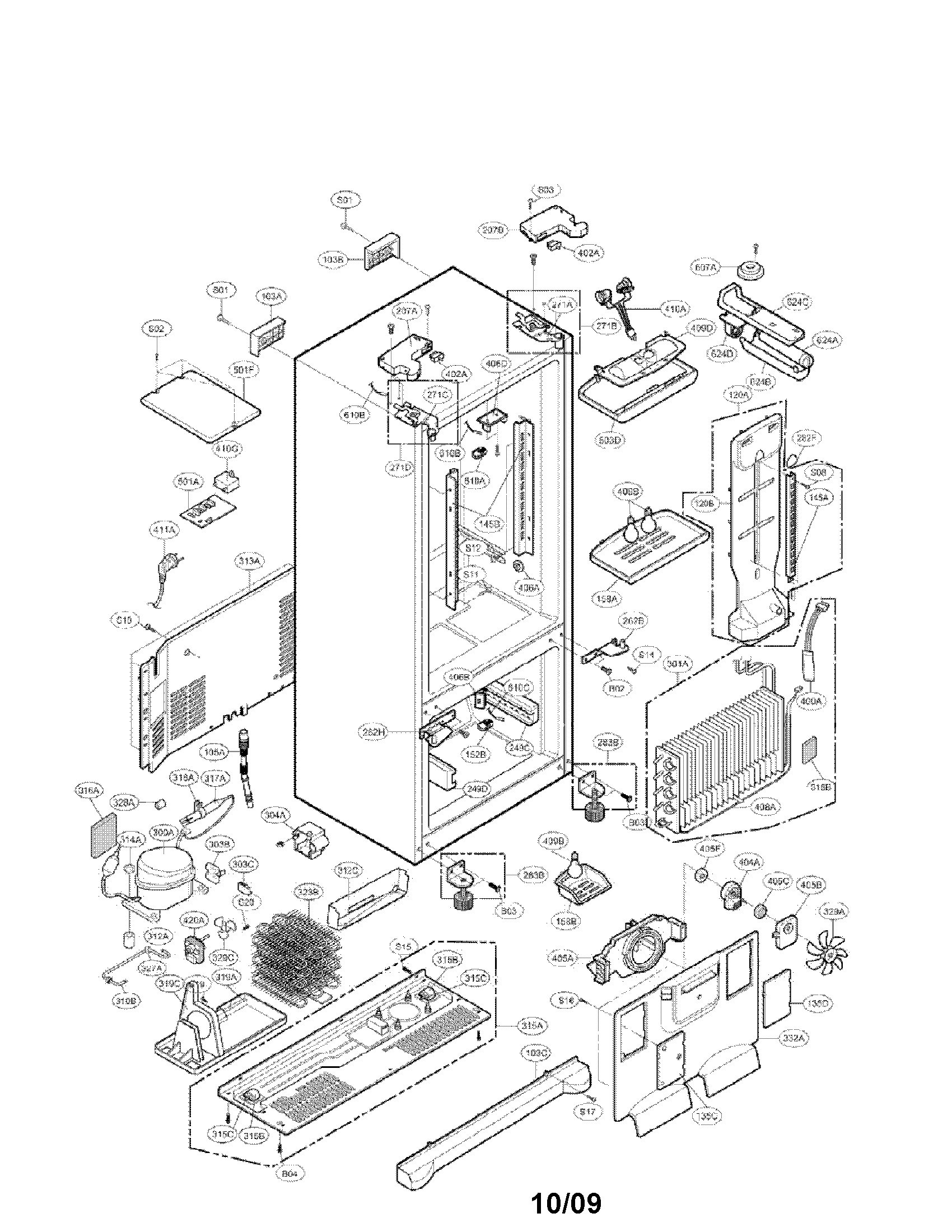

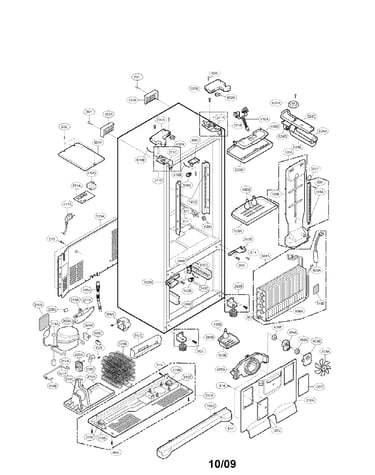

Case parts diagram

Refrigerator filter dryer

Part #5851JA2007E

Replaced by #ADH73150210

?
Manufacturer substitution
This part replaces 5851JA2007E. Substitute parts can look different from the original.
BEST SELLER
$71.46 |
7% OFF Phone Price : $76.46
In Stock
Refrigerator Water Filter 5231JA2006A
#624A

Case parts diagram

Refrigerator water filter

Part #5231JA2006A

Replaced by #5231JA2006F

?
Manufacturer substitution
This part replaces 5231JA2006A. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$55.95
In Stock
Refrigerator Door Switch (replaces 6600jb1004a) 6600JB1010A
#406B

Case parts diagram

Refrigerator door switch (replaces 6600jb1004a)

Part #6600JB1010A

BEST SELLER
$21.08 |
19% OFF Phone Price : $26.08
In Stock
Refrigerator Freezer Door Gasket MDS38201401
#203A

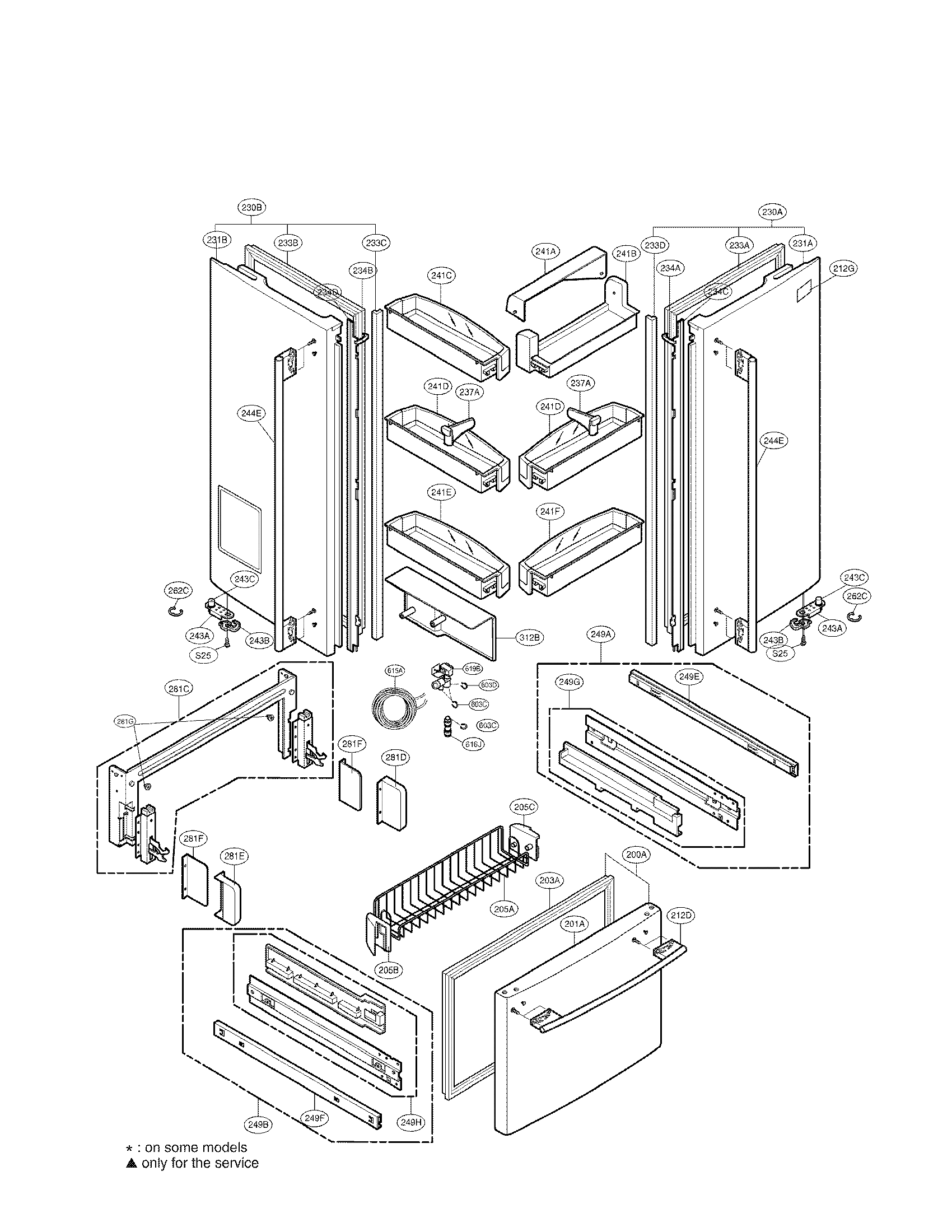

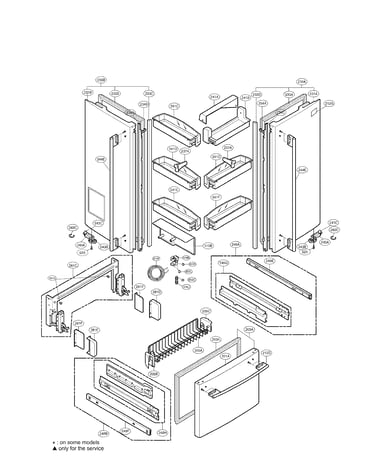

Door parts diagram

Refrigerator freezer door gasket

Part #MDS38201401

Replaced by #MDS38201426

?
Manufacturer substitution
This part replaces MDS38201401. Substitute parts can look different from the original.
BEST SELLER
$68.39 |
7% OFF Phone Price : $73.39
In Stock
Switch,mic 6600JB3001B
#403A

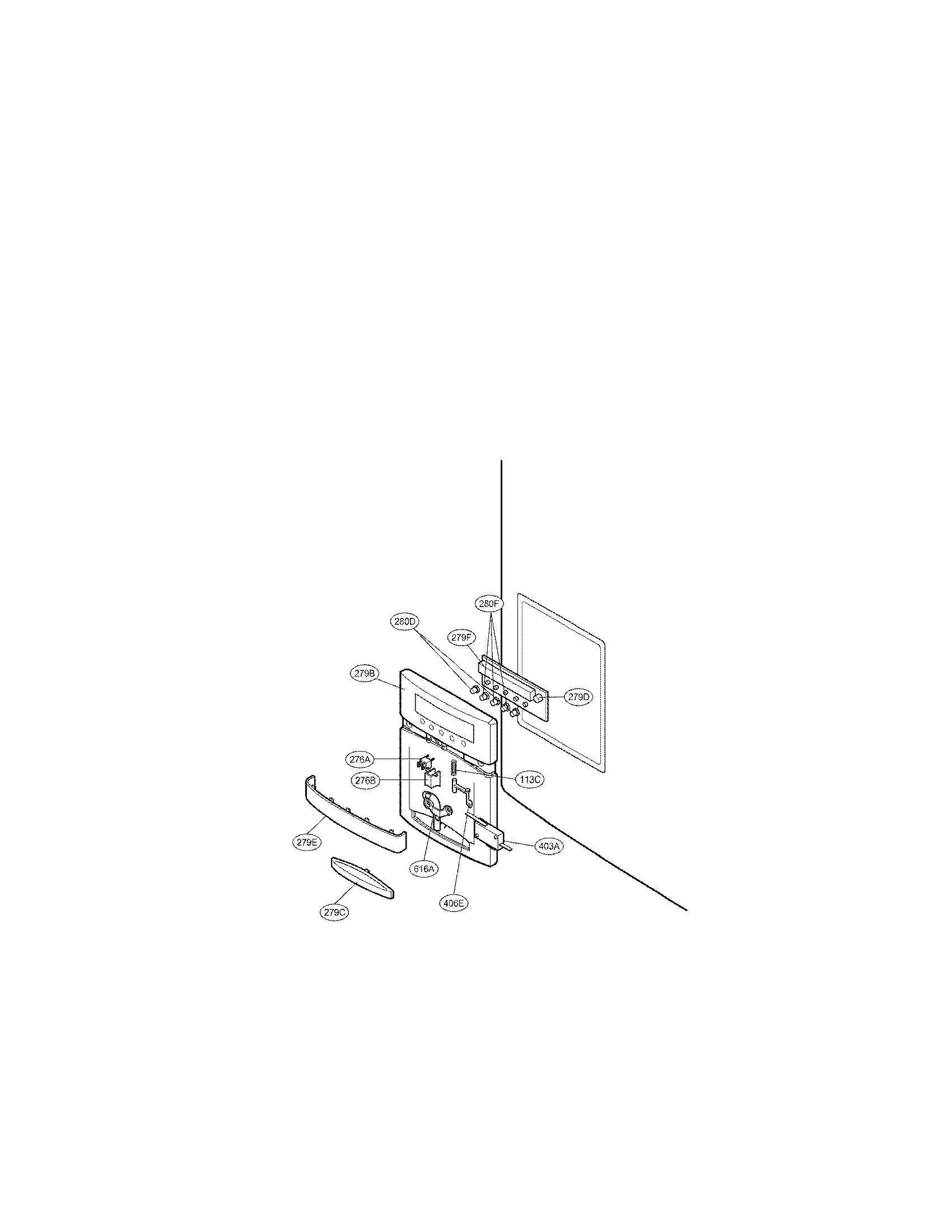

Dispenser parts diagram

Switch,mic

Part #6600JB3001B

Replaced by #6600JB3001C

?
Manufacturer substitution
This part replaces 6600JB3001B. Substitute parts can look different from the original.
BEST SELLER
$33.60 |
13% OFF Phone Price : $38.60
In Stock
Refrigerator Door Stop 4620JJ2009A
#243B

Door parts diagram

Refrigerator door stop

Part #4620JJ2009A

BEST SELLER
$11.73 |
15% OFF Phone Price : $13.73
In Stock
Refrigerator Water Inlet Valve 5221JB1004N
#619A

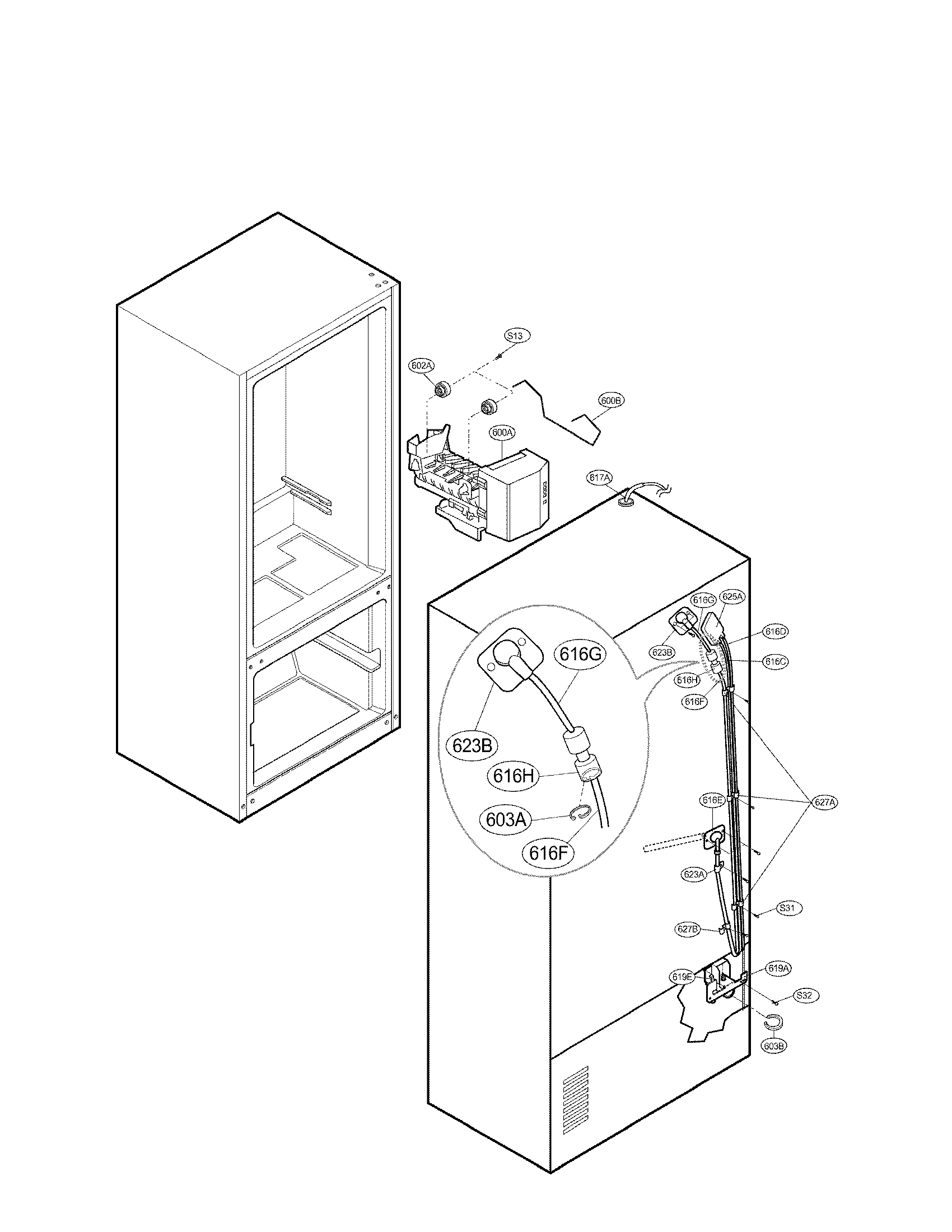

Ice maker parts diagram
