Model #390269151 Official Craftsman pump

Here are the diagrams and repair parts for Craftsman 390269151 pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Showing 10 of 14 parts

Motor#11

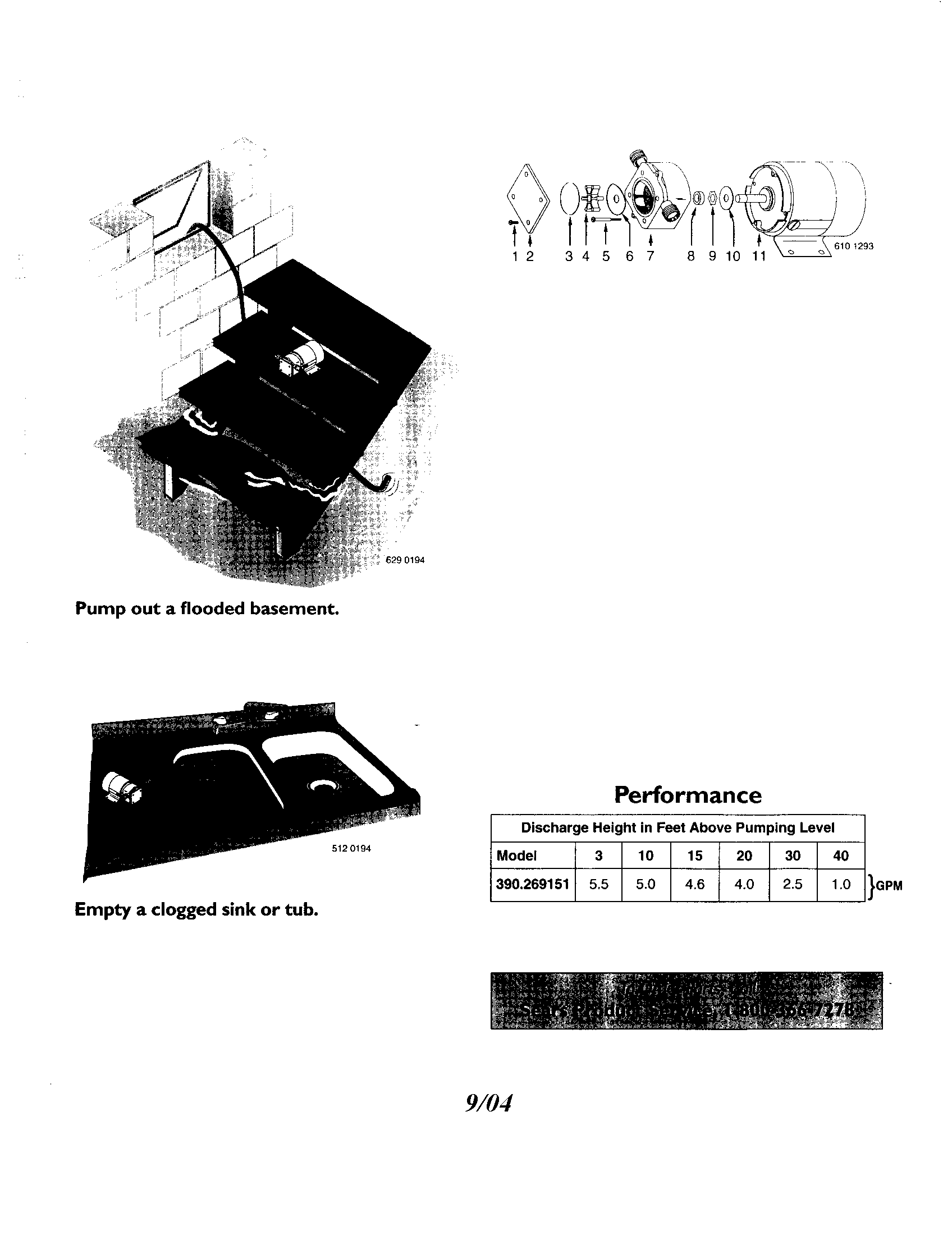

Utility pump assembly Diagram

Motor

Part #M0015-115
In Stock
$357.14

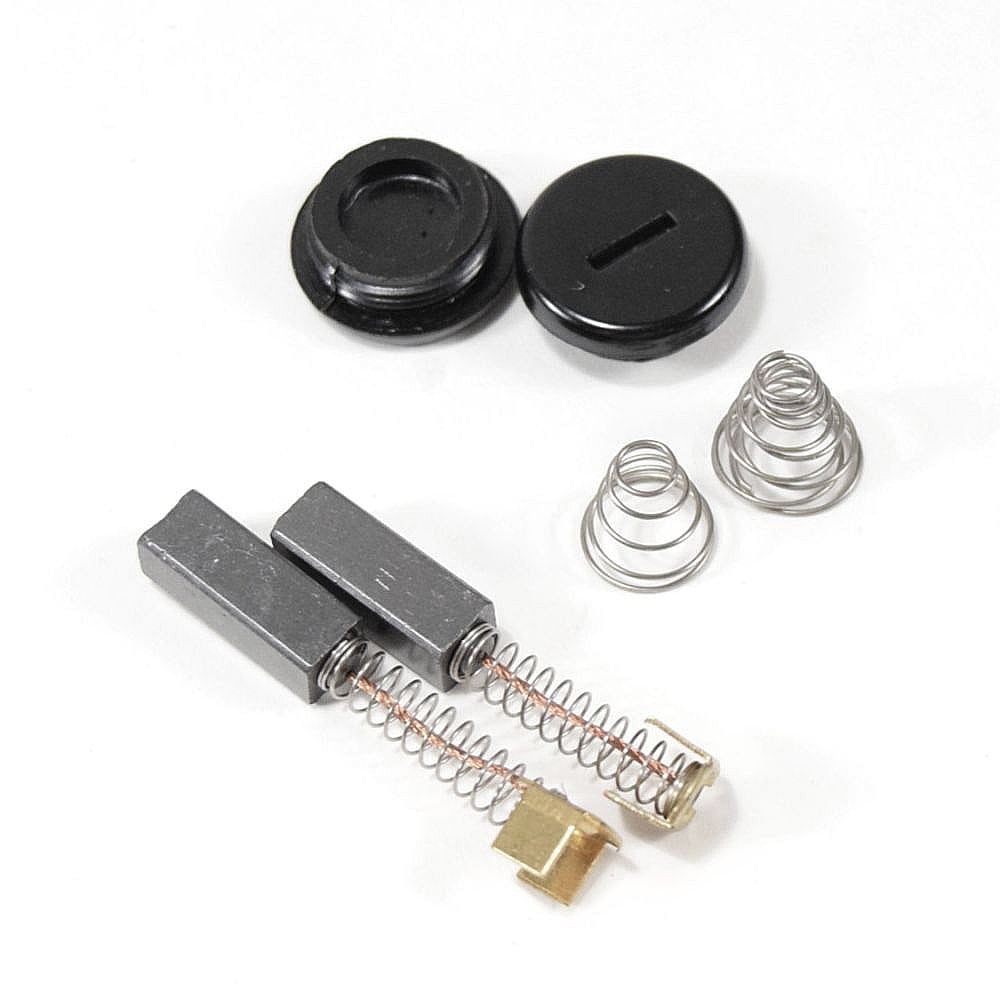

Brush

#NI01

All parts Diagram

Brush

Part #PKG201
In Stock
$52.37
Slinger#10

Utility pump assembly Diagram

Slinger

Part #RP0001616
This item is not returnable
In Stock
$6.57
Pump Puddle Scoop Nozzle

#NI03

All parts Diagram

In Stock
$33.29 |
13% OFF
Phone Price: $38.29
Pump O-Ring#3

Utility pump assembly Diagram

Pump o-ring

Part #U9-239
In Stock
$27.09

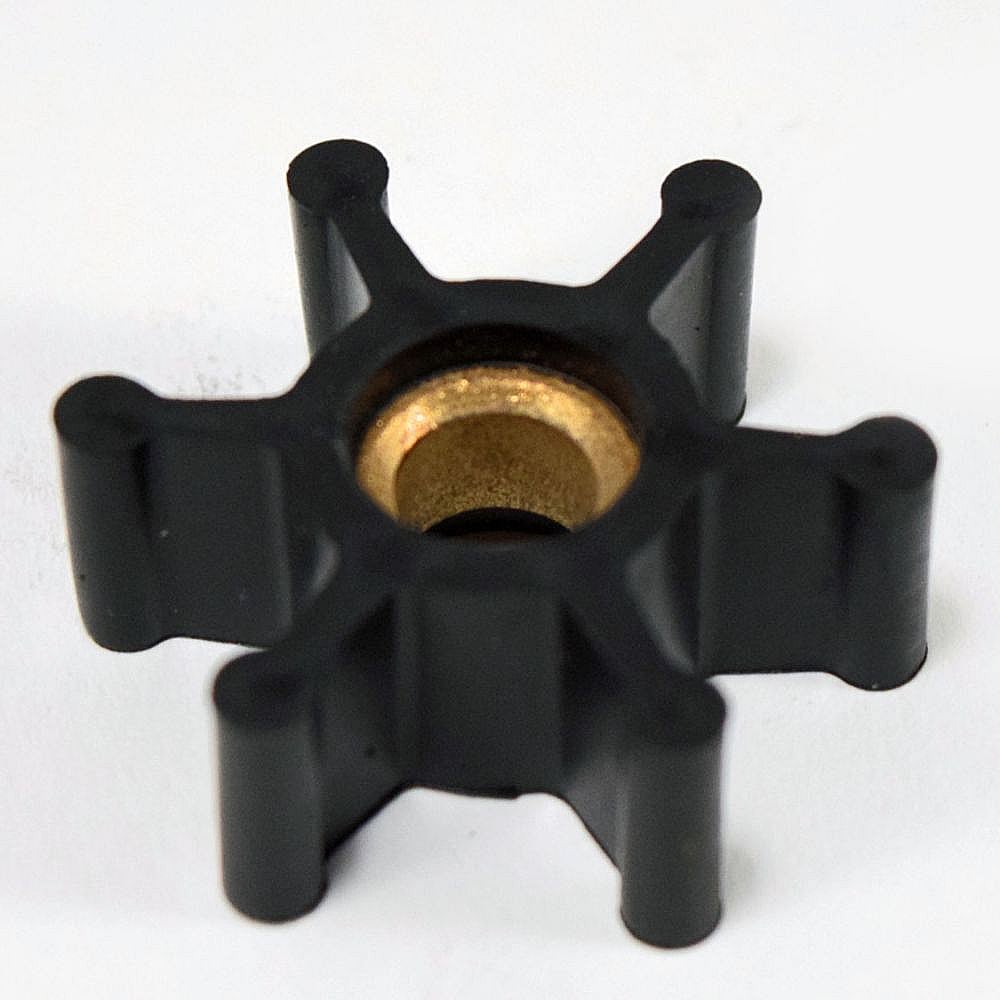

Pump Impeller#4

Utility pump assembly Diagram

Impeller

Part #416-010
Replaced by #S5-283
?
Manufacturer substitution
This part replaces 416-010. Substitute parts can look different from the original.
In Stock
$54.29 |
8% OFF
Phone Price: $59.29
Retainer#9

Utility pump assembly Diagram

Retainer

Part #RE00034-9

The manufacturer no longer makes this part, and there's no substitute part

Screw#5

Utility pump assembly Diagram

Screw

Part #SC0004-92

The manufacturer no longer makes this part, and there's no substitute part

Wear Plate#6

Utility pump assembly Diagram

Wear plate

Part #RP0004944

The manufacturer no longer makes this part, and there's no substitute part

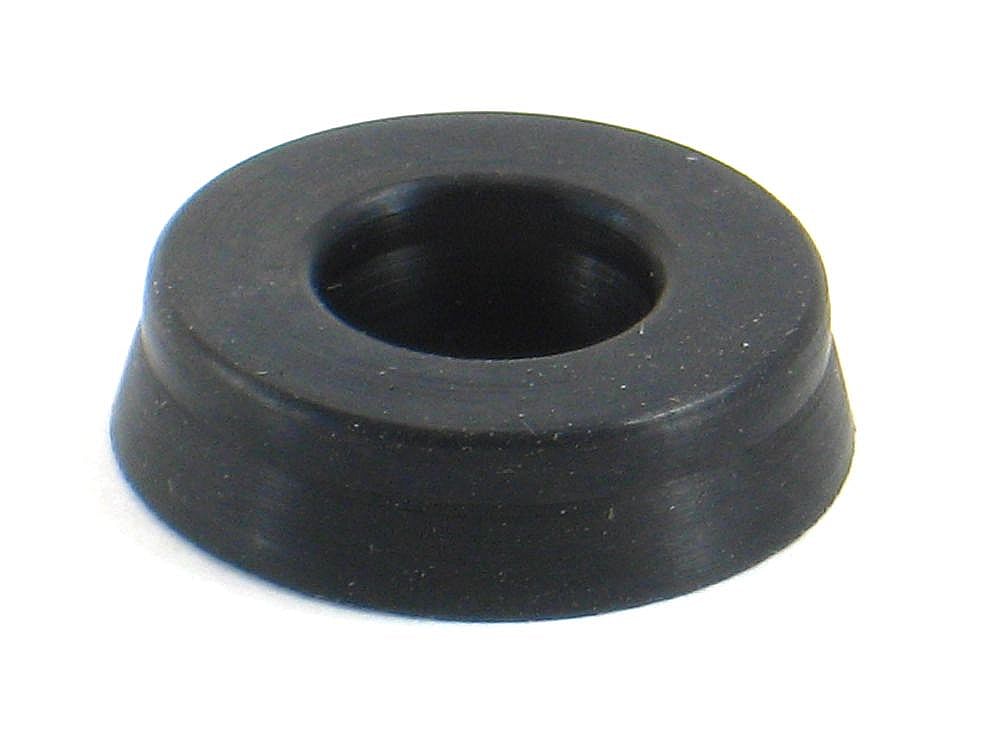

Pump Shaft Seal#8

Utility pump assembly Diagram

Pump shaft seal

Part #16FA019-4

The manufacturer no longer makes this part, and there's no substitute part
