Model #U4317--- Official Hoover upright vacuum

Here are the diagrams and repair parts for Hoover U4317- upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

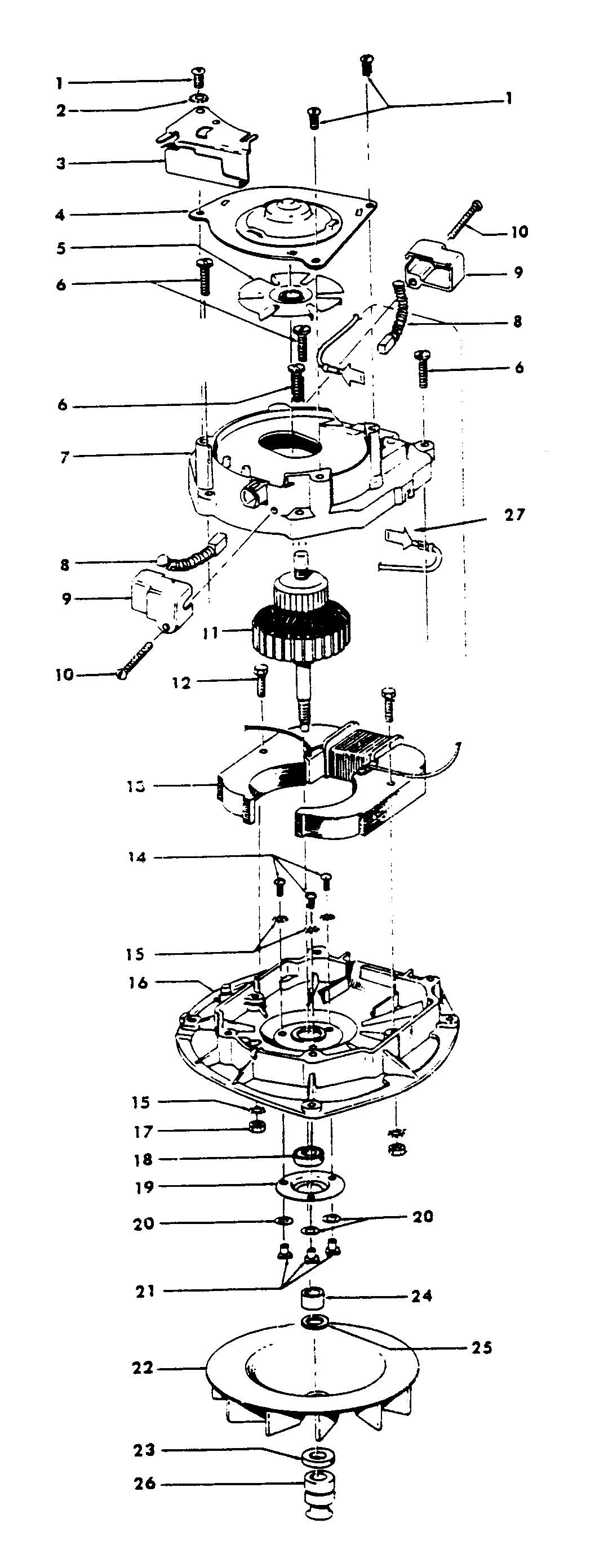

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 170 parts

Spring#43

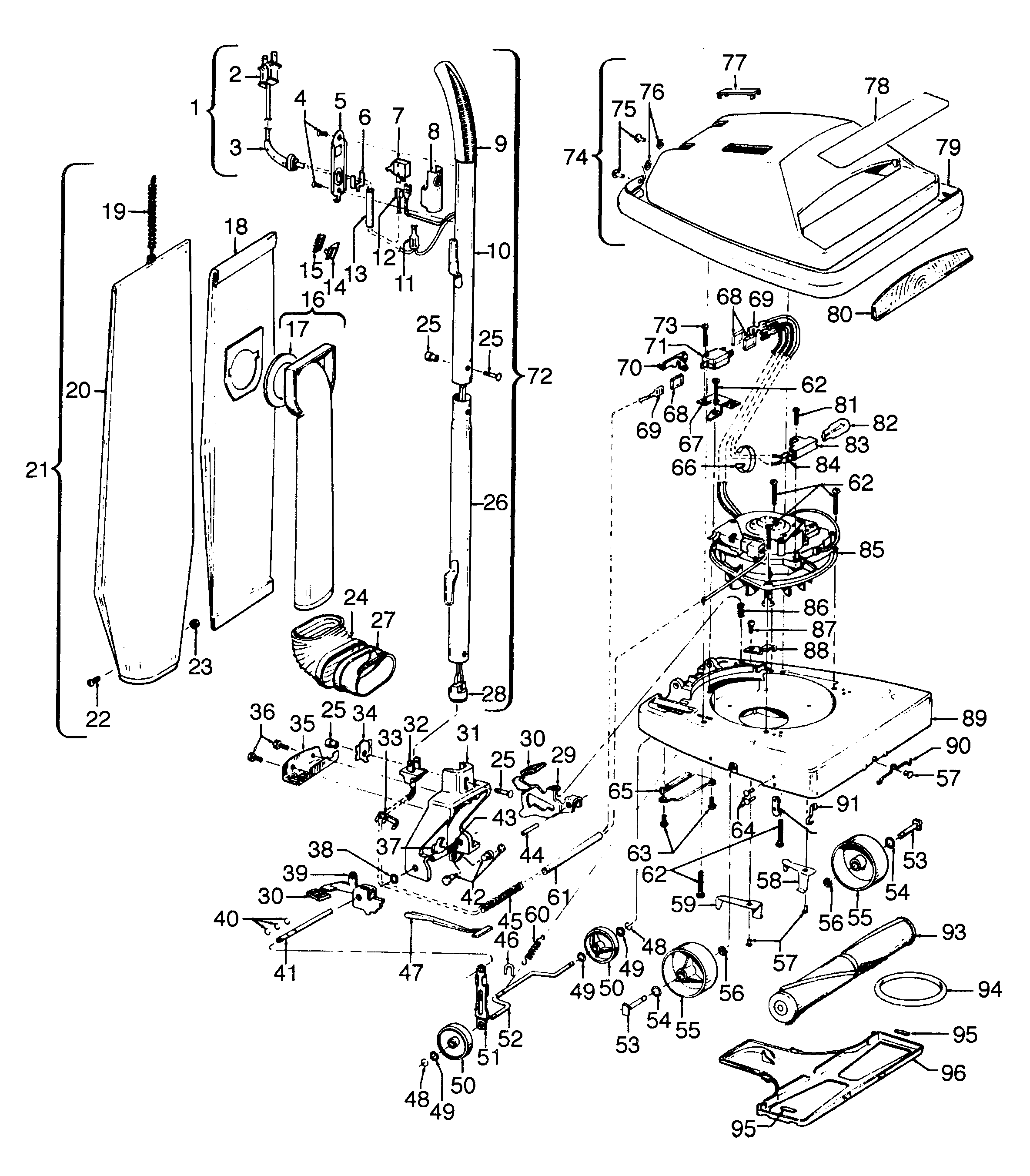

Handle, mainbody, outerbag, hood Diagram

Spring

Part #048409FW

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Light Bulb#82

Handle, mainbody, outerbag, hood Diagram

Vacuum light bulb

Part #27313101

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Dust Brush#4A

Cleaningtools Diagram

Vacuum dust brush

Part #43414064

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Beater Bar#13

Agitator Diagram

Vacuum beater bar

Part #48414021

The manufacturer no longer makes this part, and there's no substitute part

Crevice Tool#11A

Cleaningtools Diagram

Crevice tool

Part #38617024

The manufacturer no longer makes this part, and there's no substitute part

Bottom Plate#96B

Handle, mainbody, outerbag, hood Diagram

Bottom plate

Part #42246038

The manufacturer no longer makes this part, and there's no substitute part

Washer 12 Pk

See All Related Diagrams

Washer 12 pk

Part #21312772

The manufacturer no longer makes this part, and there's no substitute part

Agitator End#4B

Agitator Diagram

Agitator end

Part #41435070

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Plate#96A

Handle, mainbody, outerbag, hood Diagram

Vacuum plate

Part #42246008

The manufacturer no longer makes this part, and there's no substitute part

Support Washer#92

Handle, mainbody, outerbag, hood Diagram

Support washer

Part #21312781

The manufacturer no longer makes this part, and there's no substitute part
