Maytag
Dryer

Model #PYG2200AWW Official Maytag electric dryer

Here are the diagrams and repair parts for Maytag PYG2200AWW electric dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 130 parts

Dryer Drum Belt (replaces 2008, 31531589, 349533, 53-1512, 8210, W10127457, W10131364)#5

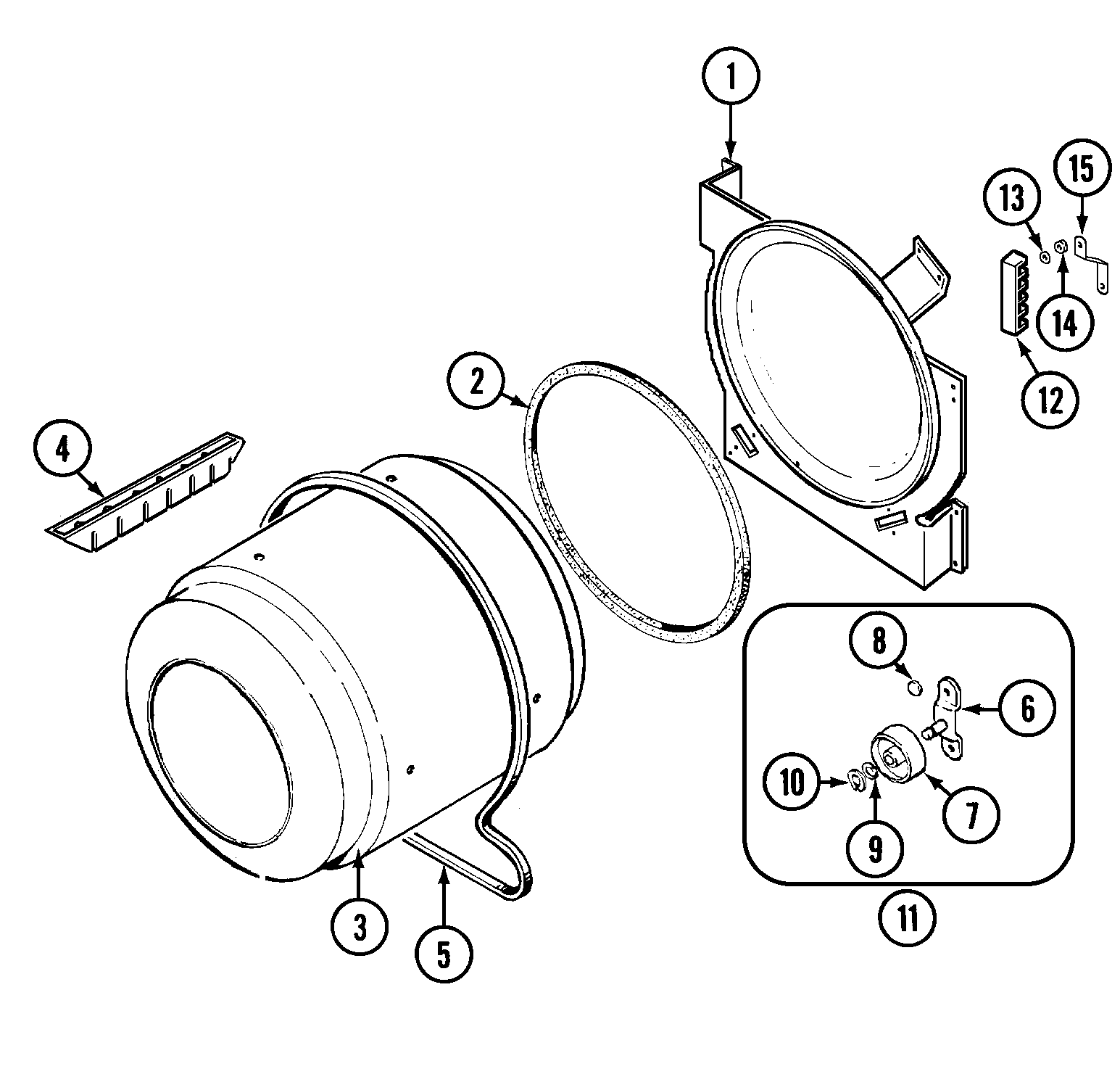

Tumbler Diagram

Dryer drum belt

Part #31531589
Replaced by #341241
?
Manufacturer substitution
This part replaces 31531589. Substitute parts can look different from the original.
BEST SELLER
In Stock
$17.62 |
10% OFF
Phone Price: $19.62
Dryer Valve Coil Kit (replaces 12001349, 279834BULK, 306106, 694539, 694540)#3

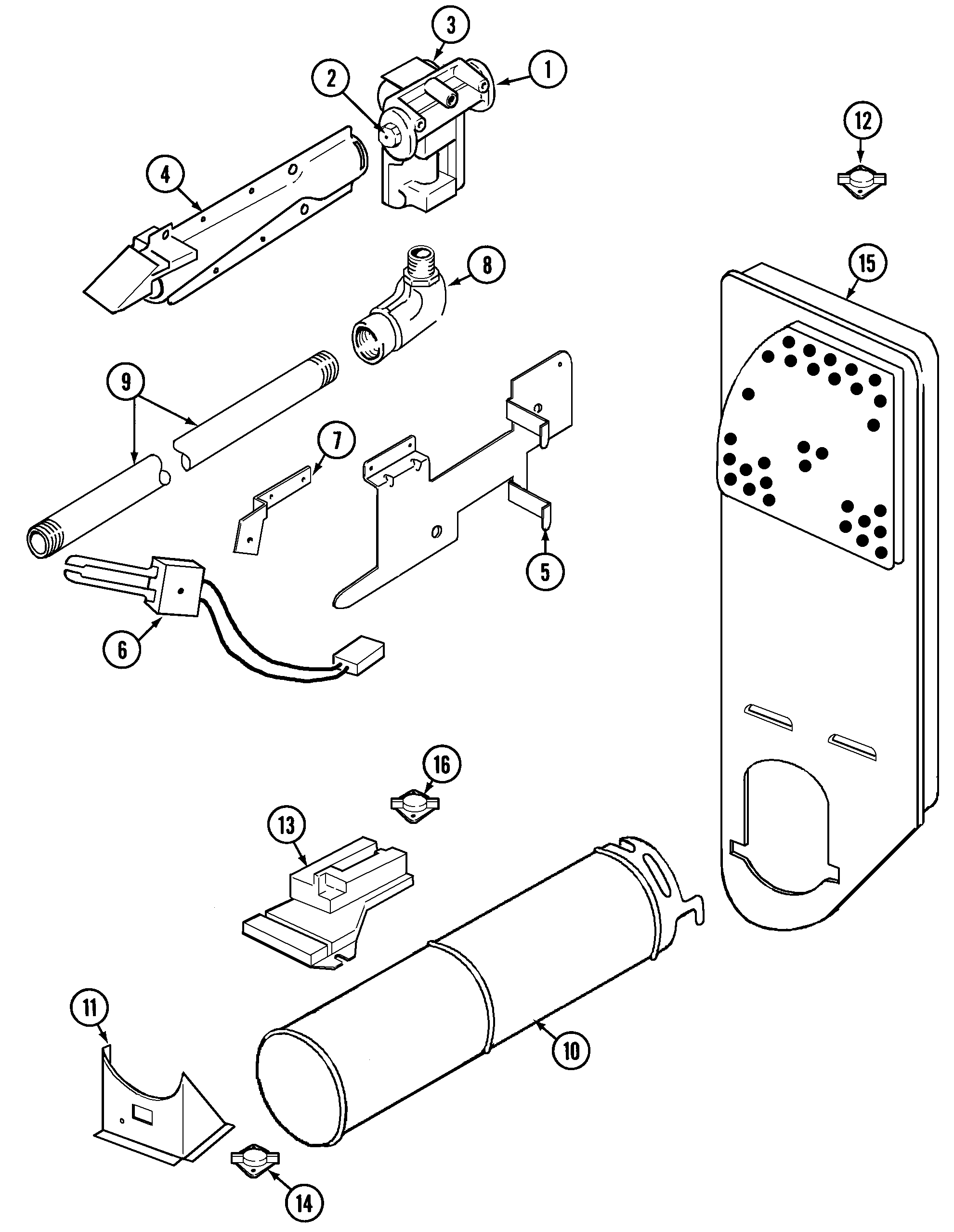

Gas carrying Diagram

Dryer valve coil kit

Part #12001349
Replaced by #279834
?
Manufacturer substitution
This part replaces 12001349. Substitute parts can look different from the original.
BEST SELLER
In Stock
$28.91 |
15% OFF
Phone Price: $33.91
Dryer Radiant Sensor (replaces 338906)#13

Gas carrying Diagram

Sensor

Part #63-5013
Replaced by #WP338906
?
Manufacturer substitution
This part replaces 63-5013. Substitute parts can look different from the original.
BEST SELLER
In Stock
$49.32 |
9% OFF
Phone Price: $54.32
Dryer Lint Screen#9

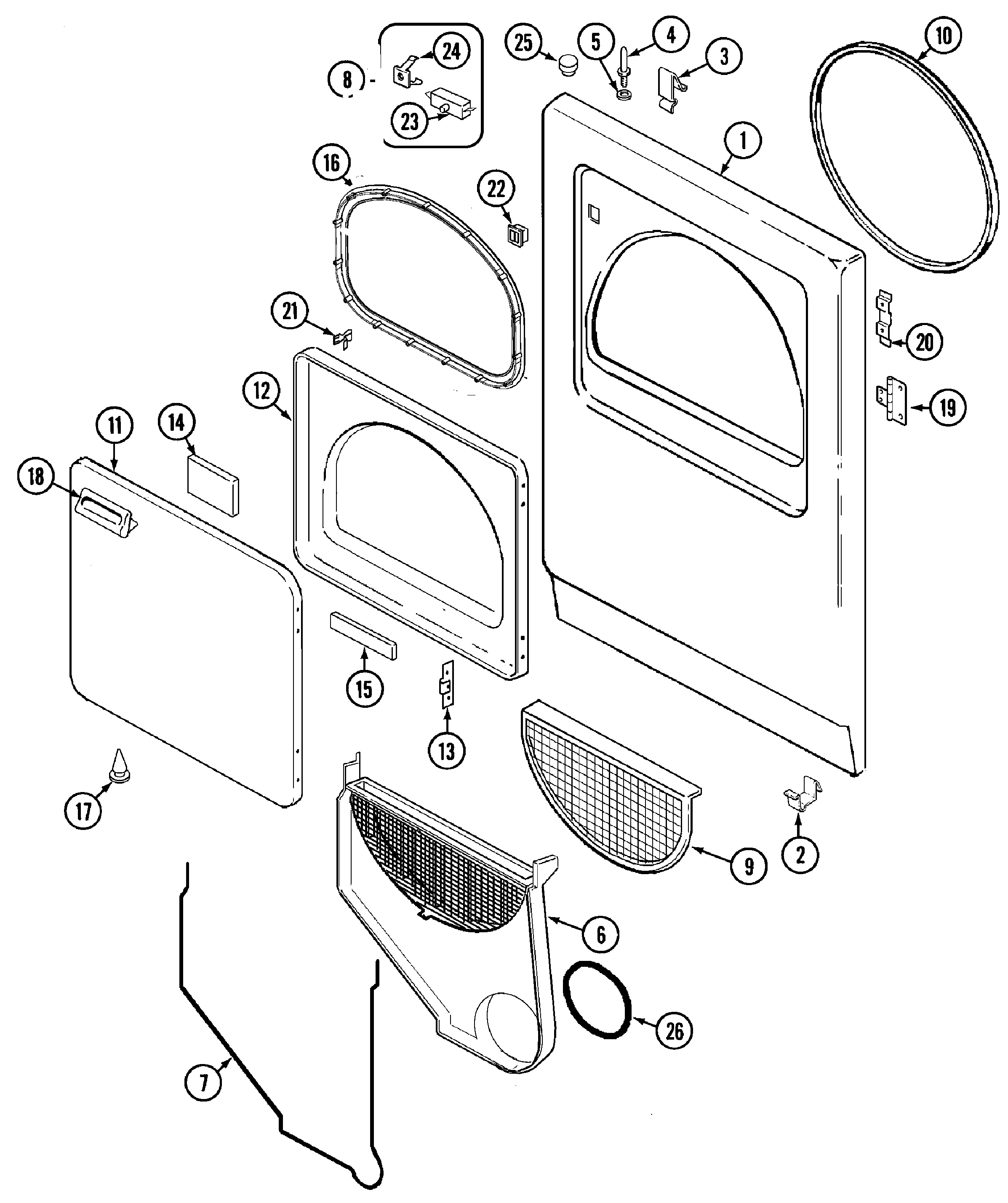

Door Diagram

Dryer lint screen

Part #53-0918
Replaced by #WP53-0918
?
Manufacturer substitution
This part replaces 53-0918. Substitute parts can look different from the original.
BEST SELLER
In Stock
$26.79 |
16% OFF
Phone Price: $31.79
Dryer Blower Wheel (replaces 31001317)#10

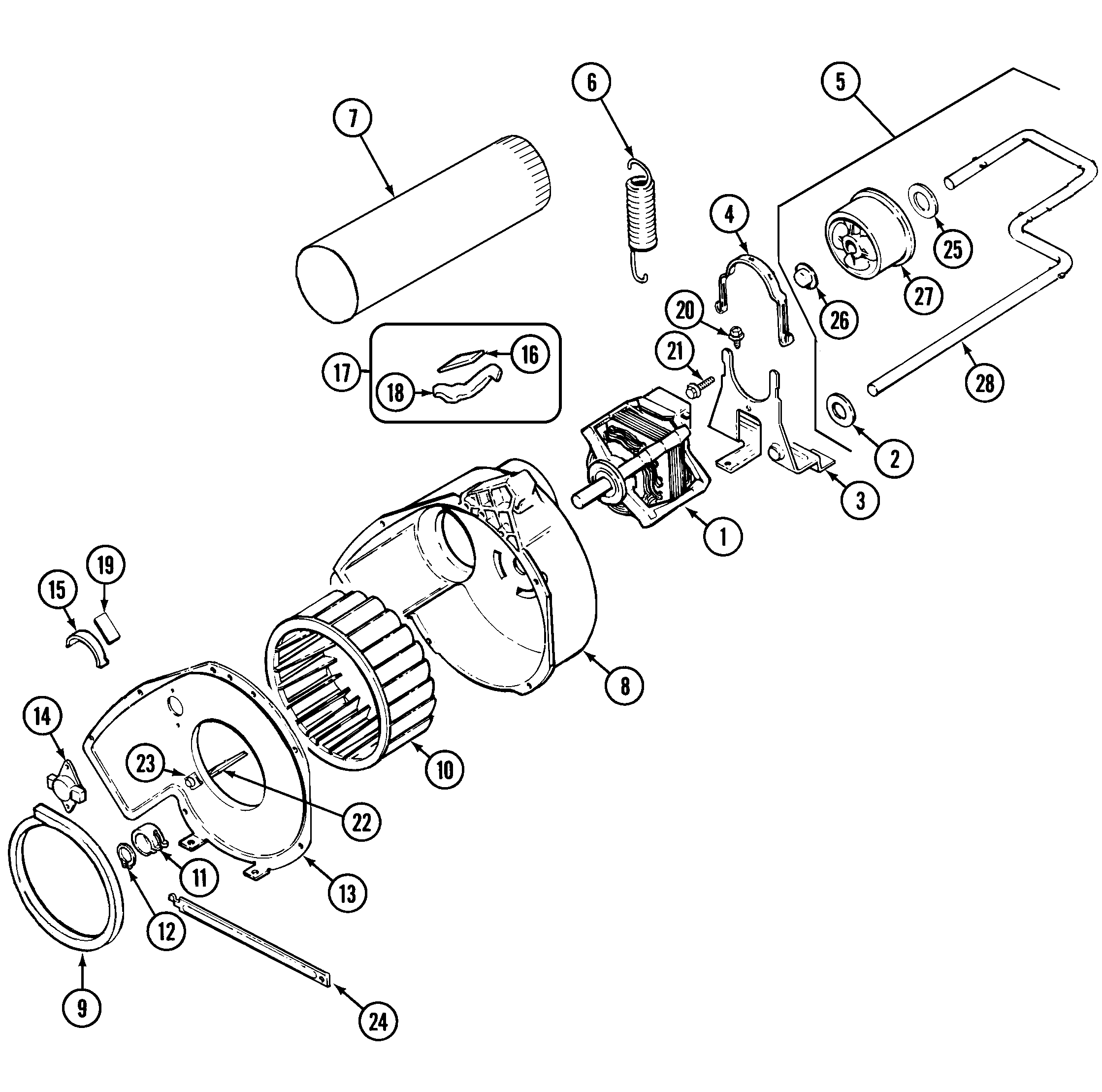

Motor & drive Diagram

Dryer blower wheel

Part #31001317
Replaced by #W11497304
?
Manufacturer substitution
This part replaces 31001317. Substitute parts can look different from the original.
BEST SELLER
In Stock
$46.69 |
10% OFF
Phone Price: $51.69
Dryer Control Knob (replaces 37001184)#6

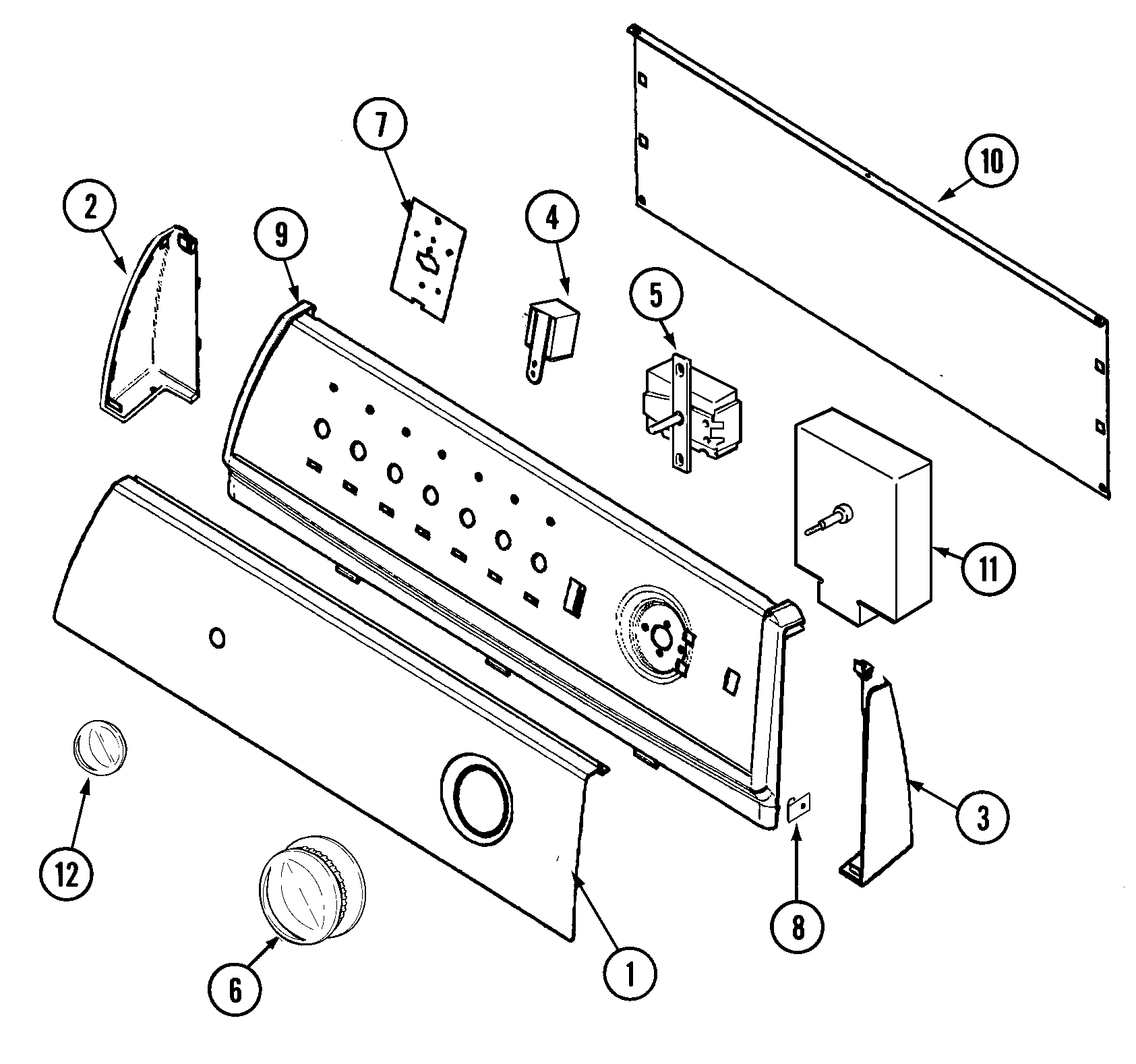

Control panel Diagram

Knob skirt

Part #31001385
Replaced by #WP37001184
?
Manufacturer substitution
This part replaces 31001385. Substitute parts can look different from the original.
In Stock
$36.59 |
12% OFF
Phone Price: $41.59
Dryer Motor Pulley (replaces 31001535)#1A

Motor & drive Diagram

Dryer pulley

Part #53-0932
Replaced by #WP31001535
?
Manufacturer substitution
This part replaces 53-0932. Substitute parts can look different from the original.
In Stock
$53.79 |
9% OFF
Phone Price: $58.79
Dryer Thermal Fuse Kit (replaces 53-0143, 53-0261, 53-1096, 53-1133, 53-1182, 53-1526)#14

Gas carrying Diagram

In Stock
$35.29 |
12% OFF
Phone Price: $40.29
Dryer Drive Motor (replaces 31001015, 31001589)#1

Motor & drive Diagram

Motor

Part #31001316
Replaced by #W10410996
?
Manufacturer substitution
This part replaces 31001316. Substitute parts can look different from the original.
In Stock
$214.10 |
$10.00 OFF
Phone Price: $224.10
Switch Screw

See All Related Diagrams

Switch screw

Part #25-3092
This item is not returnable
In Stock
$4.39 |
19% OFF
Phone Price: $5.39

Symptoms common to all dryers

Choose a symptom to see related dryer repairs.

Main causes: bad drum support roller, damaged idler pulley, broken blower fan blade, worn drum glide bearing, bad drive motor
Main causes: bad gas valve coils, broken heating element, tripped safety thermostat or fuse, bad operating thermostat, control failure
Main causes: bad timer or electronic control board, door switch failure
Main causes: lack of electrical power, bad power cord, wiring failure, bad control board, blown thermal fuse, bad door switch
Main causes: clogged exhaust vent, bad motor relay, loose dryer door catch, bad door switch, control system failure, faulty drive motor
Main causes: damaged door strike, worn door catch
Main causes: door switch failure, lack of power, broken belt, blown thermal fuse, bad drive motor, control system failure
Main causes: clogged exhaust system, heating system failure, deposits on moisture sensor, control system failure
