Jenn-Air
Warming Drawer

Model #JJD3027IL00 Official Jenn-Air warming drawer

Here are the diagrams and repair parts for Jenn-Air JJD3027IL00 warming drawer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 44 parts

Range Screw#13

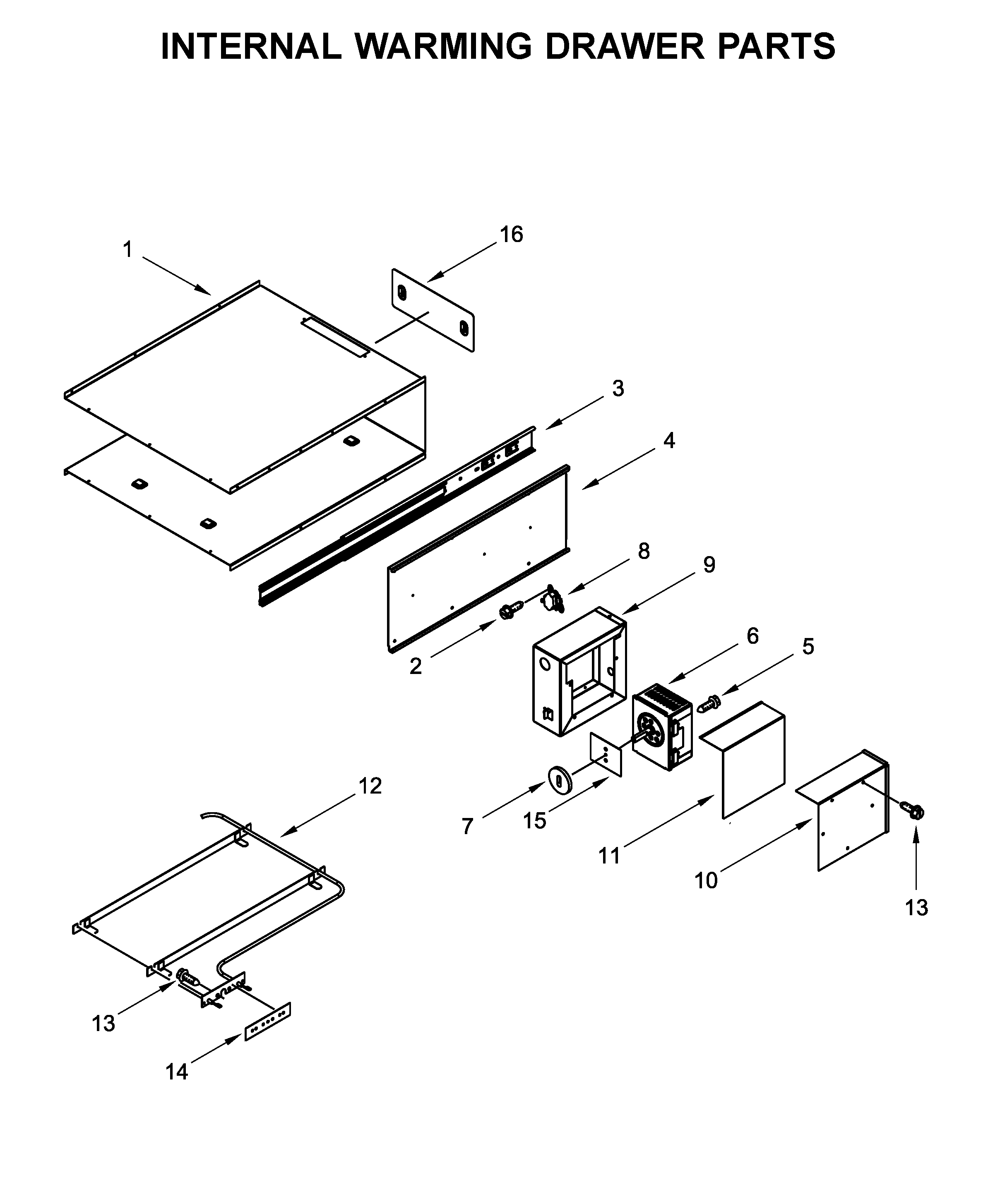

Internal warming drawer parts Diagram

Screw

Part #3196537
Replaced by #WP3196557
?
Manufacturer substitution
This part replaces 3196537. Substitute parts can look different from the original.
This item is not returnable
In Stock
$4.39 |
19% OFF
Phone Price: $5.39
Range Oven Door Handle Screw#10

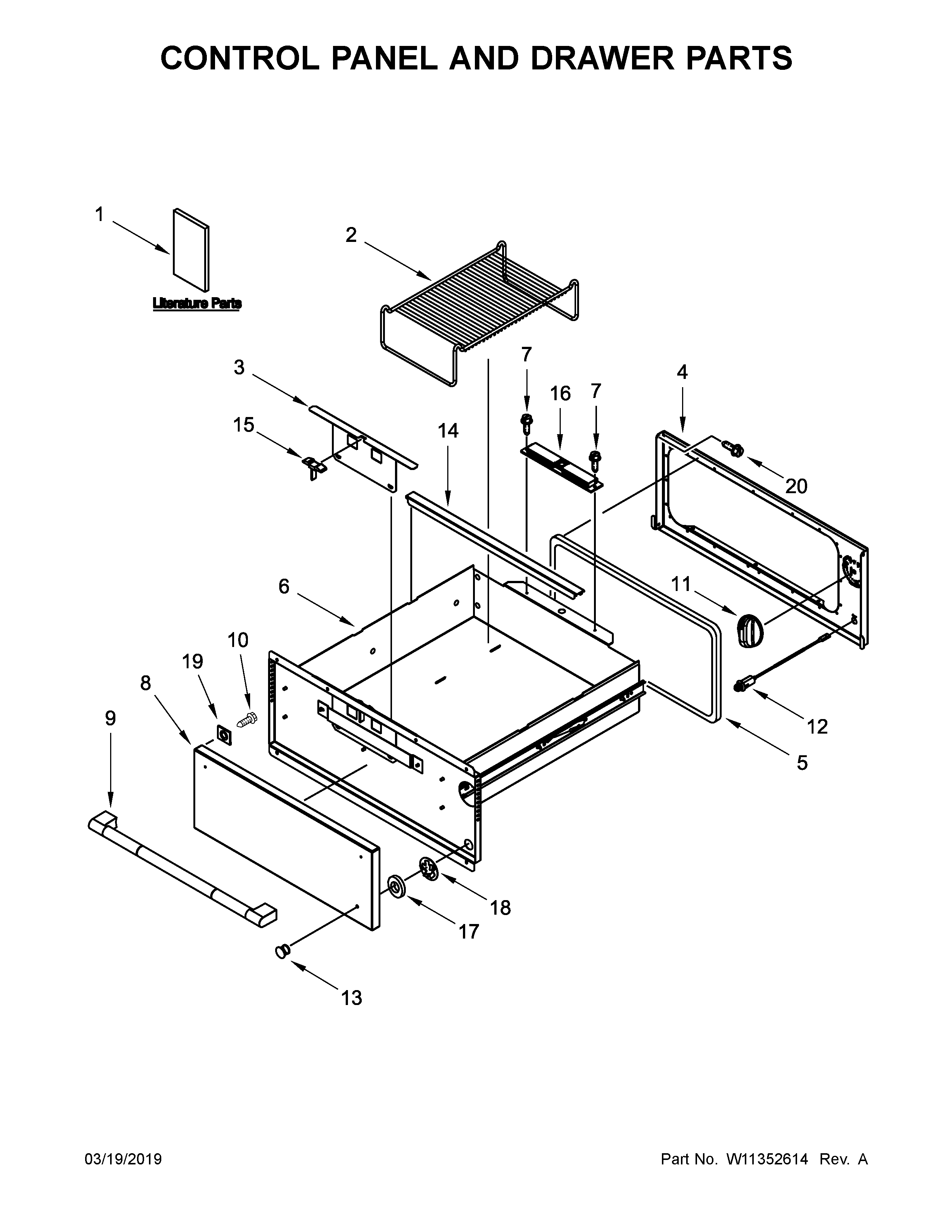

Control panel and drawer parts Diagram

8-32 x .860

Part #W10480830
Replaced by #W10831019
?
Manufacturer substitution
This part replaces W10480830. Substitute parts can look different from the original.
This item is not returnable
In Stock
$4.76 |
17% OFF
Phone Price: $5.76
Light Lens#13

Control panel and drawer parts Diagram

Light lens

Part #4456314
In Stock
$43.67
Warming Drawer Thermal Fuse#8

Internal warming drawer parts Diagram

In Stock
$32.87
Range Screw#20

Control panel and drawer parts Diagram

Screw- sho

Part #7101P434-60
Replaced by #WP7101P434-60
?
Manufacturer substitution
This part replaces 7101P434-60. Substitute parts can look different from the original.
This item is not returnable
In Stock
$4.33
Panel#4

Control panel and drawer parts Diagram

Panel

Part #W10732704
In Stock
$198.82
Slide Vent#3

Control panel and drawer parts Diagram

Slide vent

Part #W10162376
In Stock
$47.00
Drawer Panel#4A

Internal warming drawer parts Diagram

Drawer panel

Part #9762307
In Stock
$29.89
Seal Element#14

Internal warming drawer parts Diagram

Seal element

Part #W10118049
In Stock
$7.80
Range Knob#11

Control panel and drawer parts Diagram

Range knob

Part #W10274390
In Stock
$30.87
