Model # 50PC5D Official LG plasma television

Here are the diagrams and repair parts for Official LG 50PC5D plasma television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 78 parts  |
Support Assembly AJJ31592802
#304

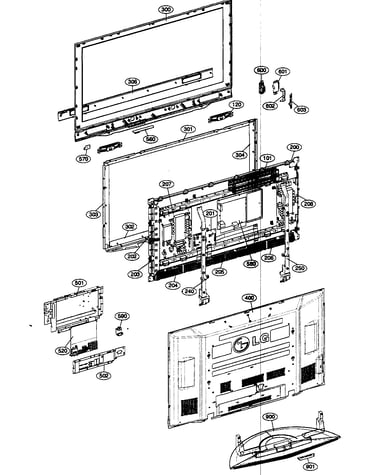

Cabinet parts diagram

Support assembly

Part #AJJ31592802

The manufacturer no longer makes this part, and there's no substitute part

Pcb Assembly 6871QCH083A
#201

Cabinet parts diagram

Pcb assembly

Part #6871QCH083A

The manufacturer no longer makes this part, and there's no substitute part

Ac/dc Pcb EAY32957901
#580

Cabinet parts diagram

Ac/dc pcb

Part #EAY32957901

The manufacturer no longer makes this part, and there's no substitute part

Pcb Assembly 6871QZH065A
#208

Cabinet parts diagram

Pcb assembly

Part #6871QZH065A

The manufacturer no longer makes this part, and there's no substitute part

Module 6712000013A
#NI

Cabinet parts diagram

Module

Part #6712000013A

The manufacturer no longer makes this part, and there's no substitute part

Pcb Assembly 6871QXH034A
#205

Cabinet parts diagram

Pcb assembly

Part #6871QXH034A

The manufacturer no longer makes this part, and there's no substitute part

Pcb Assembly 6871QRH073A
#206

Cabinet parts diagram

Pcb assembly

Part #6871QRH073A

The manufacturer no longer makes this part, and there's no substitute part

Plate AGU31681112
#501

Cabinet parts diagram

Plate

Part #AGU31681112

The manufacturer no longer makes this part, and there's no substitute part

Support AJJ31591604
#250

Cabinet parts diagram

Support

Part #AJJ31591604

The manufacturer no longer makes this part, and there's no substitute part

Support Assembly AJJ31592502
#301

Cabinet parts diagram

Support assembly

Part #AJJ31592502

The manufacturer no longer makes this part, and there's no substitute part
