Model #DC81DN-01 Official Magic Chef dishwasher

Here are the diagrams and repair parts for Magic Chef DC81DN-01 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 100 parts

Washer Hose Clamp

See All Related Diagrams

Clamp

Part #2235-0007
Replaced by #WP696392
?
Manufacturer substitution
This part replaces 2235-0007. Substitute parts can look different from the original.
This item is not returnable
In Stock
$5.89 |
15% OFF
Phone Price: $6.89
Washer Hose Clamp

See All Related Diagrams

Clamp

Part #2235-0008
Replaced by #WP696392
?
Manufacturer substitution
This part replaces 2235-0008. Substitute parts can look different from the original.
This item is not returnable
In Stock
$5.89 |
15% OFF
Phone Price: $6.89
End Cap Rack#27

Rack & trim Diagram

End cap rack

Part #2355-0002
In Stock
$14.27
Appliance Screw, #8-32 x 0.29-in#10

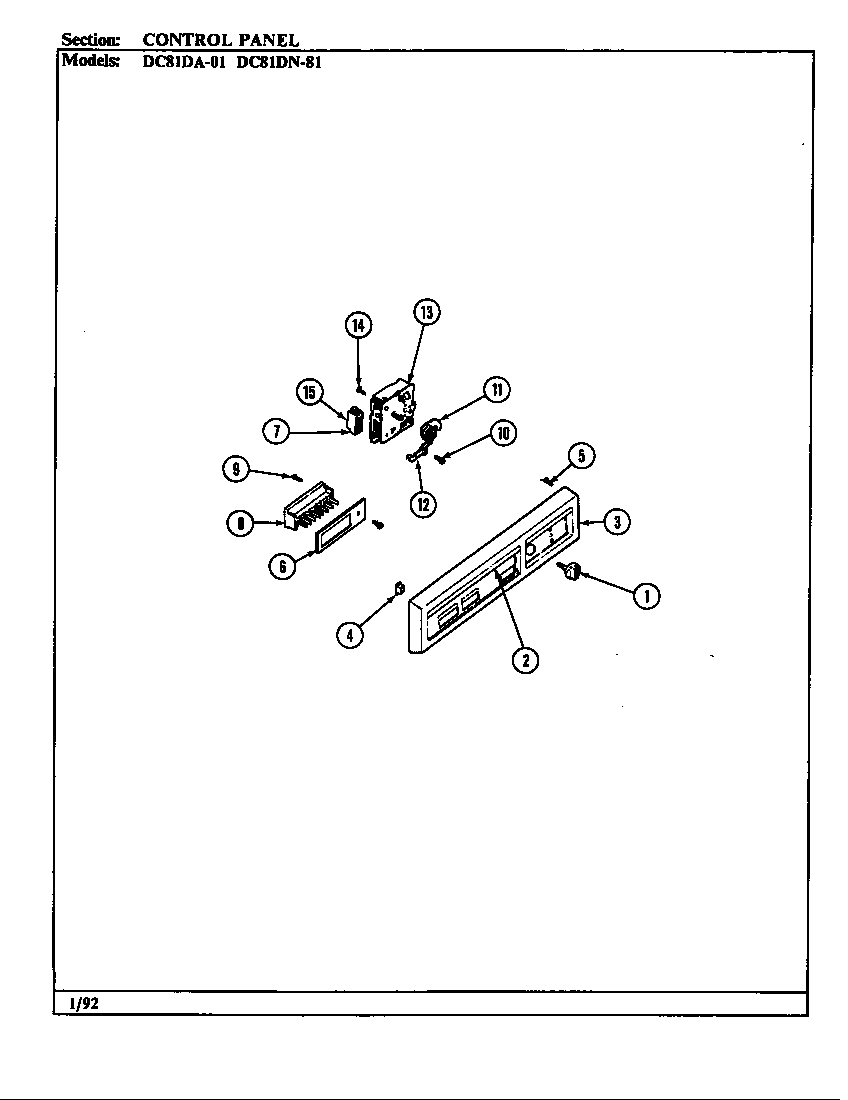

Control panel Diagram

Screw

Part #3005-0024
Replaced by #WPW10068250
?
Manufacturer substitution
This part replaces 3005-0024. Substitute parts can look different from the original.
This item is not returnable
In Stock
$5.09 |
16% OFF
Phone Price: $6.09
Range Screw#2

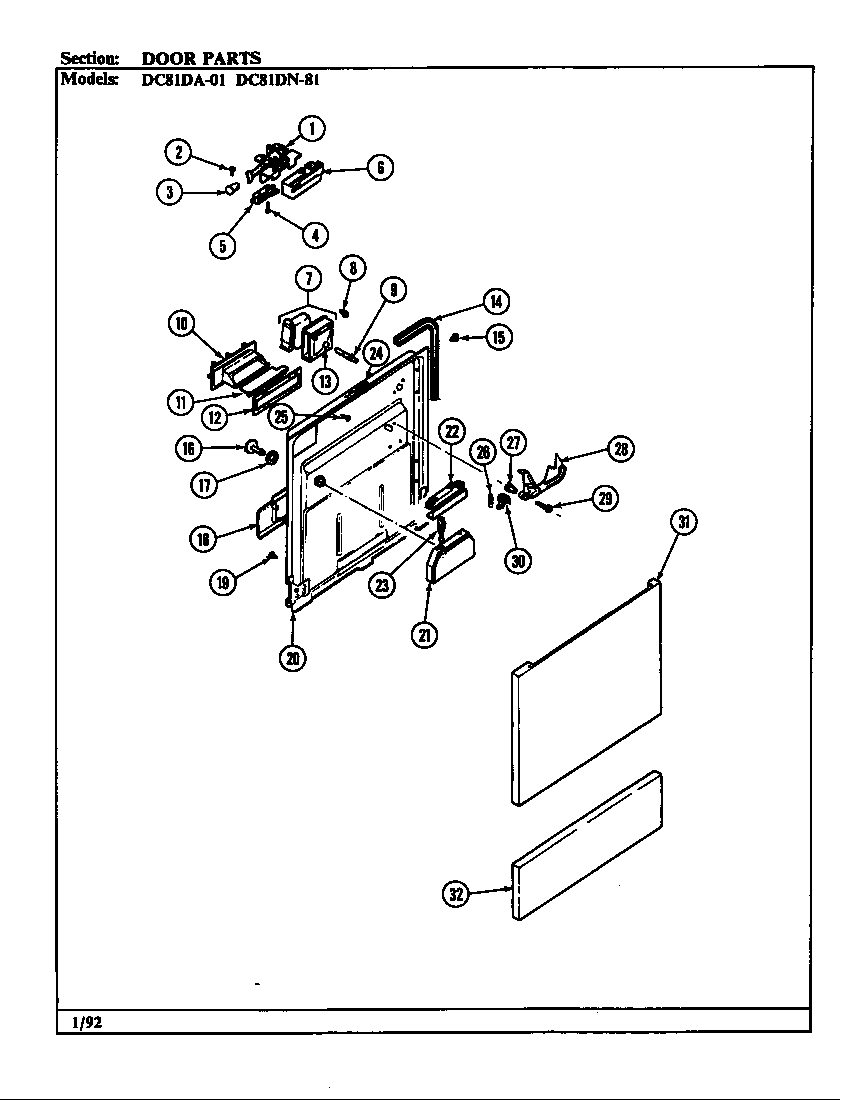

Door parts Diagram

Screw

Part #3005-0029
Replaced by #WP74004005
?
Manufacturer substitution
This part replaces 3005-0029. Substitute parts can look different from the original.
This item is not returnable
In Stock
$4.39 |
19% OFF
Phone Price: $5.39
Refrigerator Screw#8A

Rack & trim Diagram

Screw

Part #03000153
Replaced by #W11233072
?
Manufacturer substitution
This part replaces 03000153. Substitute parts can look different from the original.
In Stock
$16.79 |
11% OFF
Phone Price: $18.79
Hose Assembly#38

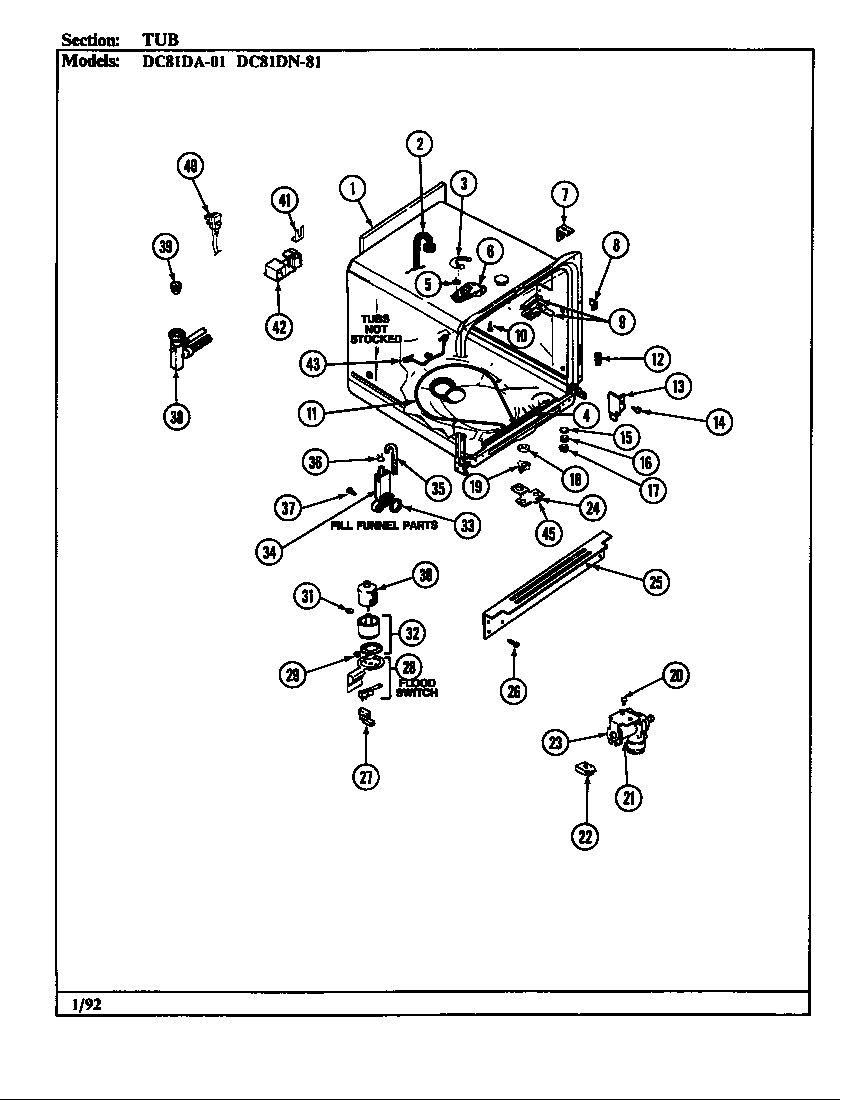

Tub Diagram

Hose assembly

Part #03000133
Replaced by #Y03000133
?
Manufacturer substitution
This part replaces 03000133. Substitute parts can look different from the original.
In Stock
$71.64
Range Screw#33

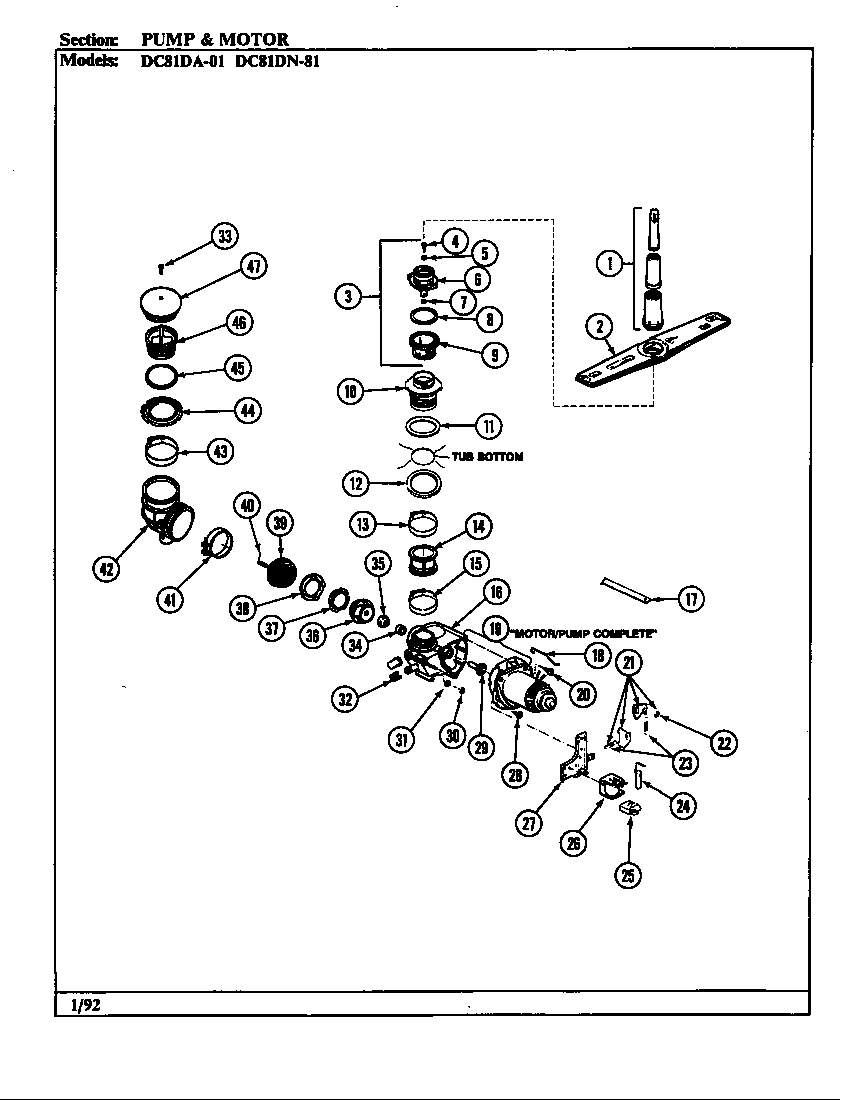

Pump & motor Diagram

Screw

Part #3005-0003
Replaced by #7101P345-60
?
Manufacturer substitution
This part replaces 3005-0003. Substitute parts can look different from the original.
In Stock
$12.49
Lower Rack#2

Rack & trim Diagram

Lower rack

Part #03000136

The manufacturer no longer makes this part, and there's no substitute part

Hinge Spring#14

Rack & trim Diagram

Hinge spring

Part #3070-0004

The manufacturer no longer makes this part, and there's no substitute part
