Jenn-Air
Wall Oven/Microwave Combo

Model # JMW2430WW01 Official Jenn-Air 30" wall oven/microwave combo

Here are the diagrams and repair parts for Official Jenn-Air JMW2430WW01 30" wall oven/microwave combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

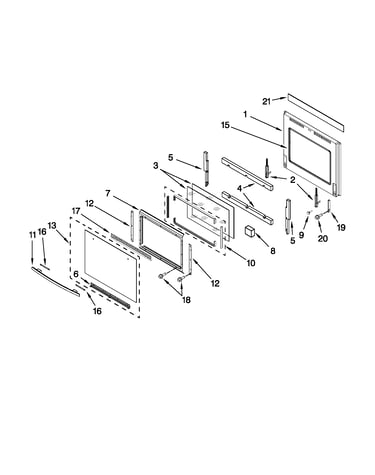

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 186 parts  |
Inverter W10120229
#38

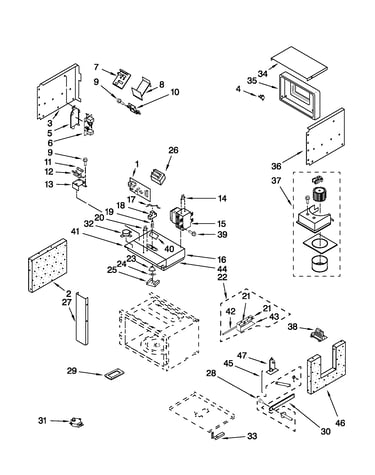

Cabinet and stirrer parts diagram

Inverter

Part #W10120229

Replaced by #W10217711

?
Manufacturer substitution
This part replaces W10120229. Substitute parts can look different from the original.
BEST SELLER
$202.82 |
19% OFF MSRP : $250.00
In Stock
Magnetron W10120113
#15

Cabinet and stirrer parts diagram

Magnetron

Part #W10120113

The manufacturer no longer makes this part, and there's no substitute part

Spray W 350930
#NI

Optional parts diagram

Spray w

Part #350930

Replaced by #350930

?
Manufacturer substitution
This part replaces 350930. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$15.69 |
11% OFF Phone Price : $17.69
In Stock
Microwave Turntable Tray 8205676
#7

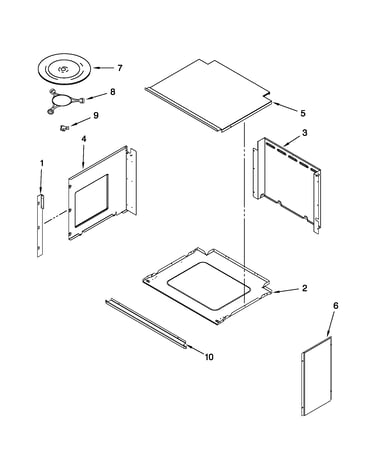

Top support and turntable parts diagram

Microwave turntable tray

Part #8205676

Replaced by #W11373838

?
Manufacturer substitution
This part replaces 8205676. Substitute parts can look different from the original.
BEST SELLER
$39.80 |
25% OFF MSRP : $53.00
In Stock
Touch-up Paint (black) 72032
#NI

Optional parts diagram

Touch-up paint (black)

Part #72032

Replaced by #72032

?
Manufacturer substitution
This part replaces 72032. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$9.02 |
25% OFF MSRP : $12.00
In Stock
Cover W10120230
#29

Cabinet and stirrer parts diagram

Cover

Part #W10120230

Replaced by #W10915651

?
Manufacturer substitution
This part replaces W10120230. Substitute parts can look different from the original.
$37.25 |
12% OFF Phone Price : $42.25
In Stock
Turntable Motor W10287967
#31

Cabinet and stirrer parts diagram

Turntable motor

Part #W10287967

Replaced by #W10911403

?
Manufacturer substitution
This part replaces W10287967. Substitute parts can look different from the original.
$75.47 |
20% OFF MSRP : $94.00
In Stock
Microwave Turntable Motor Coupler 8205677
#9

Top support and turntable parts diagram

Microwave turntable motor coupler

Part #8205677

Replaced by #WPW10776938

?
Manufacturer substitution
This part replaces 8205677. Substitute parts can look different from the original.
This item is not returnable
$18.89 |
10% OFF Was : $20.99
In Stock
Wall Oven Light Bulb W10169757
#29

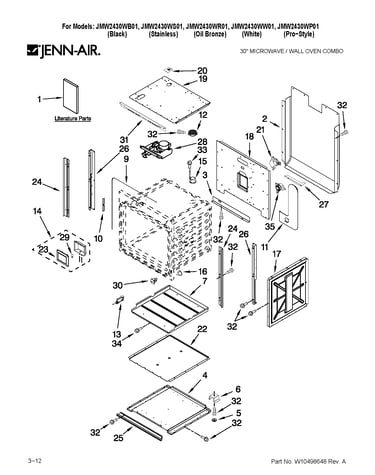

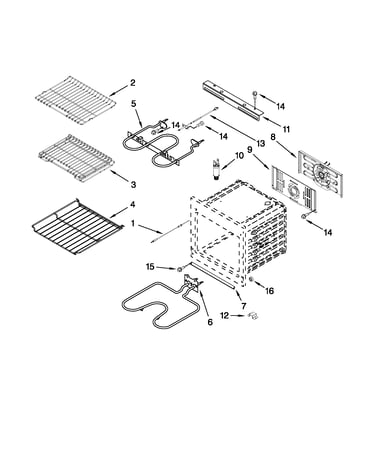

Oven parts diagram

Wall oven light bulb

Part #W10169757

Replaced by #WPW10169757

?
Manufacturer substitution
This part replaces W10169757. Substitute parts can look different from the original.
This item is not returnable
$32.76 |
13% OFF Phone Price : $37.76
In Stock
Fuse (black) 4375321
#11

Cabinet and stirrer parts diagram

Fuse (black)

Part #4375321

Replaced by #WP4375321

?
Manufacturer substitution
This part replaces 4375321. Substitute parts can look different from the original.
$14.13 |
43% OFF MSRP : $25.00
In Stock
