LG
Side-By-Side Refrigerator

Model # LSC27950SB Official LG refrigerator

Here are the diagrams and repair parts for Official LG LSC27950SB refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

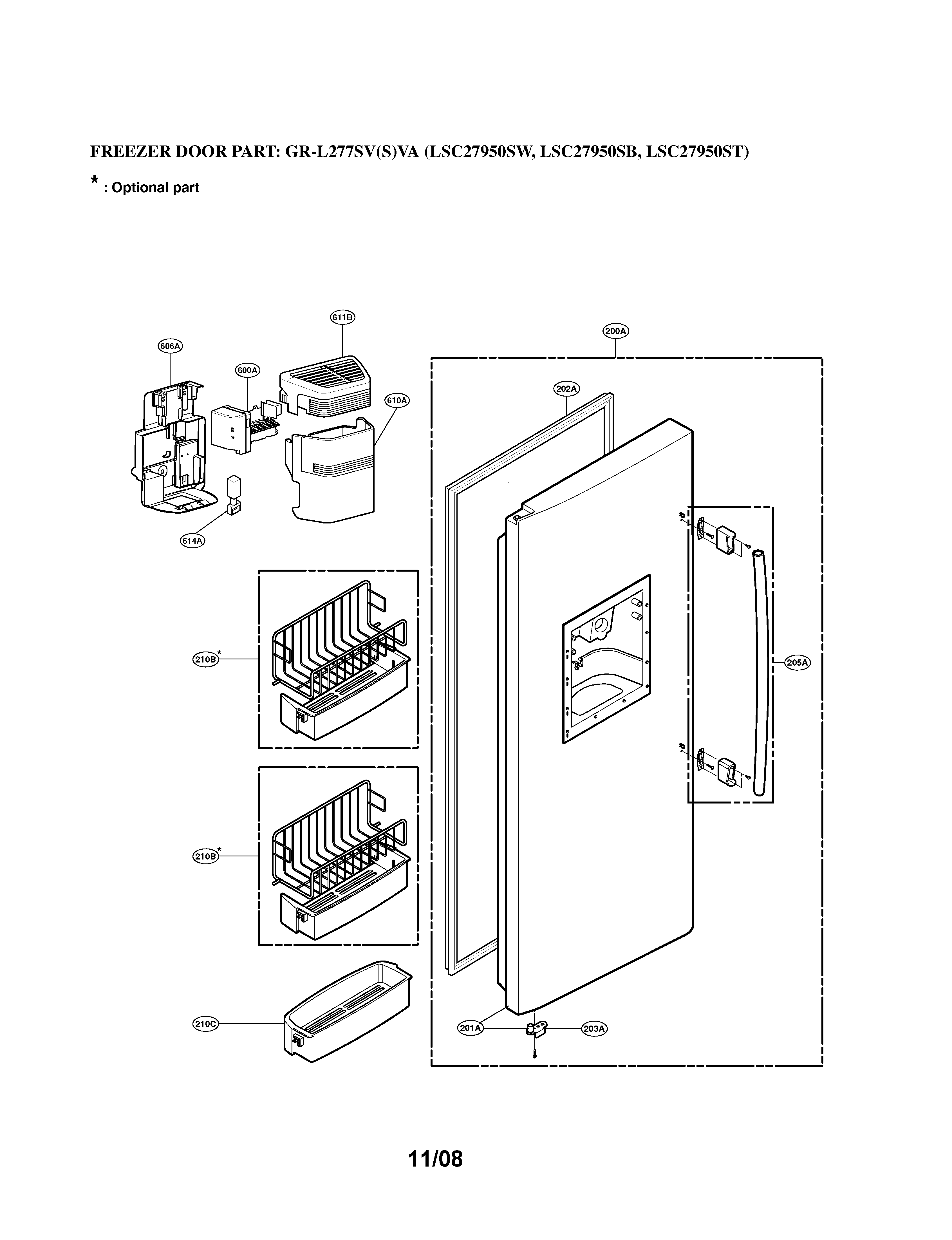

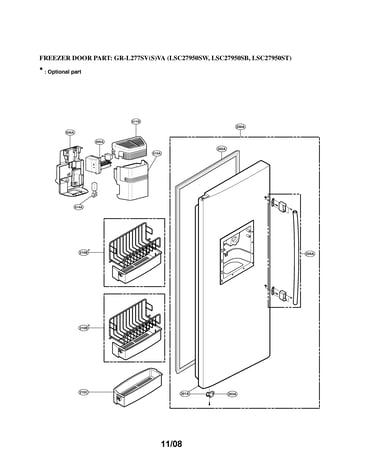

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 137 parts  |

Refrigerator Water Filter 5231JA2006A
#624A

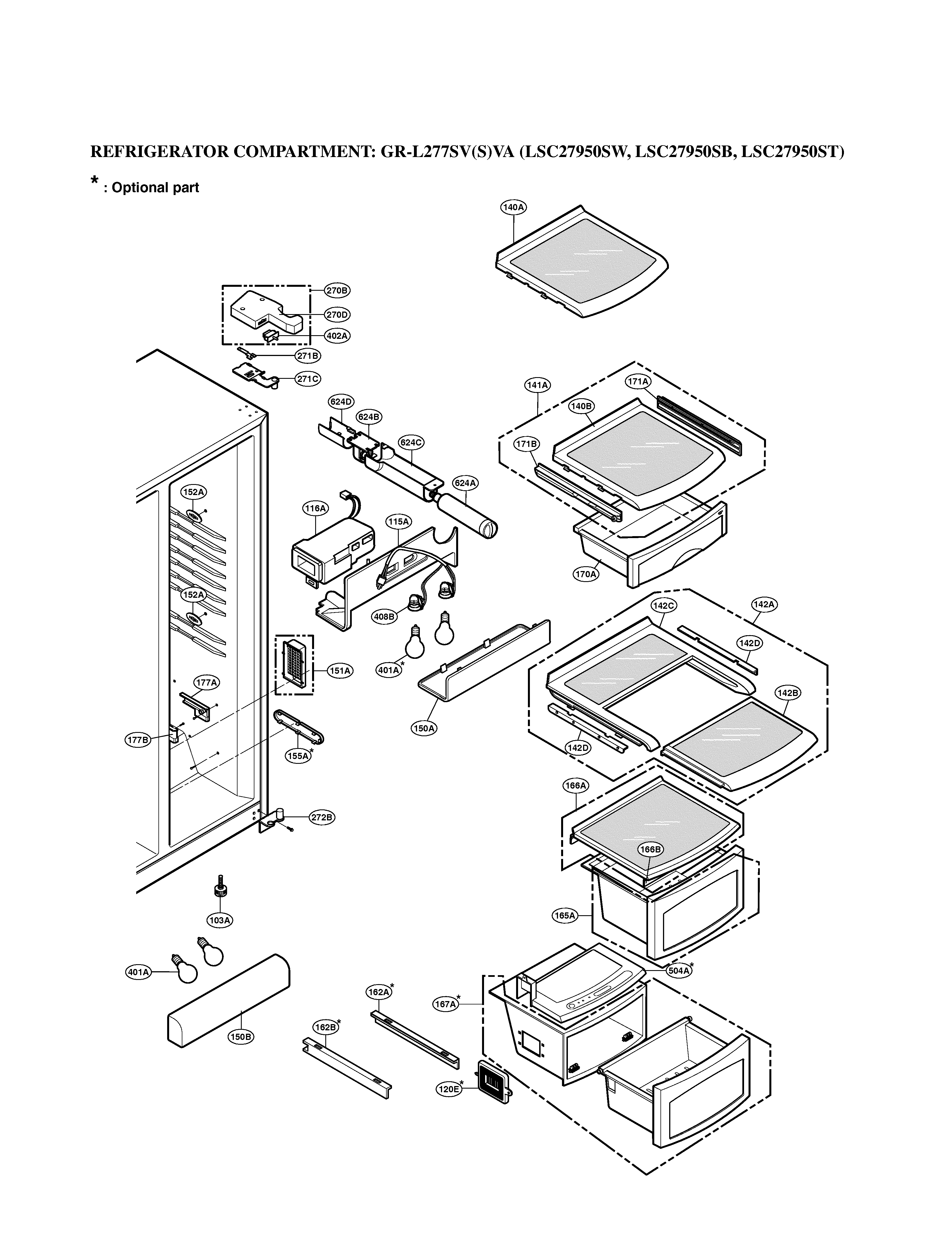

Refrigerator compartment diagram

Refrigerator water filter

Part #5231JA2006A

Replaced by #5231JA2006F

?
Manufacturer substitution
This part replaces 5231JA2006A. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

In Stock
Switch,mic 6600JB3001B
#402C

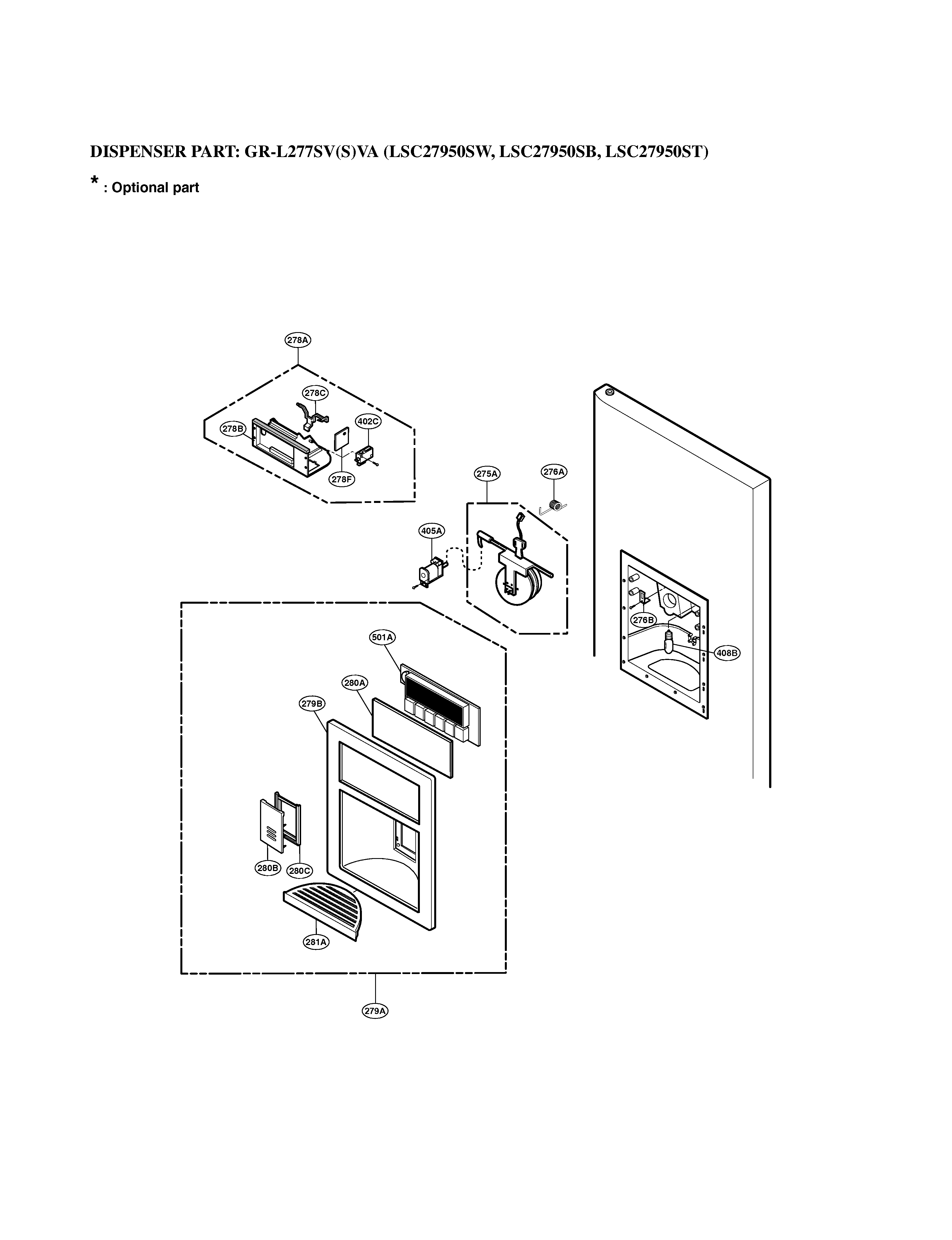

Dispenser diagram

Switch,mic

Part #6600JB3001B

Replaced by #6600JB3001C

?
Manufacturer substitution
This part replaces 6600JB3001B. Substitute parts can look different from the original.
BEST SELLER
$33.60
13% OFF Phone Price : $38.60
In Stock
Refrigerator Drier Assembly ADH31867602
#317A

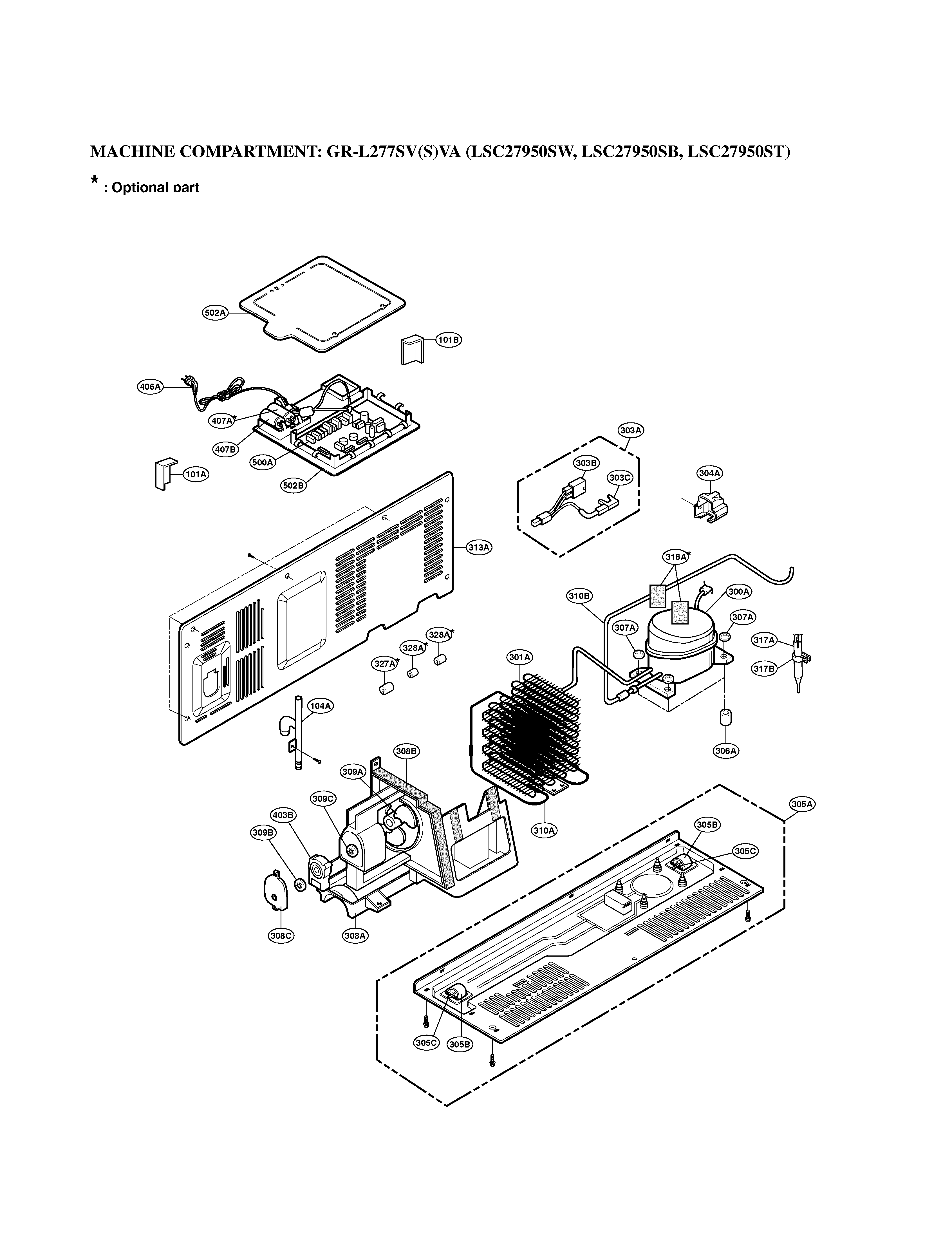

Machine compartment diagram

Refrigerator drier assembly

Part #ADH31867602

Replaced by #ADH73150210

?
Manufacturer substitution
This part replaces ADH31867602. Substitute parts can look different from the original.
BEST SELLER
$71.46
7% OFF Phone Price : $76.46
In Stock
Refrigerator Dispenser Ice Chute Door Hinge Spring 4970JA3011C
#276A

Dispenser diagram

Refrigerator dispenser ice chute door hinge spring

Part #4970JA3011C

BEST SELLER
This item is not returnable
$5.80
15% OFF Phone Price : $6.80
In Stock
Refrigerator Door Hinge 4621JA3002H
#233A

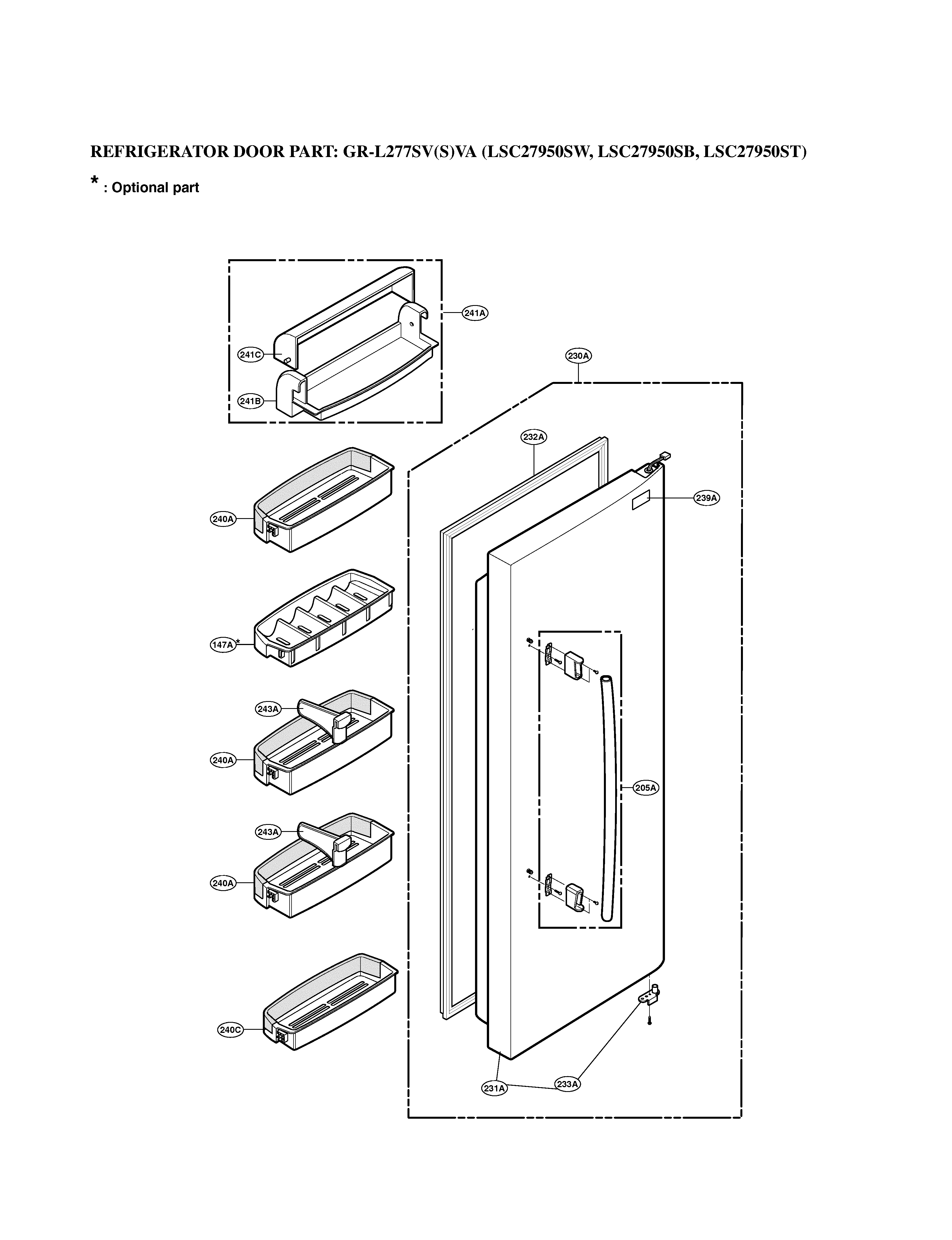

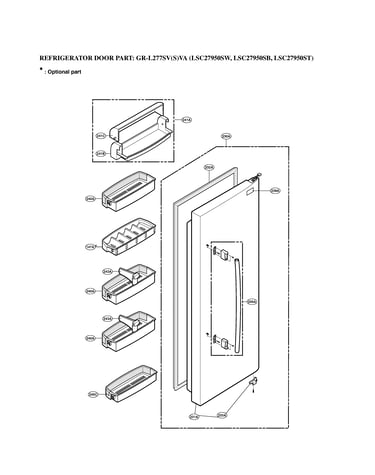

Refrigerator door diagram

Refrigerator door hinge

Part #4621JA3002H

Replaced by #AJC34211602

?
Manufacturer substitution
This part replaces 4621JA3002H. Substitute parts can look different from the original.
BEST SELLER
$16.41
11% OFF Phone Price : $18.41
In Stock
Refrigerator Door Hinge Pin 4510JA3004A
Refrigerator door hinge pin

Part #4510JA3004A

BEST SELLER
This item is not returnable
$6.53
13% OFF Phone Price : $7.53
In Stock
Refrigerator Motor Support Damper 5040JA2009B
#136C

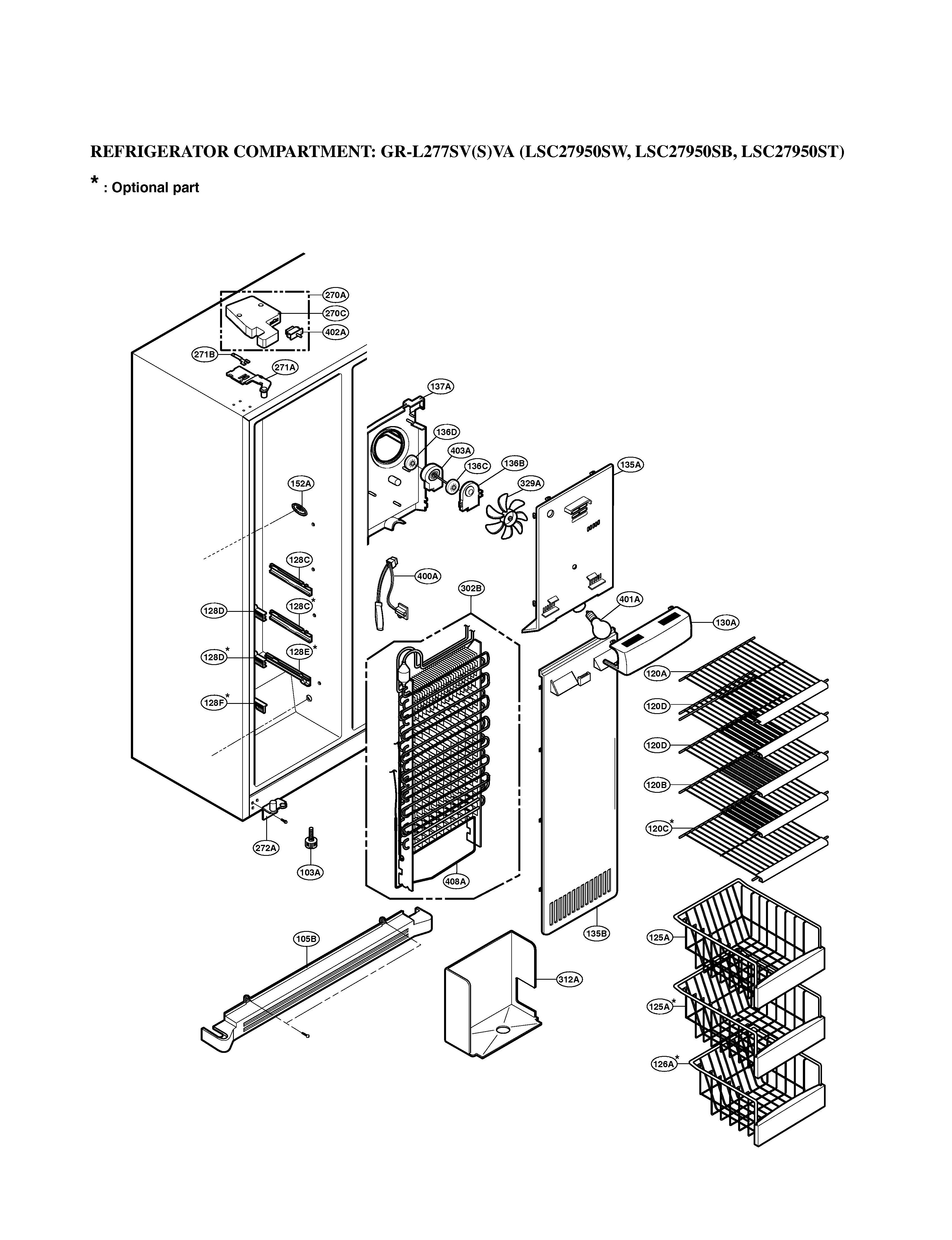

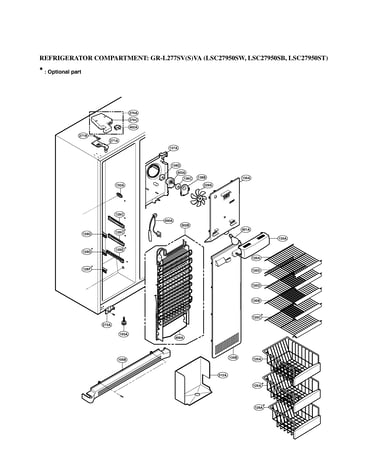

Freezer compartment diagram

Refrigerator motor support damper

Part #5040JA2009B

BEST SELLER
This item is not returnable
$6.53
13% OFF Phone Price : $7.53
In Stock
Refrigerator Light Switch (replaces 6600jb3007j, Ebf61736504) 6600JB3007E
Refrigerator light switch (replaces 6600jb3007j, ebf61736504)

Part #6600JB3007E

BEST SELLER
This item is not returnable
$17.17
10% OFF Phone Price : $19.17
In Stock
Refrigerator Dispenser Ice Chute Door (replaces 5007ja3006k, 5007jq3001r) 5007JA3006R
#275A

Dispenser diagram

Refrigerator dispenser ice chute door (replaces 5007ja3006k, 5007jq3001r)

Part #5007JA3006R

BEST SELLER
$35.70
12% OFF Phone Price : $40.70
In Stock
Refrigerator Solenoid Assembly 6421JB2002D
#405A

Dispenser diagram

Refrigerator solenoid assembly

Part #6421JB2002D

Replaced by #6421JB2002R

?
Manufacturer substitution
This part replaces 6421JB2002D. Substitute parts can look different from the original.
BEST SELLER
$40.67
11% OFF Phone Price : $45.67
In Stock
