Thermador
Warming Drawer

Model #WD27ES01 Official Thermador warming drawer

Here are the diagrams and repair parts for Thermador WD27ES01 warming drawer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 20 parts

Oven Sensor#102

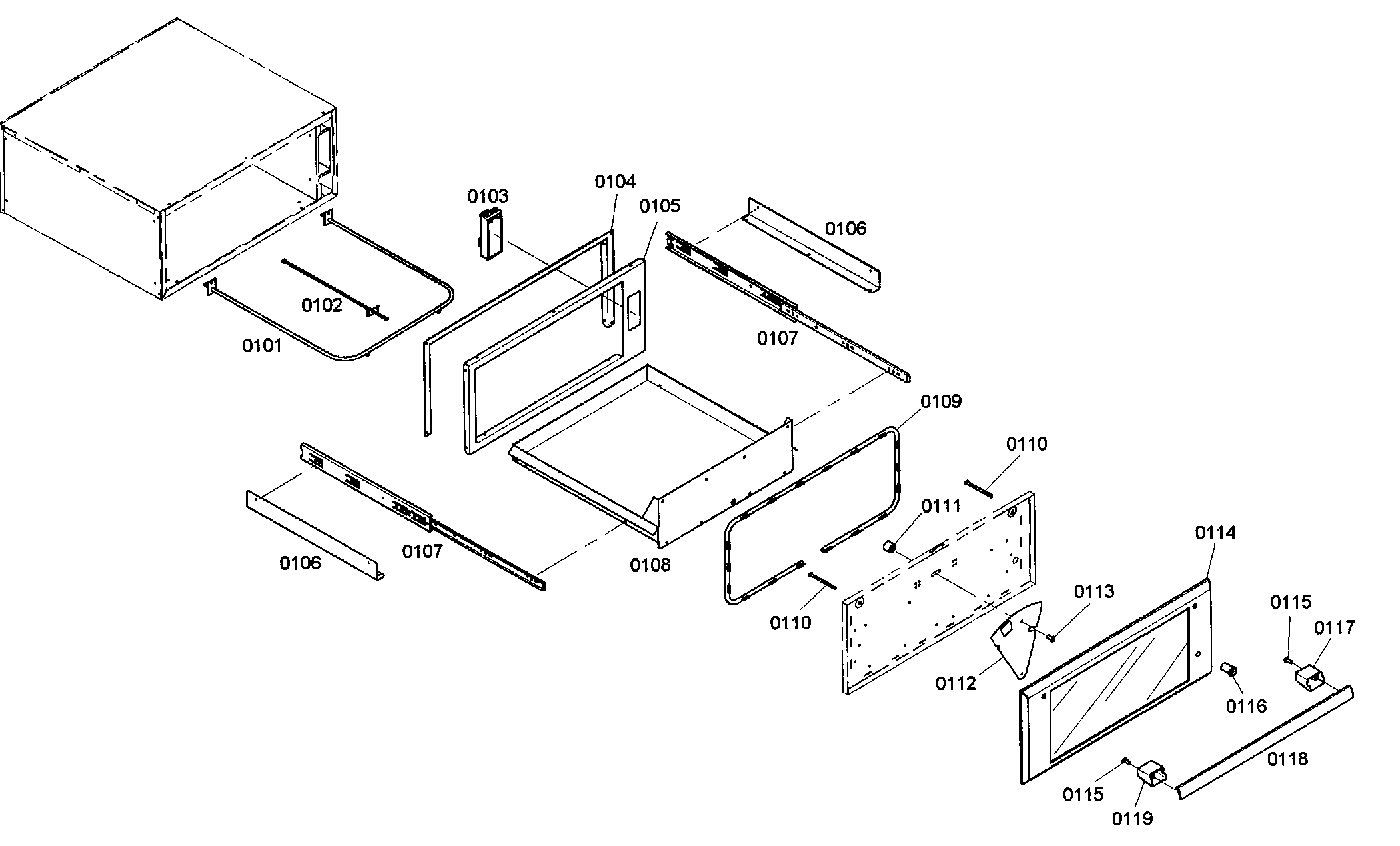

Cabinet parts Diagram

Sensor

Part #422373
Replaced by #00619630
?
Manufacturer substitution
This part replaces 422373. Substitute parts can look different from the original.
In Stock
$66.00
Scrw M5x40#110

Cabinet parts Diagram

Screw

Part #608361
Replaced by #00608361
?
Manufacturer substitution
This part replaces 608361. Substitute parts can look different from the original.
In Stock
$26.08
Panel Plate#112

Cabinet parts Diagram

Plate

Part #643041
Replaced by #00669337
?
Manufacturer substitution
This part replaces 643041. Substitute parts can look different from the original.
In Stock
$137.10
Warming Drawer Element#101

Cabinet parts Diagram

Element

Part #486314
Replaced by #00486314
?
Manufacturer substitution
This part replaces 486314. Substitute parts can look different from the original.
In Stock
$57.68
Slide#107

Cabinet parts Diagram

Slide

Part #440843
Replaced by #00440843
?
Manufacturer substitution
This part replaces 440843. Substitute parts can look different from the original.
In Stock
$54.24
Drawer#108

Cabinet parts Diagram

Panel

Part #664154
Replaced by #00670513
?
Manufacturer substitution
This part replaces 664154. Substitute parts can look different from the original.
In Stock
$294.94
Lens#116

Cabinet parts Diagram

Lens

Part #427069
Replaced by #00427069
?
Manufacturer substitution
This part replaces 427069. Substitute parts can look different from the original.
This item is not returnable
In Stock
$4.89
Range Warming Drawer Knob#111

Cabinet parts Diagram

Knob

Part #608297
Replaced by #00608297
?
Manufacturer substitution
This part replaces 608297. Substitute parts can look different from the original.
Back Order
$8.76
Warming Drawer Seal#109

Cabinet parts Diagram

Sealing

Part #608753
Replaced by #00649103
?
Manufacturer substitution
This part replaces 608753. Substitute parts can look different from the original.
In Stock
$54.24
Rail Bracket#106

Cabinet parts Diagram

Bracket

Part #664253
Replaced by #00664253
?
Manufacturer substitution
This part replaces 664253. Substitute parts can look different from the original.
In Stock
$32.83
