Model # EW30DS65GS5 Official Electrolux range

Here are the diagrams and repair parts for Official Electrolux EW30DS65GS5 range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

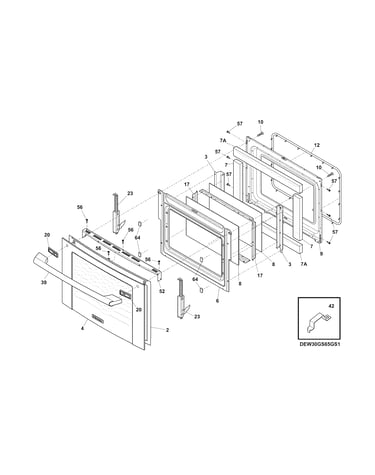

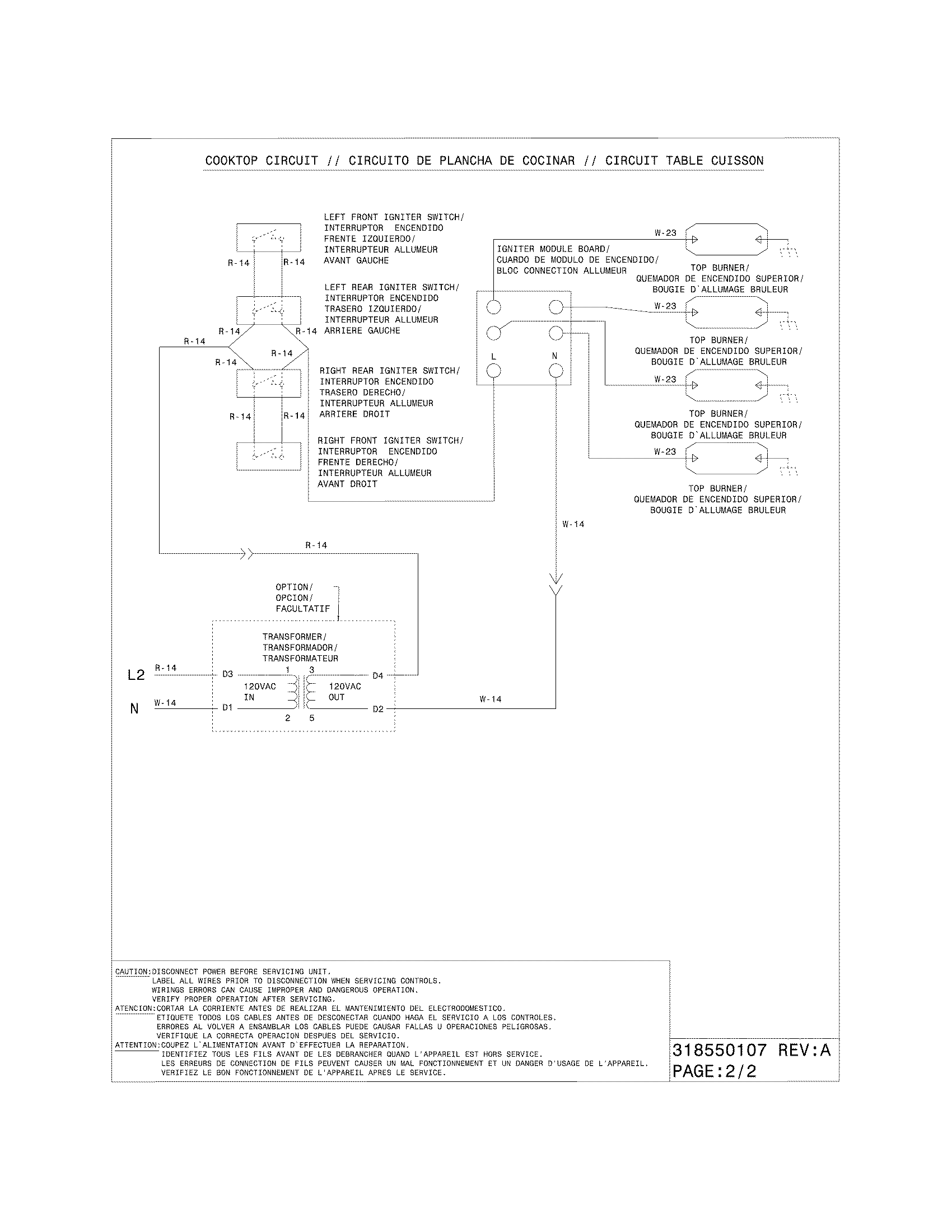

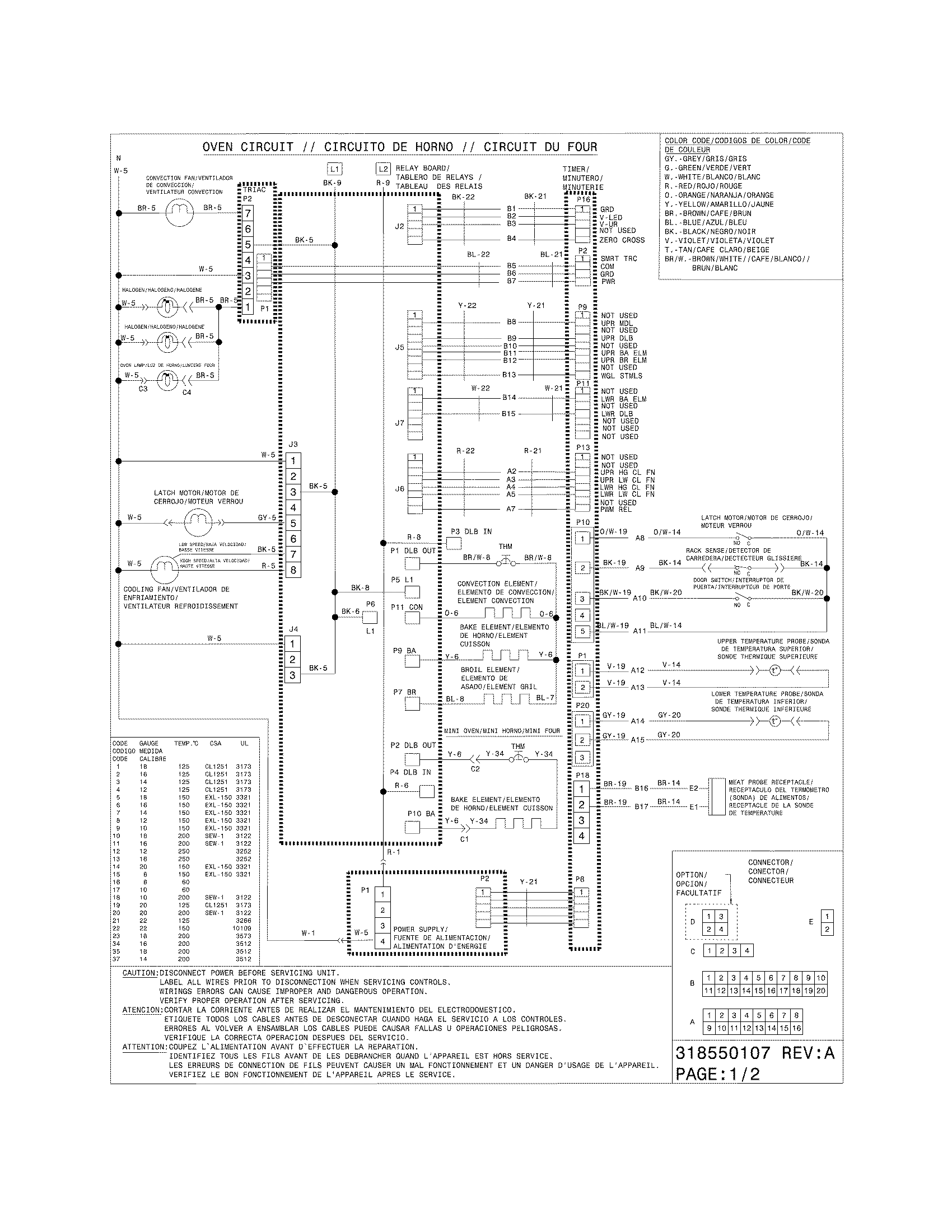

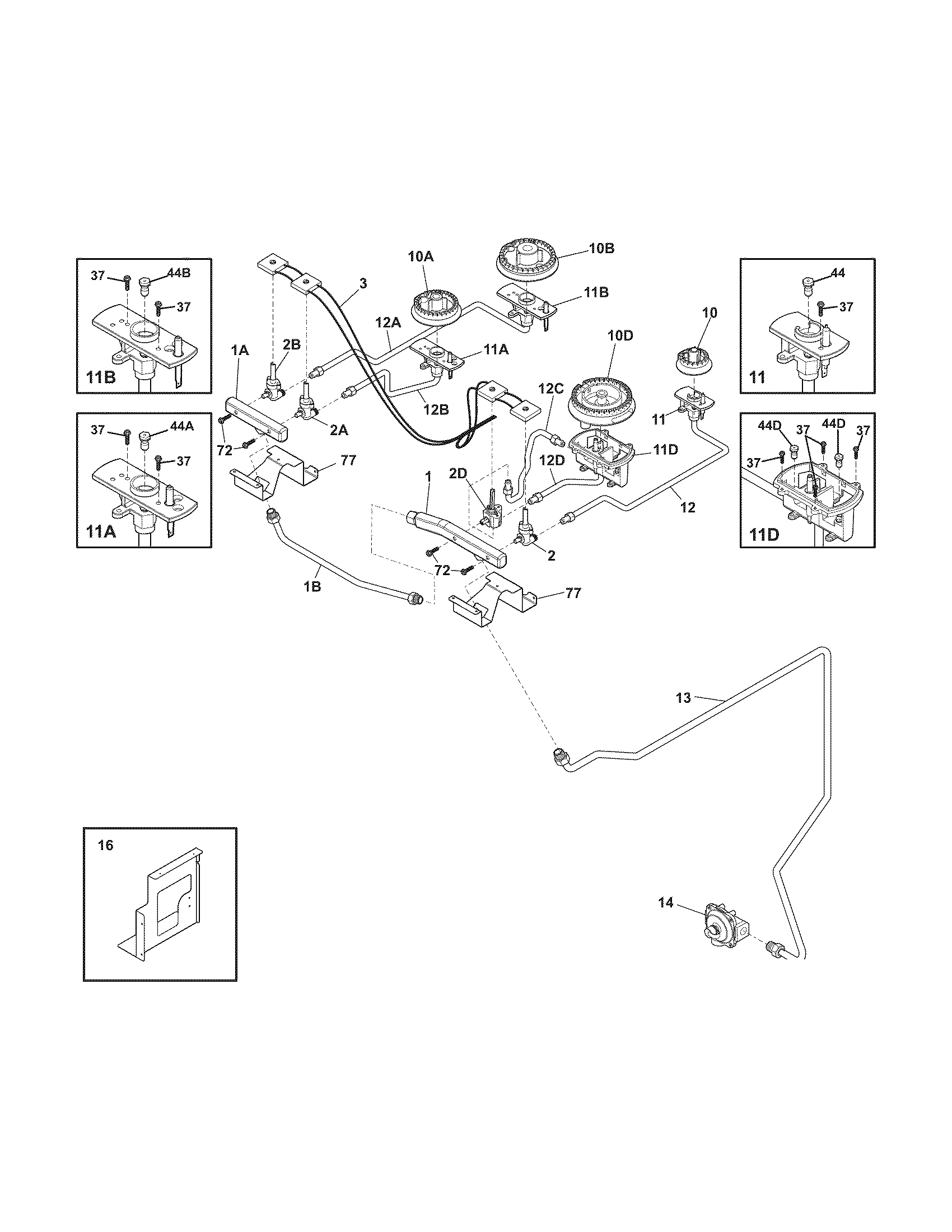

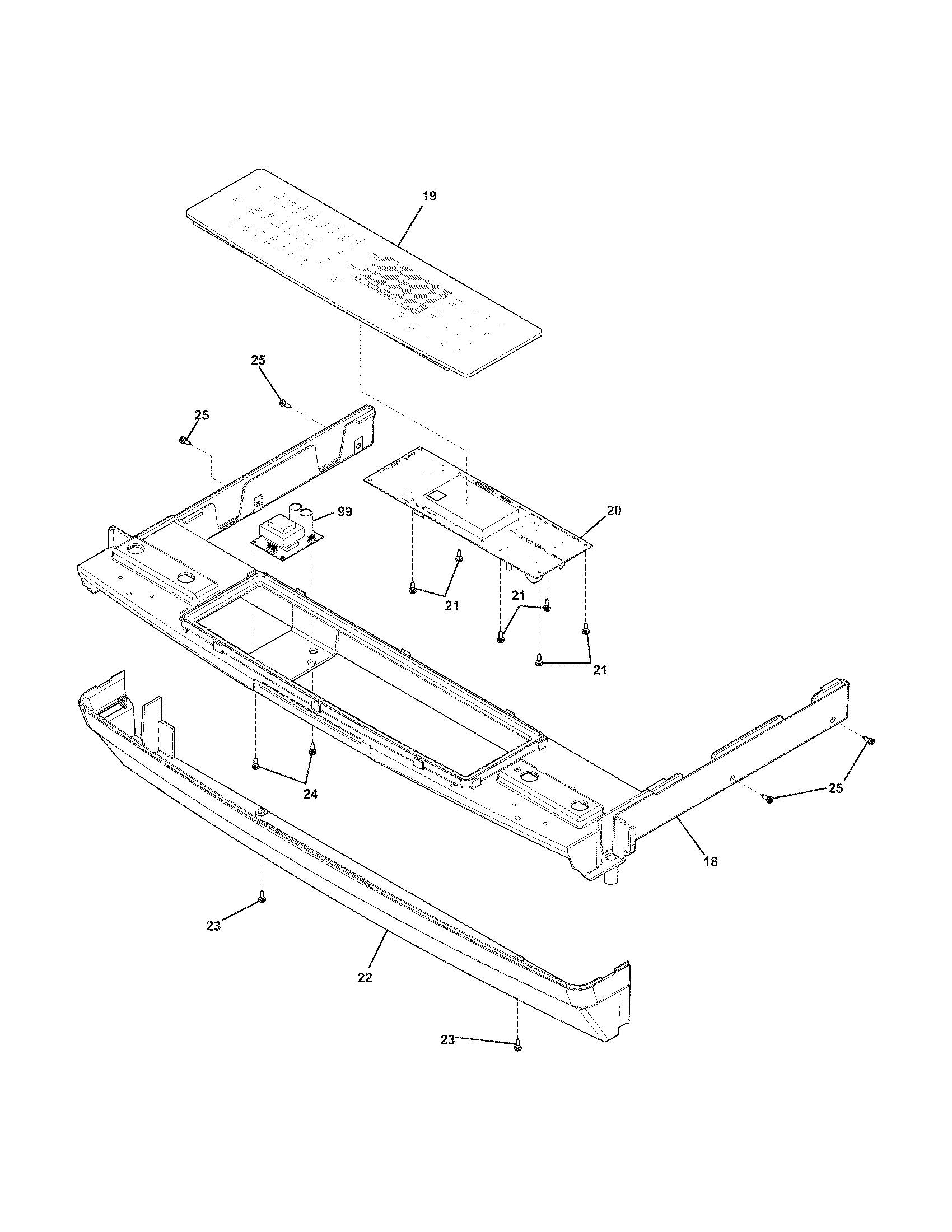

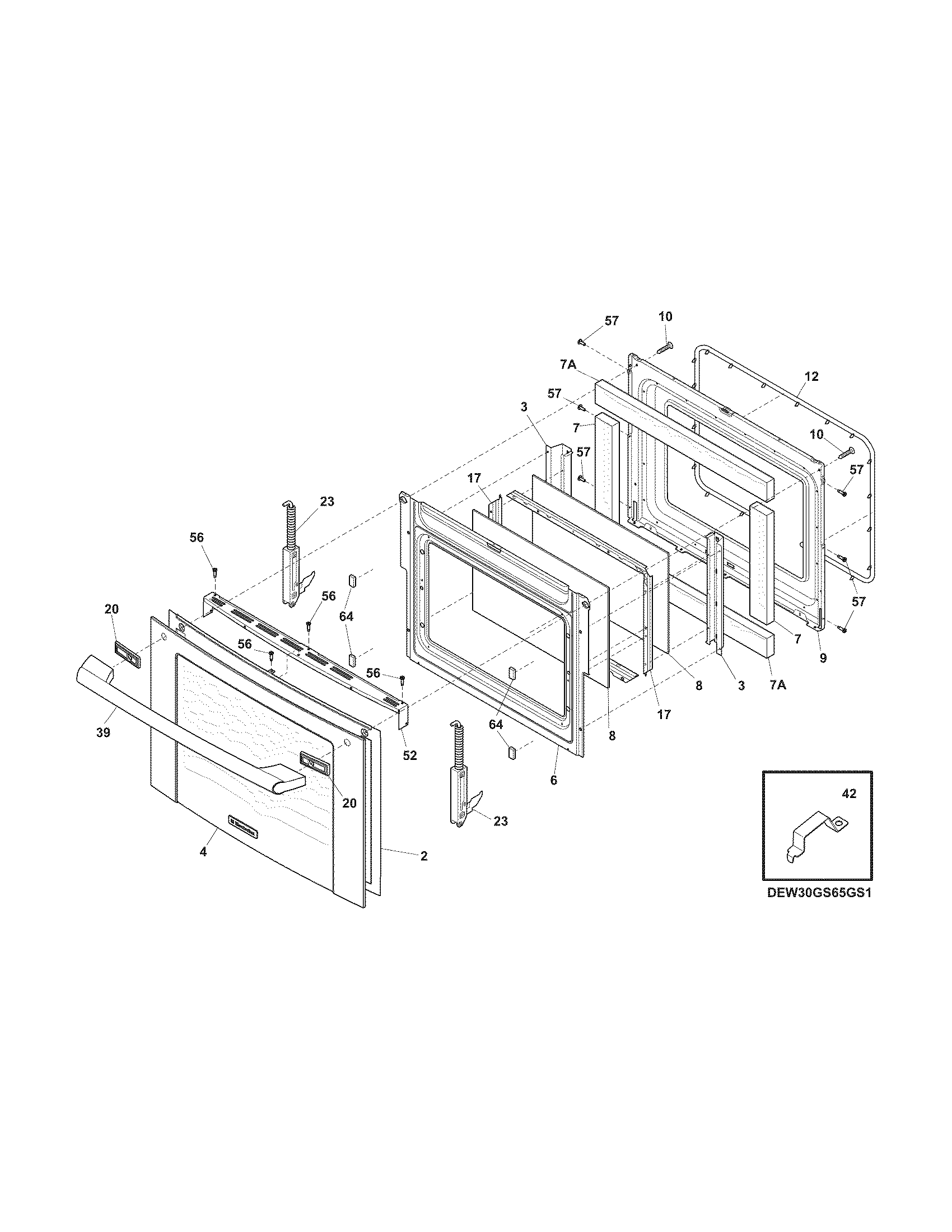

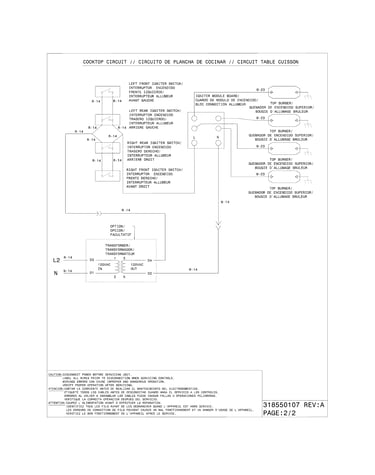

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 231 parts  |

Probe 7316217002
#37

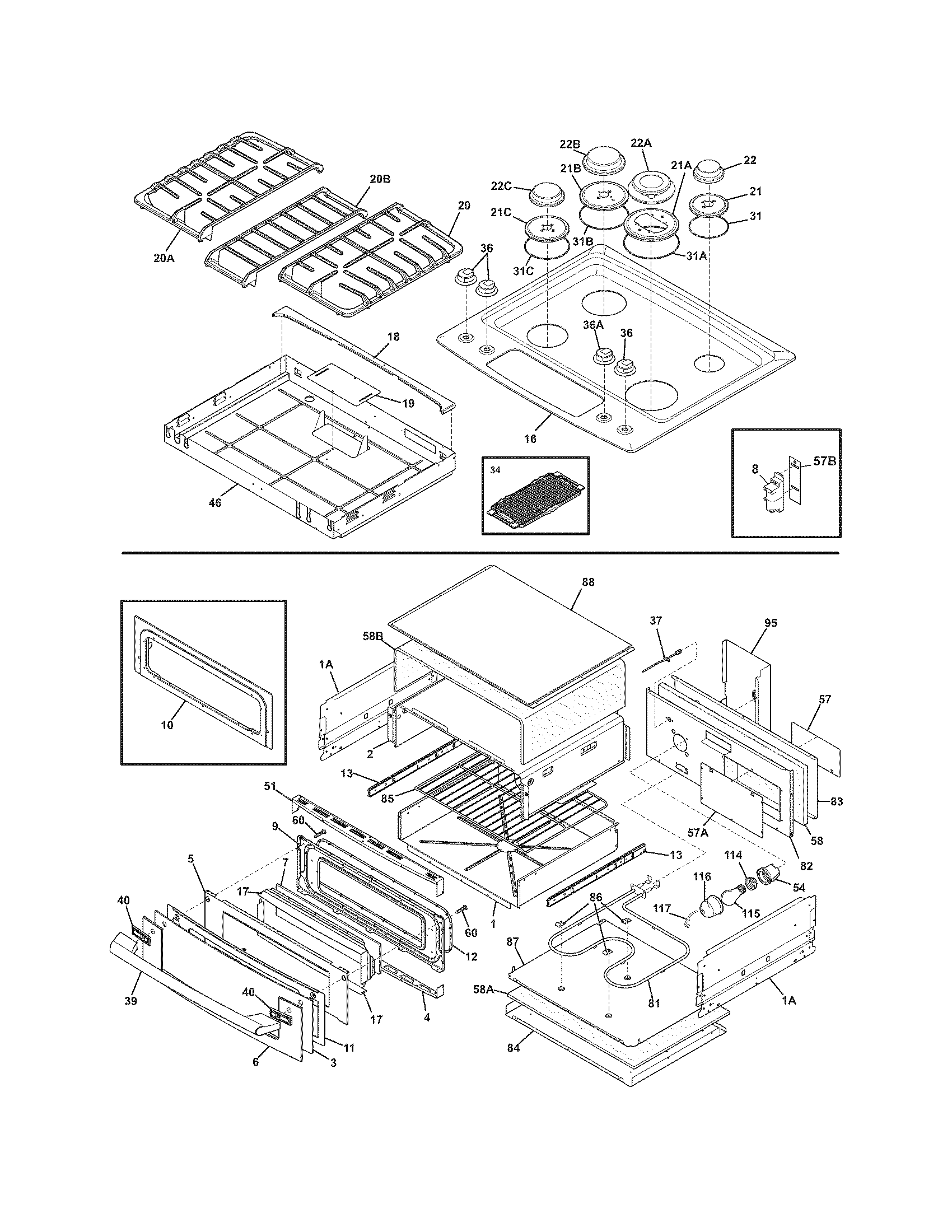

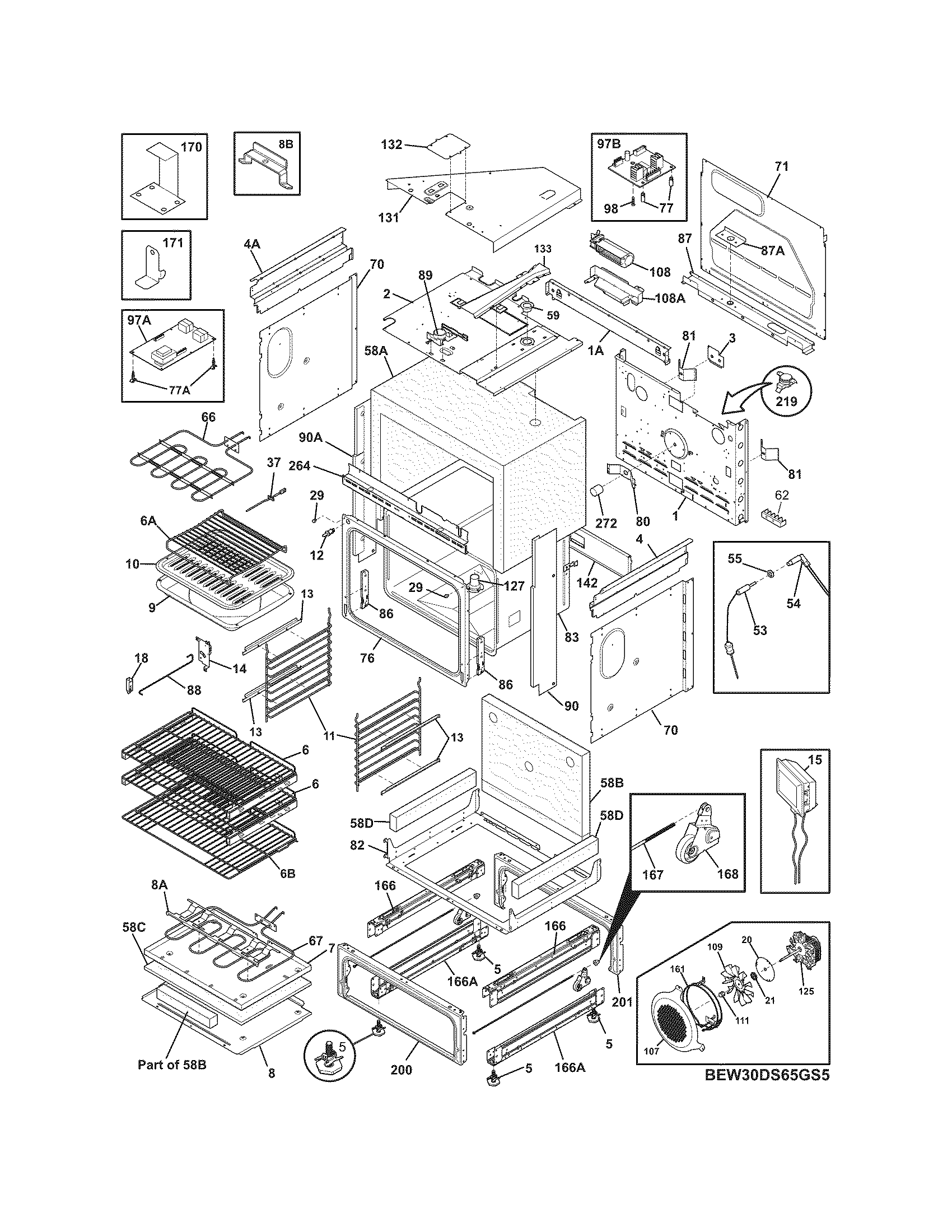

Body diagram

Probe

Part #7316217002

Replaced by #316217002

?
Manufacturer substitution
This part replaces 7316217002. Substitute parts can look different from the original.
BEST SELLER
$45.69
10% OFF Phone Price : $50.69
In Stock
Block 75303935061
#62

Body diagram

Block

Part #75303935061

Replaced by #5304409888

?
Manufacturer substitution
This part replaces 75303935061. Substitute parts can look different from the original.
BEST SELLER
$9.64
9% OFF Phone Price : $10.64
In Stock
Oven Light Lens 7318406100
#116

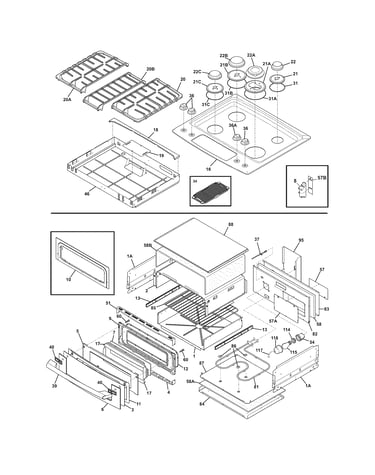

Top/drawer diagram

Oven light lens

Part #7318406100

Replaced by #5304524341

?
Manufacturer substitution
This part replaces 7318406100. Substitute parts can look different from the original.
BEST SELLER
$13.90
13% OFF Phone Price : $15.90
In Stock
Bake Element 7318254911
#67

Body diagram

Bake element

Part #7318254911

Replaced by #318254916

?
Manufacturer substitution
This part replaces 7318254911. Substitute parts can look different from the original.
BEST SELLER
$158.59
6% OFF Phone Price : $168.59
In Stock
Probe 7318601302
#53

Body diagram

Probe

Part #7318601302

Replaced by #5304504202

?
Manufacturer substitution
This part replaces 7318601302. Substitute parts can look different from the original.
BEST SELLER
$84.52
6% OFF Phone Price : $89.52
In Stock
Spacer 7318165800
#NI

Body diagram

Spacer

Part #7318165800

Replaced by #318165800

?
Manufacturer substitution
This part replaces 7318165800. Substitute parts can look different from the original.
This item is not returnable
$18.59
10% OFF Phone Price : $20.59
In Stock
Switch 7318004902
Switch

Part #7318004902

Replaced by #318004902

?
Manufacturer substitution
This part replaces 7318004902. Substitute parts can look different from the original.
$57.40
8% OFF Phone Price : $62.40
In Stock
Blade 7318398300
#109

Body diagram

Blade

Part #7318398300

Replaced by #318398302

?
Manufacturer substitution
This part replaces 7318398300. Substitute parts can look different from the original.
$23.89
17% OFF Phone Price : $28.89
In Stock
Screw 75303323134
#NI

Top/drawer diagram

Screw

Part #75303323134

Replaced by #5303288565

?
Manufacturer substitution
This part replaces 75303323134. Substitute parts can look different from the original.
This item is not returnable
In Stock
Block 7316135701
#8

Top/drawer diagram

Block

Part #7316135701

Replaced by #316135702

?
Manufacturer substitution
This part replaces 7316135701. Substitute parts can look different from the original.
$75.37
6% OFF Phone Price : $80.37
In Stock
