KitchenAid
Gas Cooktop

Model # KGCC566RBL05 Official KitchenAid 36" gas cooktop

Here are the diagrams and repair parts for Official KitchenAid KGCC566RBL05 36" gas cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 89 parts  |
Range Screw 3368921
#11

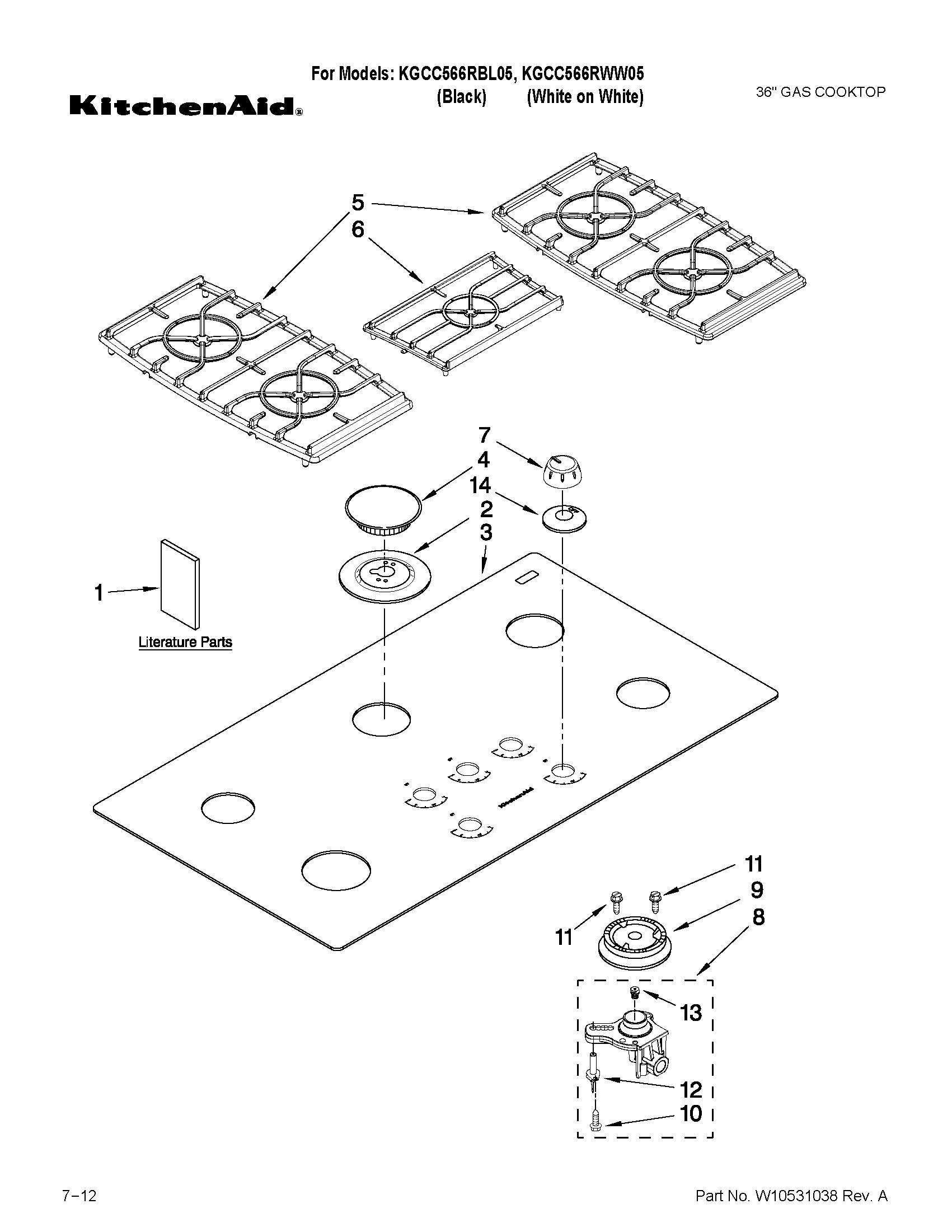

Cooktop, burner and grate parts diagram

Range screw

Part #3368921

Replaced by #WP3368921

?
Manufacturer substitution
This part replaces 3368921. Substitute parts can look different from the original.
BEST SELLER
$6.82 |
43% OFF MSRP : $12.00
In Stock
Range Screw 8273062
#10

Cooktop, burner and grate parts diagram

Range screw

Part #8273062

Replaced by #WP8273062

?
Manufacturer substitution
This part replaces 8273062. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.40 |
74% OFF MSRP : $13.00
In Stock
Range Surface Burner Head, 17,000-btu 8286183
#9C

Cooktop, burner and grate parts diagram

Range surface burner head, 17,000-btu

Part #8286183

The manufacturer no longer makes this part, and there's no substitute part

Grommet-bl 3180079
#14

Cooktop, burner and grate parts diagram

Grommet-bl

Part #3180079

Replaced by #W10854242

?
Manufacturer substitution
This part replaces 3180079. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Grommet-wh 3180081
#14A

Cooktop, burner and grate parts diagram

Grommet-wh

Part #3180081

Replaced by #WP3180081

?
Manufacturer substitution
This part replaces 3180081. Substitute parts can look different from the original.
This item is not returnable
$6.59 |
13% OFF Phone Price : $7.59
In Stock
Cooktop Griddle (replaces 4396096, 4396096ra, W10297135, W10297135a, Wp74007078) 4396096RB
#NI

Optional parts diagram

Cooktop griddle (replaces 4396096, 4396096ra, w10297135, w10297135a, wp74007078)

Part #4396096RB

$149.09 |
22% OFF MSRP : $190.00
In Stock
Mounting Bracket 4455917
#12

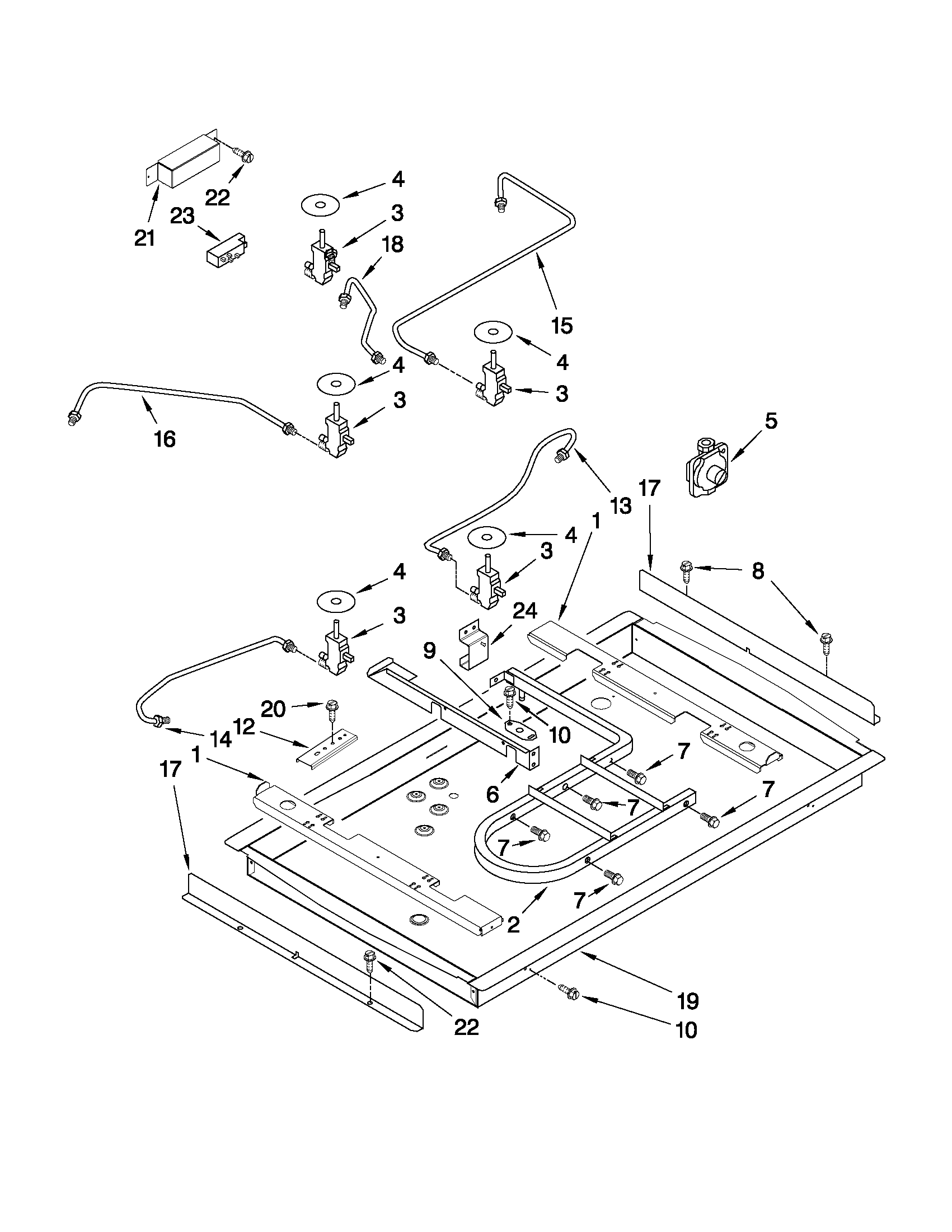

Burner box, gas valves, and switches diagram

Mounting bracket

Part #4455917

Replaced by #8186533

?
Manufacturer substitution
This part replaces 4455917. Substitute parts can look different from the original.
$32.89 |
13% OFF Phone Price : $37.89
In Stock
Whirlpool Cooktop Cleaning Kit 31605
#NI

Optional parts diagram

Whirlpool cooktop cleaning kit

Part #31605

Replaced by #W10336909

?
Manufacturer substitution
This part replaces 31605. Substitute parts can look different from the original.
This item is not returnable
$6.39 |
21% OFF MSRP : $8.10
In Stock
Cooktop Power Cord Strain Relief W10132200
#NI

Optional parts diagram

Cooktop power cord strain relief

Part #W10132200

This item is not returnable
$6.91
In Stock
Cooktop Grounding Strap 8285402
#NI

Optional parts diagram

Cooktop grounding strap

Part #8285402

$32.87
In Stock
