Model #R10530K2 Official Ryobi 18-v center handle drill

Here are the diagrams and repair parts for Ryobi R10530K2 18-v center handle drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 34 parts

Carrying Case#503

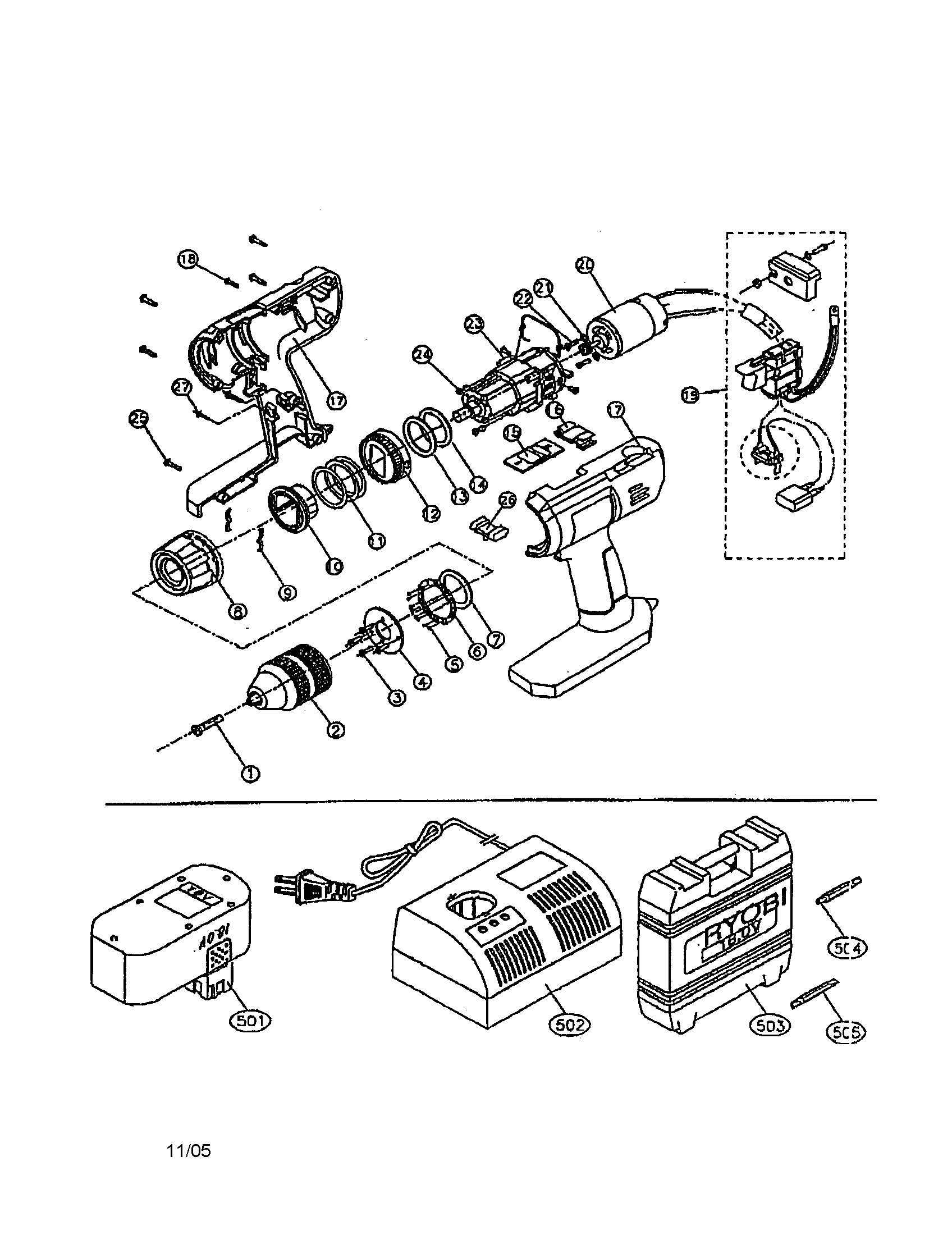

18v center handle drill Diagram

Carrying case

Part #4700038

The manufacturer no longer makes this part, and there's no substitute part

Clutch Cap#8

18v center handle drill Diagram

Clutch cap

Part #4900106

The manufacturer no longer makes this part, and there's no substitute part

SPRING PLATE (2)#9

18v center handle drill Diagram

Spring plate (2)

Part #4180026

The manufacturer no longer makes this part, and there's no substitute part

STEEL BALL 3.0MM (6)#5

18v center handle drill Diagram

Steel ball 3.0mm (6)

Part #1290021

The manufacturer no longer makes this part, and there's no substitute part

Plastic Sleeve#10

18v center handle drill Diagram

Plastic sleeve

Part #4900097

The manufacturer no longer makes this part, and there's no substitute part

Ball Steel#24

18v center handle drill Diagram

Ball steel

Part #1290002

The manufacturer no longer makes this part, and there's no substitute part

Brand Label

#NI02

All parts Diagram

Brand label

Part #4910056

The manufacturer no longer makes this part, and there's no substitute part

Screw

See All Related Diagrams

Screw

Part #1130302

The manufacturer no longer makes this part, and there's no substitute part

Operator's Manual

#NI03

All parts Diagram

Operator's manual

Part #972000571

The manufacturer no longer makes this part, and there's no substitute part

Screw#22

18v center handle drill Diagram

Screw

Part #1130047

The manufacturer no longer makes this part, and there's no substitute part
