JVC
Compact Stereo System

Model #FS-SD1000 Official JVC tabletop audio system

Here are the diagrams and repair parts for JVC FS-SD1000 tabletop audio system, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Showing 10 of 84 parts

Fuse#NI

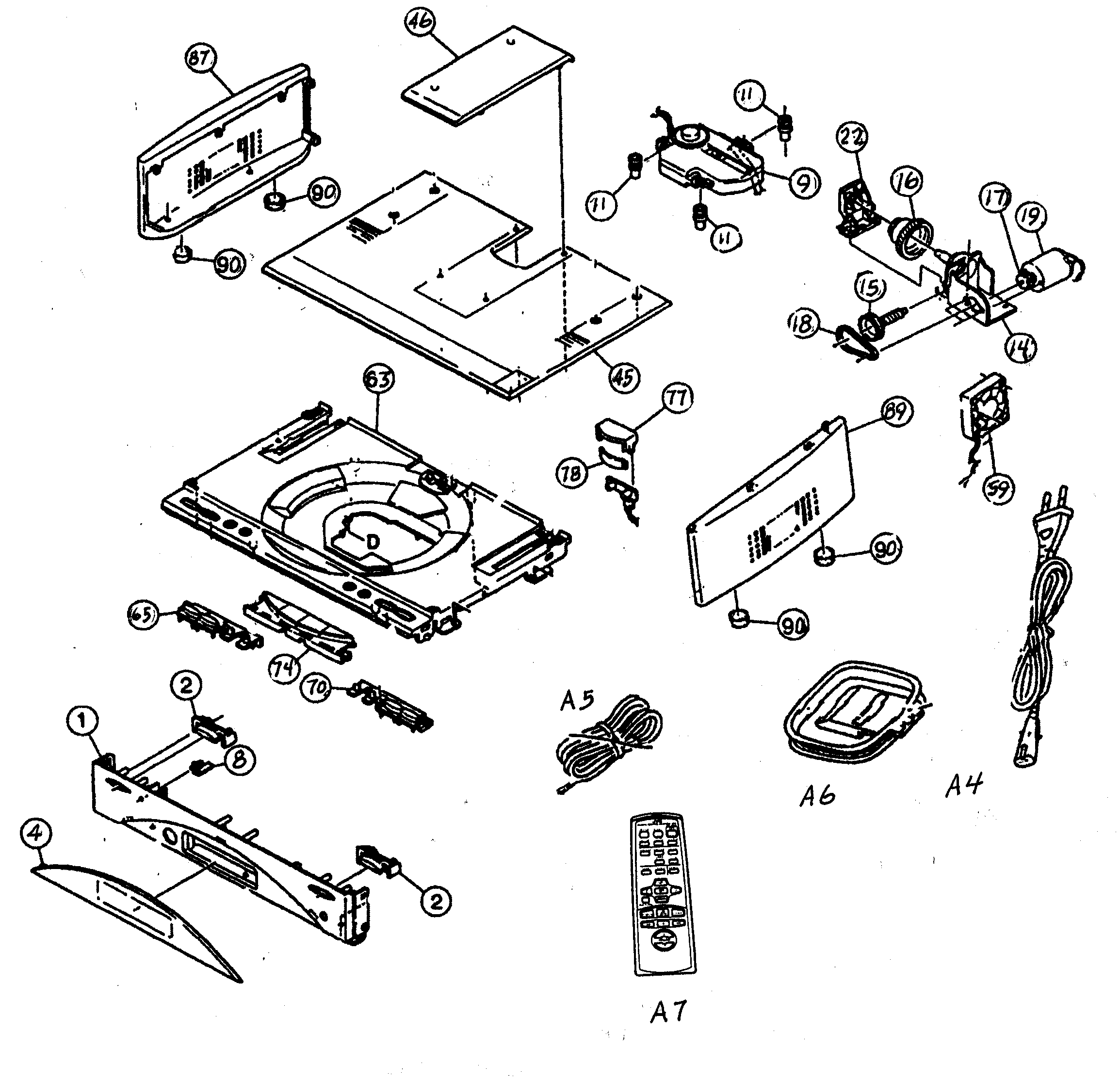

Cabinet parts Diagram

Fuse

Part #QMF51N2-2R0-J1

The manufacturer no longer makes this part, and there's no substitute part

AC Inlet#NI

Cabinet parts Diagram

Ac inlet

Part #QNC0052-001

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit#NI

Cabinet parts Diagram

Integrated circuit

Part #LC72136N

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit#NI

Cabinet parts Diagram

Integrated circuit

Part #UPC78L05J-T

The manufacturer no longer makes this part, and there's no substitute part

Cover#63

Cabinet parts Diagram

Cover

Part #LV10440-007A

The manufacturer no longer makes this part, and there's no substitute part

Cabinet#42

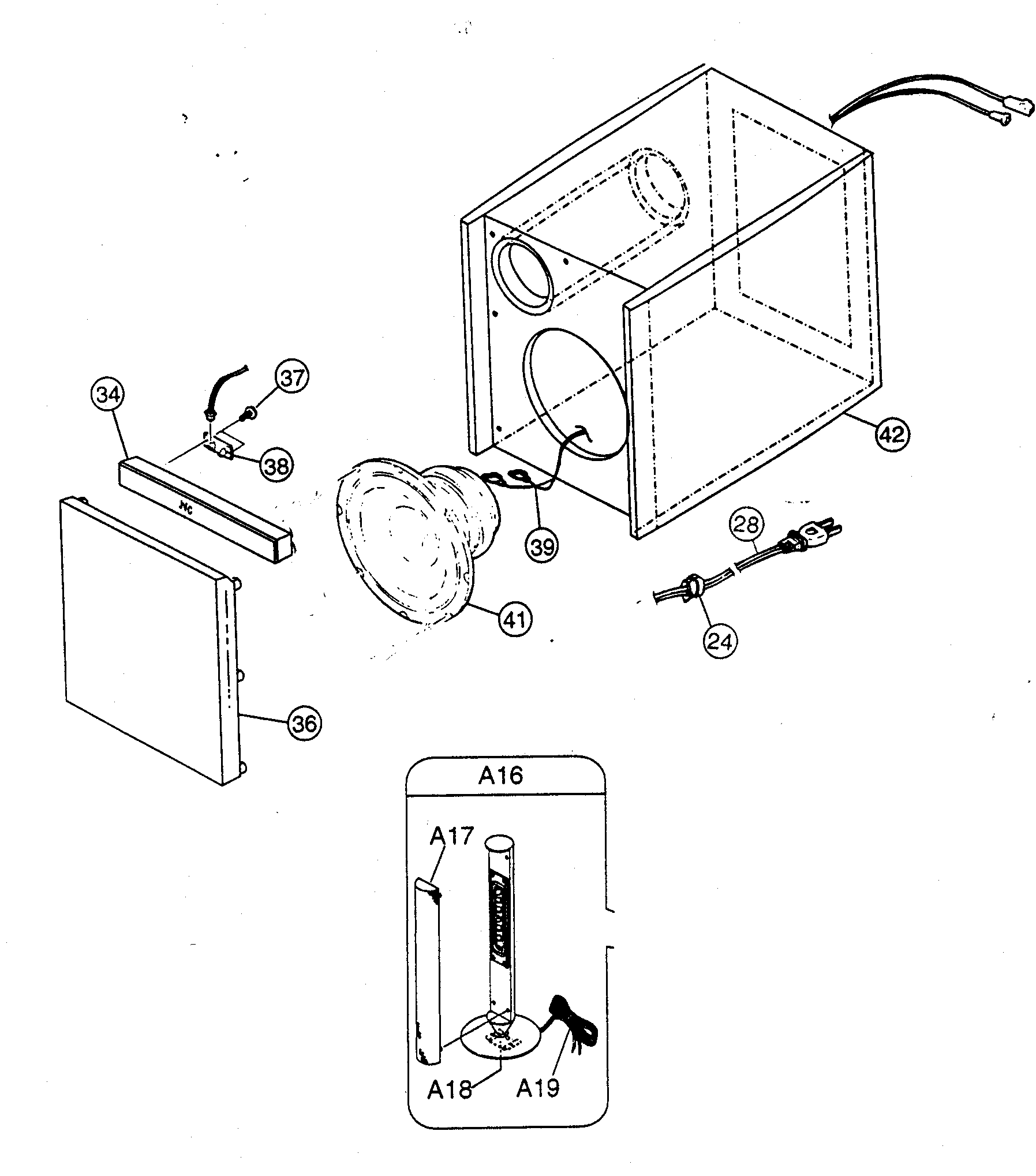

Speaker Diagram

Cabinet

Part #AA000022-02

The manufacturer no longer makes this part, and there's no substitute part

Stereo System Speaker#41

Speaker Diagram

Stereo system speaker

Part #KK160004-01

The manufacturer no longer makes this part, and there's no substitute part

Stereo System Speaker Net#A17

Speaker Diagram

Stereo system speaker net

Part #55-100-047-01

The manufacturer no longer makes this part, and there's no substitute part

Cap 4700mf#NI

Cabinet parts Diagram

Cap 4700mf

Part #QEZ0223-478

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit#NI

Cabinet parts Diagram

Integrated circuit

Part #LA4905

The manufacturer no longer makes this part, and there's no substitute part
