Hoover
Canister Vacuum

Model #2010 Official Hoover canister vacuum

Here are the diagrams and repair parts for Hoover 2010 canister vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 45 parts

Hoover Vacuum Bag, Type J, 4-pack#8A

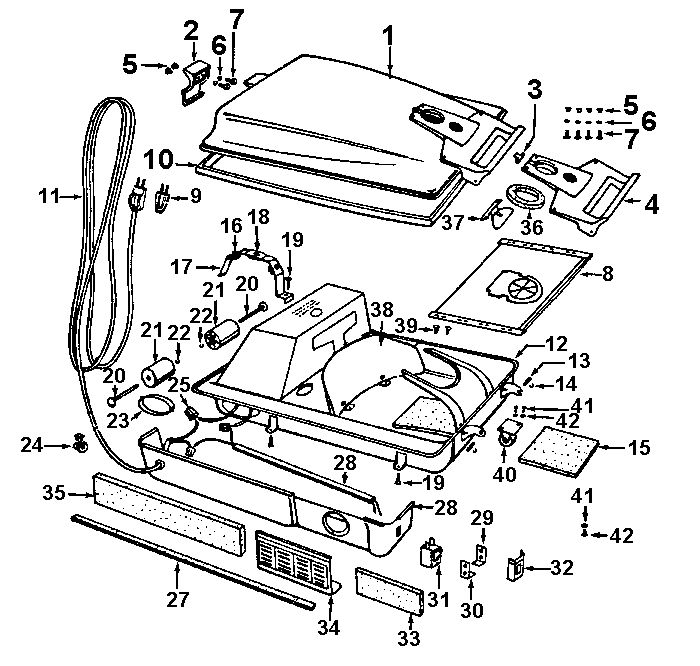

Mainhousing Diagram

Hoover vacuum bag, type j, 4-pack

Part #4010010J

The manufacturer no longer makes this part, and there's no substitute part

Split Ring#33A

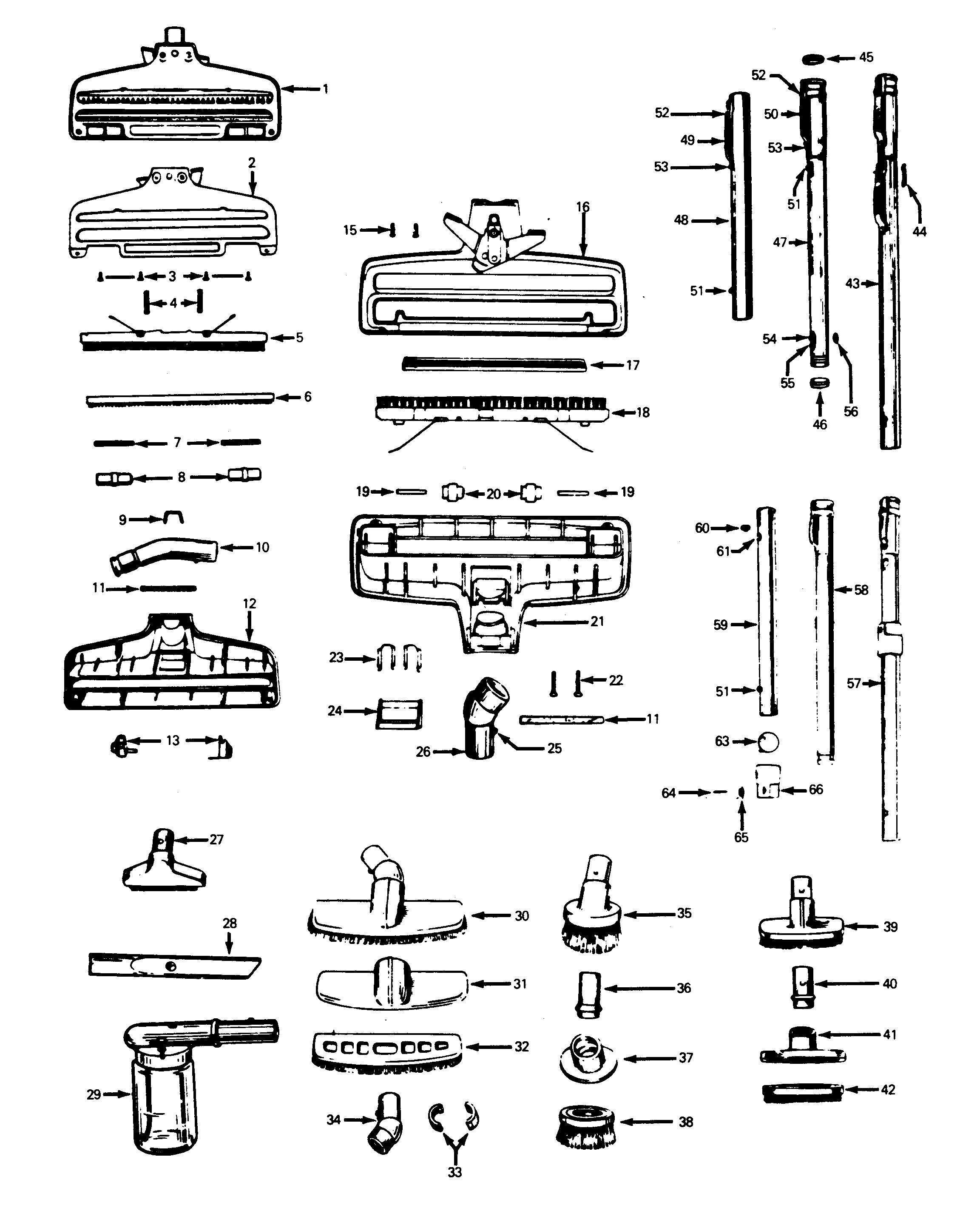

Cleaningtools Diagram

Split ring

Part #33712007

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Hose Grip Lock Ring#45

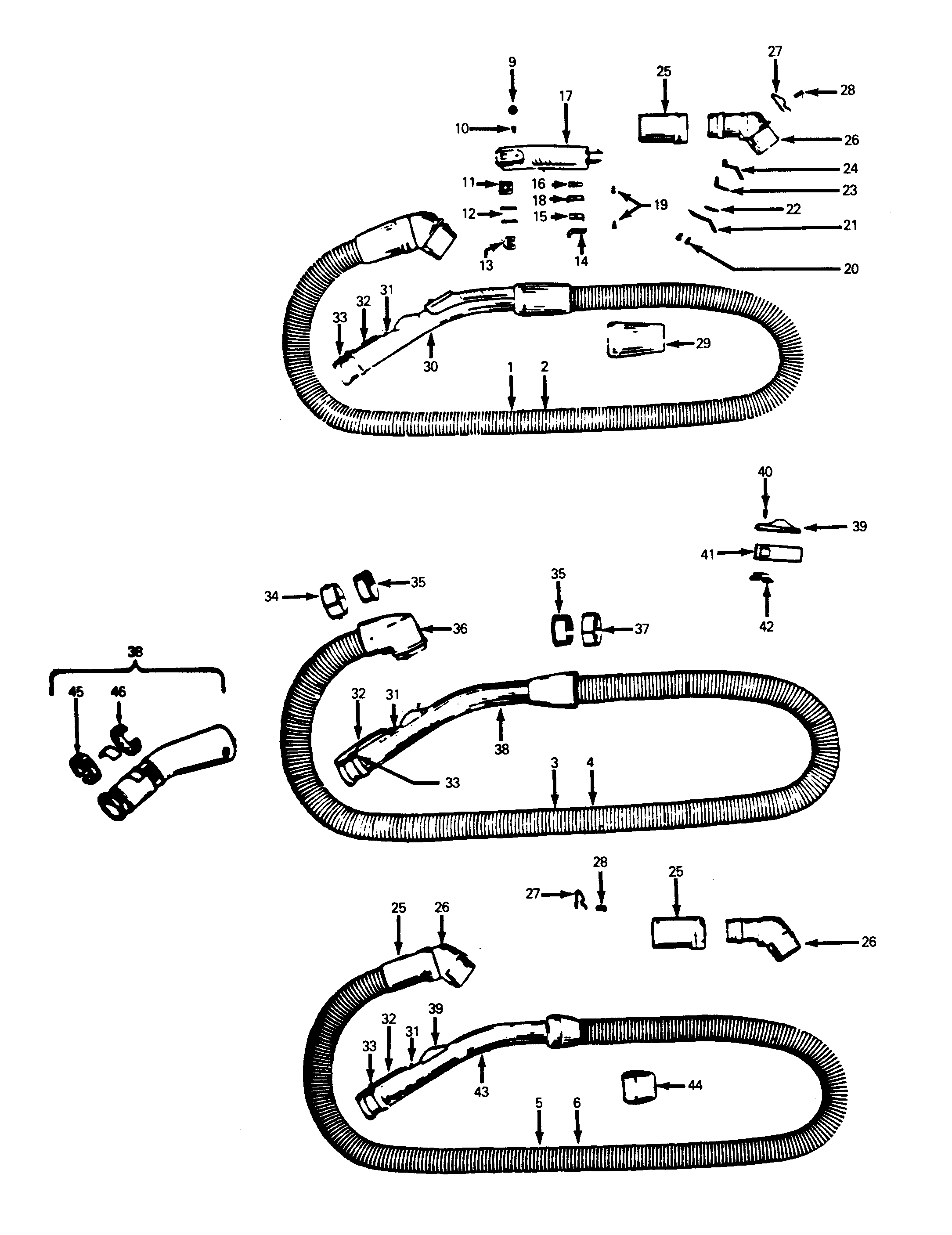

Hose Diagram

Vacuum hose grip lock ring

Part #36153009

The manufacturer no longer makes this part, and there's no substitute part

Extension Tube#43A

Cleaningtools Diagram

Extension tube

Part #43453027

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Dust Brush#35A

Cleaningtools Diagram

Vacuum dust brush

Part #43414064

The manufacturer no longer makes this part, and there's no substitute part

Screw/doze#41

Mainhousing Diagram

Screw/doze

Part #21772501

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Floor Brush Attachment Swivel

See All Related Diagrams

Vacuum floor brush attachment swivel

Part #38644020

The manufacturer no longer makes this part, and there's no substitute part

Twist-On Wire Connector

See All Related Diagrams

Twist-on wire connector

Part #048969--

The manufacturer no longer makes this part, and there's no substitute part

Sleeve Hose#35

Hose Diagram

Sleeve hose

Part #32156010

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Upholstery Nozzle#27

Cleaningtools Diagram

Vacuum upholstery nozzle

Part #43414057

The manufacturer no longer makes this part, and there's no substitute part

Symptoms common to all vacuum cleaners

Choose a symptom to see related vacuum cleaner repairs.

Main causes: damaged vacuum hose, clogged motor air filter, bad suction motor
Main causes: broken drive belt, damaged brush roll, tripped brush roll motor overload, bad brush roll motor, wiring failure
Main causes: lack of power, bad power cord, drive motor failure, wiring failure
Main causes: weak suction motor, vacuum bag is full, clog in suction air path, dirty exhaust filter, leaky vacuum hose

Repair guides for canister vacuums

How to replace a vacuum power head ribbed drive belt

Some canister vacuums have a ribbed drive belt that spins the brush roll on a power brush attachment. If the brush roll slips, you can replace it using these instructions.

Repair difficulty
Time required
 30 minutes or less
July 1, 2013
By Lyle Weischwill
How to replace a vacuum suction motor

The suction motor on a vacuum creates the draw of air at the cleaning head that picks up dirt. If the vacuum won't run, give it a new life by replacing the suction motor. These steps explain how.

Repair difficulty
Time required
 15 minutes or less
July 1, 2013
By Lyle Weischwill
How to replace a vacuum beater bar

Replace the brush roll if the bristles ares worn or the cylinder is damaged.

Repair difficulty
Time required
 30 minutes or less
