GE
Countertop Microwave

Model #JES1334SD01 Official GE microwave

Here are the diagrams and repair parts for GE JES1334SD01 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 5 of 5 parts

Cooking Tray#32

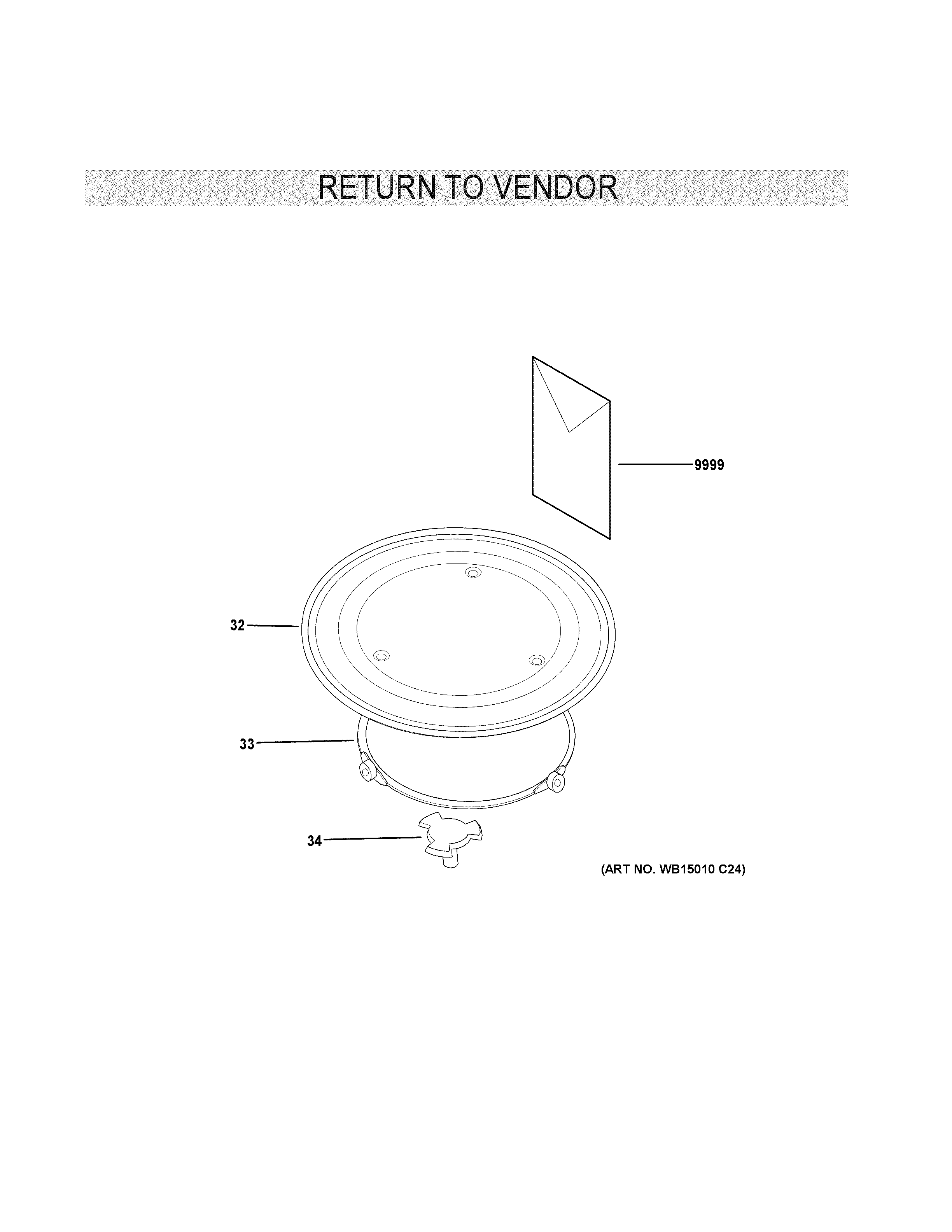

Microwave Diagram

Cooking tray

Part #WB49X10030
In Stock
$68.44
Guide Roller#33

Microwave Diagram

Guide roller

Part #WB06X10374
In Stock
$51.48
Coupler#34

Microwave Diagram

Coupler

Part #WB06X10375

The manufacturer no longer makes this part, and there's no substitute part

Mini Manual#9999

Microwave Diagram

Mini manual

Part #31-20954

The manufacturer no longer makes this part, and there's no substitute part

Use and Care Guide#9999

Microwave Diagram

Use and care guide

Part #49-40396-1

The manufacturer no longer makes this part, and there's no substitute part
