Model #0396-1 TYPE A Official Milwaukee 3/8" cordless drill/driver

Here are the diagrams and repair parts for Milwaukee 0396-1-TYPE-A 3/8" cordless drill/driver, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 19 parts

Charger#18

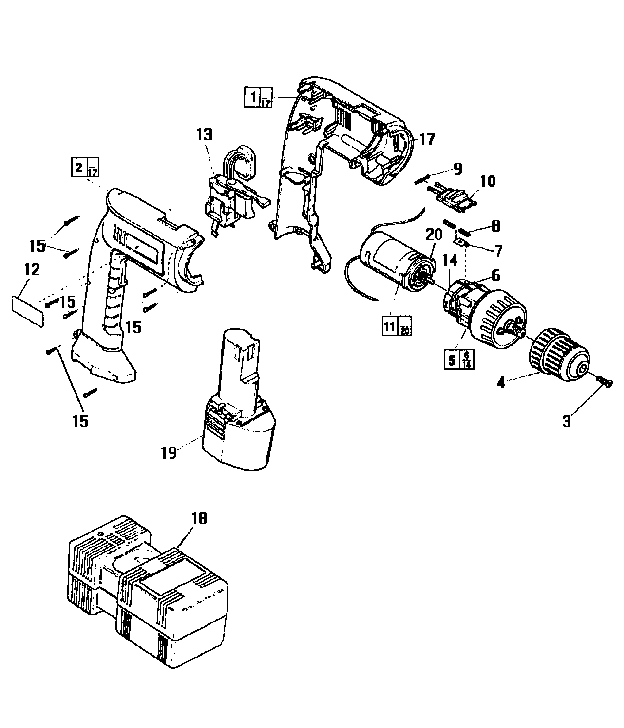

Unit Diagram

Charger

Part #48-59-0166

The manufacturer no longer makes this part, and there's no substitute part

Gearbox#5

Unit Diagram

Gearbox

Part #14-30-0720

The manufacturer no longer makes this part, and there's no substitute part

Link#7

Unit Diagram

Link

Part #44-14-0160

The manufacturer no longer makes this part, and there's no substitute part

Slide#10

Unit Diagram

Slide

Part #45-24-0070

The manufacturer no longer makes this part, and there's no substitute part

Housing#14

Unit Diagram

Housing

Part #43-76-0590

The manufacturer no longer makes this part, and there's no substitute part

Screw#3

Unit Diagram

Screw

Part #05-88-0505

The manufacturer no longer makes this part, and there's no substitute part

Lever#6

Unit Diagram

Lever

Part #44-10-0260

The manufacturer no longer makes this part, and there's no substitute part

Foam Pad#17

Unit Diagram

Foam pad

Part #44-52-0440

The manufacturer no longer makes this part, and there's no substitute part

Spring#8

Unit Diagram

Spring

Part #40-50-8300

The manufacturer no longer makes this part, and there's no substitute part

SERVICE NAMEPLATE#12

Unit Diagram

Service nameplate

Part #12-99-0880

The manufacturer no longer makes this part, and there's no substitute part
