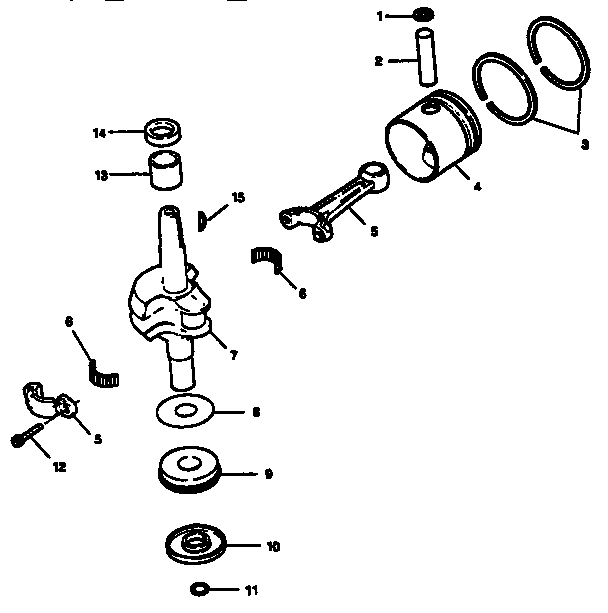

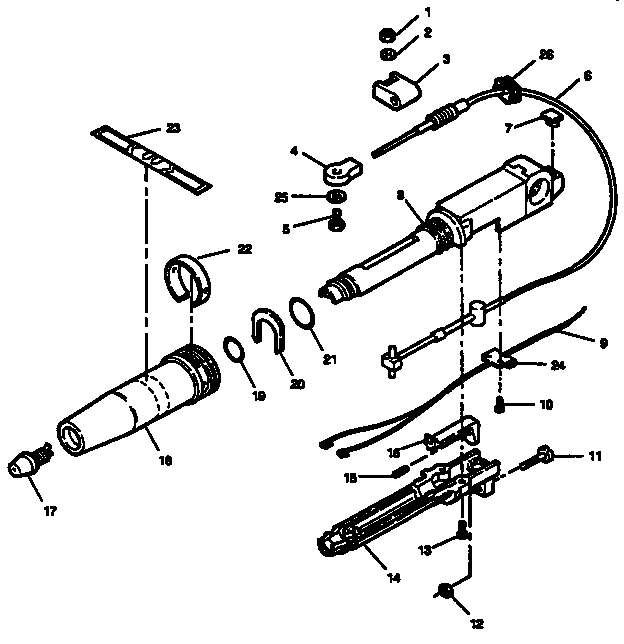

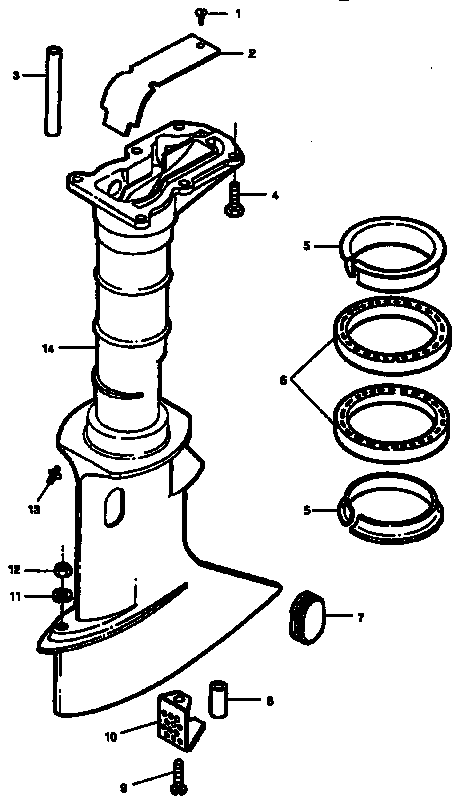

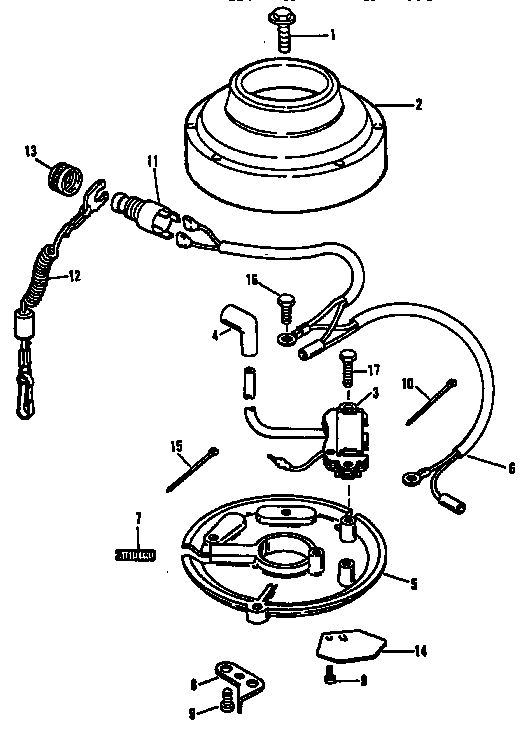

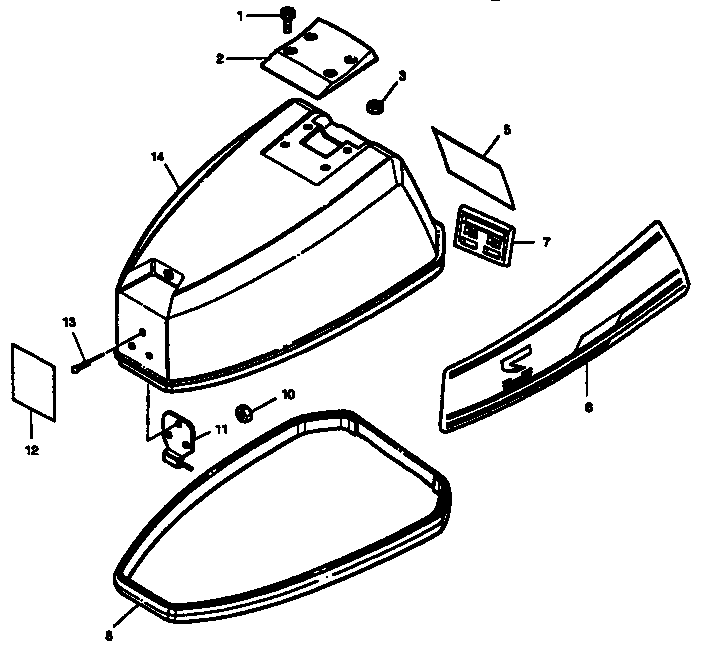

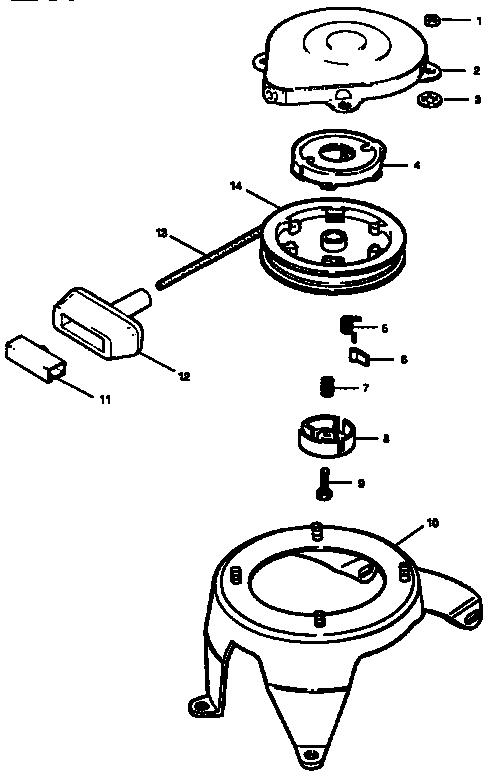

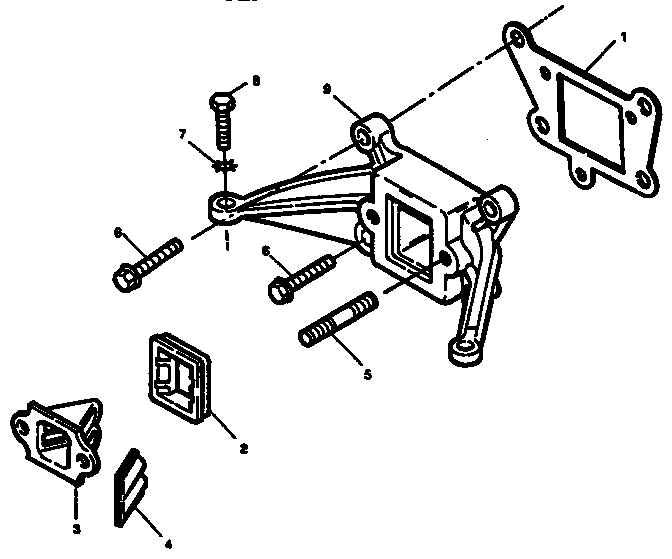

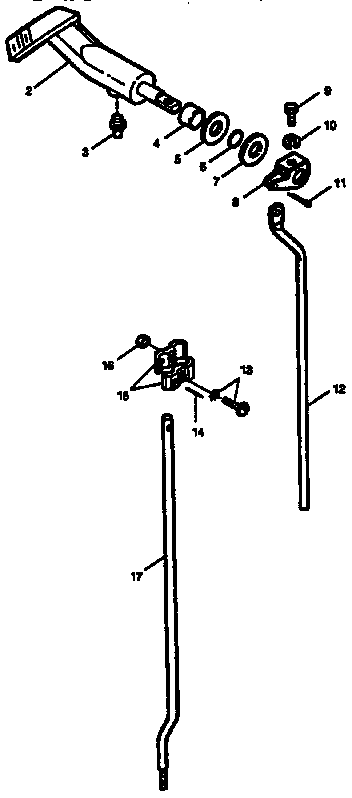

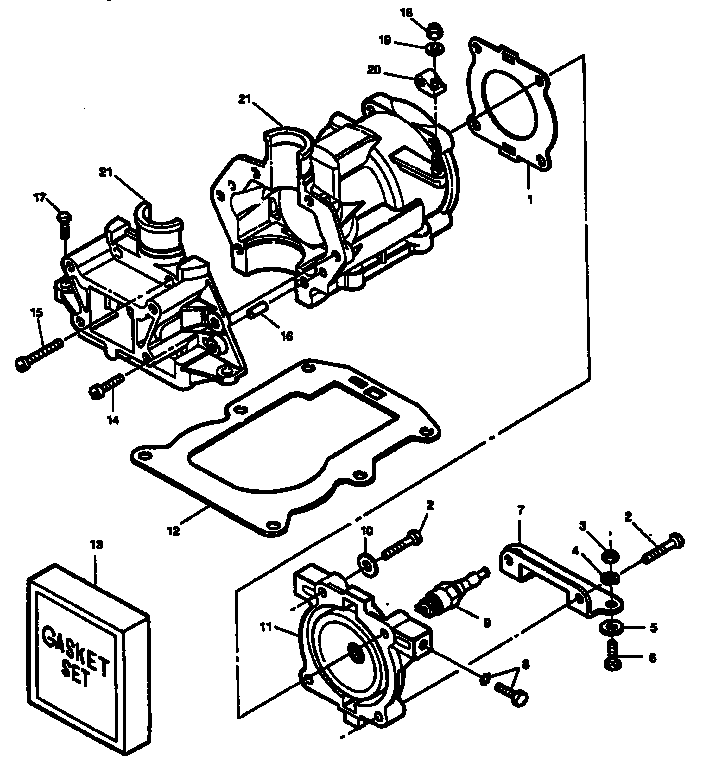

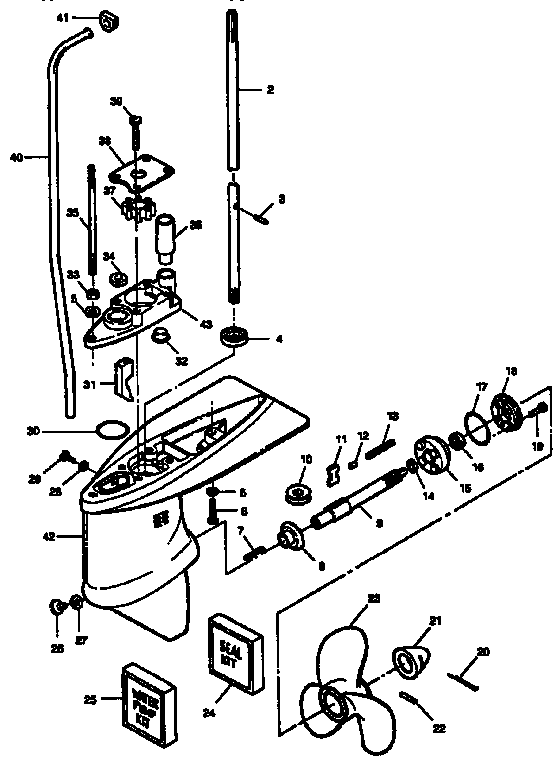

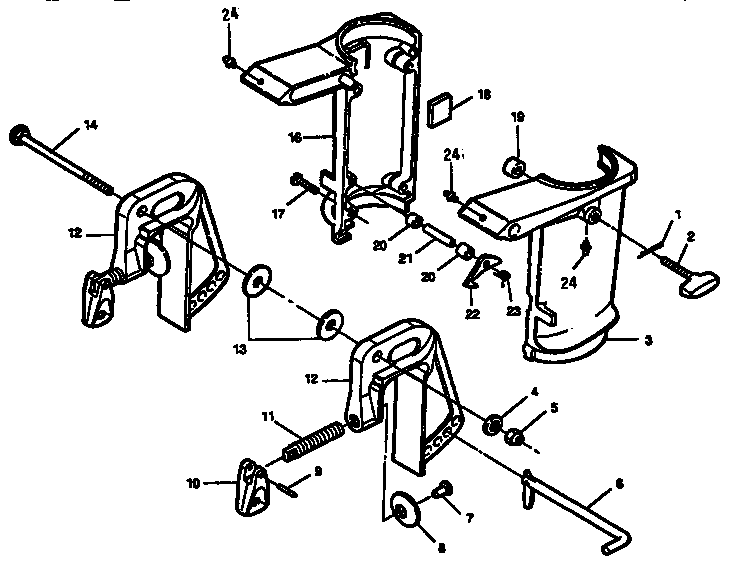

Model #225587504 Official Craftsman 5-hp outboard motor

Here are the diagrams and repair parts for Craftsman 225587504 5-hp outboard motor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 281 parts

    Washer#19

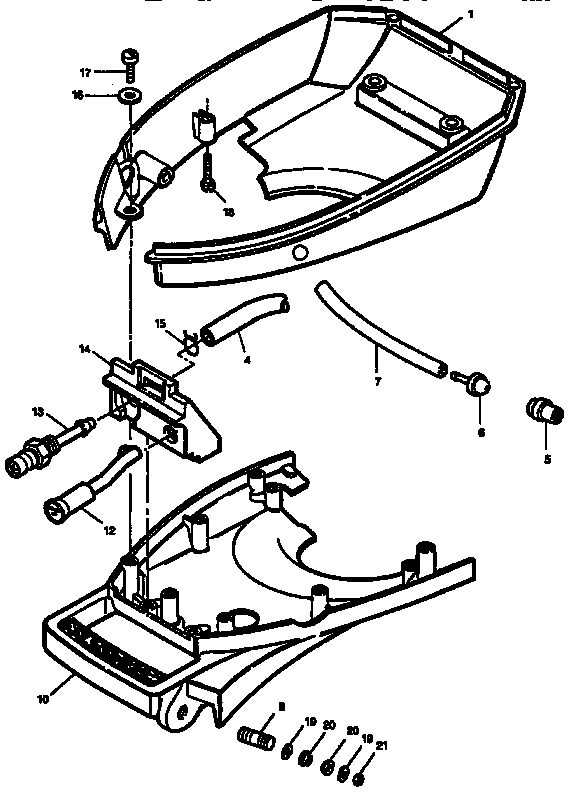

    Lower cover and support plate Diagram

    Washer

    Part #8015

    The manufacturer no longer makes this part, and there's no substitute part

    Washer

    See All Related Diagrams

    Washer

    Part #2014

    The manufacturer no longer makes this part, and there's no substitute part

    Boat Motor Fuel Pump Reed Valve#3

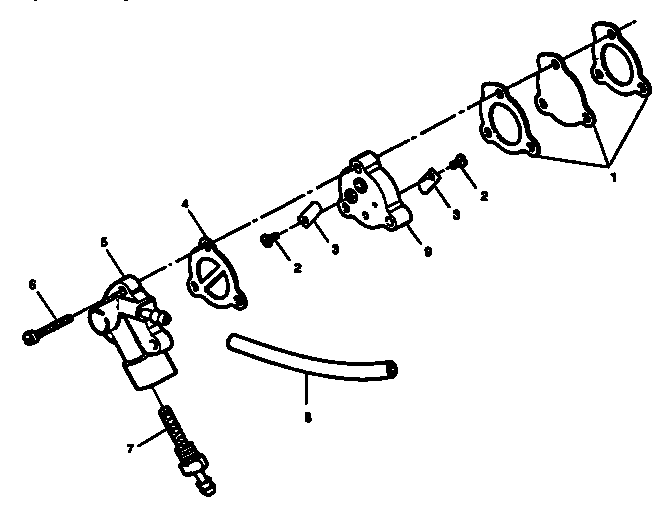

    Fuel pump Diagram

    Boat motor fuel pump reed valve

    Part #18160-3

    The manufacturer no longer makes this part, and there's no substitute part

    Boat Motor Fuel Pump Cover Gasket#4

    Fuel pump Diagram

    Boat motor fuel pump cover gasket

    Part #24748-2

    The manufacturer no longer makes this part, and there's no substitute part

    Boat Motor Carburetor Float Bowl Retainer Screw Gasket#15

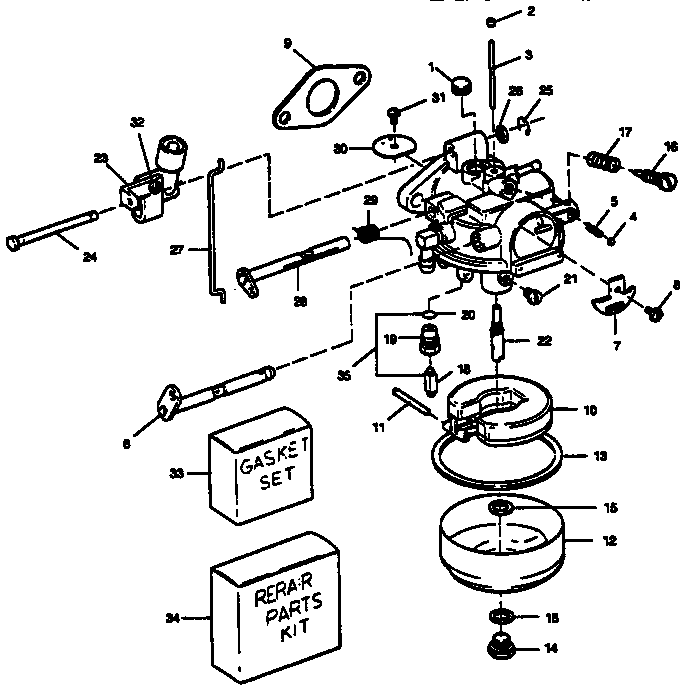

    Carburetor Diagram

    Boat motor carburetor float bowl retainer screw gasket

    Part #O2510

    The manufacturer no longer makes this part, and there's no substitute part

    Boat Motor Carburetor Rebuild Kit#34

    Carburetor Diagram

    Boat motor carburetor rebuild kit

    Part #K10295

    The manufacturer no longer makes this part, and there's no substitute part

    Boat Motor Carburetor Needle Valve#18

    Carburetor Diagram

    Boat motor carburetor needle valve

    Part #10265

    The manufacturer no longer makes this part, and there's no substitute part

    Fuel Bowl#12

    Carburetor Diagram

    Fuel bowl

    Part #O15366

    The manufacturer no longer makes this part, and there's no substitute part

    Boat Motor Fuel Pump Diaphragm and Gasket Assembly#1

    Fuel pump Diagram

    Boat motor fuel pump diaphragm and gasket assembly

    Part #818043A1

    The manufacturer no longer makes this part, and there's no substitute part

    Seal (Black)#7

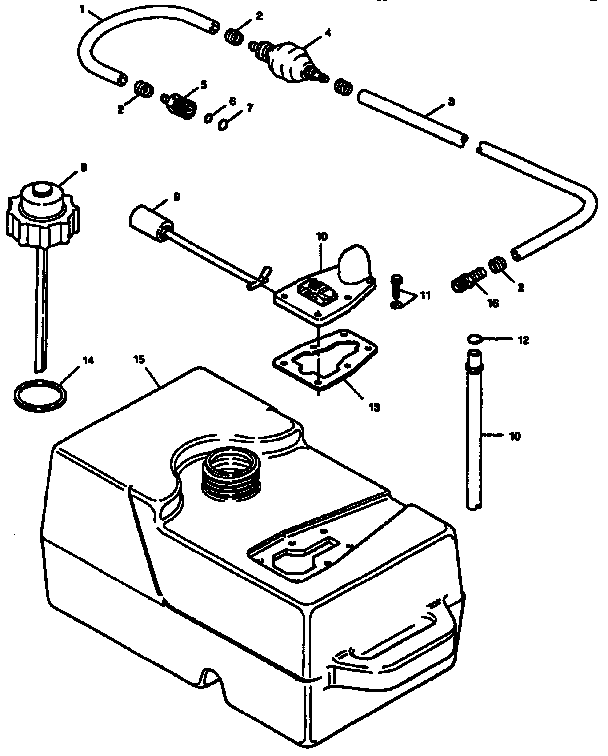

    Fuel intake and line Diagram

    Seal (black)

    Part #17816

    The manufacturer no longer makes this part, and there's no substitute part
