Model # KDL-46BX420 Official Sony lcd television

Here are the diagrams and repair parts for Official Sony KDL-46BX420 lcd television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

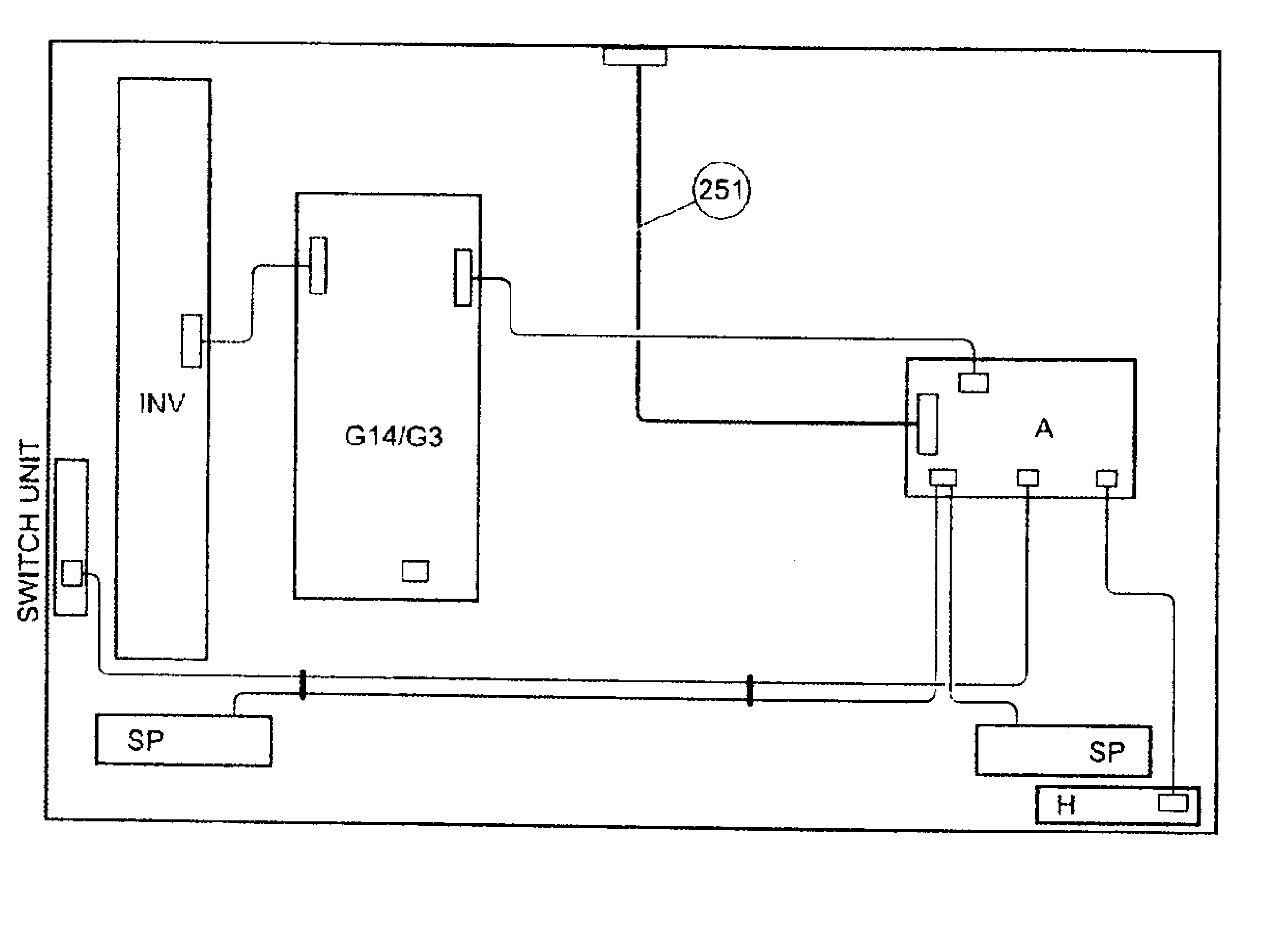

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 23 parts  |
Pcb 185790351
#155

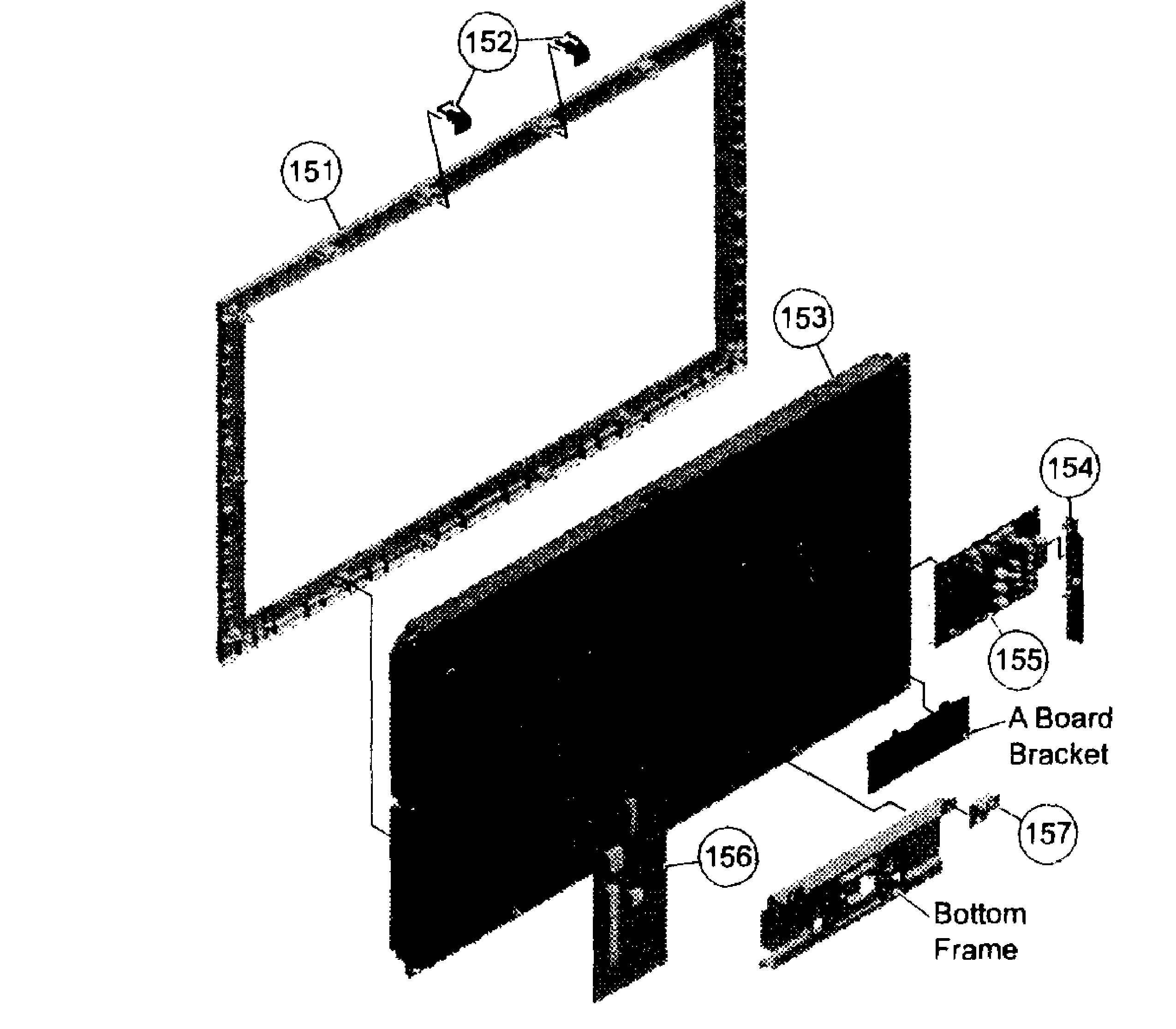

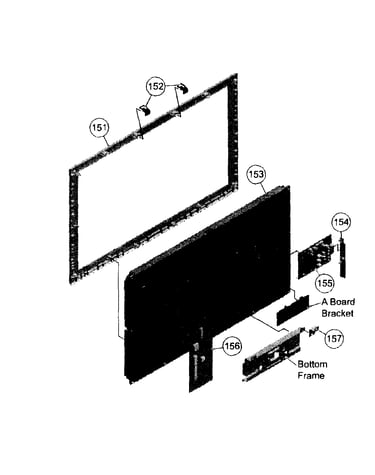

Front assy diagram

Pcb

Part #185790351

The manufacturer no longer makes this part, and there's no substitute part

Kit Belt X23481403
#NI

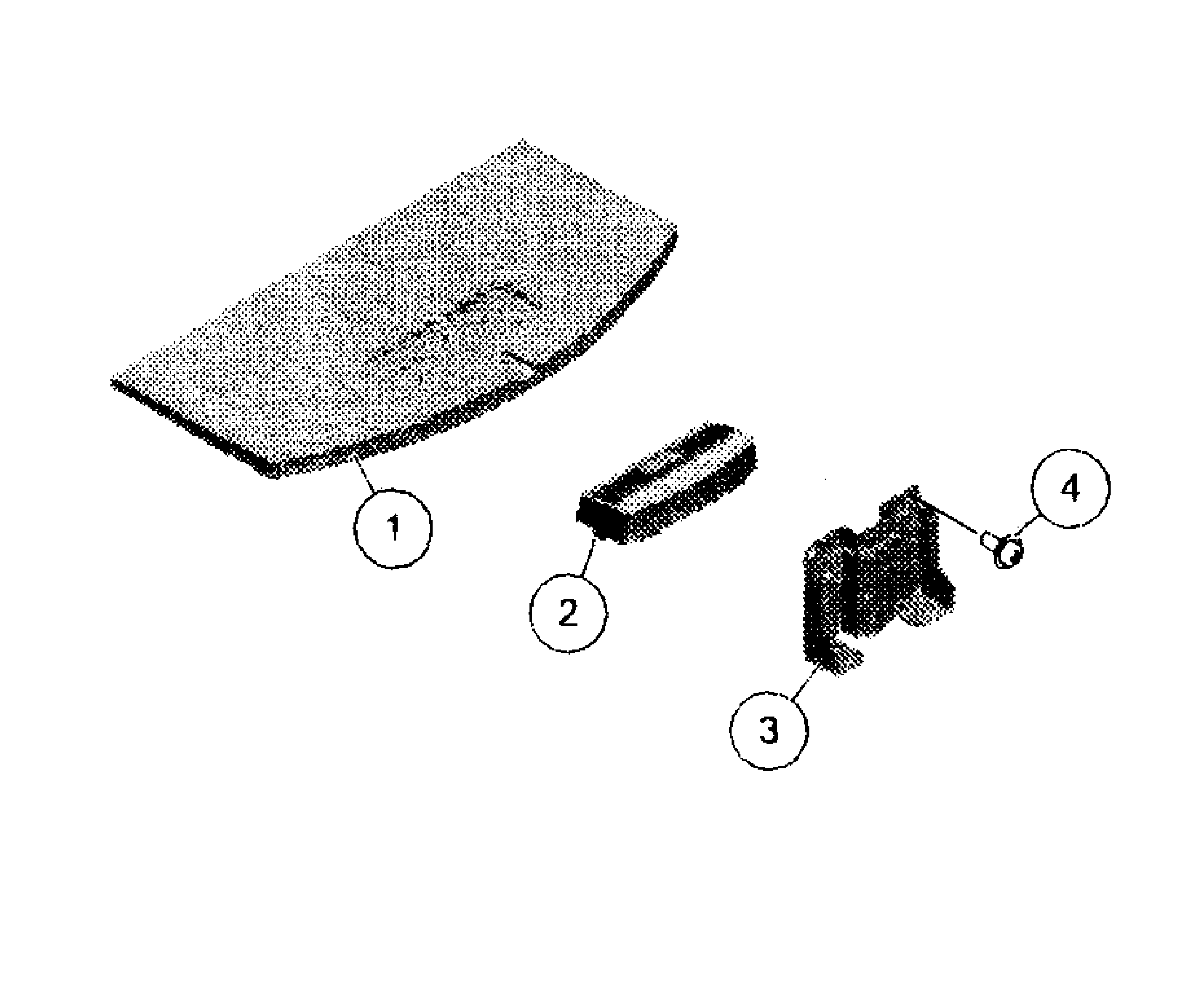

Base assy diagram

Kit belt

Part #X23481403

The manufacturer no longer makes this part, and there's no substitute part

Neck 416686801
#3

Base assy diagram

Neck

Part #416686801

The manufacturer no longer makes this part, and there's no substitute part

Television Screw 258060801
#4

Base assy diagram

Television screw

Part #258060801

The manufacturer no longer makes this part, and there's no substitute part

Pcb,h 185789821
#57

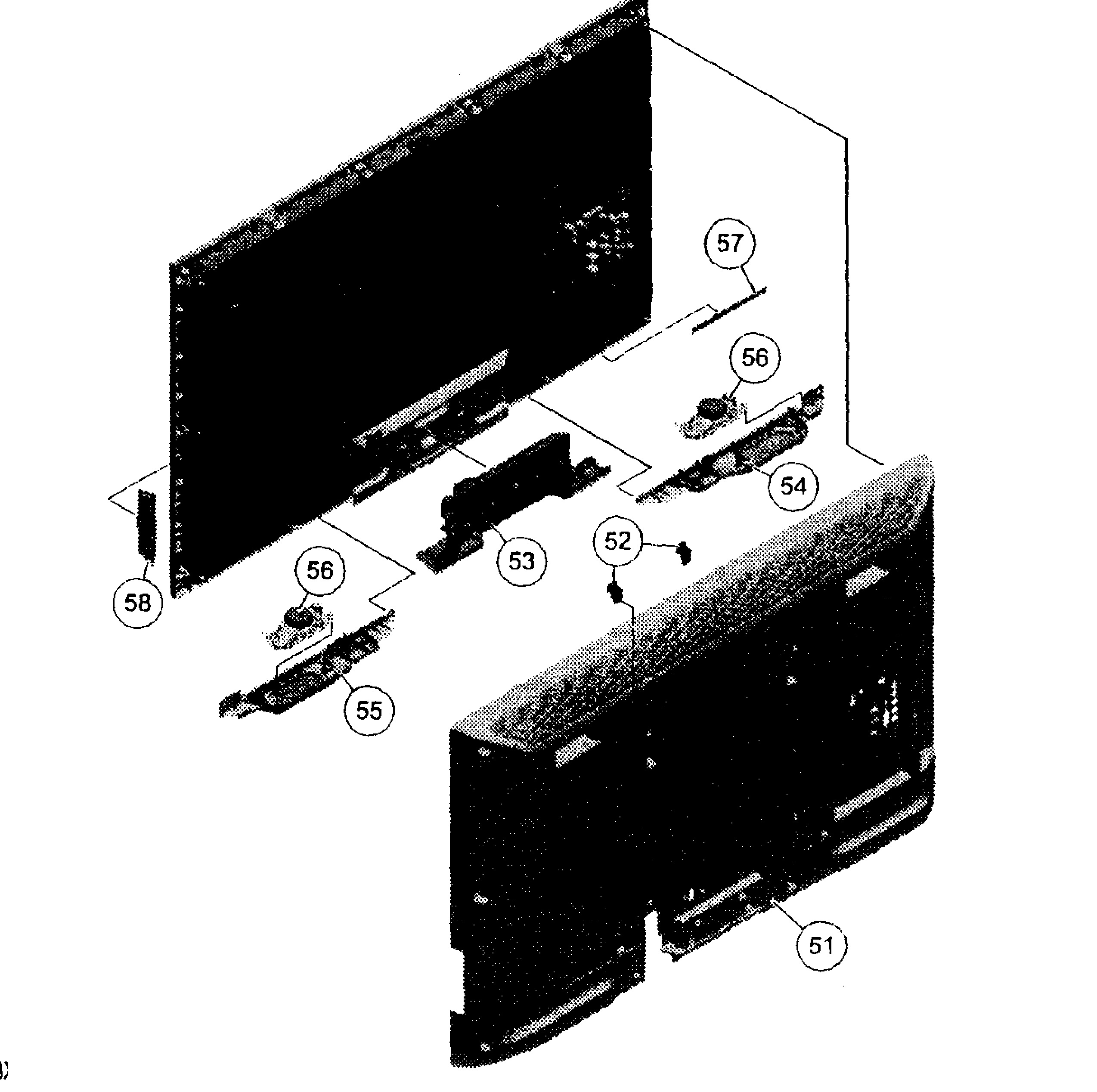

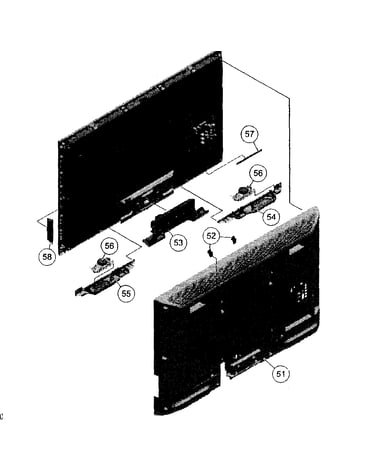

Rear assy diagram

Pcb,h

Part #185789821

The manufacturer no longer makes this part, and there's no substitute part

Cover 427069711
#51

Rear assy diagram

Cover

Part #427069711

The manufacturer no longer makes this part, and there's no substitute part

Power Cord 183898111
#NI

Base assy diagram

Power cord

Part #183898111

The manufacturer no longer makes this part, and there's no substitute part

Stand Assembly X25814311
#1

Base assy diagram

Stand assembly

Part #X25814311

The manufacturer no longer makes this part, and there's no substitute part

Pcb,g3 Pwr 147429611
#156

Front assy diagram

Pcb,g3 pwr

Part #147429611

The manufacturer no longer makes this part, and there's no substitute part

Switch 148962711
#58

Rear assy diagram

Switch

Part #148962711

The manufacturer no longer makes this part, and there's no substitute part
