Countertop Microwave

Model #JEM26WH01 Official GE countertop microwave

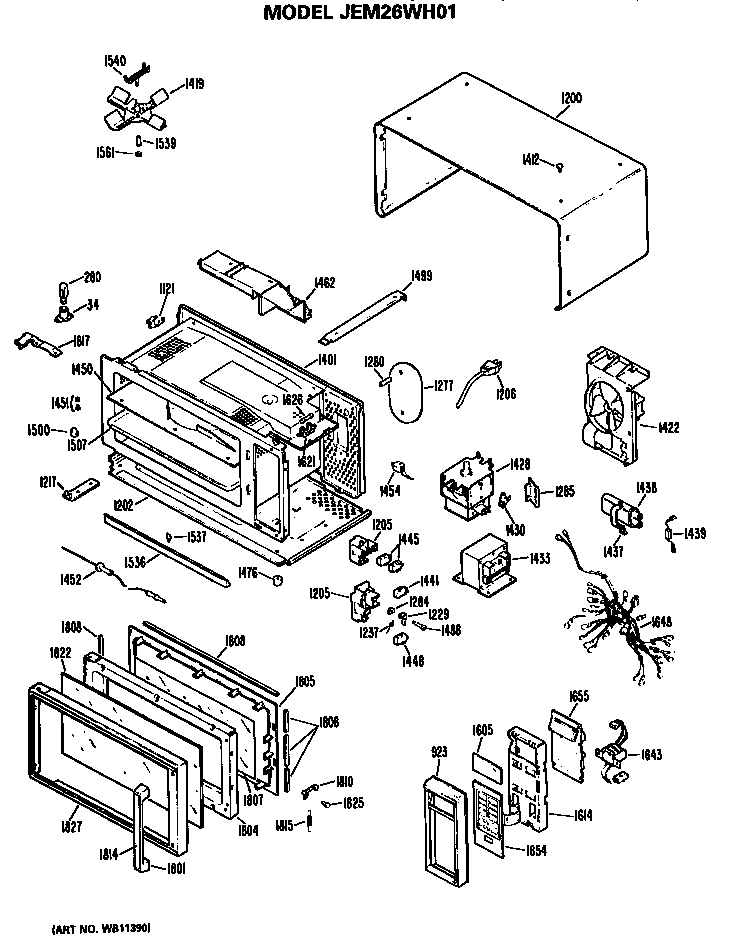

Here are the diagrams and repair parts for GE JEM26WH01 countertop microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 72 parts

Use and Care Guide

#9999

All parts Diagram

Use and care guide

Part #49-4937
In Stock
$8.49
Microwave High-Voltage Diode (replaces WB27X608)

#1439

All parts Diagram

Diode

Part #WB27X364
Replaced by #WB27X1160
?
Manufacturer substitution
This part replaces WB27X364. Substitute parts can look different from the original.
In Stock
$82.22 |
6% OFF
Phone Price: $87.22
Magnetron

#1428

All parts Diagram

Magnetron

Part #WB27X5334

The manufacturer no longer makes this part, and there's no substitute part

Microwave Thermal Cut-Off (replaces WB20X141, WB27X10670)

#1121

All parts Diagram

Flame sensor

Part #WB20X141
Replaced by #WB27X10195
?
Manufacturer substitution
This part replaces WB20X141. Substitute parts can look different from the original.
In Stock
$22.40 |
18% OFF
Phone Price: $27.40
Microwave Micro-Switch (replaces WB24X0829, WB24X10038, WB24X414, WB24X429, WB24X441, WB24X5227, WB24X796, WB24X801)

#1441

All parts Diagram

Switch

Part #WB24X429
Replaced by #WB24X829
?
Manufacturer substitution
This part replaces WB24X429. Substitute parts can look different from the original.
In Stock
$32.39 |
13% OFF
Phone Price: $37.39
Lamp Cover

#1475

All parts Diagram

Lamp cover

Part #WB56X1945

The manufacturer no longer makes this part, and there's no substitute part

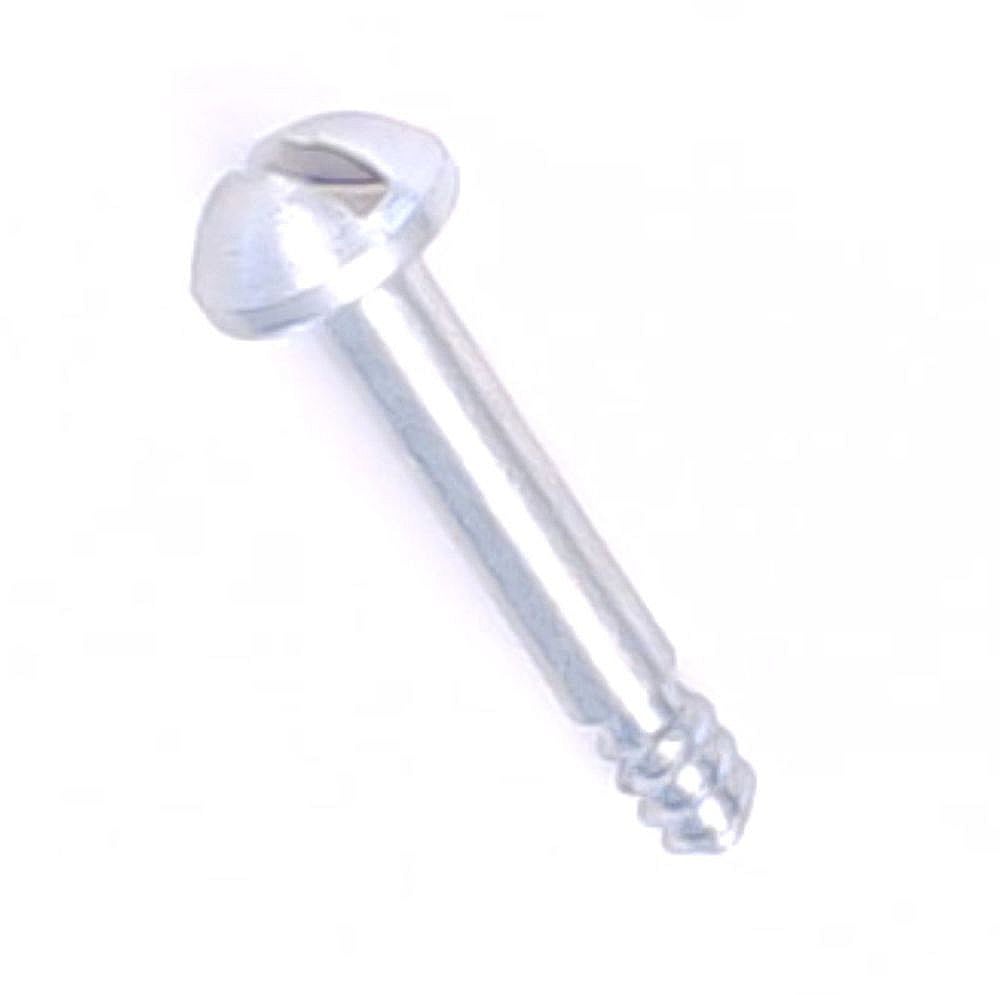

Screw Cam

#2095

All parts Diagram

Screw cam

Part #WB1X721

The manufacturer no longer makes this part, and there's no substitute part

Lower Switch

#1448

All parts Diagram

Lower switch

Part #WB24X328

The manufacturer no longer makes this part, and there's no substitute part

Base Plate

#1202

All parts Diagram

Base plate

Part #WB55X612

The manufacturer no longer makes this part, and there's no substitute part

Frame Doo

#1827

All parts Diagram

Frame doo

Part #WB55X683

The manufacturer no longer makes this part, and there's no substitute part
