Model # WM2075CW Official LG washer

Here are the diagrams and repair parts for Official LG WM2075CW washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 109 parts  |

Washer Drain Pump Assembly 4681EA2001D
#K340

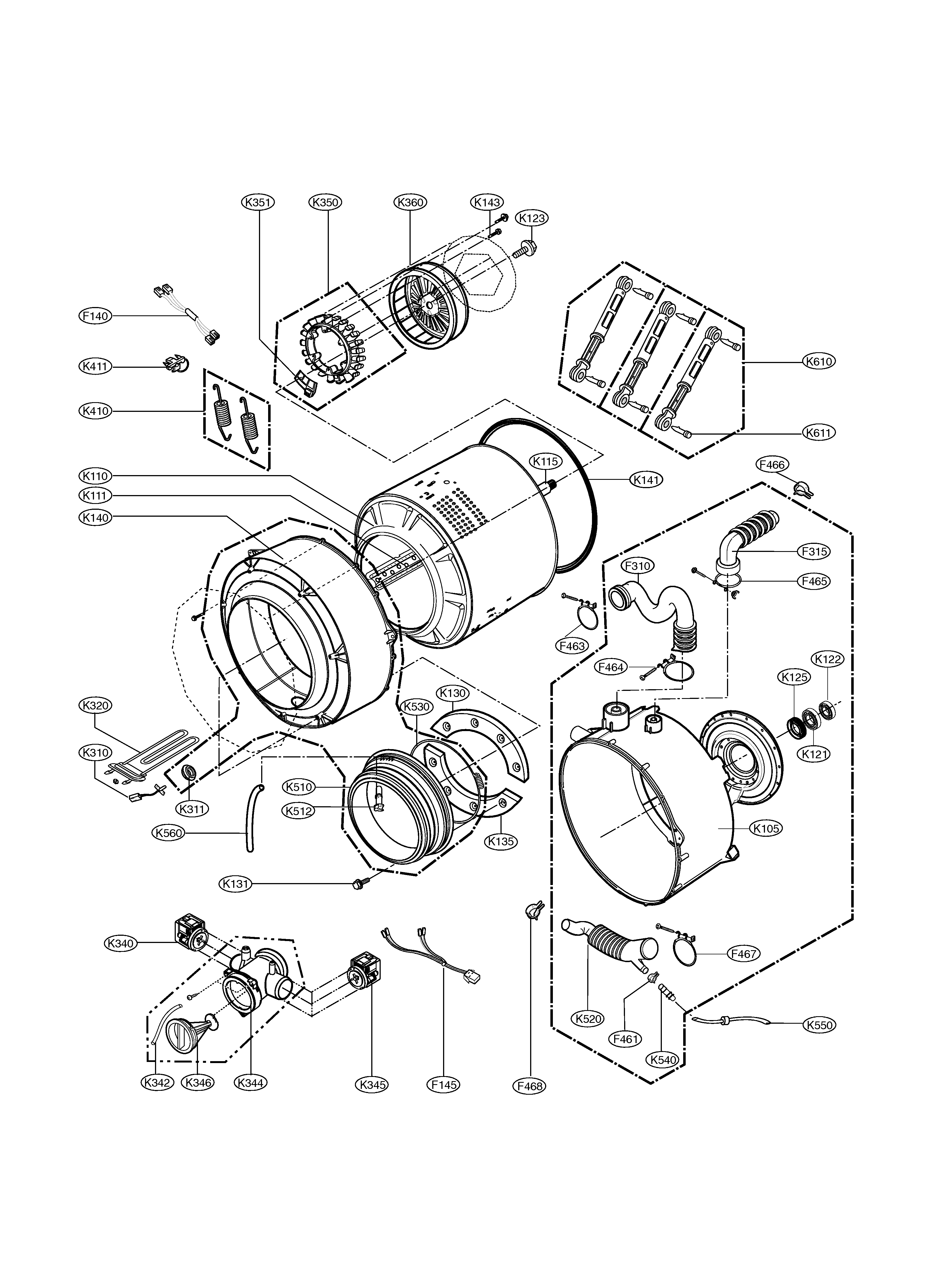

Drum & tub diagram

Washer drain pump assembly

Part #4681EA2001D

Replaced by #4681EA2001T

?
Manufacturer substitution
This part replaces 4681EA2001D. Substitute parts can look different from the original.
BEST SELLER
$59.48
10% OFF Phone Price : $66.32
In Stock
Washer Water Inlet Valve 5221ER1003A
#F160

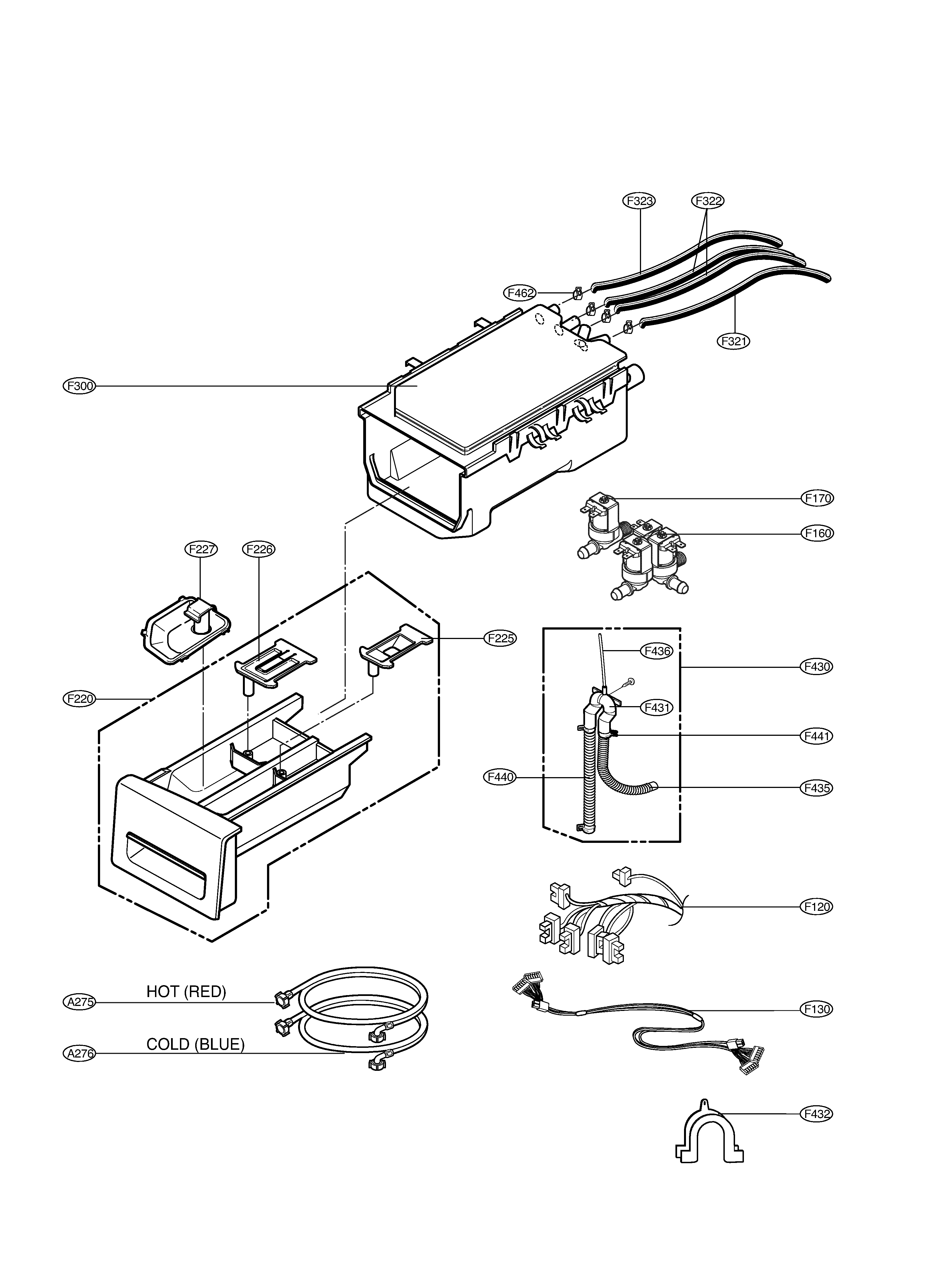

Dispenser assembly diagram

Washer water inlet valve

Part #5221ER1003A

Replaced by #5220FR2075L

?
Manufacturer substitution
This part replaces 5221ER1003A. Substitute parts can look different from the original.
BEST SELLER
In Stock
Washer Single-solenoid Water Inlet Valve (replaces 5220fr1280f, 5220fr2006l) 5220FR2006H
#F170

Dispenser assembly diagram

Washer single-solenoid water inlet valve (replaces 5220fr1280f, 5220fr2006l)

Part #5220FR2006H

BEST SELLER
$22.33
13% OFF Phone Price : $25.75
In Stock
Washer Door Boot (replaces 4986er0004j, 4986er0004k, 4986er0004n) 4986ER0004F
#NI

Drum & tub diagram

Washer door boot (replaces 4986er0004j, 4986er0004k, 4986er0004n)

Part #4986ER0004F

BEST SELLER
$60.11
5% OFF Phone Price : $63.36
In Stock
Washer Tub Inner Rear 6306uu Bearing 4280FR4048L
#K121

Drum & tub diagram

Washer tub inner rear 6306uu bearing

Part #4280FR4048L

Replaced by #4280FR4048N

?
Manufacturer substitution
This part replaces 4280FR4048L. Substitute parts can look different from the original.
BEST SELLER
$43.03
8% OFF Phone Price : $46.78
In Stock
Washer Rear Tub Gasket (replaces 4036er3002a) 4036ER2004A
#K125

Drum & tub diagram

Washer rear tub gasket (replaces 4036er3002a)

Part #4036ER2004A

BEST SELLER
$30.50
11% OFF Phone Price : $34.19
In Stock
Washer Tub Bearing, Rear 4280FR4048E
#K122

Drum & tub diagram

Washer tub bearing, rear

Part #4280FR4048E

Replaced by #MAP61913707

?
Manufacturer substitution
This part replaces 4280FR4048E. Substitute parts can look different from the original.
BEST SELLER
$36.22
10% OFF Phone Price : $40.13
In Stock
Washer Door Lock Switch 6601ER1004C
#A440

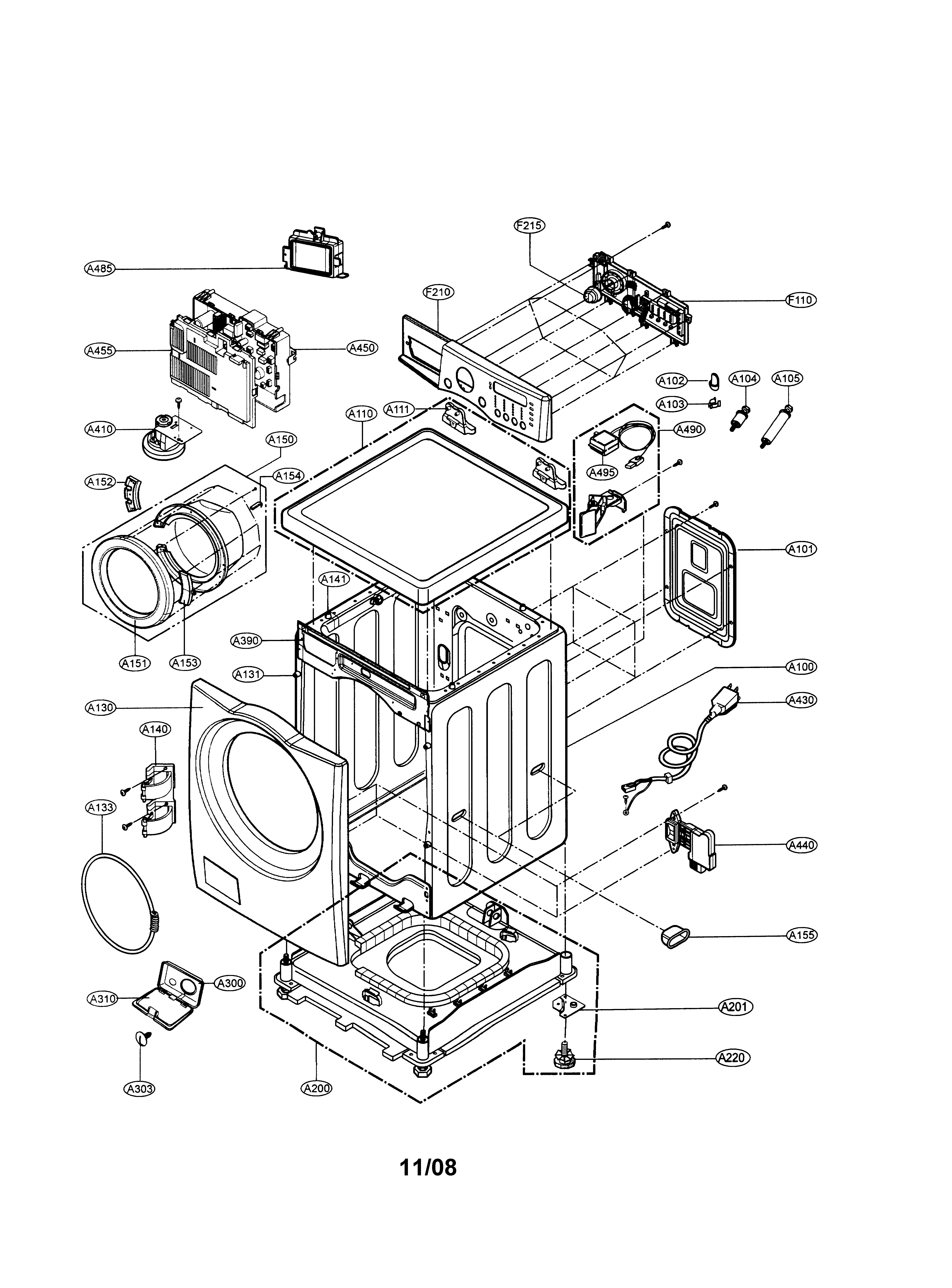

Cabinet & control panel diagram

Washer door lock switch

Part #6601ER1004C

Replaced by #EBF49827801

?
Manufacturer substitution
This part replaces 6601ER1004C. Substitute parts can look different from the original.
BEST SELLER
In Stock
Washer Outer Tub Gasket 4036ER4001B
#K141

Drum & tub diagram

Washer outer tub gasket

Part #4036ER4001B

BEST SELLER
$22.64
16% OFF Phone Price : $26.98
In Stock
Washer Motor Rotor Position Sensor 6501KW2002A
#K351

Drum & tub diagram

Washer motor rotor position sensor

Part #6501KW2002A

BEST SELLER
$31.06
14% OFF Phone Price : $36.06
In Stock
