Model #LA7700XPW0 Official Whirlpool washer

Here are the diagrams and repair parts for Whirlpool LA7700XPW0 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

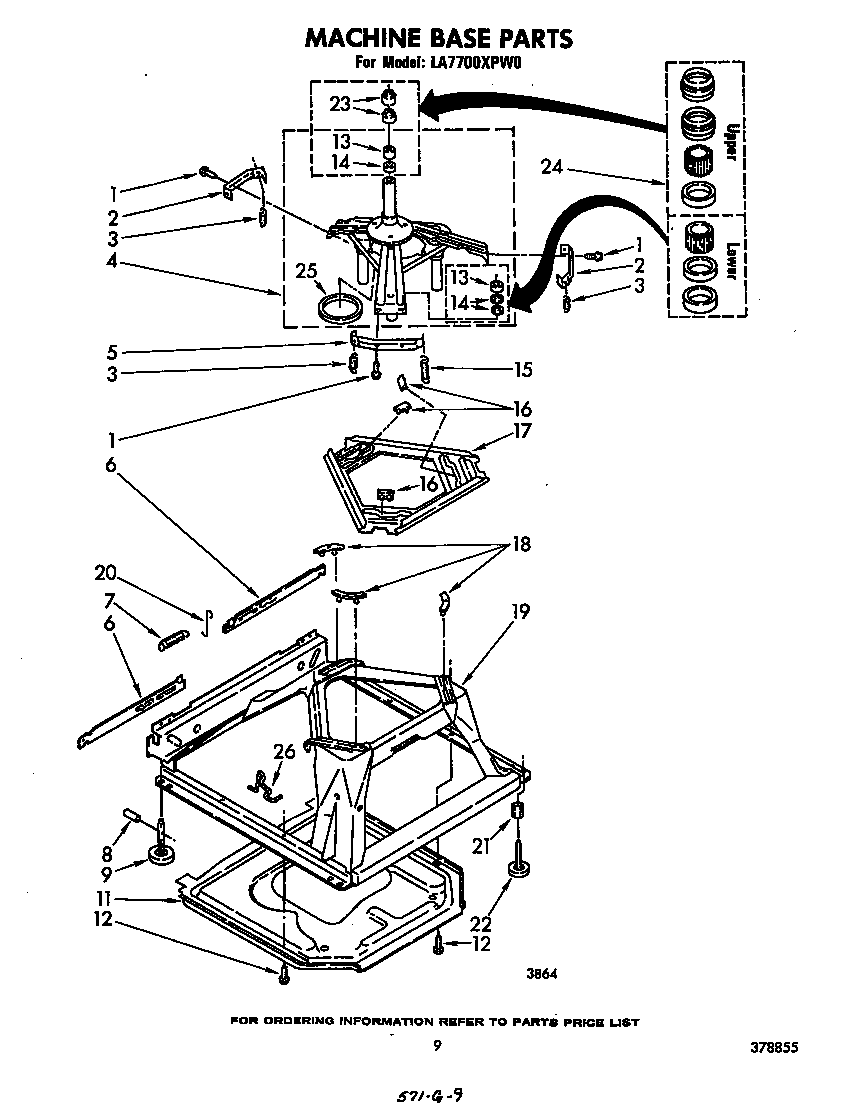

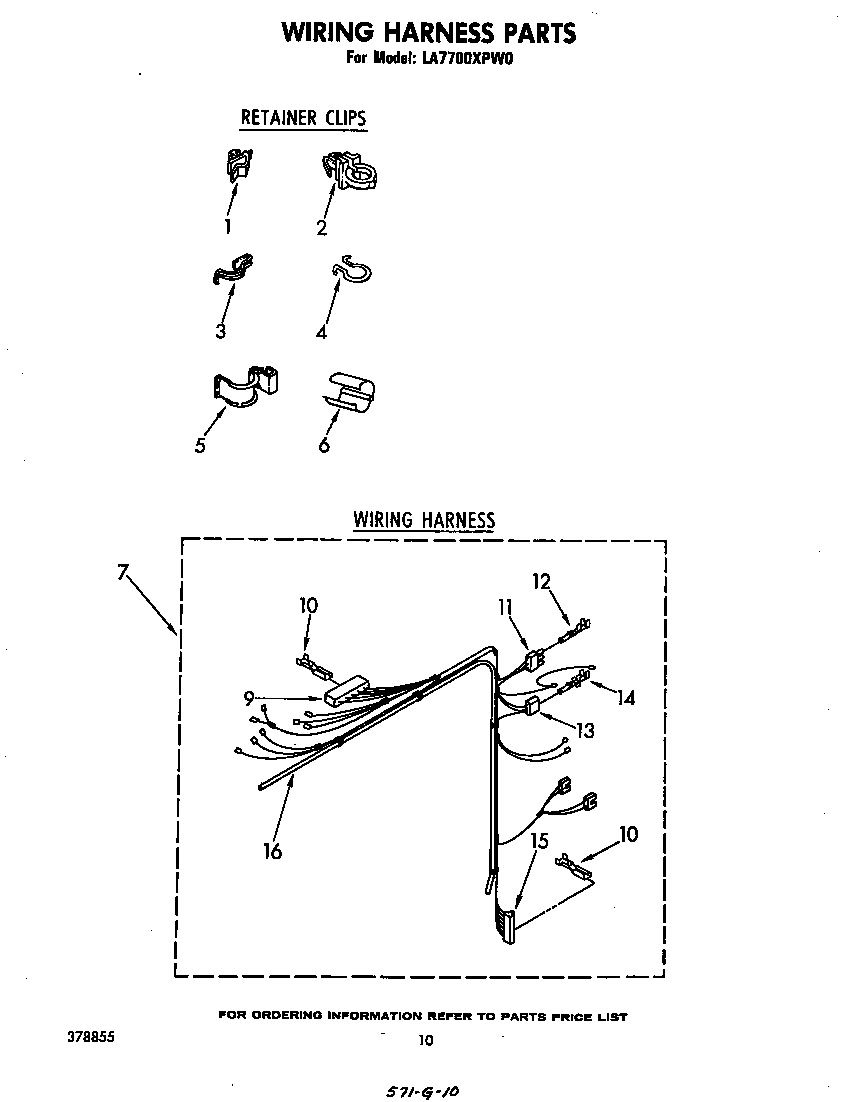

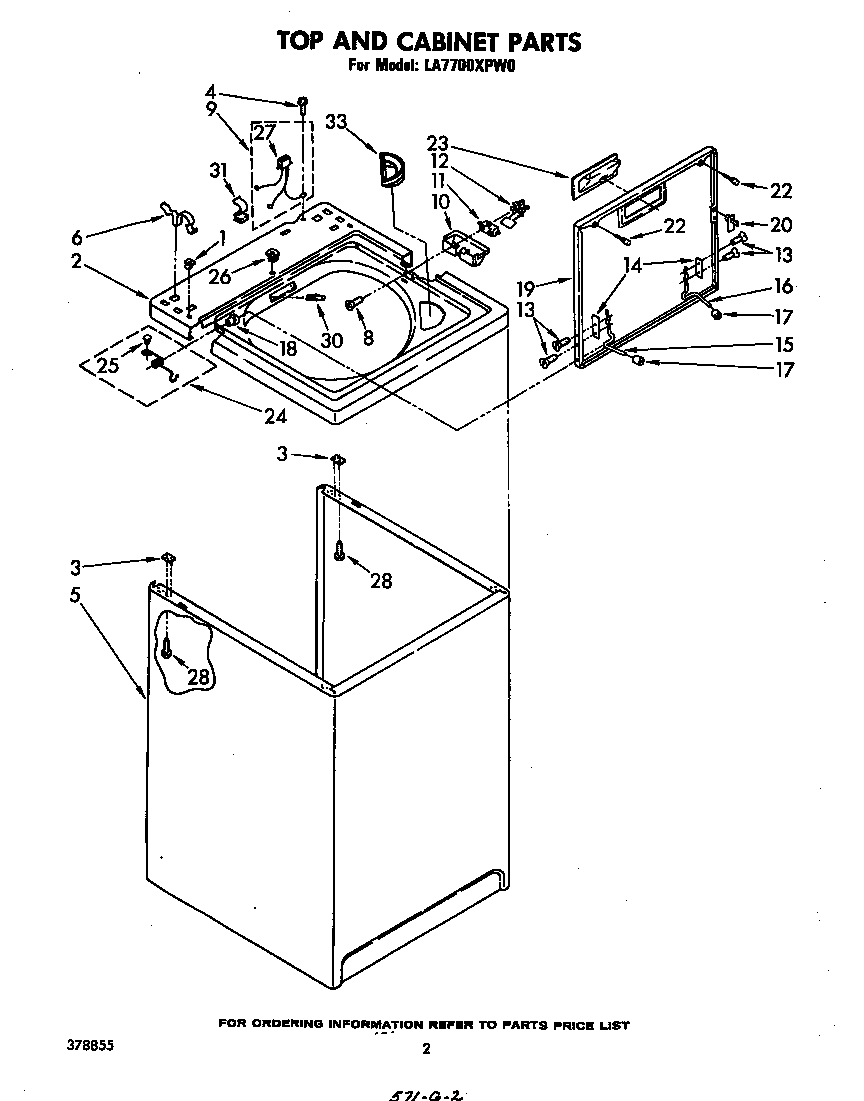

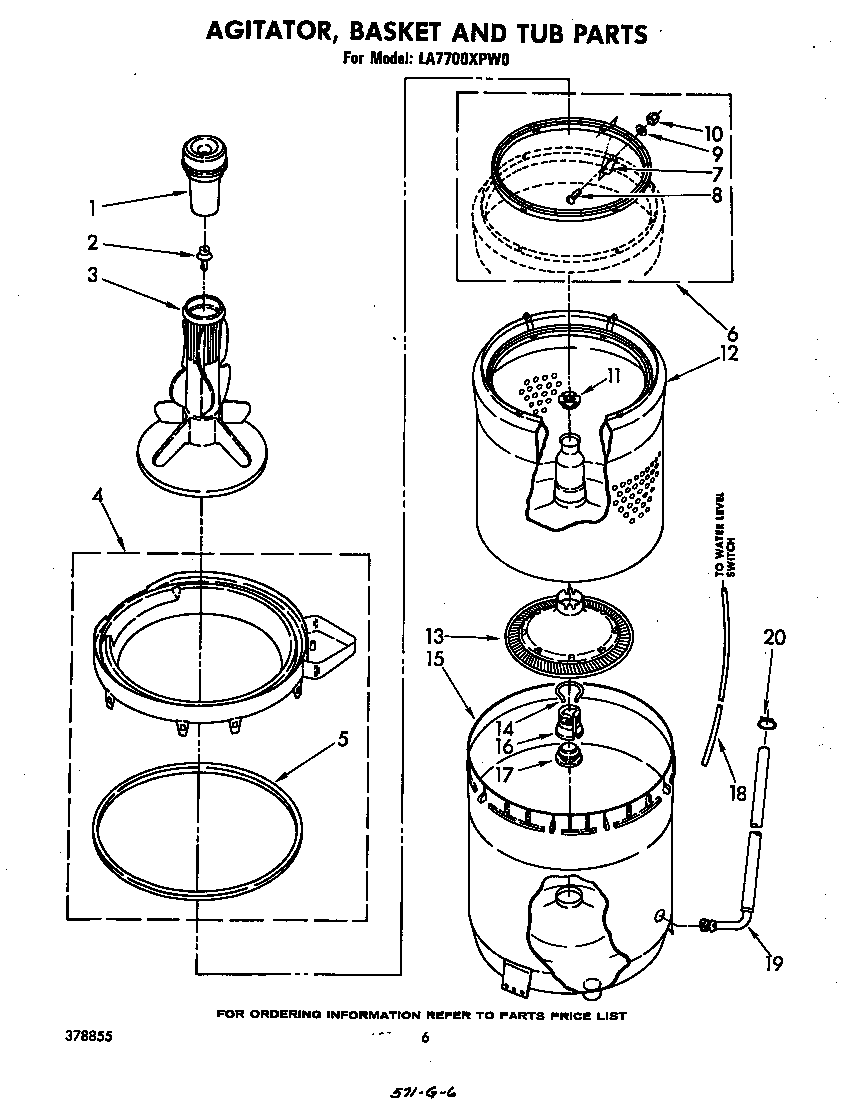

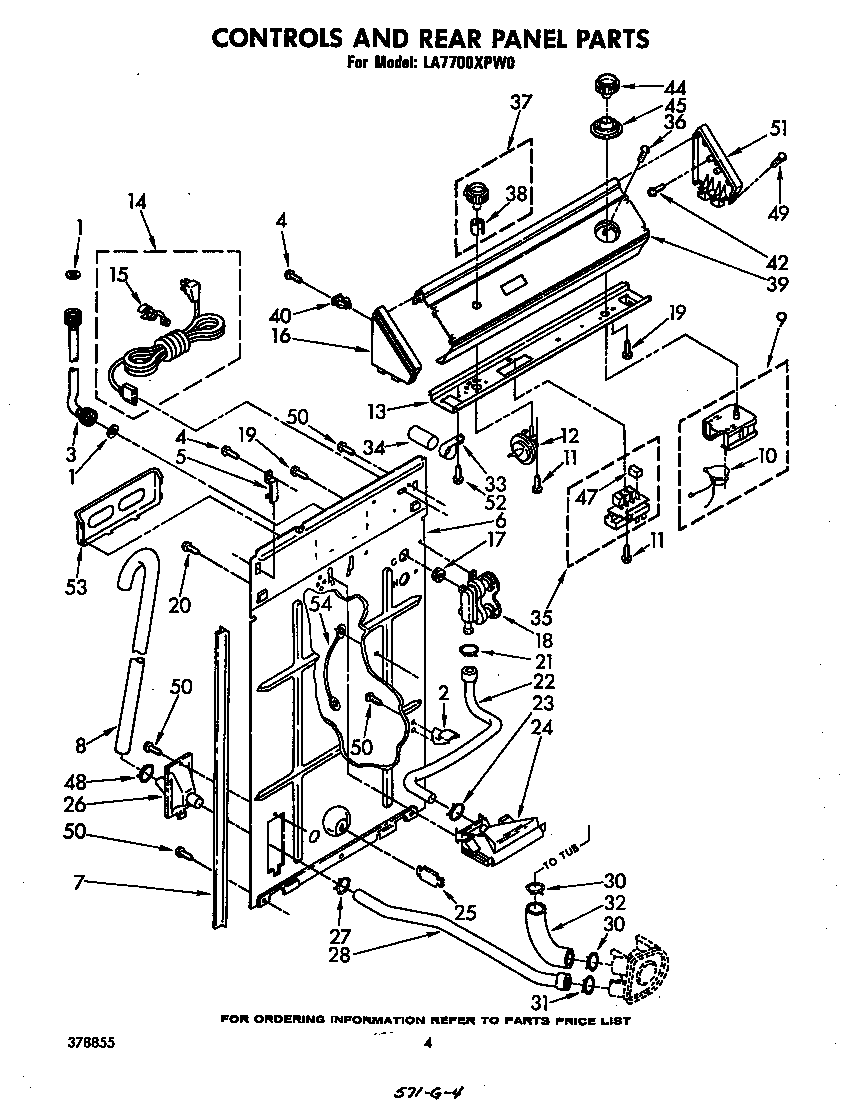

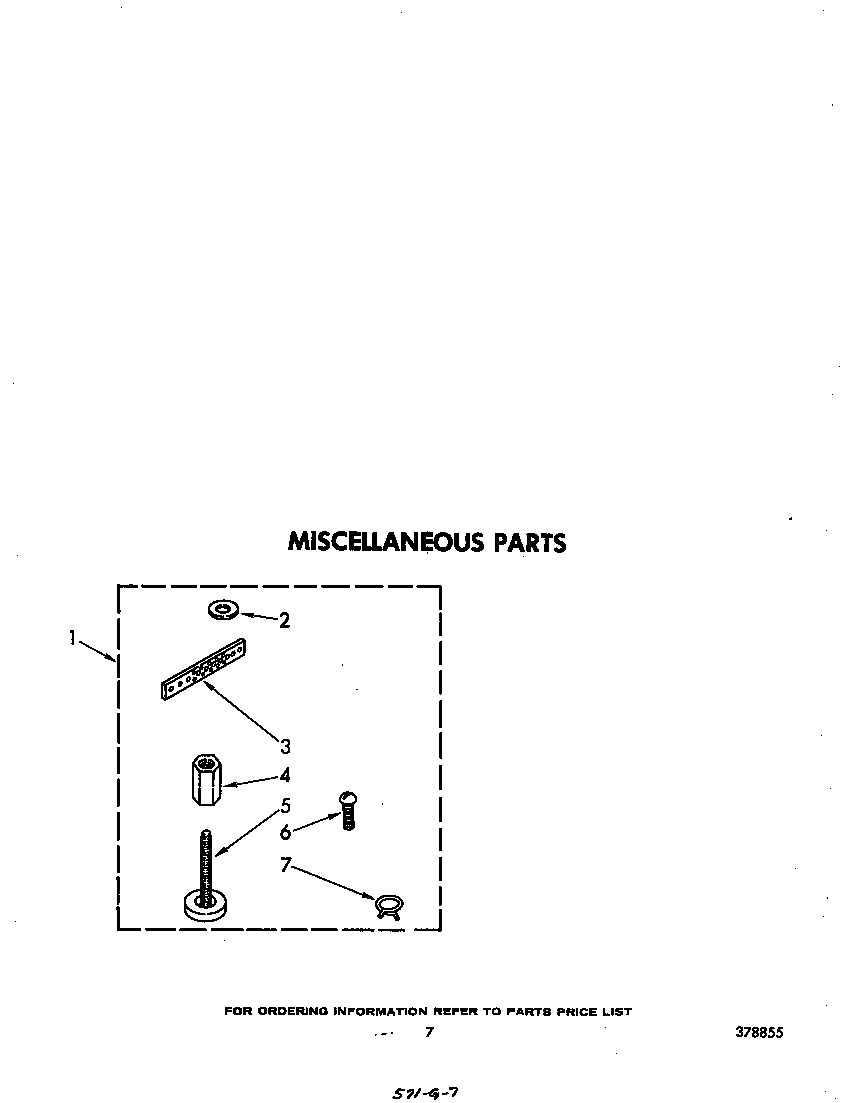

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 48 parts

Washer Gear Case#23

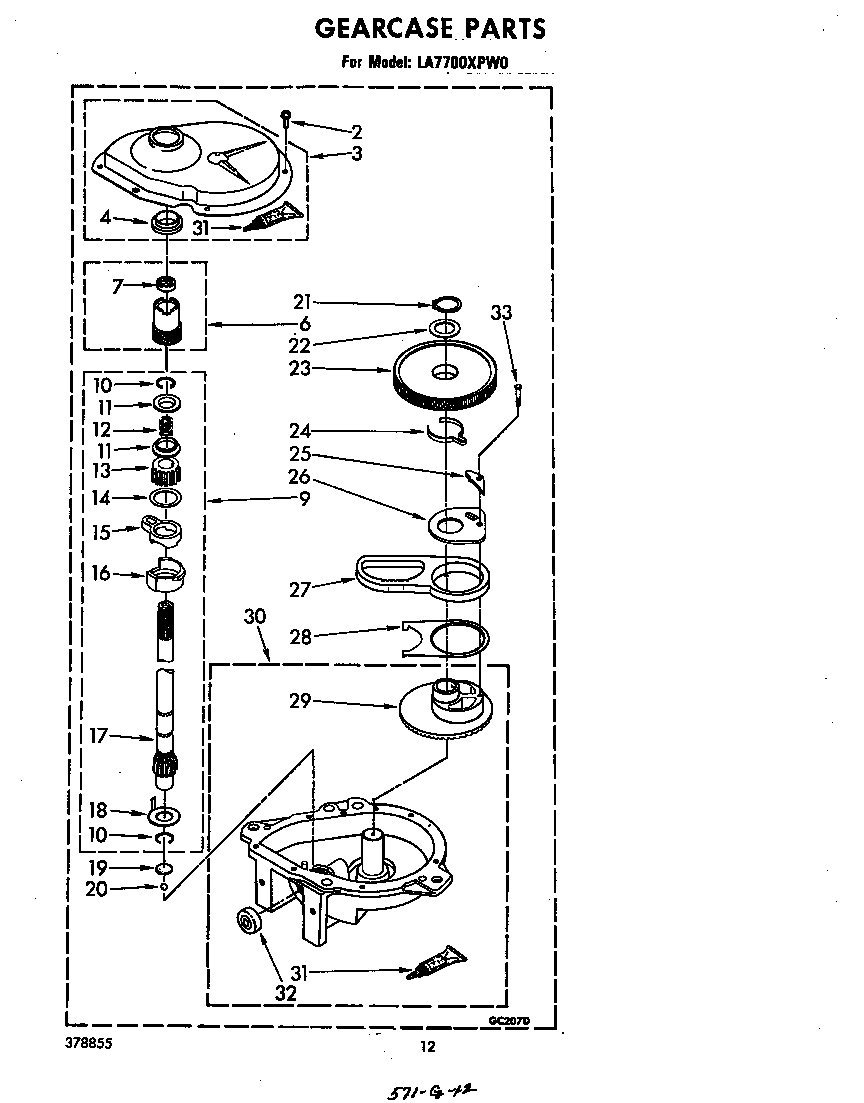

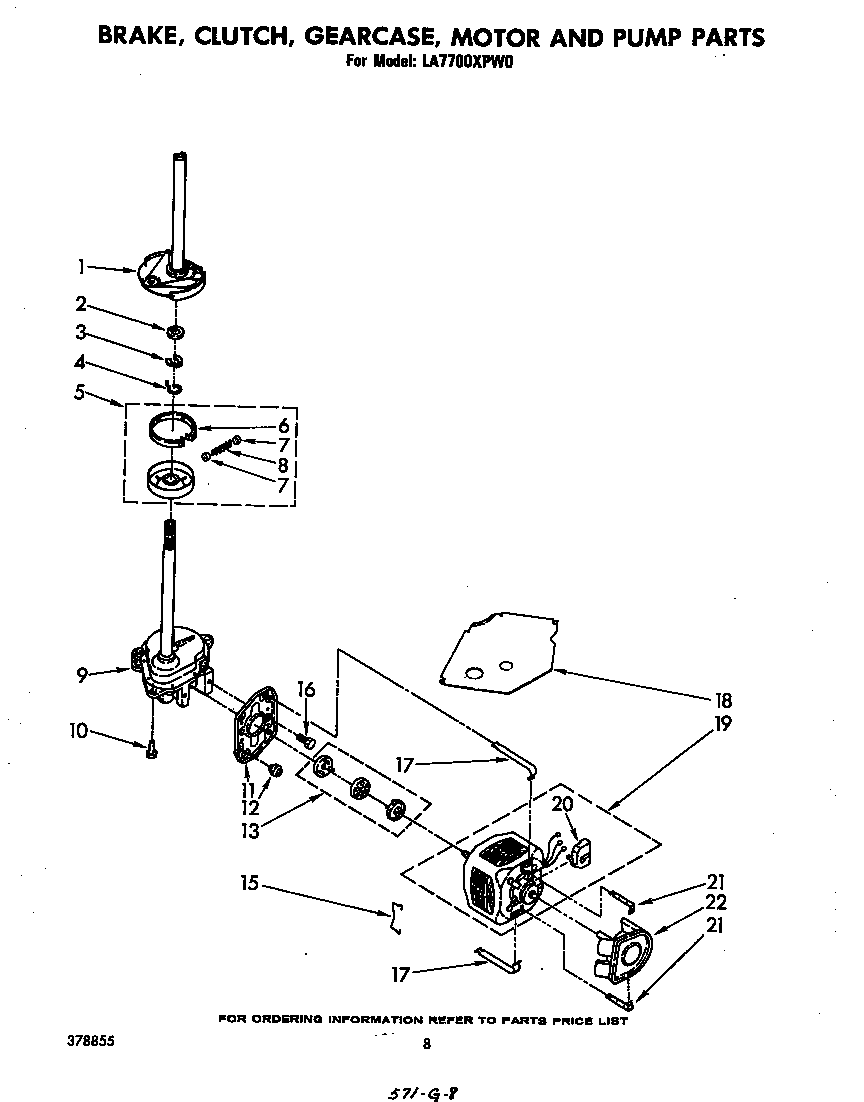

Gearcase Diagram

Gear

Part #62570
Replaced by #3360629
?
Manufacturer substitution
This part replaces 62570. Substitute parts can look different from the original.
BEST SELLER
In Stock
$190.39 |
5% OFF
MSRP: $200.00
Washer Basket Drive Assembly#1

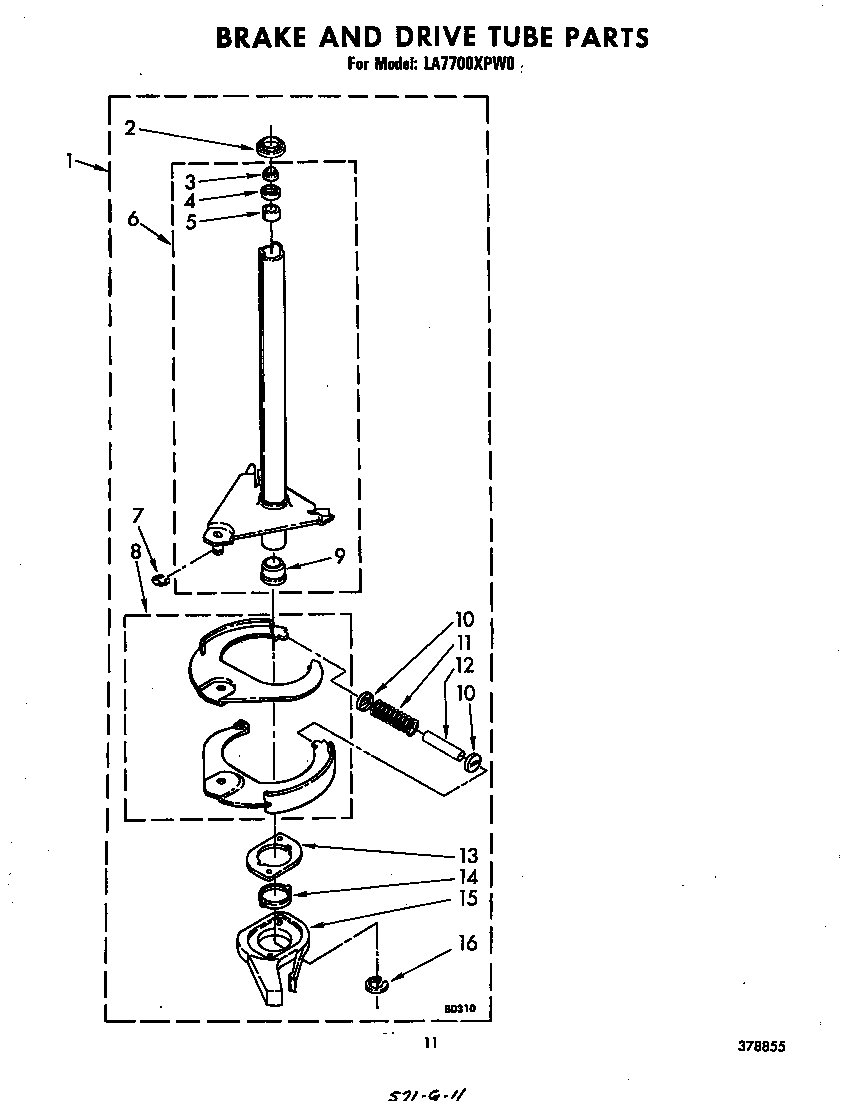

Brake and drive tube Diagram

Drive basket

Part #64033
Replaced by #W10820043
?
Manufacturer substitution
This part replaces 64033. Substitute parts can look different from the original.
BEST SELLER
In Stock
$114.04 |
19% OFF
MSRP: $140.00
Washer Spin Bearing#9

Brake and drive tube Diagram

Bearing

Part #62703
Replaced by #WP8546462
?
Manufacturer substitution
This part replaces 62703. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
In Stock
$6.49 |
13% OFF
Phone Price: $7.49
Washer Brake Cam Retainer Clip#16

Brake and drive tube Diagram

Ring

Part #90368
Replaced by #W11033823
?
Manufacturer substitution
This part replaces 90368. Substitute parts can look different from the original.
This item is not returnable
In Stock
$8.39 |
11% OFF
Phone Price: $9.39
Washer Gear Case Cover Seal#4

Gearcase Diagram

Seal

Part #62787
Replaced by #WP3349985
?
Manufacturer substitution
This part replaces 62787. Substitute parts can look different from the original.
This item is not returnable
In Stock
$16.39 |
11% OFF
Phone Price: $18.39
Washer Gear Case Oil Seal#32

Gearcase Diagram

In Stock
$33.29 |
13% OFF
Phone Price: $38.29
Washer Gear Case Oil#33A

Gearcase Diagram

In Stock
$35.39 |
12% OFF
Phone Price: $40.39
Washer Agitator Drive Shaft#16

Gearcase Diagram

Cam

Part #62581
Replaced by #WP389387
?
Manufacturer substitution
This part replaces 62581. Substitute parts can look different from the original.
In Stock
$103.01 |
10% OFF
Was: $114.46
Washer Agitator Drive Shaft#9

Gearcase Diagram

Shaft

Part #63274
Replaced by #WP389387
?
Manufacturer substitution
This part replaces 63274. Substitute parts can look different from the original.
In Stock
$103.01 |
10% OFF
Was: $114.46
Washer Drive Tube Thrust Ring#2

Brake and drive tube Diagram

Slinger

Part #62658
Replaced by #WP62658
?
Manufacturer substitution
This part replaces 62658. Substitute parts can look different from the original.
In Stock
$9.19 |
10% OFF
Phone Price: $10.19
