Model #545473511 Official Sears 27" men's bicycle

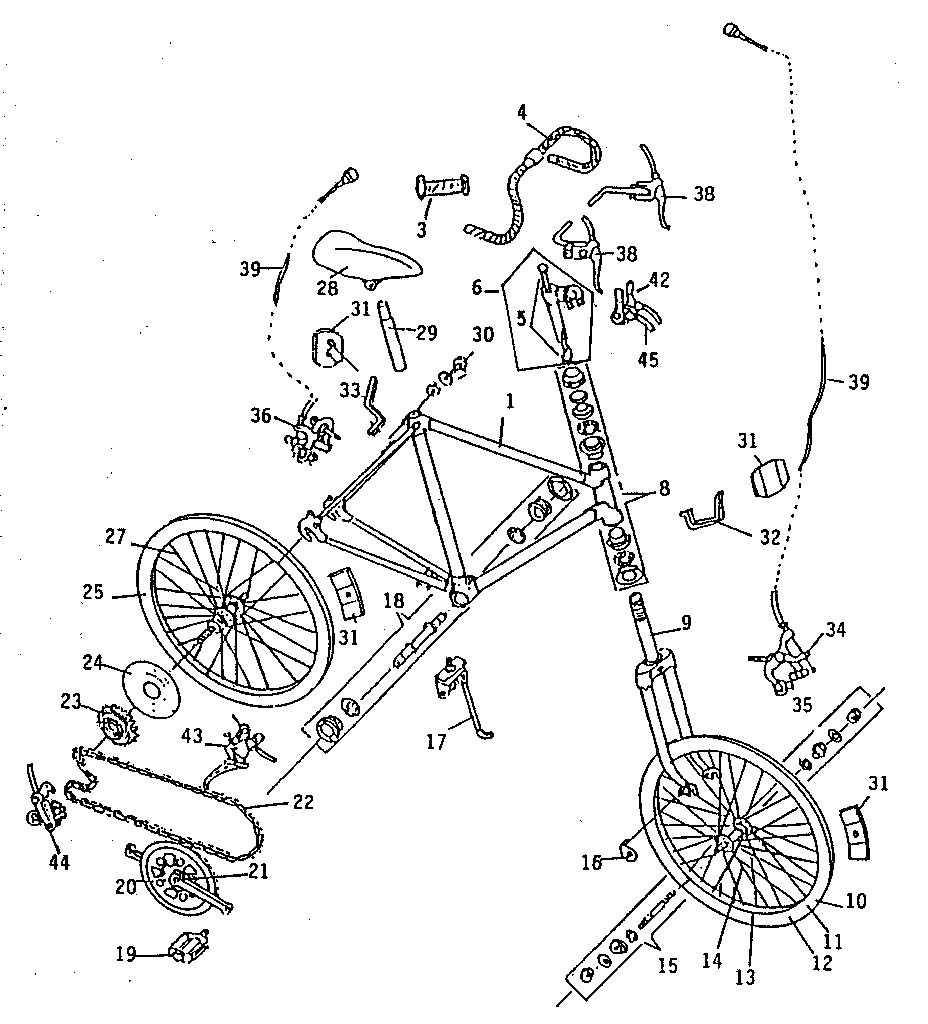

Here are the diagrams and repair parts for Sears 545473511 27" men's bicycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 42 parts

Bicycle Brake Shoe Set#35

Unit parts Diagram

Bicycle brake shoe set

Part #104002

The manufacturer no longer makes this part, and there's no substitute part

Rr Wheel Asm#25

Unit parts Diagram

Rr wheel asm

Part #045501

The manufacturer no longer makes this part, and there's no substitute part

Rear Axle and Bearing Set#27

Unit parts Diagram

Rear axle and bearing set

Part #054001

The manufacturer no longer makes this part, and there's no substitute part

Bolt Wedge#5

Unit parts Diagram

Bolt wedge

Part #008002

The manufacturer no longer makes this part, and there's no substitute part

Cable/casing#45

Unit parts Diagram

Cable/casing

Part #087502

The manufacturer no longer makes this part, and there's no substitute part

Ownr Man.

#NI

All parts Diagram

Ownr man.

Part #102187

The manufacturer no longer makes this part, and there's no substitute part

Tool

#NI

All parts Diagram

Tool

Part #103007

The manufacturer no longer makes this part, and there's no substitute part

Fork Asm#9

Unit parts Diagram

Fork asm

Part #005144

The manufacturer no longer makes this part, and there's no substitute part

Spkt Cluster#23

Unit parts Diagram

Spkt cluster

Part #075002

The manufacturer no longer makes this part, and there's no substitute part

Derailleur#44

Unit parts Diagram

Derailleur

Part #085502

The manufacturer no longer makes this part, and there's no substitute part
