Kenmore
Countertop Microwave

Model #72189941490 Official Kenmore microwave

Here are the diagrams and repair parts for Kenmore 72189941490 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

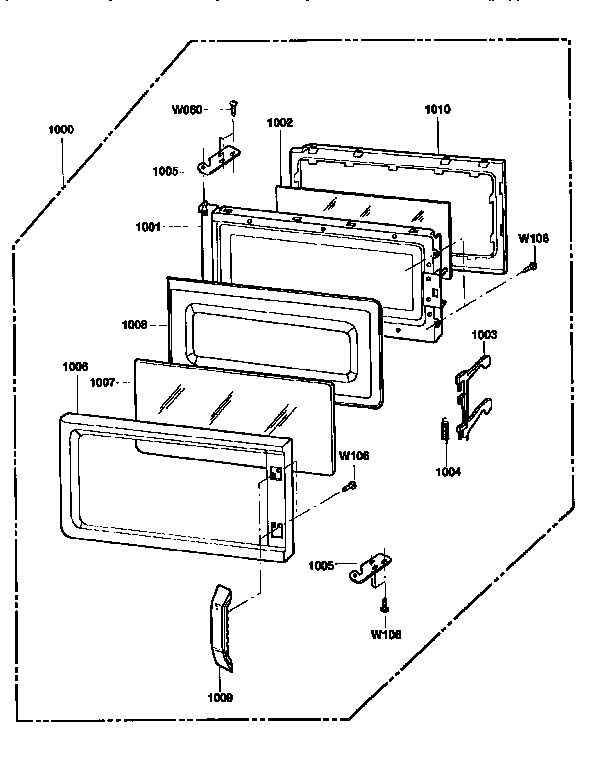

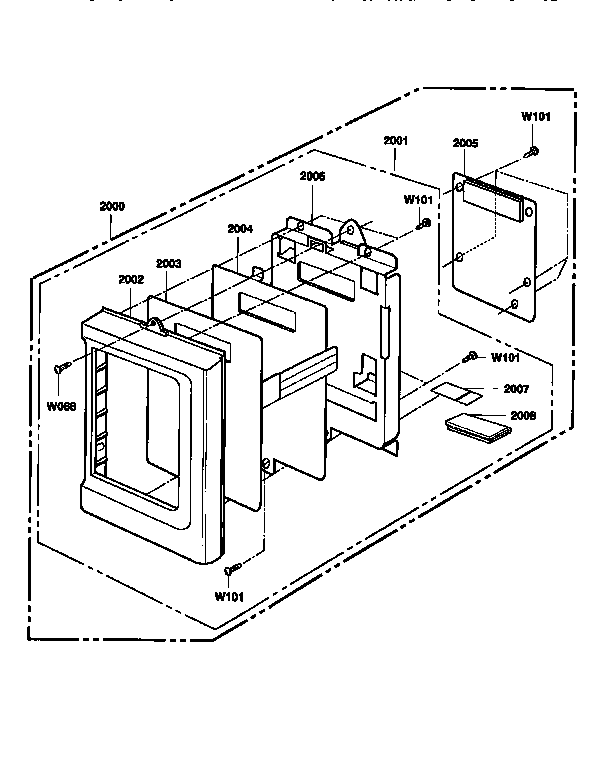

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Showing 10 of 151 parts

Microwave Grease Filter#3015

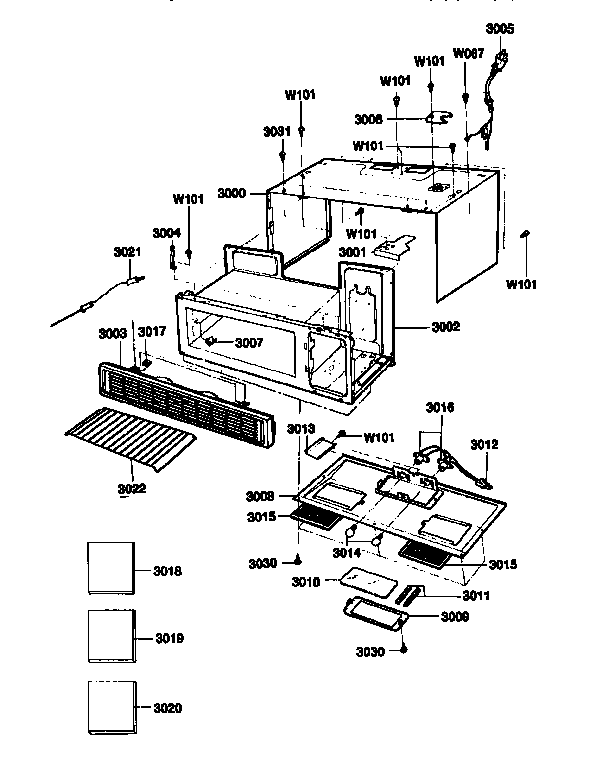

Oven cavity Diagram

Grease filter

Part #2B72705B
Replaced by #5230W1A012B
?
Manufacturer substitution
This part replaces 2B72705B. Substitute parts can look different from the original.
BEST SELLER
In Stock
$11.13 |
15% OFF
Phone Price: $13.13
Microwave Micro-Switch#4001

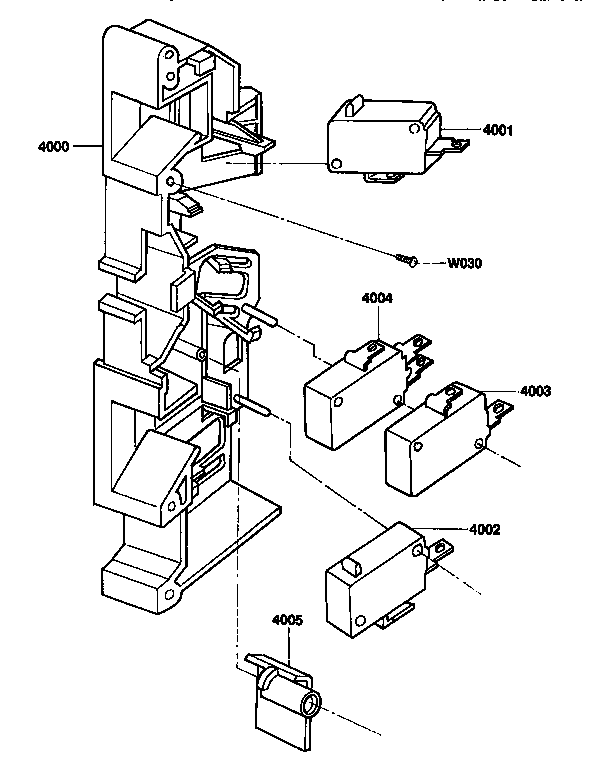

Latch board Diagram

Oven switch

Part #503387
Replaced by #3B73362F
?
Manufacturer substitution
This part replaces 503387. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
In Stock
$5.27
Microwave Exhaust Damper Bracket#6001

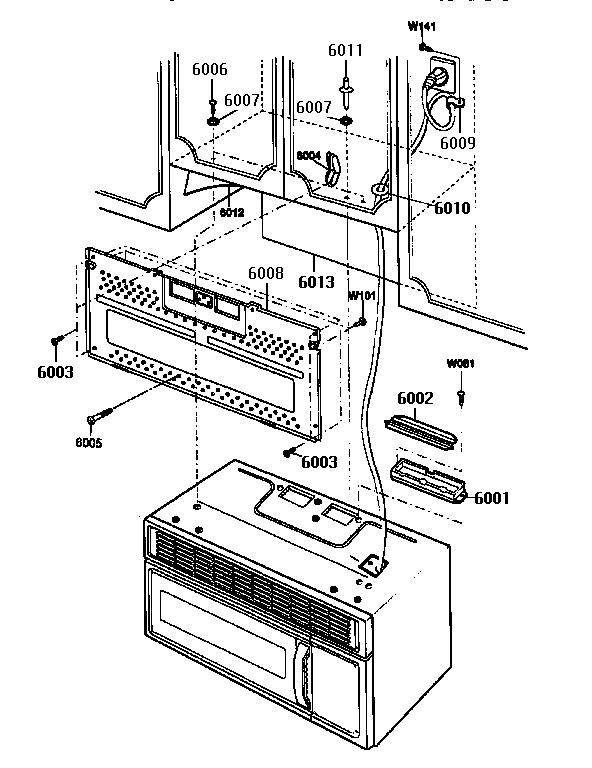

Installation Diagram

Adapter

Part #503532
Replaced by #4810W1A151A
?
Manufacturer substitution
This part replaces 503532. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
In Stock
$11.82 |
14% OFF
Phone Price: $13.82
Microwave Vent Damper Door#6002

Installation Diagram

Exhaust damper

Part #500791
Replaced by #4900W1A001B
?
Manufacturer substitution
This part replaces 500791. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
In Stock
$8.74 |
10% OFF
Phone Price: $9.74
Microwave Thermostat#5004

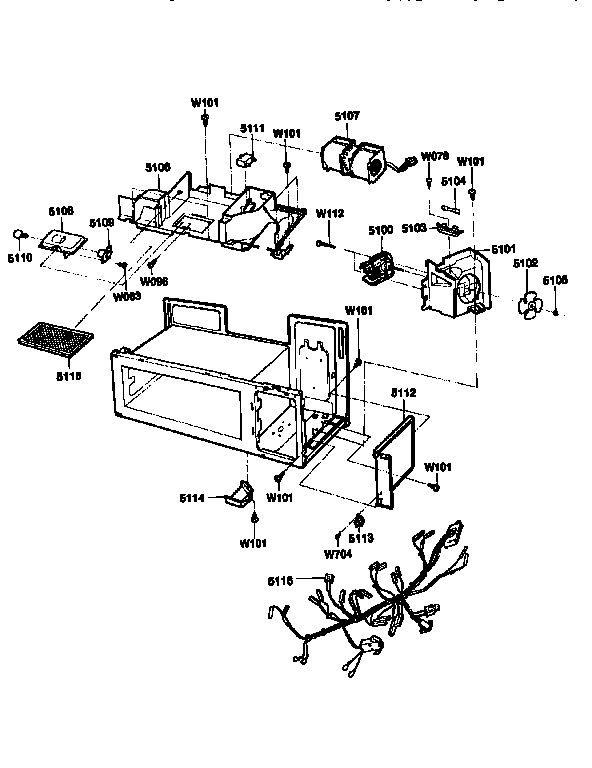

Interior Diagram

Microwave thermostat

Part #6930WRT003C
Replaced by #6930W1A003J
?
Manufacturer substitution
This part replaces 6930WRT003C. Substitute parts can look different from the original.
In Stock
$8.96 |
10% OFF
Phone Price: $9.96
Microwave Wall Mounting Plate#3001

Oven cavity Diagram

Microwave wall mounting plate

Part #4810W3G062A
Replaced by #4810W1A149A
?
Manufacturer substitution
This part replaces 4810W3G062A. Substitute parts can look different from the original.
This item is not returnable
In Stock
$6.03
Screw#W141

Installation Diagram

Screw

Part #504478

The manufacturer no longer makes this part, and there's no substitute part

Fuse#5104

Interior Diagram

Fuse

Part #11255

The manufacturer no longer makes this part, and there's no substitute part

Microwave Screw

See All Related Diagrams

Pan head t

Part #502612
Replaced by #1TPL0402418
?
Manufacturer substitution
This part replaces 502612. Substitute parts can look different from the original.
This item is not returnable
In Stock
$14.26

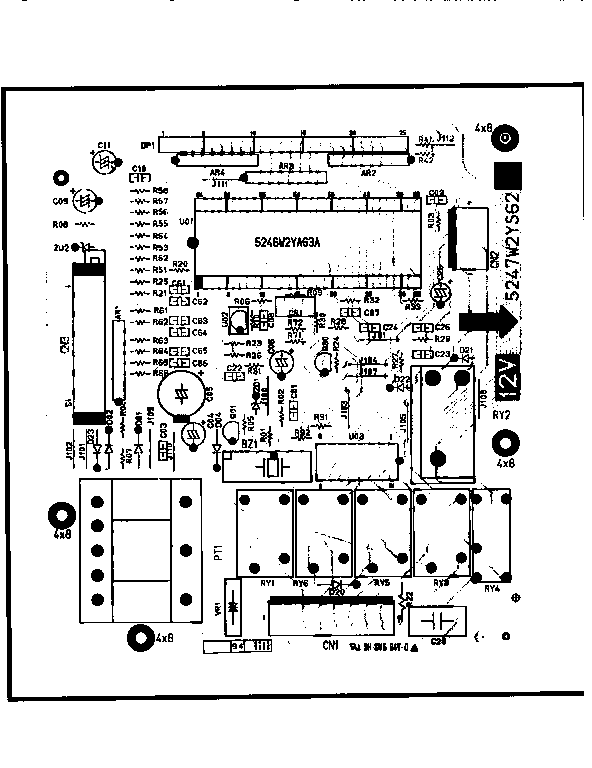

Integrated Circuit#U01

Power and control circuit board Diagram

Integrated circuit

Part #6000W5YA40A
In Stock
$84.82
