Model #HP61K Official Ryobi 6-v center handle drill

Here are the diagrams and repair parts for Ryobi HP61K 6-v center handle drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 32 parts

Washer#7

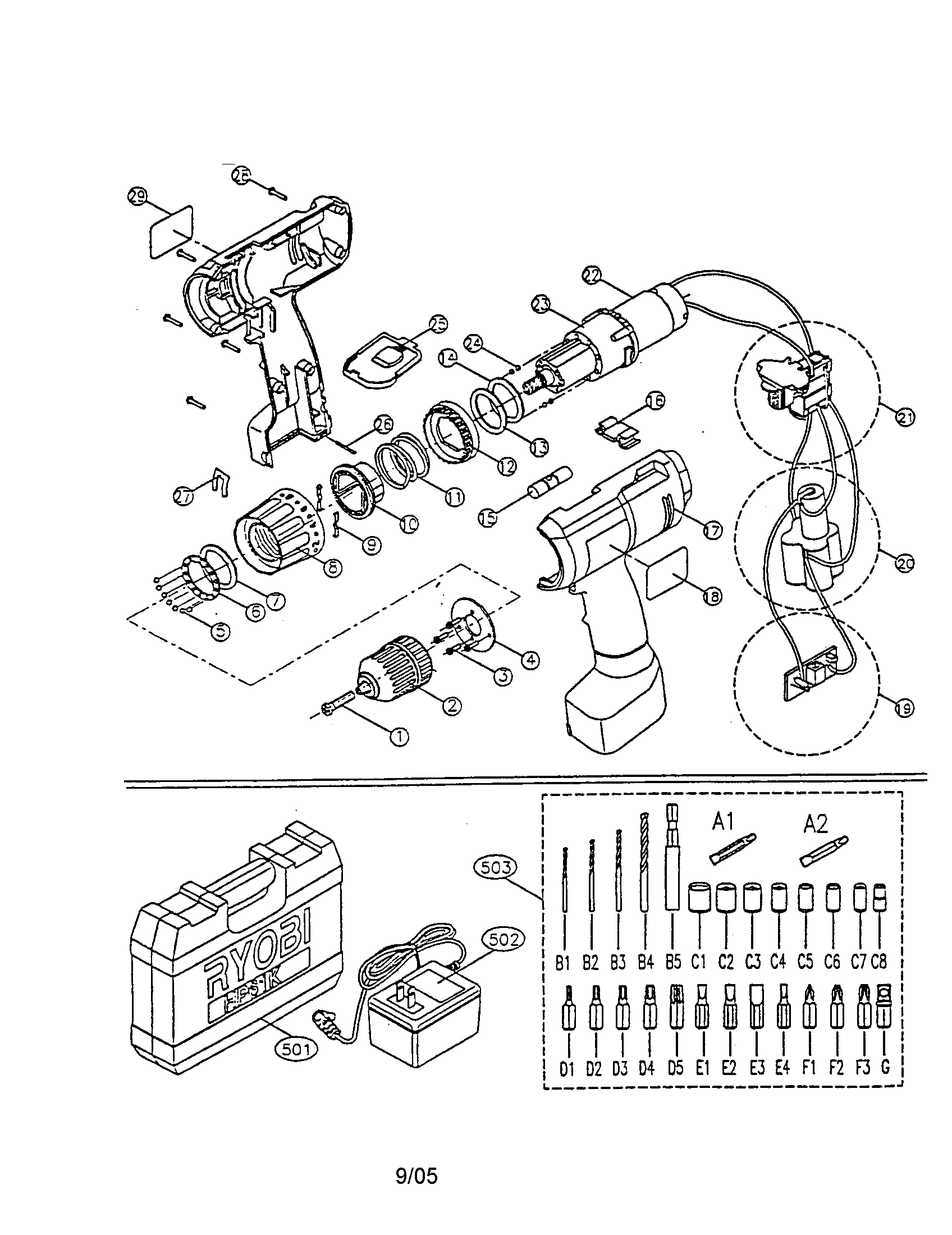

6v ctr handle drill Diagram

Washer

Part #4900095

The manufacturer no longer makes this part, and there's no substitute part

MACHINE SCREW (L.H.T)#1

6v ctr handle drill Diagram

Machine screw (l.h.t)

Part #1130049

The manufacturer no longer makes this part, and there's no substitute part

Chuck,keyles#2

6v ctr handle drill Diagram

Chuck,keyles

Part #1940015

The manufacturer no longer makes this part, and there's no substitute part

STEEL BALL 5/32" (16)#24

6v ctr handle drill Diagram

Steel ball 5/32" (16)

Part #4750012

The manufacturer no longer makes this part, and there's no substitute part

PCB Assembly#19

6v ctr handle drill Diagram

Pcb assembly

Part #4420008

The manufacturer no longer makes this part, and there's no substitute part

Motor Assembly#22

6v ctr handle drill Diagram

Motor assembly

Part #4030013

The manufacturer no longer makes this part, and there's no substitute part

SWITCH ASSEMBLY 2- SPEED#21

6v ctr handle drill Diagram

Switch assembly 2- speed

Part #4550036

The manufacturer no longer makes this part, and there's no substitute part

Gear Box#23

6v ctr handle drill Diagram

Gear box

Part #4050010

The manufacturer no longer makes this part, and there's no substitute part

LOCATION CUP, PLASTIC#12

6v ctr handle drill Diagram

Location cup, plastic

Part #4360005

The manufacturer no longer makes this part, and there's no substitute part

Charger#502

6v ctr handle drill Diagram

Charger

Part #4400001

The manufacturer no longer makes this part, and there's no substitute part
