Frigidaire
Microwave/Hood Combo

Model # CGLMV168CS1 Official Frigidaire microwave

Here are the diagrams and repair parts for Official Frigidaire CGLMV168CS1 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

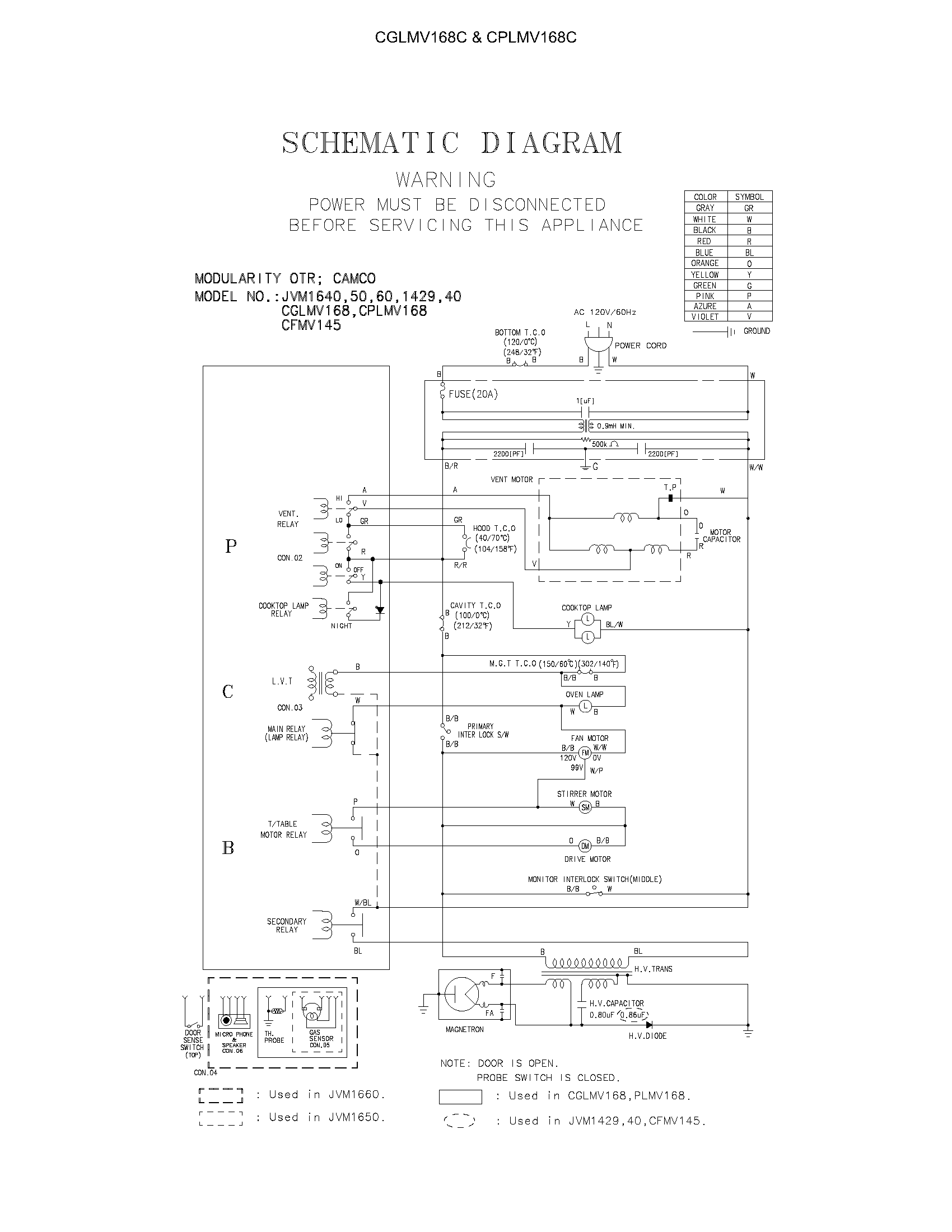

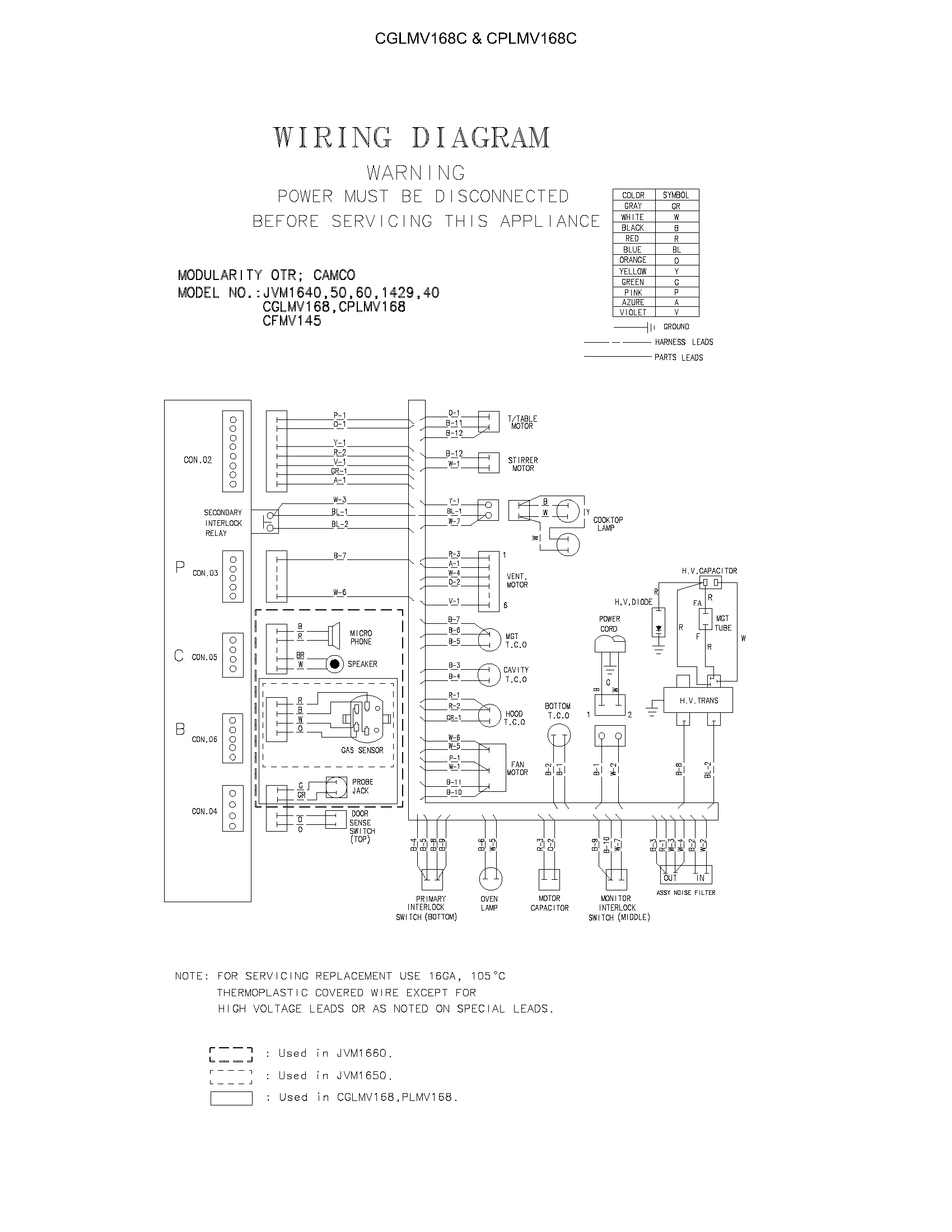

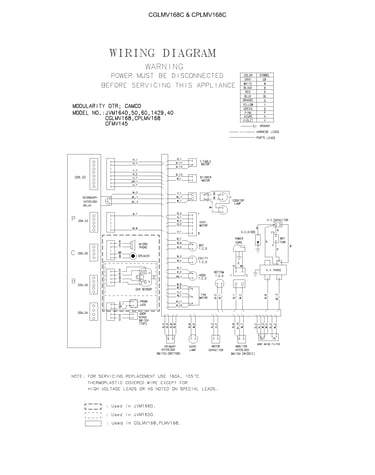

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 126 parts  |

Power Bracket 5304408997
#56

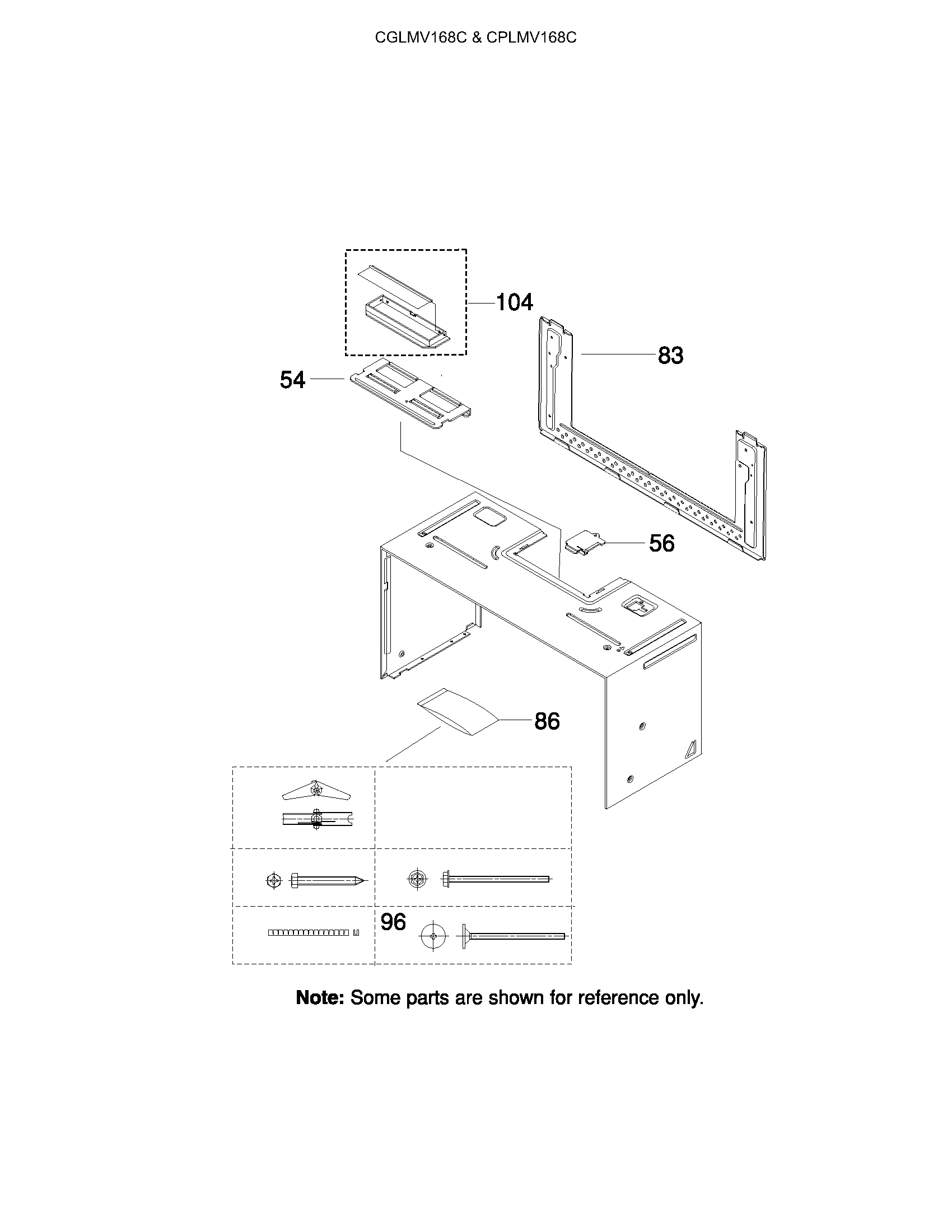

Installation diagram

Power bracket

Part #5304408997

In Stock
Duct 5304429468
#65

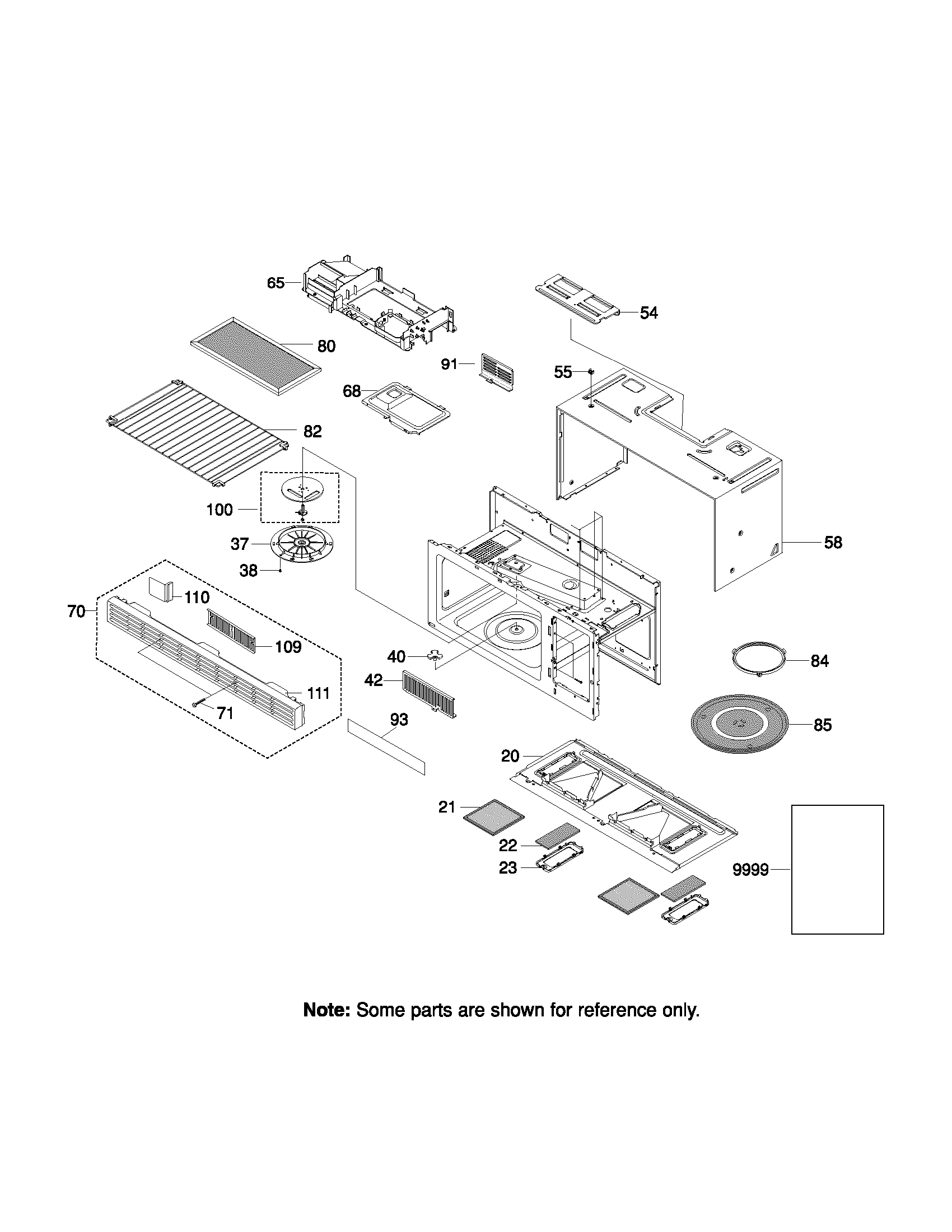

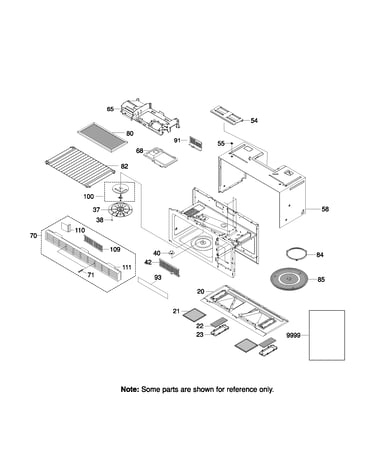

Body diagram

Duct

Part #5304429468

In Stock
Frame 5304429420
#16

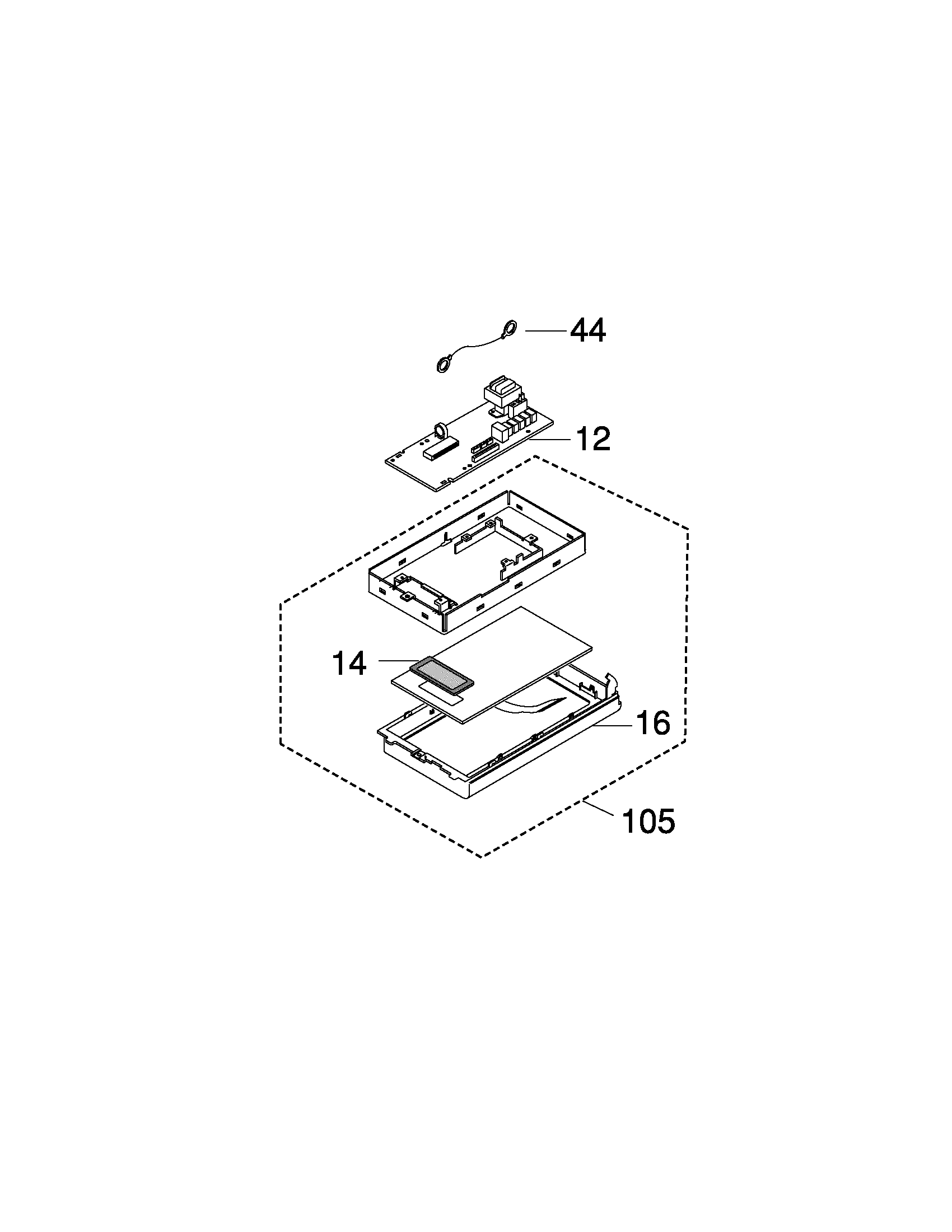

Control panel diagram

Frame

Part #5304429420

In Stock
Receptacle-p 5304408959
#32

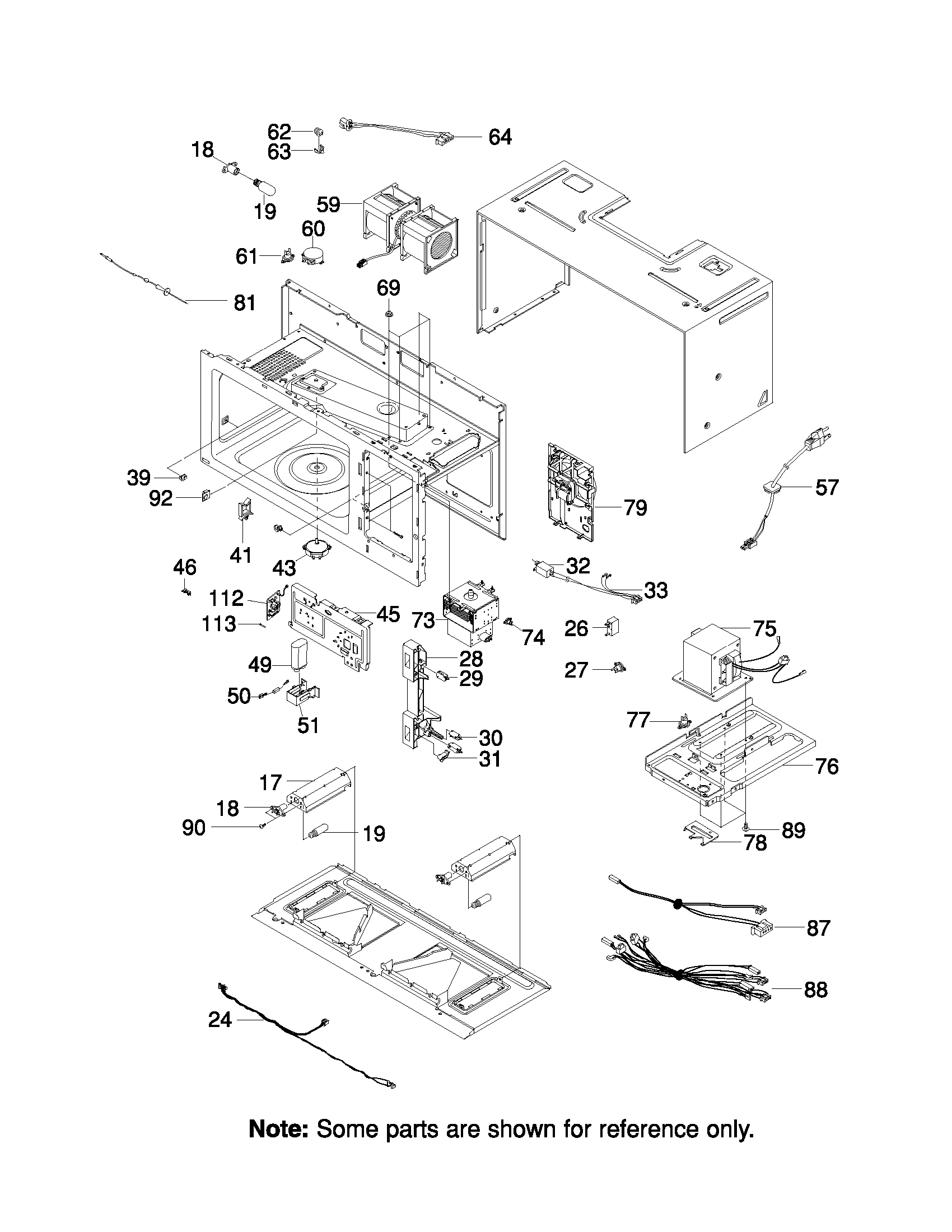

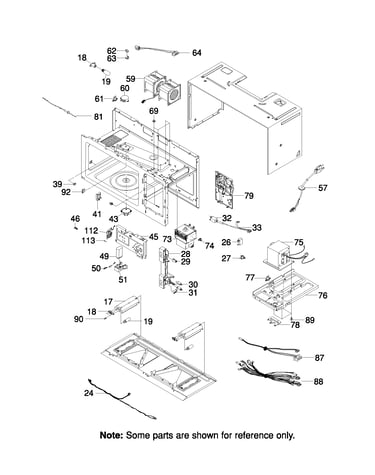

Functional parts diagram

Receptacle-p

Part #5304408959

In Stock
Magnet Screw 5304408962
#69

Functional parts diagram

Magnet screw

Part #5304408962

In Stock
Panel 5304429460
#20

Body diagram

Panel

Part #5304429460

In Stock
Panel 5304429461
#20

Body diagram

Panel

Part #5304429461

In Stock
Screen 5304434313
#2

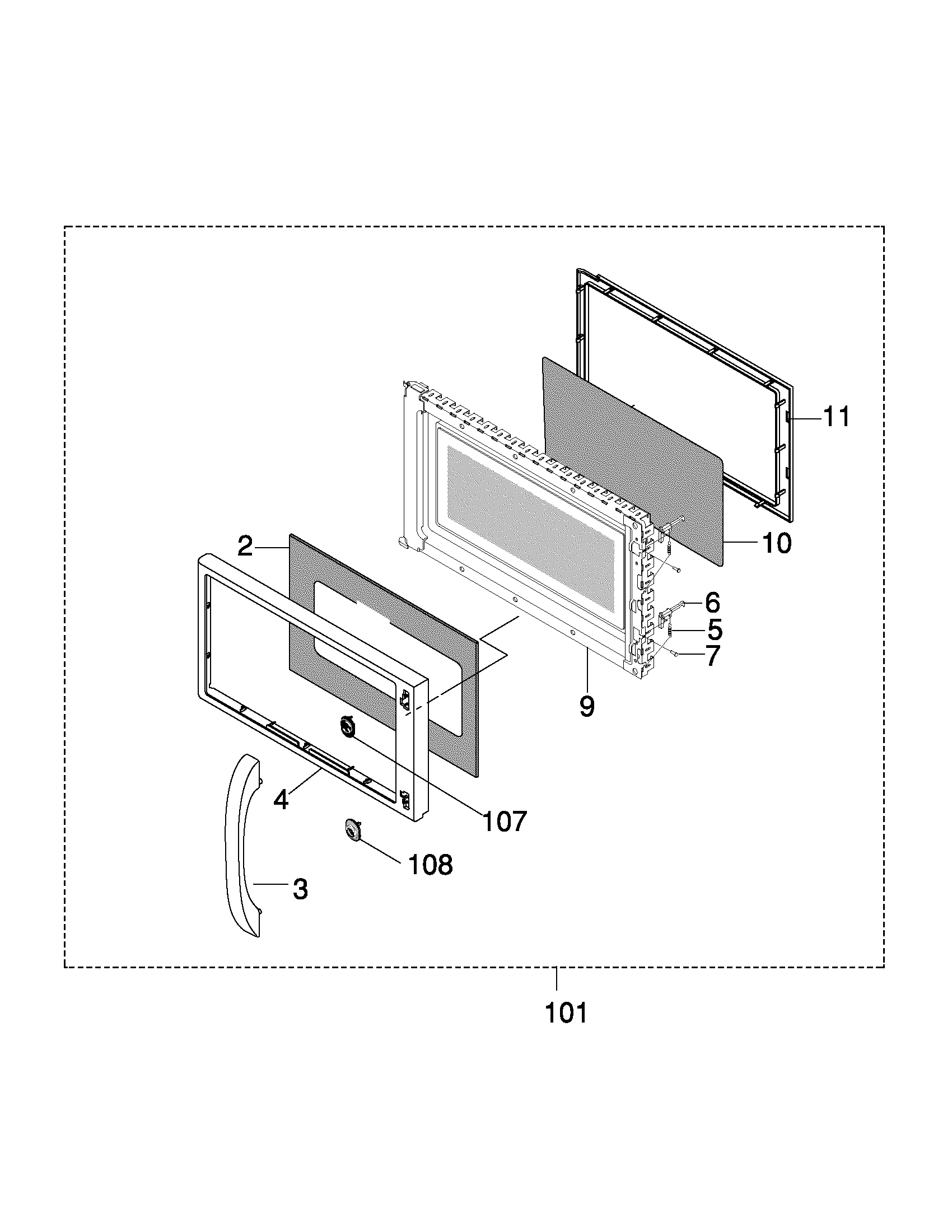

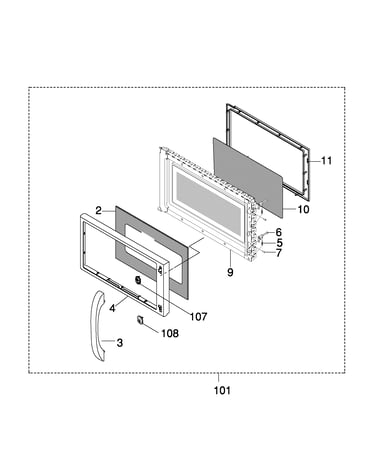

Door diagram

Screen

Part #5304434313

In Stock
Casing 5304429467
#58

Body diagram

Casing

Part #5304429467

In Stock
Control Panel 5304429451
#105

Control panel diagram

Control panel

Part #5304429451

In Stock
