Model # JV338H1WW Official GE range hood

Here are the diagrams and repair parts for Official GE JV338H1WW range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 16 parts  |
Range Hood Fan Motor WB26X10148
#3

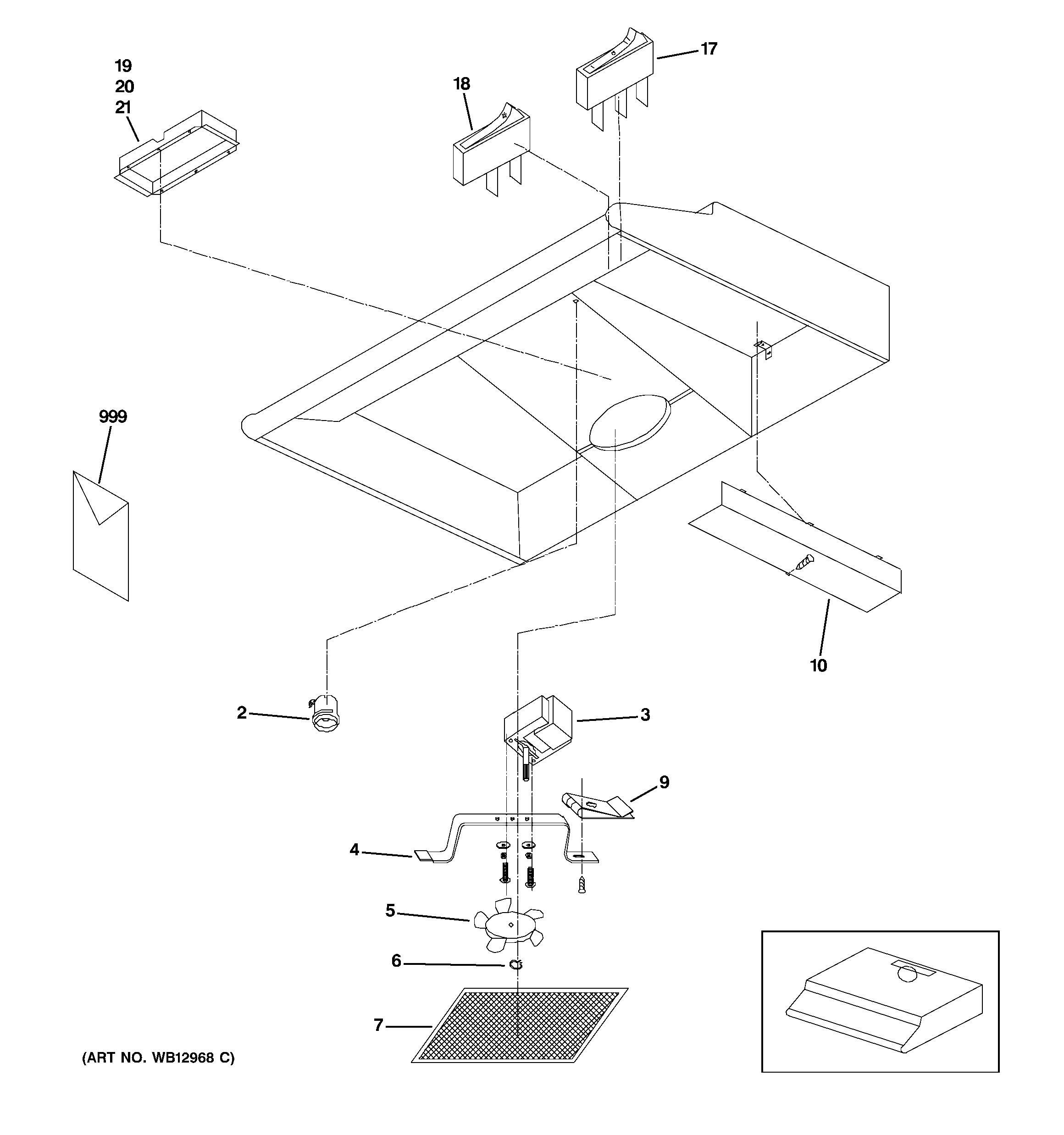

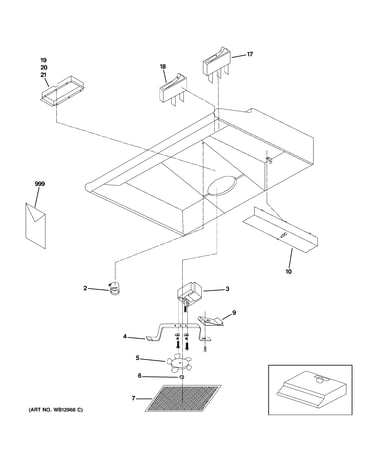

Range hood diagram

Range hood fan motor

Part #WB26X10148

$74.19 |
6% OFF Phone Price : $79.19
In Stock
Cover WB34X25412
#10

Range hood diagram

Cover

Part #WB34X25412

$14.89 |
12% OFF Phone Price : $16.89
In Stock
Lamp Switch WB24X10132
#18

Range hood diagram

Lamp switch

Part #WB24X10132

This item is not returnable
$5.00
In Stock
Filtr Grease WB02X8391
#7

Range hood diagram

Filtr grease

Part #WB02X8391

Replaced by #WB2X8391

?
Manufacturer substitution
This part replaces WB02X8391. Substitute parts can look different from the original.
$26.89 |
16% OFF Phone Price : $31.89
In Stock
Pivot Frame WB02X11028
#19

Range hood diagram

Pivot frame

Part #WB02X11028

$7.69 |
12% OFF Phone Price : $8.69
In Stock
Collar WB02X11030
#21

Range hood diagram

Collar

Part #WB02X11030

$7.71
In Stock
Fan Switch WB24X10131
#17

Range hood diagram

Fan switch

Part #WB24X10131

This item is not returnable
$7.09 |
12% OFF Phone Price : $8.09
In Stock
Range Hood Charcoal Filter Kit (replaces Wb2x8253, Wb2x8254, Wb2x8406) WB02X10700
#7

Range hood diagram

Range hood charcoal filter kit (replaces wb2x8253, wb2x8254, wb2x8406)

Part #WB02X10700

This item is not returnable
$20.33 |
20% OFF Phone Price : $25.33
In Stock
Range Hood Lamp Socket WB02X11039
#2

Range hood diagram

Range hood lamp socket

Part #WB02X11039

This item is not returnable
$6.24
In Stock
Range Hood Fan Blade WB02X11025
#5

Range hood diagram

Range hood fan blade

Part #WB02X11025

This item is not returnable
$16.29 |
11% OFF Phone Price : $18.29
In Stock
