Canon
Digital Camcorder

Model #FS20A Official Canon camcorder

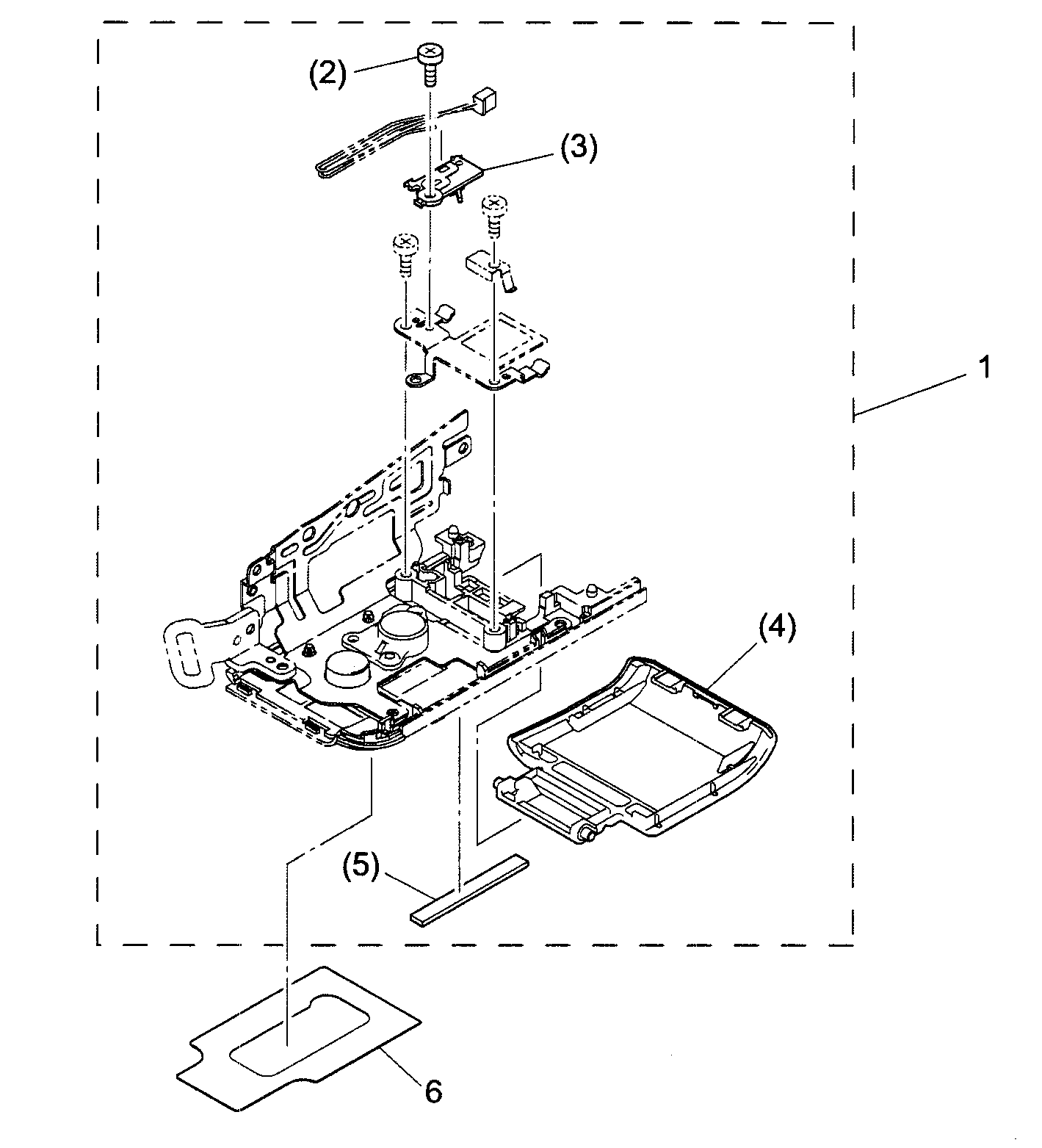

Here are the diagrams and repair parts for Canon FS20A camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 74 parts

Battery#7

Accessory Diagram

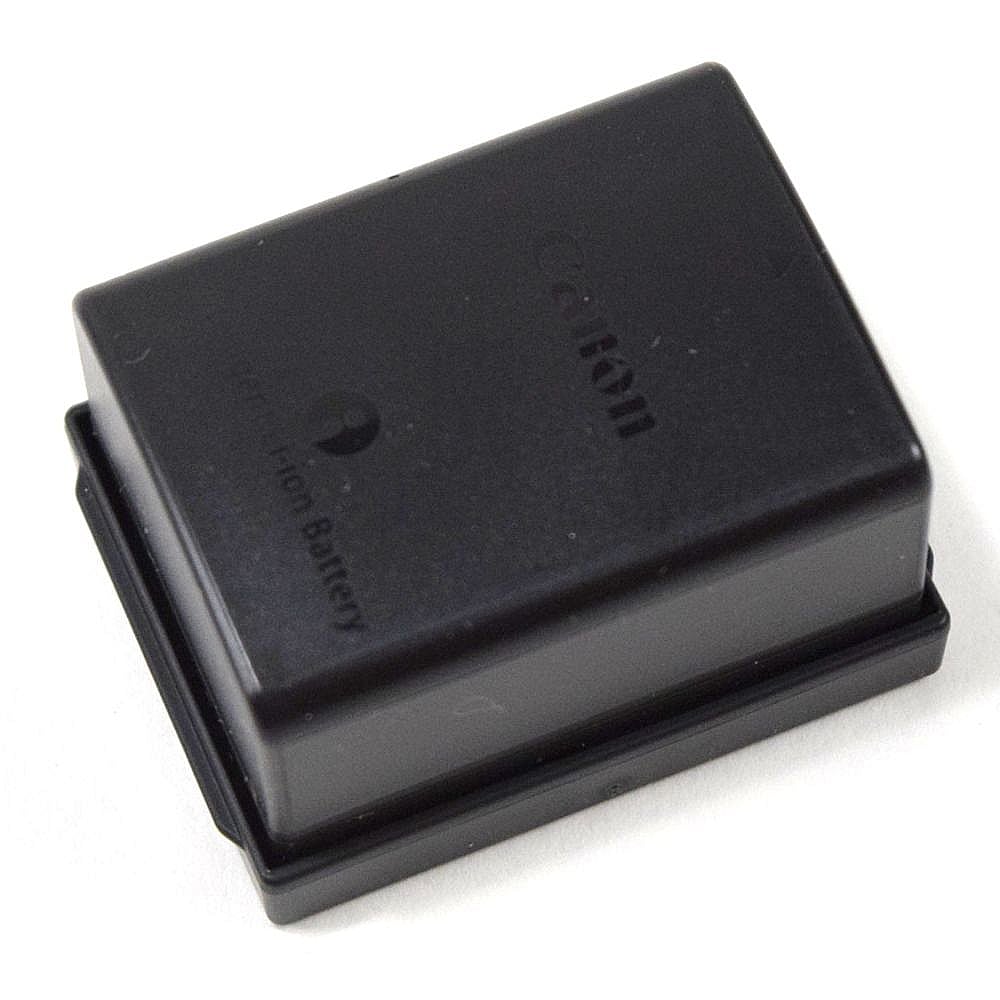

Battery

Part #BP-808

The manufacturer no longer makes this part, and there's no substitute part

PCB Assembly#6

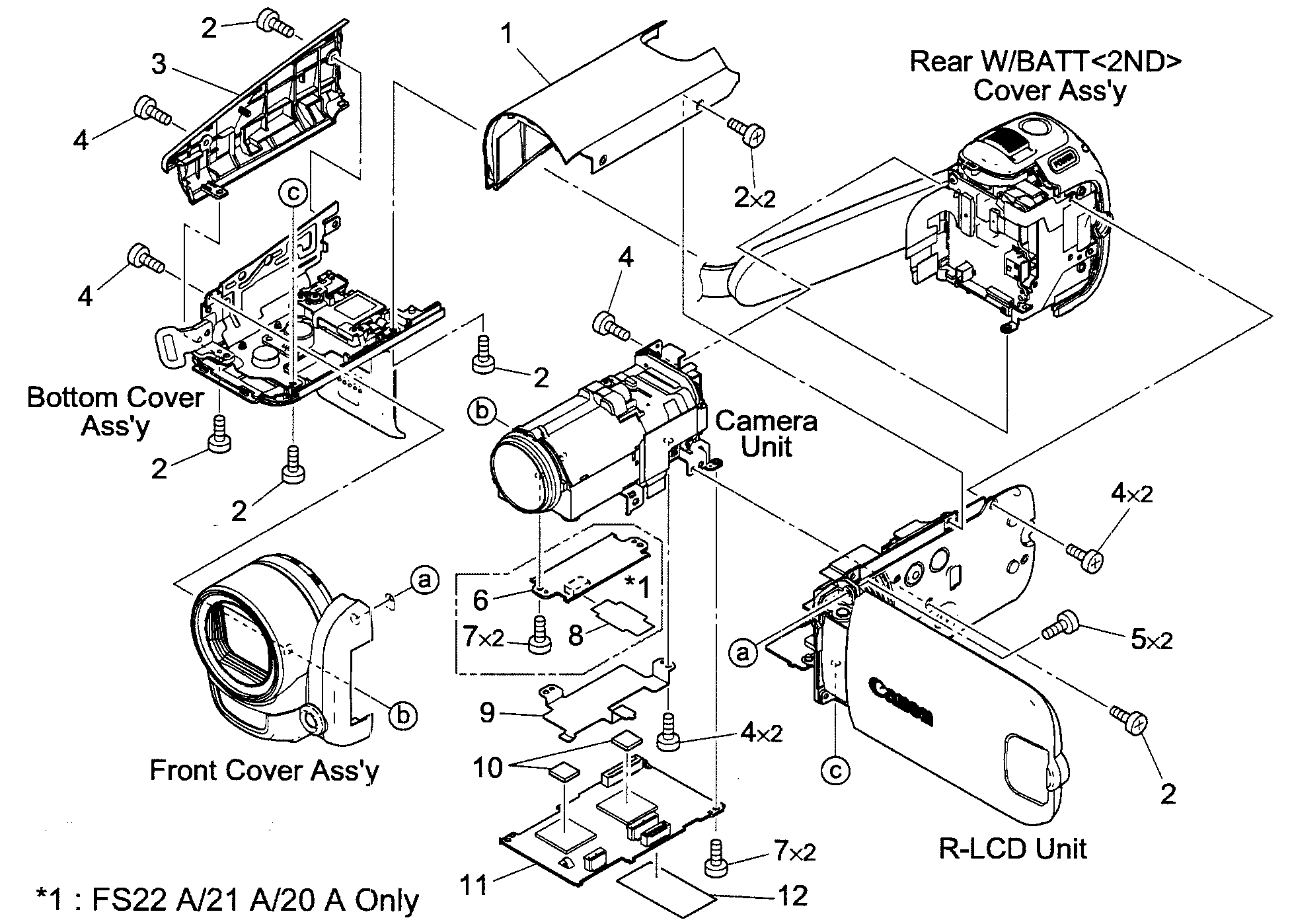

Cabinet parts Diagram

Pcb assembly

Part #DG3-2679-000

The manufacturer no longer makes this part, and there's no substitute part

Ring Lens#1

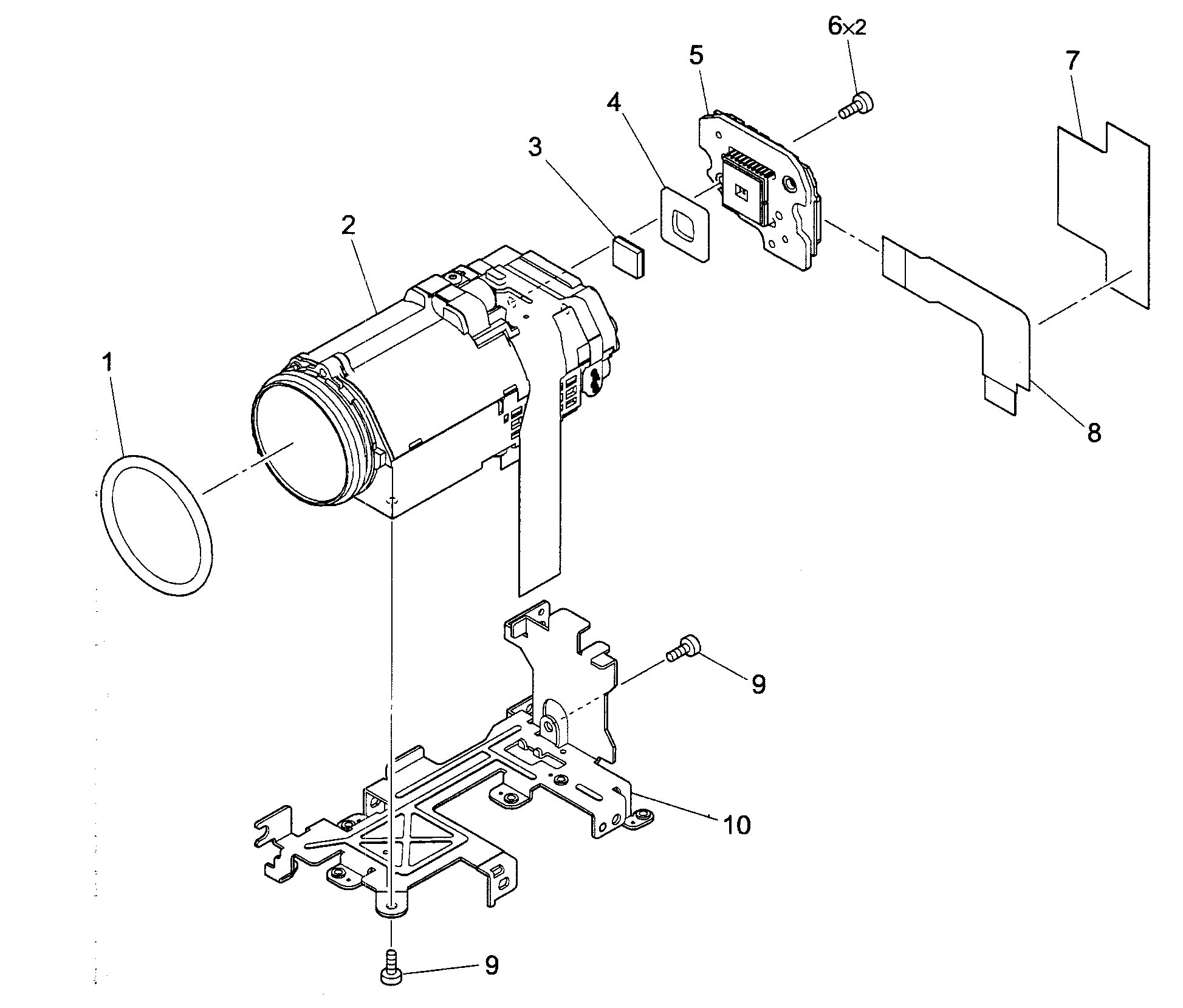

Lens assy Diagram

Ring lens

Part #DA3-6126-000

The manufacturer no longer makes this part, and there's no substitute part

Camcorder Speaker#18

R-lcd unit Diagram

Camcorder speaker

Part #WR1-5142-000

The manufacturer no longer makes this part, and there's no substitute part

LCD#10A

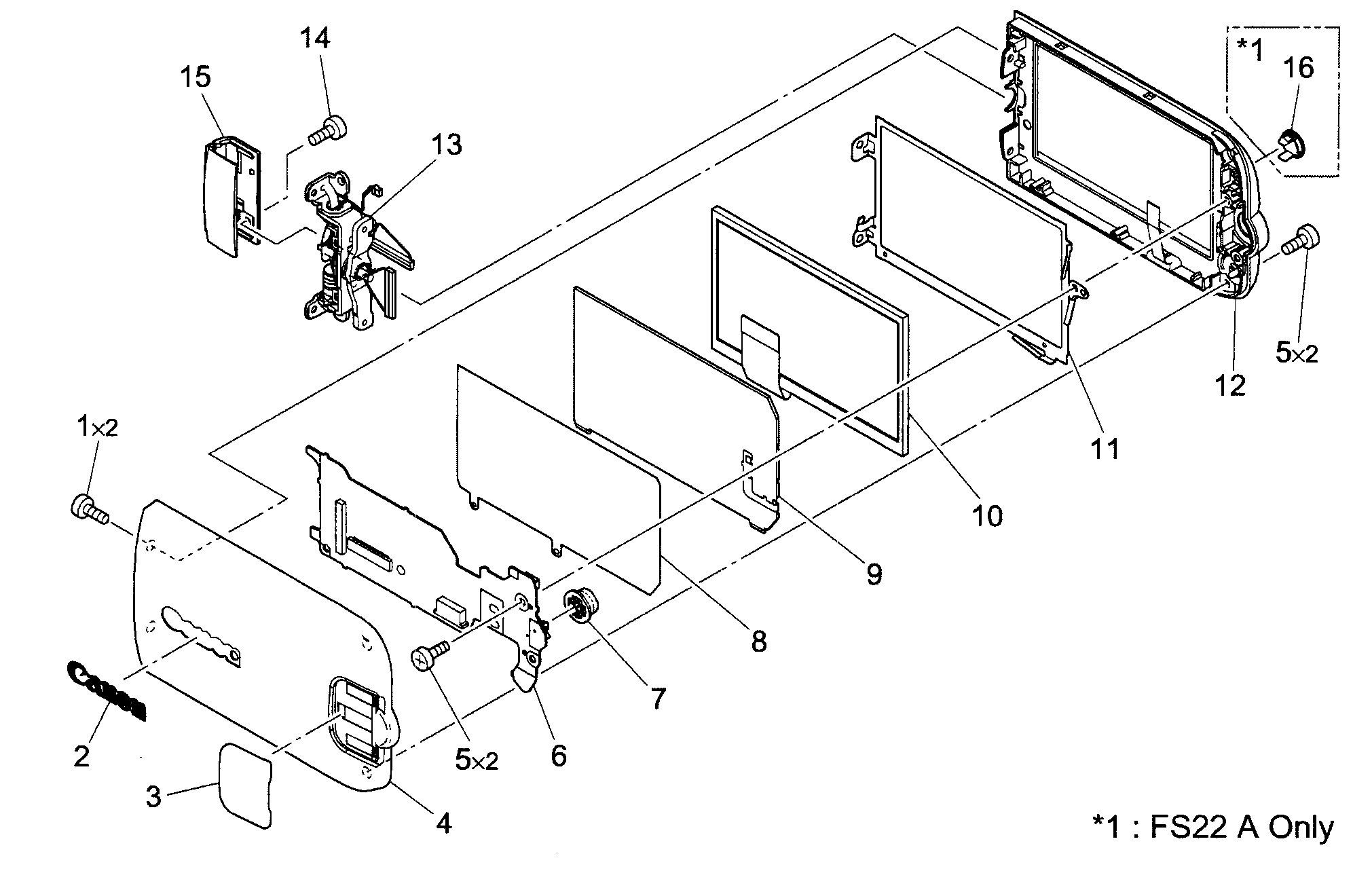

Lcd assy Diagram

Lcd

Part #WG2-5294-000

The manufacturer no longer makes this part, and there's no substitute part

Terminal#5

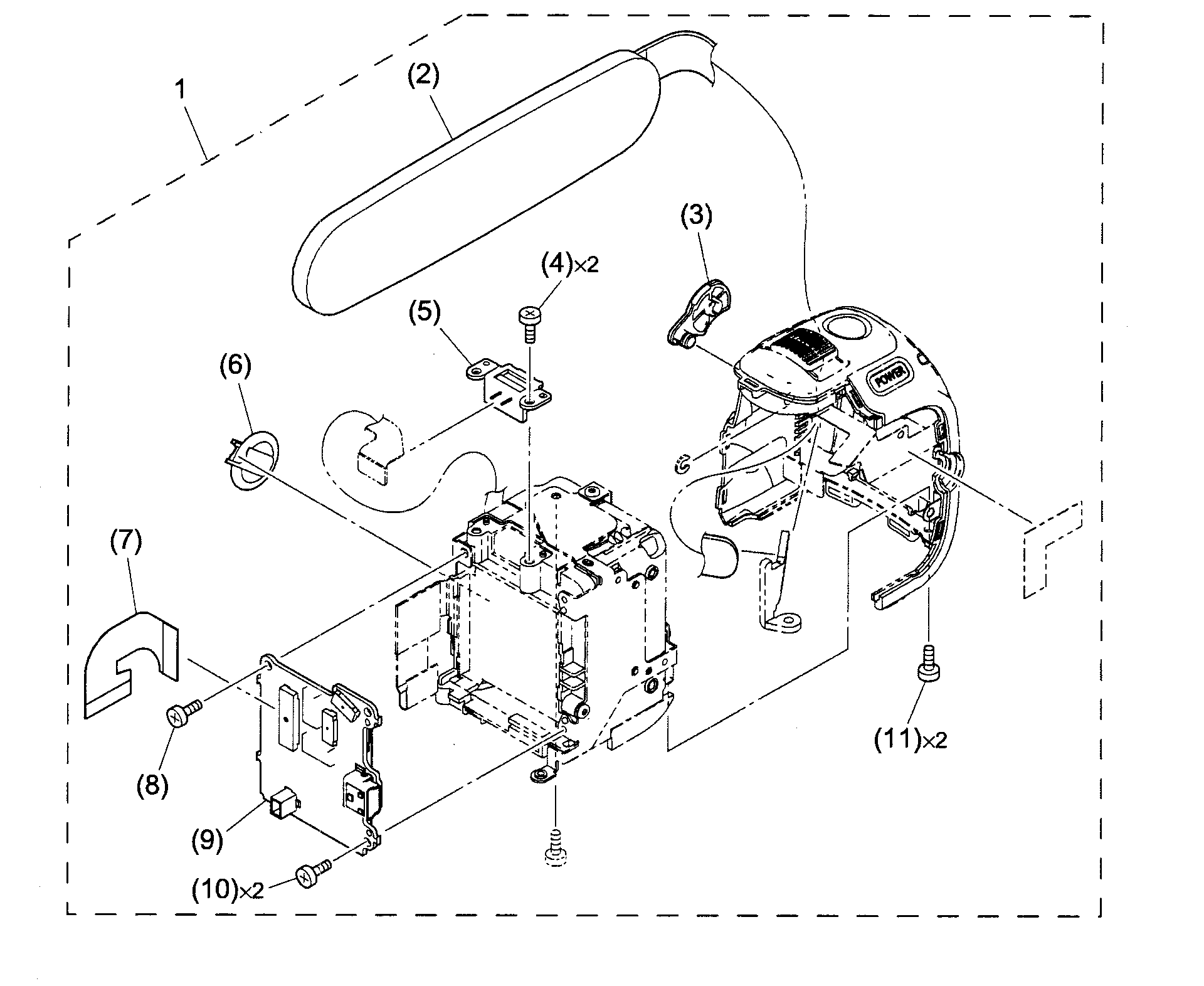

Rear cover Diagram

Terminal

Part #DG3-2438-000

The manufacturer no longer makes this part, and there's no substitute part

Hinge#13

Lcd assy Diagram

Hinge

Part #DY1-9309-000

The manufacturer no longer makes this part, and there's no substitute part

Screw#3

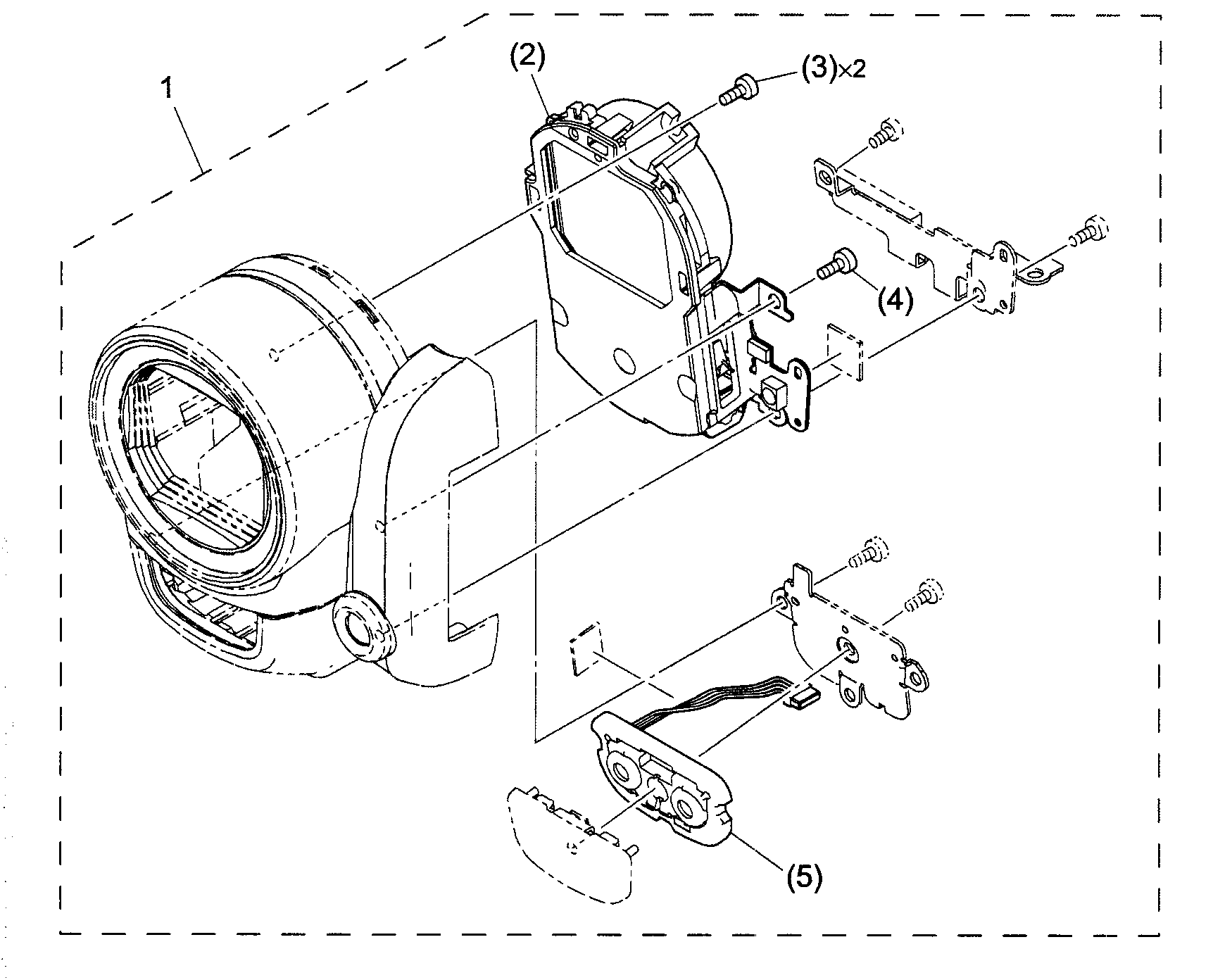

Front cover Diagram

Screw

Part #XA4-9170-507

The manufacturer no longer makes this part, and there's no substitute part

Battery#6

Rear cover Diagram

Battery

Part #WK1-5164-000

The manufacturer no longer makes this part, and there's no substitute part

Strap#3

Accessory Diagram

Strap

Part #D81-1530-000

The manufacturer no longer makes this part, and there's no substitute part
