Black & Decker
Rotary Tool

Model # BD200MTB TYPE1 Official Black & Decker multi-tool

Here are the diagrams and repair parts for Official Black & Decker BD200MTB-TYPE1 multi-tool, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 60 parts  |
Screw 5140033-75
#7

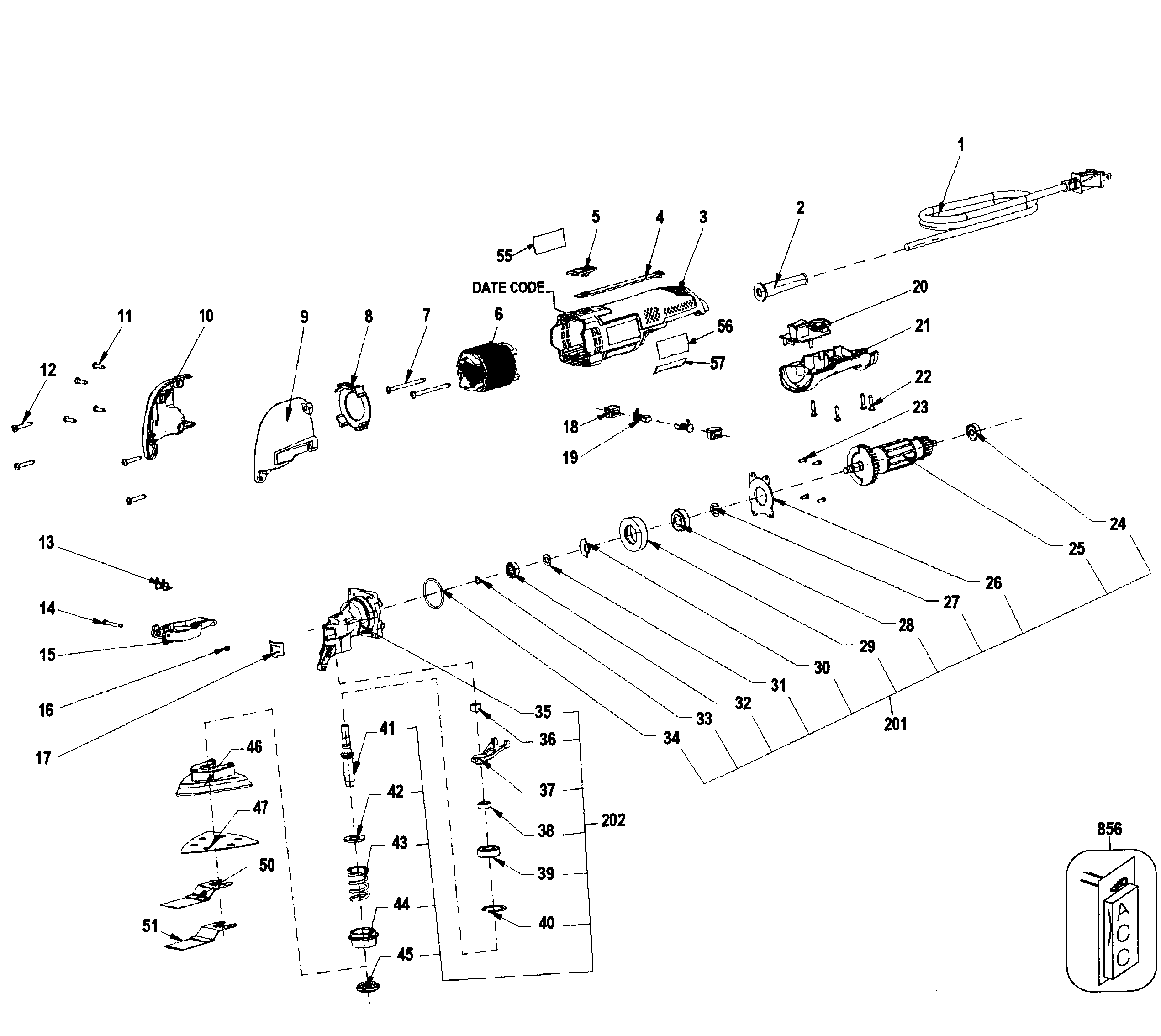

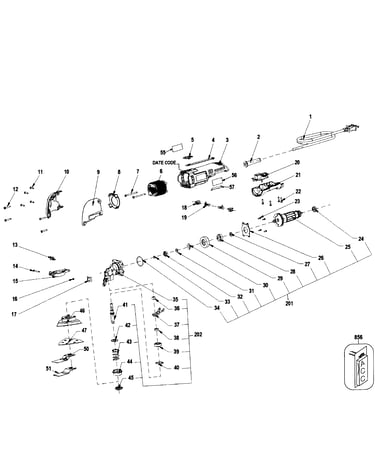

Multi-tool diagram

Screw

Part #5140033-75

The manufacturer no longer makes this part, and there's no substitute part

Switch Button 5140108-80
#5

Multi-tool diagram

Switch button

Part #5140108-80

The manufacturer no longer makes this part, and there's no substitute part

Cord Prote 5140108-77
#2

Multi-tool diagram

Cord prote

Part #5140108-77

The manufacturer no longer makes this part, and there's no substitute part

Cord 5140034-15
#1

Multi-tool diagram

Cord

Part #5140034-15

The manufacturer no longer makes this part, and there's no substitute part

Drive Wash 5140109-18
#45

Multi-tool diagram

Drive wash

Part #5140109-18

The manufacturer no longer makes this part, and there's no substitute part

Hex. Soc.h 5140108-87
#14

Multi-tool diagram

Hex. soc.h

Part #5140108-87

The manufacturer no longer makes this part, and there's no substitute part

Rigid Scra 5140109-22
#50

Multi-tool diagram

Rigid scra

Part #5140109-22

The manufacturer no longer makes this part, and there's no substitute part

Fan Baffle 5140108-82
#8

Multi-tool diagram

Fan baffle

Part #5140108-82

The manufacturer no longer makes this part, and there's no substitute part

Dust Cover 5140108-90
#17

Multi-tool diagram

Dust cover

Part #5140108-90

The manufacturer no longer makes this part, and there's no substitute part

Lt Housing 5140112-71
#9

Multi-tool diagram

Lt housing

Part #5140112-71

The manufacturer no longer makes this part, and there's no substitute part
