Model # KFGS306VSS03 Official KitchenAid 30" gas cooktop

Here are the diagrams and repair parts for Official KitchenAid KFGS306VSS03 30" gas cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 82 parts  |
Cooktop Burner Head 8286813
#8

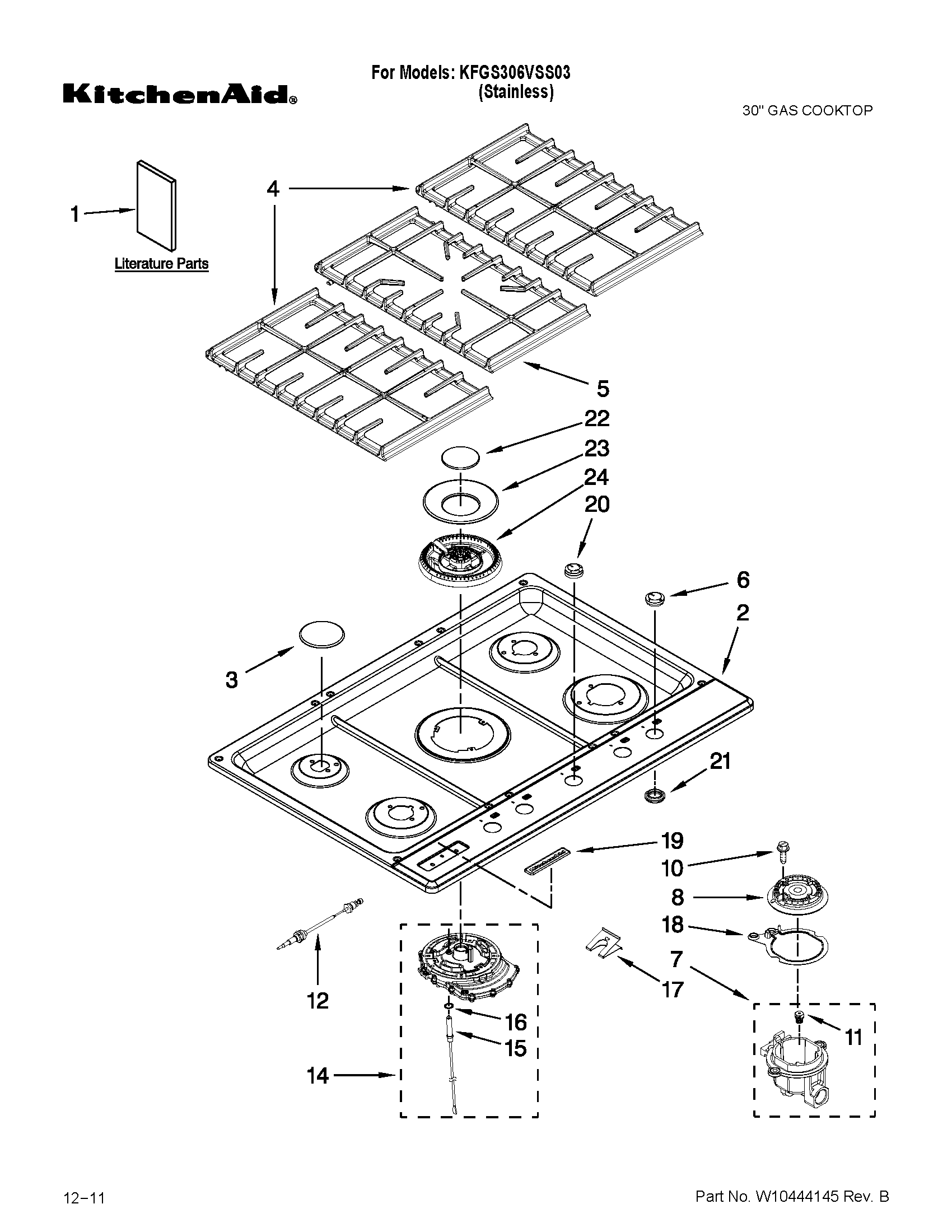

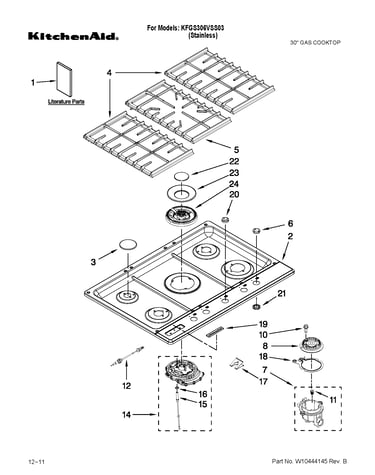

Cooktop, burner and grate parts diagram

Cooktop burner head

Part #8286813

Replaced by #WP8286813

?
Manufacturer substitution
This part replaces 8286813. Substitute parts can look different from the original.
$62.73 |
7% OFF Phone Price : $67.73
In Stock
Cooktop Burner Head 8286815
#8B

Cooktop, burner and grate parts diagram

Cooktop burner head

Part #8286815

Replaced by #WP8286815

?
Manufacturer substitution
This part replaces 8286815. Substitute parts can look different from the original.
$62.72 |
7% OFF Phone Price : $67.72
In Stock
Screw 8287059
#10

Cooktop, burner and grate parts diagram

Screw

Part #8287059

Replaced by #WP8287059

?
Manufacturer substitution
This part replaces 8287059. Substitute parts can look different from the original.
This item is not returnable
$4.33
In Stock
Cooktop Lp Conversion Kit W10418077
#NI

Optional parts (not included) diagram

Cooktop lp conversion kit

Part #W10418077

This item is not returnable
$10.89 |
16% OFF Phone Price : $12.89
In Stock
Range Surface Burner Knob (replaces Wpw10132191) W10132191
#20

Cooktop, burner and grate parts diagram

Range surface burner knob (replaces wpw10132191)

Part #W10132191

$48.94 |
9% OFF Phone Price : $53.94
In Stock
Surface Igniter 8286725
#12C

Cooktop, burner and grate parts diagram

Surface igniter

Part #8286725

Replaced by #W10854967

?
Manufacturer substitution
This part replaces 8286725. Substitute parts can look different from the original.
$26.79 |
16% OFF Phone Price : $31.79
In Stock
Cooktop Ignition Module Transformer 8286691
#6

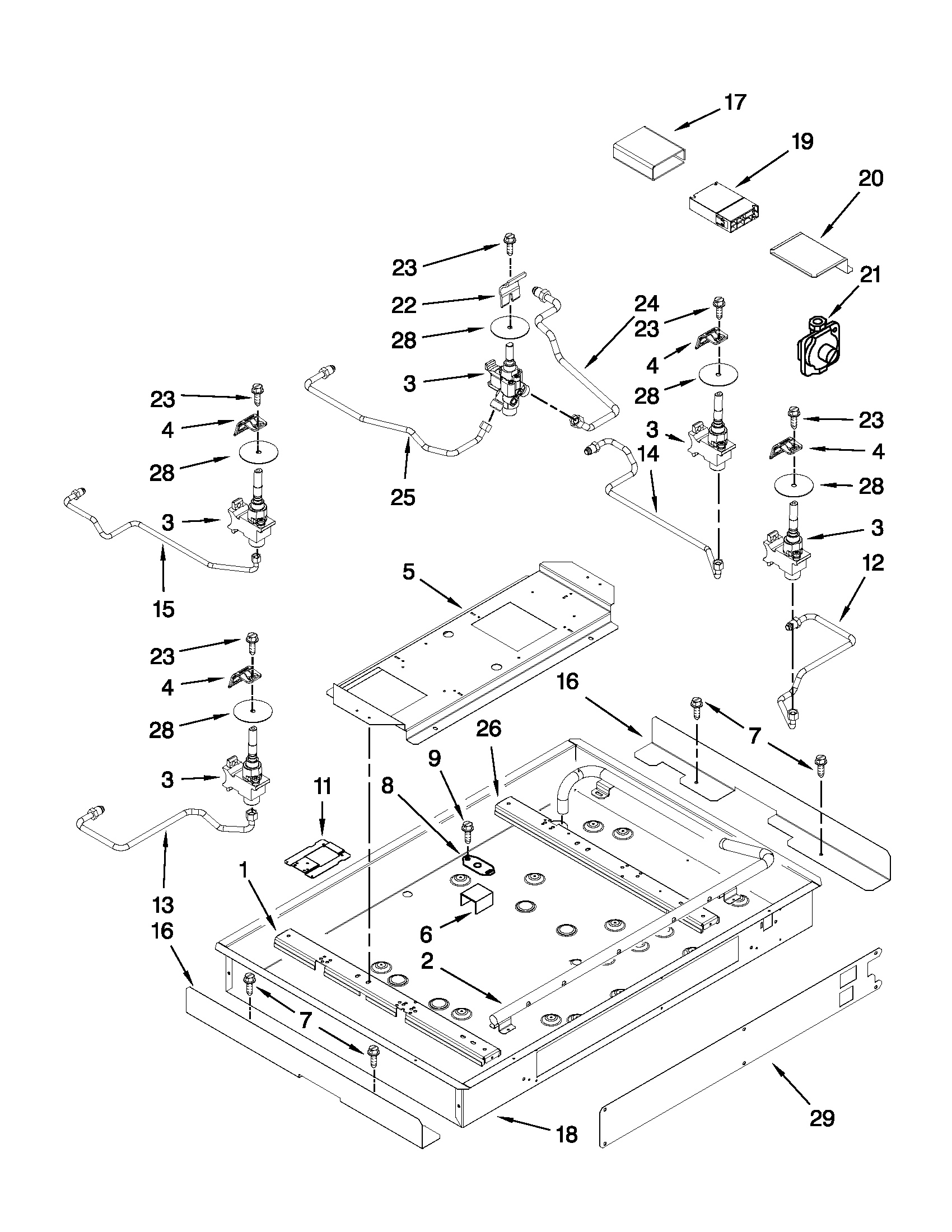

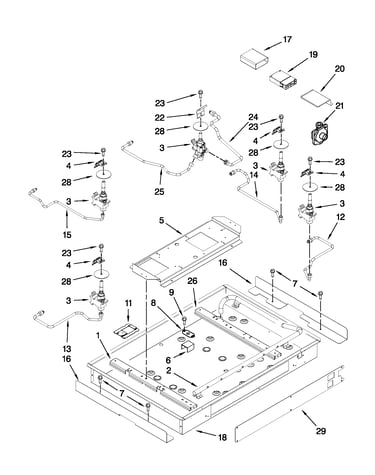

Burner box, gas valves, and switches diagram

Cooktop ignition module transformer

Part #8286691

Replaced by #WP8286691

?
Manufacturer substitution
This part replaces 8286691. Substitute parts can look different from the original.
$154.39 |
9% OFF MSRP : $170.00
In Stock
Spark Module 7431P049-60
#19

Burner box, gas valves, and switches diagram

Spark module

Part #7431P049-60

Replaced by #WP8286828

?
Manufacturer substitution
This part replaces 7431P049-60. Substitute parts can look different from the original.
$202.09 |
19% OFF MSRP : $250.00
In Stock
Surface Igniter W10398577
#15

Cooktop, burner and grate parts diagram

Surface igniter

Part #W10398577

Replaced by #WPW10398577

?
Manufacturer substitution
This part replaces W10398577. Substitute parts can look different from the original.
$57.79 |
8% OFF Phone Price : $62.79
In Stock
Cooktop Main Top W10397740
#2

Cooktop, burner and grate parts diagram

Cooktop main top

Part #W10397740

$235.60
In Stock
