Model #56253580150 Official LXI videocassette recorder

Here are the diagrams and repair parts for LXI 56253580150 videocassette recorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 24 parts

Eject Knob#10

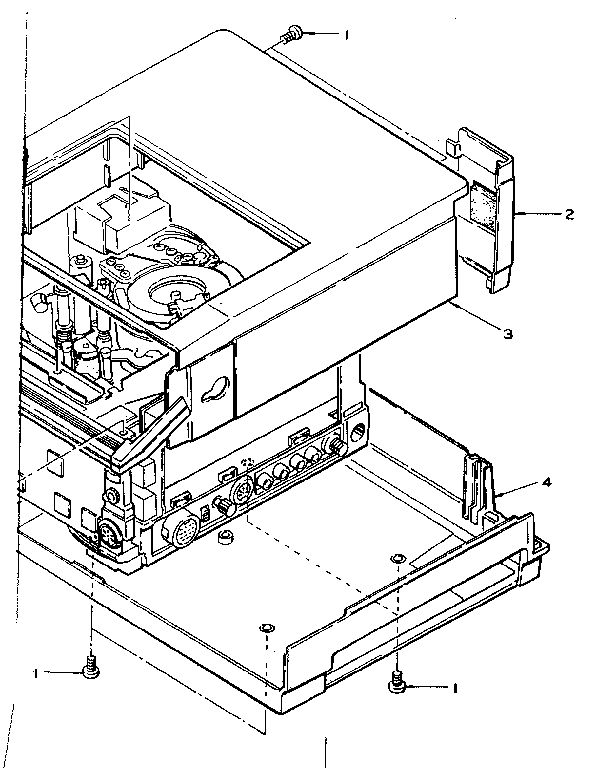

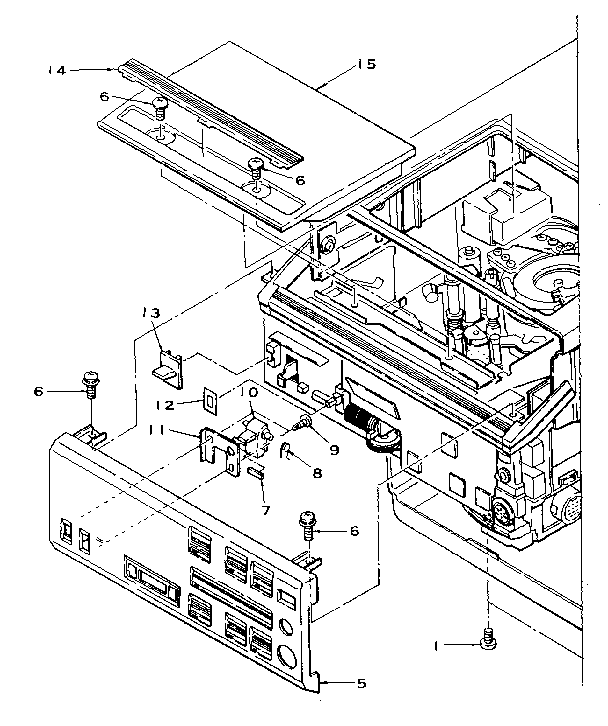

Cabinet Diagram

Eject knob

Part #46-52953-3

The manufacturer no longer makes this part, and there's no substitute part

Cover#4

Cabinet Diagram

Cover

Part #46-21685-3

The manufacturer no longer makes this part, and there's no substitute part

Cassette Cover#15

Cabinet Diagram

Cassette cover

Part #46-21686-3

The manufacturer no longer makes this part, and there's no substitute part

Cover Countr#12

Cabinet Diagram

Cover countr

Part #46-21678-3

The manufacturer no longer makes this part, and there's no substitute part

U/v Splitter

#NI

All parts Diagram

U/v splitter

Part #46-84305-3

The manufacturer no longer makes this part, and there's no substitute part

Screw

See All Related Diagrams

Screw

Part #46-57583-3

The manufacturer no longer makes this part, and there's no substitute part

Rubr Decortn#14

Cabinet Diagram

Rubr decortn

Part #46-40326-3

The manufacturer no longer makes this part, and there's no substitute part

Screw#9

Cabinet Diagram

Screw

Part #46-57152-3

The manufacturer no longer makes this part, and there's no substitute part

Refer Card

#NI

All parts Diagram

Refer card

Part #L46-38714-3

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual

#NI

All parts Diagram

Owner's manual

Part #L46-38713-3

The manufacturer no longer makes this part, and there's no substitute part
