Model # WSLS1500J0WW Official GE washer

Here are the diagrams and repair parts for Official GE WSLS1500J0WW washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 98 parts  |

Scr (m4*l14) WH02X10289
Scr (m4*l14)

Part #WH02X10289

In Stock
Scr Cover-ba WH02X10287
#49

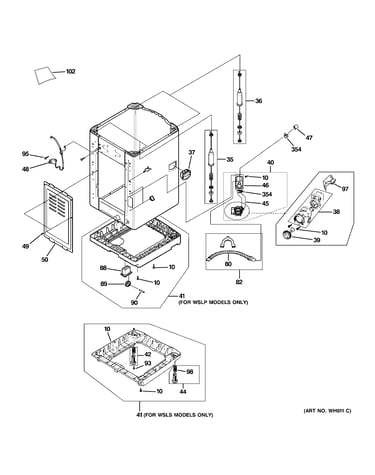

Cabinet & base diagram

Scr cover-ba

Part #WH02X10287

In Stock
Power Cord WH19X10062
#48

Cabinet & base diagram

Power cord

Part #WH19X10062

In Stock
Drain Motor WH20X10062
#344

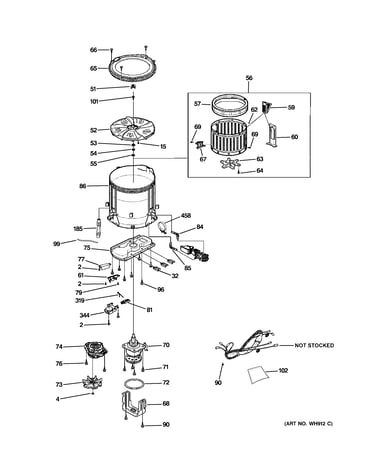

Tub, agitator & drive assembly diagram

Drain motor

Part #WH20X10062

$150.59
6% OFF Phone Price : $160.59
In Stock
Clamp WD01X10341
#458

Tub, agitator & drive assembly diagram

Clamp

Part #WD01X10341

This item is not returnable
$7.88
11% OFF Phone Price : $8.88
In Stock
Washer Control Board WH12X10426
#12

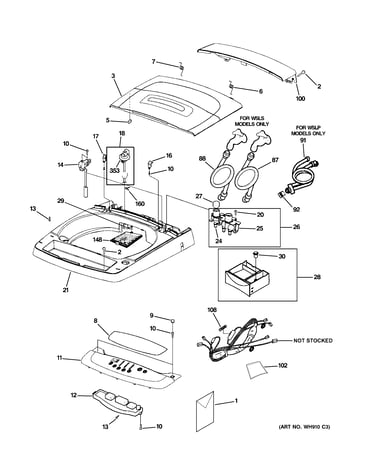

Lid & top diagram

Washer control board

Part #WH12X10426

In Stock
Screw (m6.5* WH02X10299
#96

Tub, agitator & drive assembly diagram

Screw (m6.5*

Part #WH02X10299

$7.88
11% OFF Phone Price : $8.88
In Stock
Pump Hose WH41X10045
#45

Cabinet & base diagram

Pump hose

Part #WH41X10045

$23.99
17% OFF Phone Price : $28.99
In Stock
Refrigerator Cabinet Trim Mounting Screw WR01X10463
#79

Tub, agitator & drive assembly diagram

Refrigerator cabinet trim mounting screw

Part #WR01X10463

In Stock
Washer Drive Belt WH01X10442
#72

Tub, agitator & drive assembly diagram

Washer drive belt

Part #WH01X10442

In Stock
