Kenmore
Air Purifier

Model #635733100 Official Kenmore air cleaner

Here are the diagrams and repair parts for Kenmore 635733100 air cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 25 parts

Receptacle#15

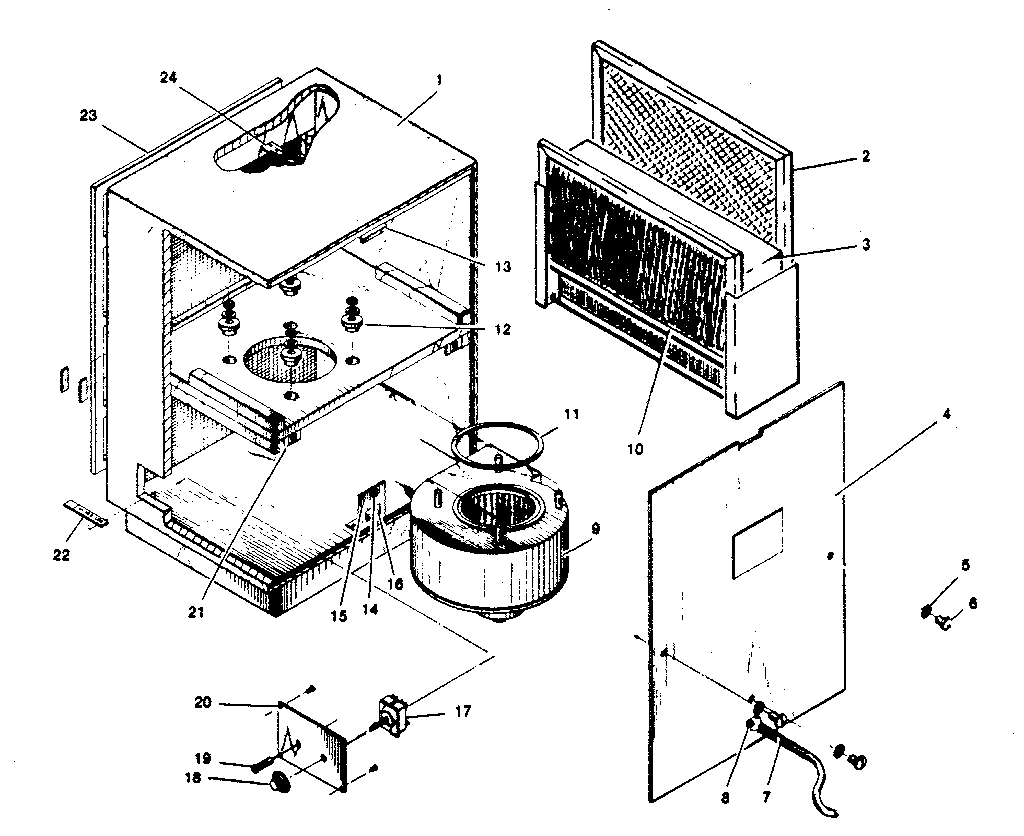

Unit parts Diagram

Receptacle

Part #122837-001

The manufacturer no longer makes this part, and there's no substitute part

Bushing#12

Unit parts Diagram

Bushing

Part #128287-001

The manufacturer no longer makes this part, and there's no substitute part

Blower Motor#9

Unit parts Diagram

Blower motor

Part #428272-001

The manufacturer no longer makes this part, and there's no substitute part

Retainer Bracket#16

Unit parts Diagram

Retainer bracket

Part #122846-001

The manufacturer no longer makes this part, and there's no substitute part

Knob#18

Unit parts Diagram

Knob

Part #122861-001

The manufacturer no longer makes this part, and there's no substitute part

Cabinet#4

Unit parts Diagram

Cabinet

Part #428277-103

The manufacturer no longer makes this part, and there's no substitute part

Pre-Filter#2

Unit parts Diagram

Pre-filter

Part #123324-003

The manufacturer no longer makes this part, and there's no substitute part

Control Plate#22

Unit parts Diagram

Control plate

Part #239752-001

The manufacturer no longer makes this part, and there's no substitute part

Control Panel#20

Unit parts Diagram

Control panel

Part #228282-001

The manufacturer no longer makes this part, and there's no substitute part

Filter#10

Unit parts Diagram

Filter

Part #42-7317

The manufacturer no longer makes this part, and there's no substitute part
