Model # EIDW6105GB1A Official Electrolux dishwasher

Here are the diagrams and repair parts for Official Electrolux EIDW6105GB1A dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

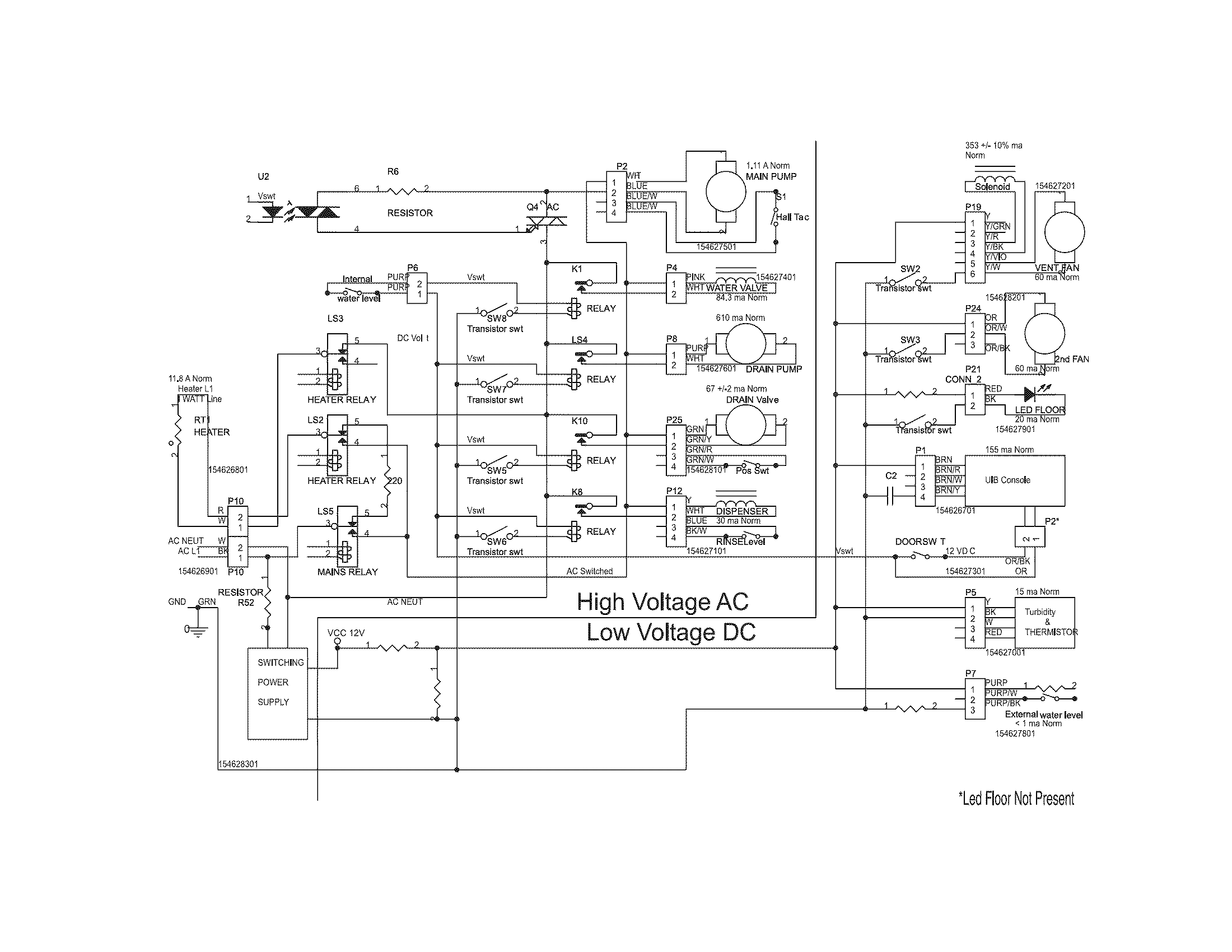

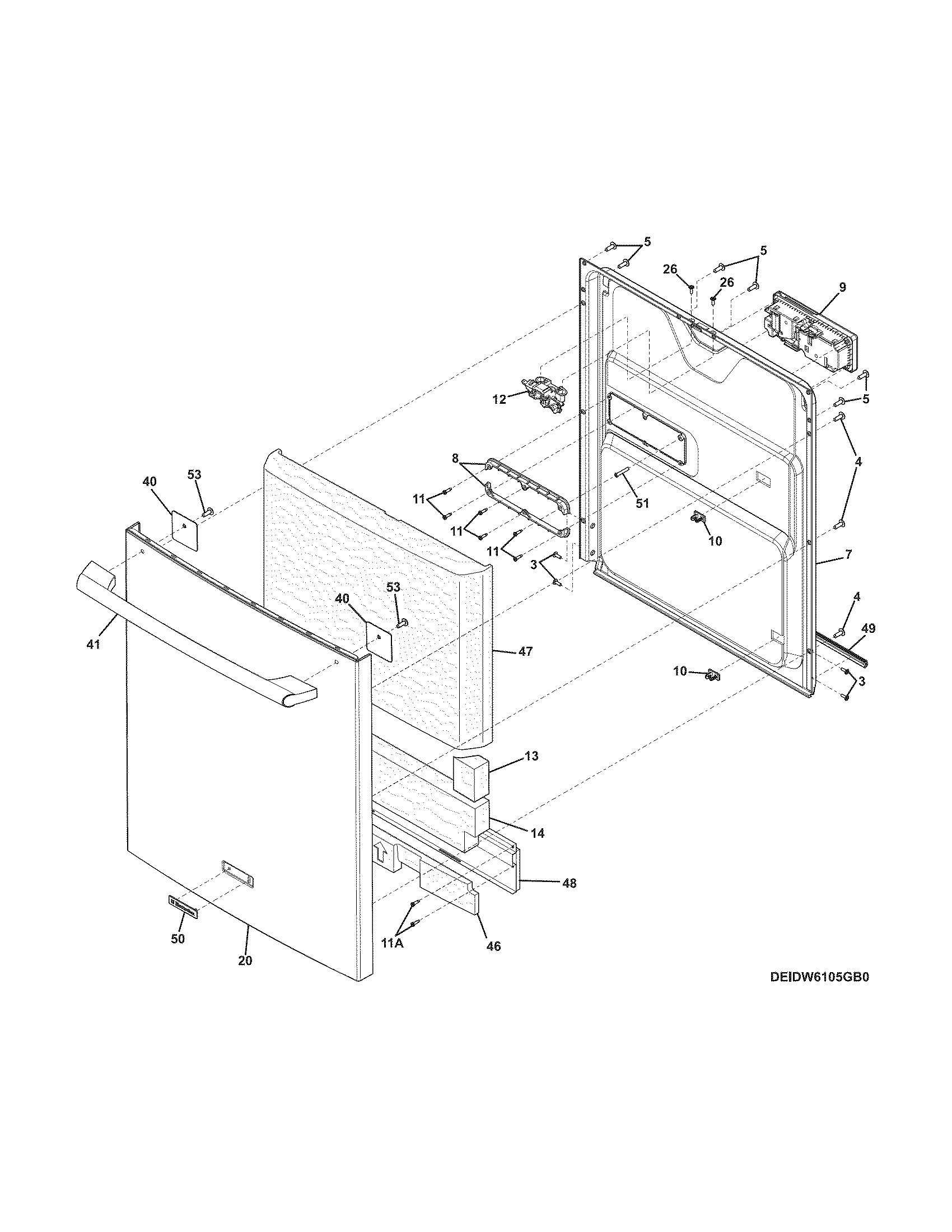

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 199 parts  |
Dishwasher Dishrack Roller Assembly, Lower Rear 154689501
#7A

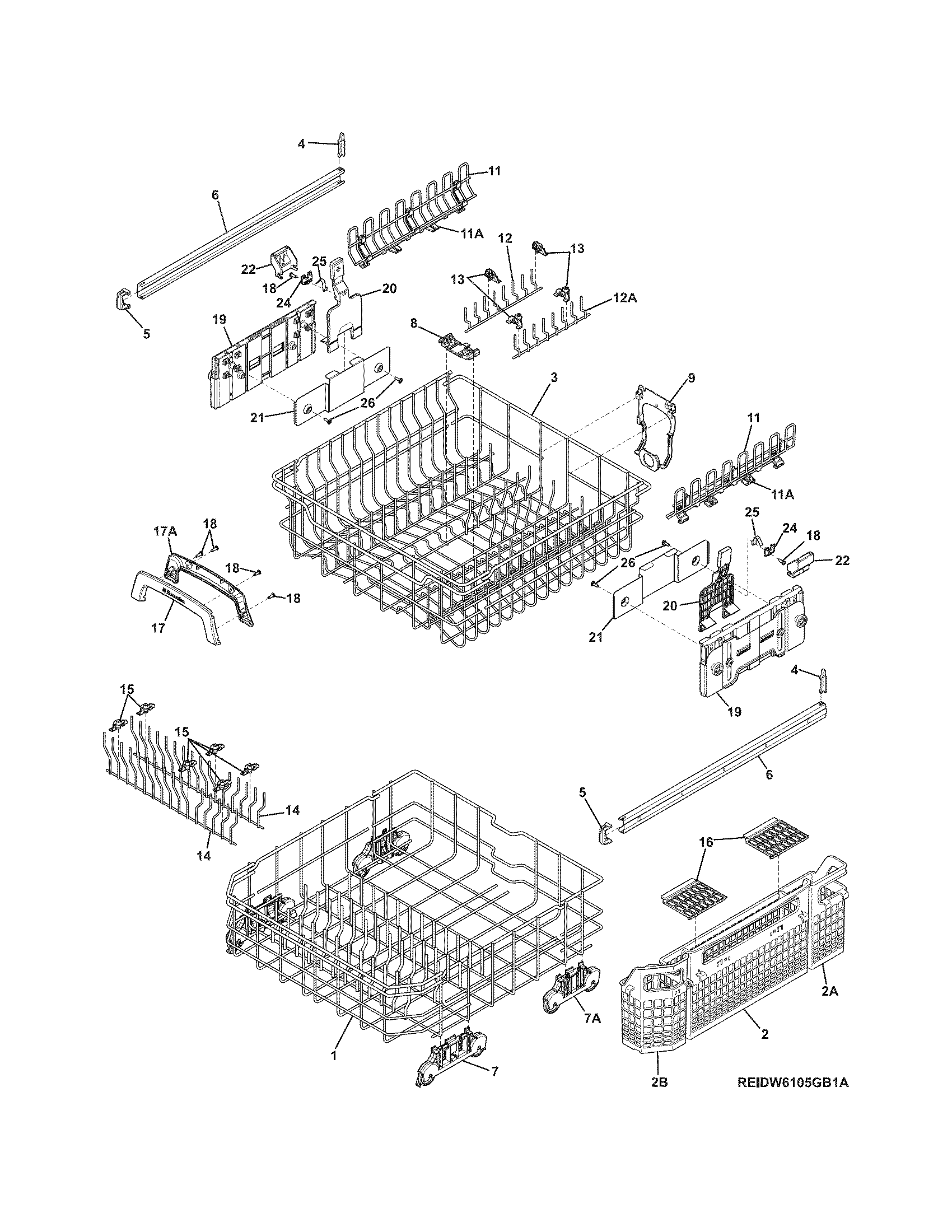

Racks diagram

Dishwasher dishrack roller assembly, lower rear

Part #154689501

$38.69 |
11% OFF Phone Price : $43.69
In Stock
Dishwasher Pump And Motor Assembly (replaces 154614001, 7154614002) 154614002
#70

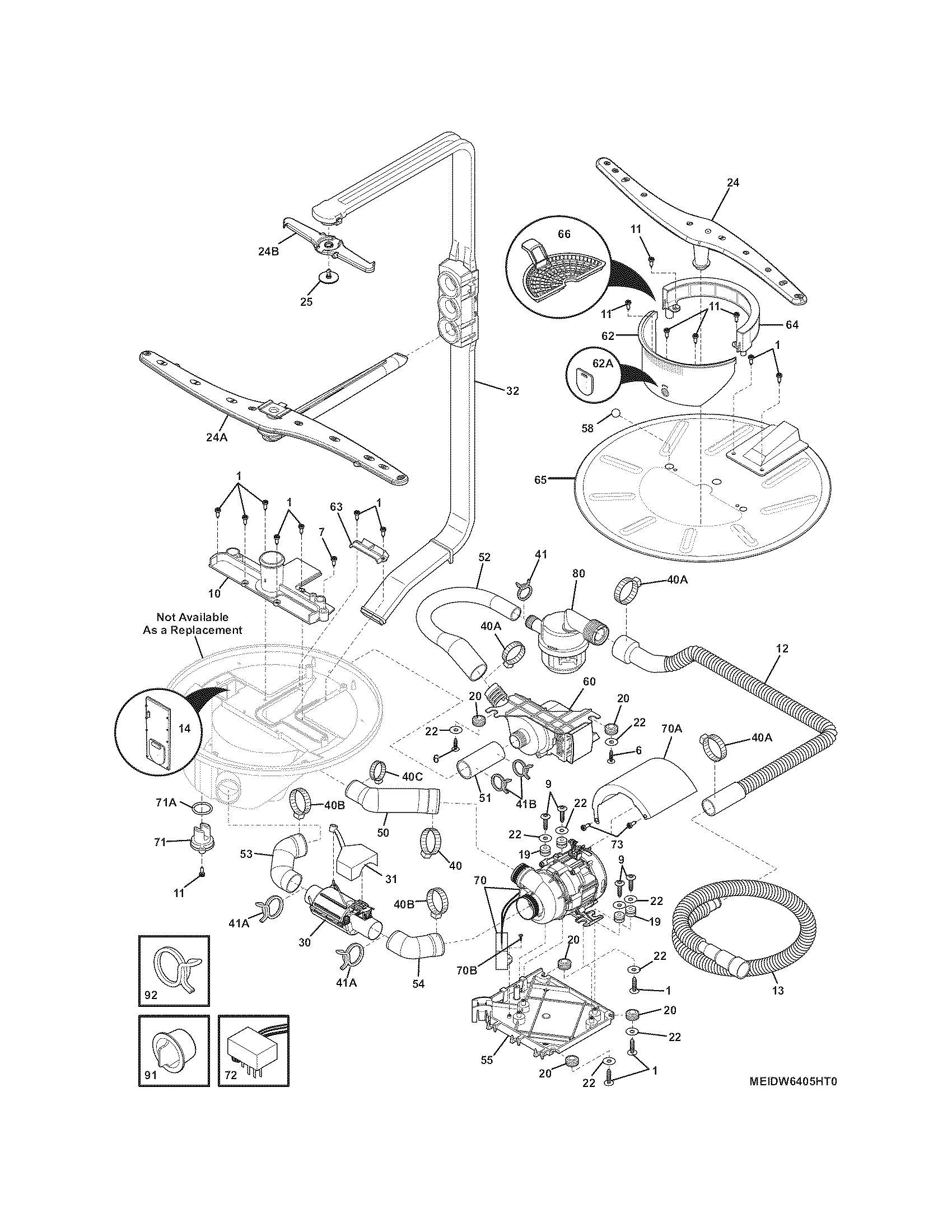

Motor & pump diagram

Dishwasher pump and motor assembly (replaces 154614001, 7154614002)

Part #154614002

$148.51 |
6% OFF Phone Price : $158.51
In Stock
Clamp Tubing 5303318539
#33

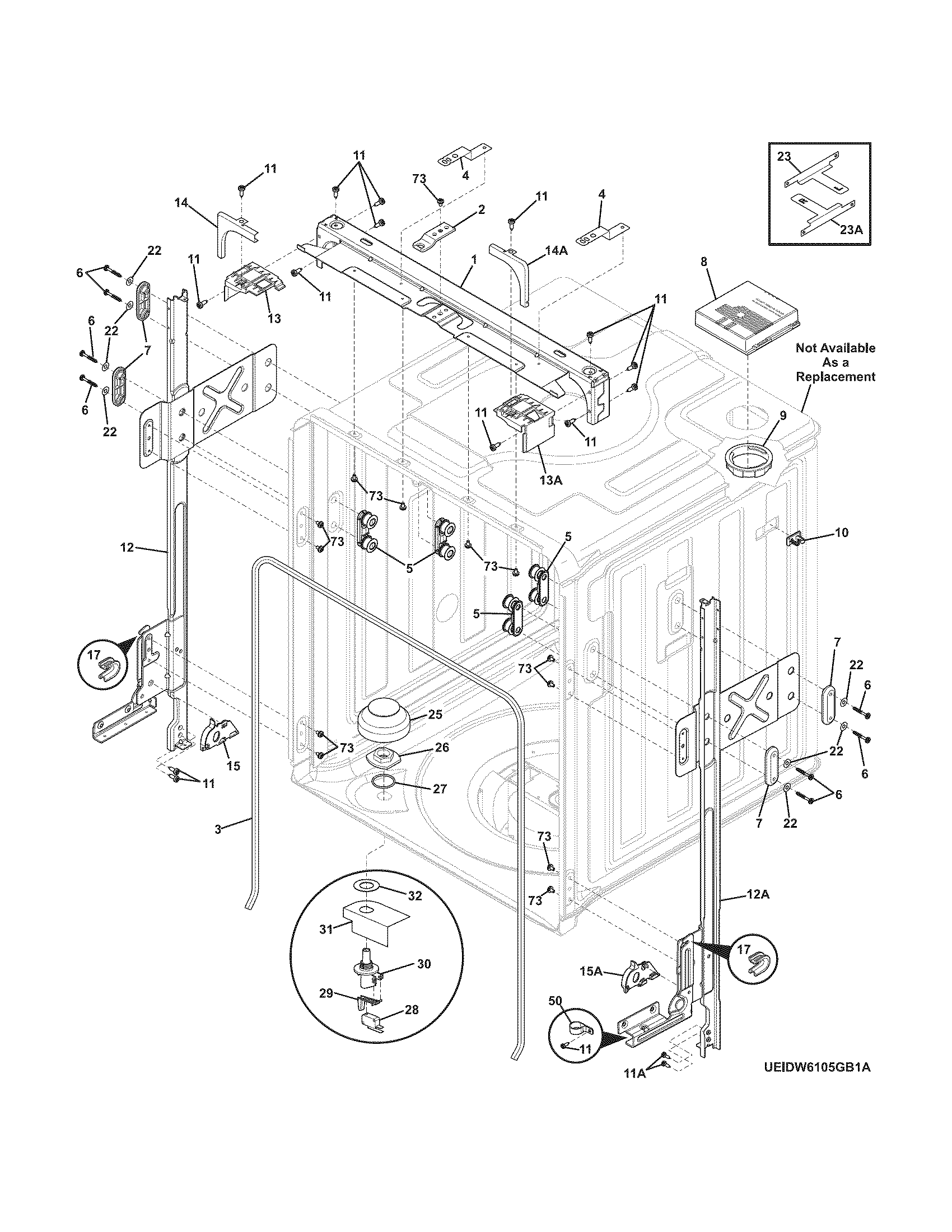

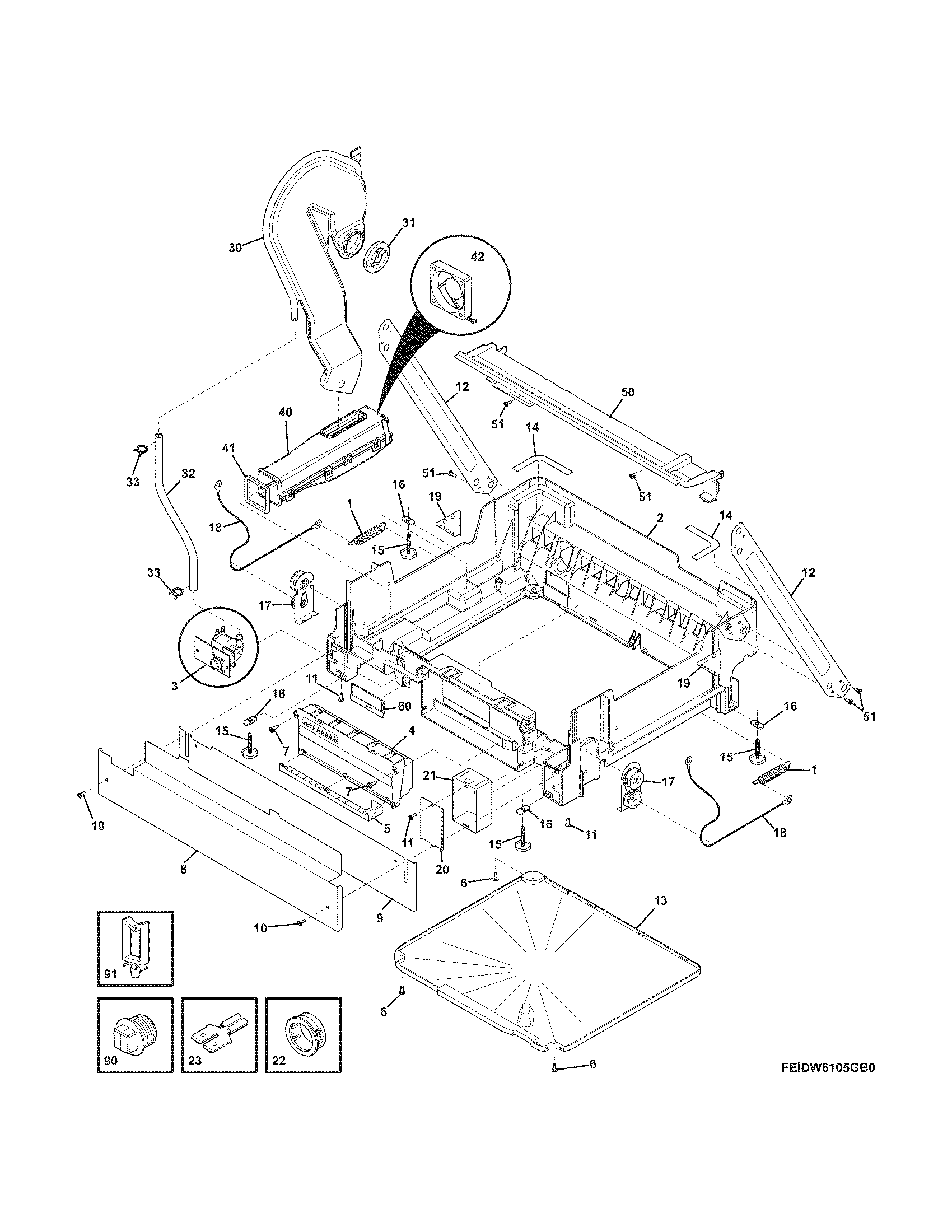

Lower frame diagram

Clamp tubing

Part #5303318539

This item is not returnable
$2.16
In Stock
Dishwasher Turbidity Sensor (replaces 7154473901) 154473901
#71

Motor & pump diagram

Dishwasher turbidity sensor (replaces 7154473901)

Part #154473901

$115.63 |
8% OFF Phone Price : $125.63
In Stock
Screw 154625701
#9

Motor & pump diagram

Screw

Part #154625701

Replaced by #5304453707

?
Manufacturer substitution
This part replaces 154625701. Substitute parts can look different from the original.
$14.69
In Stock
Dishwasher Hose Clamp 154380601
#40A

Motor & pump diagram

Dishwasher hose clamp

Part #154380601

$56.60
In Stock
Dishwasher Electronic Control 154750501
#4

Lower frame diagram

Dishwasher electronic control

Part #154750501

Replaced by #154750502

?
Manufacturer substitution
This part replaces 154750501. Substitute parts can look different from the original.
$271.84 |
$10.00 OFF Phone Price : $281.84
In Stock
Dishwasher Control Panel Overlay (replaces 7154621403) 154621403
#2

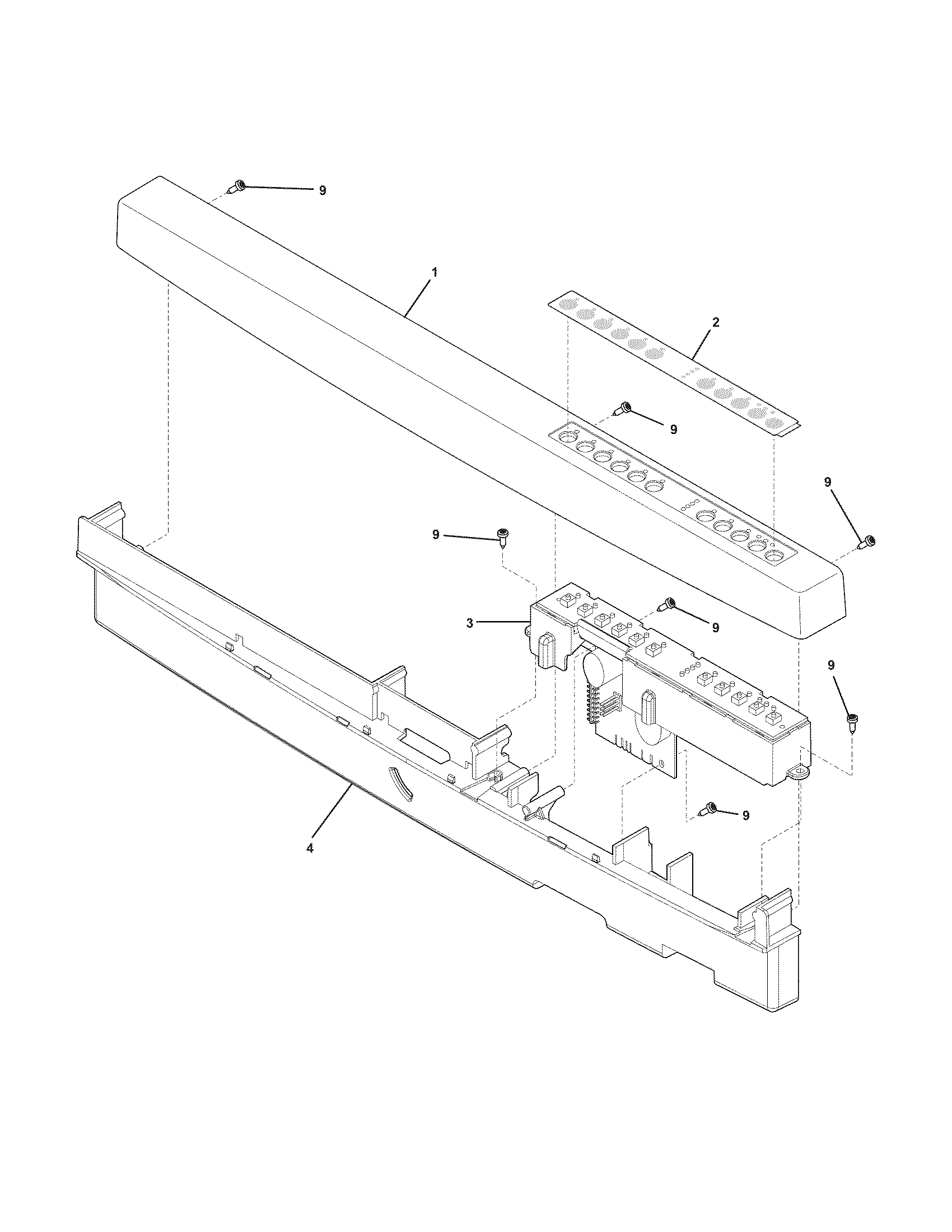

Control panel diagram

Dishwasher control panel overlay (replaces 7154621403)

Part #154621403

$10.17 |
16% OFF Phone Price : $12.17
In Stock
Dishwasher Dishrack Slide Rail Stop 154510805
#5

Racks diagram

Dishwasher dishrack slide rail stop

Part #154510805

$14.89
In Stock
Dishwasher Spray Arm 154508201
#24A

Motor & pump diagram

Dishwasher spray arm

Part #154508201

$83.09 |
6% OFF Phone Price : $88.09
In Stock
