GE
Countertop Microwave

Model # JE2160SF03 Official GE microwave

Here are the diagrams and repair parts for Official GE JE2160SF03 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 53 parts  |

Microwave Door Release Button WB03X10170
#6005

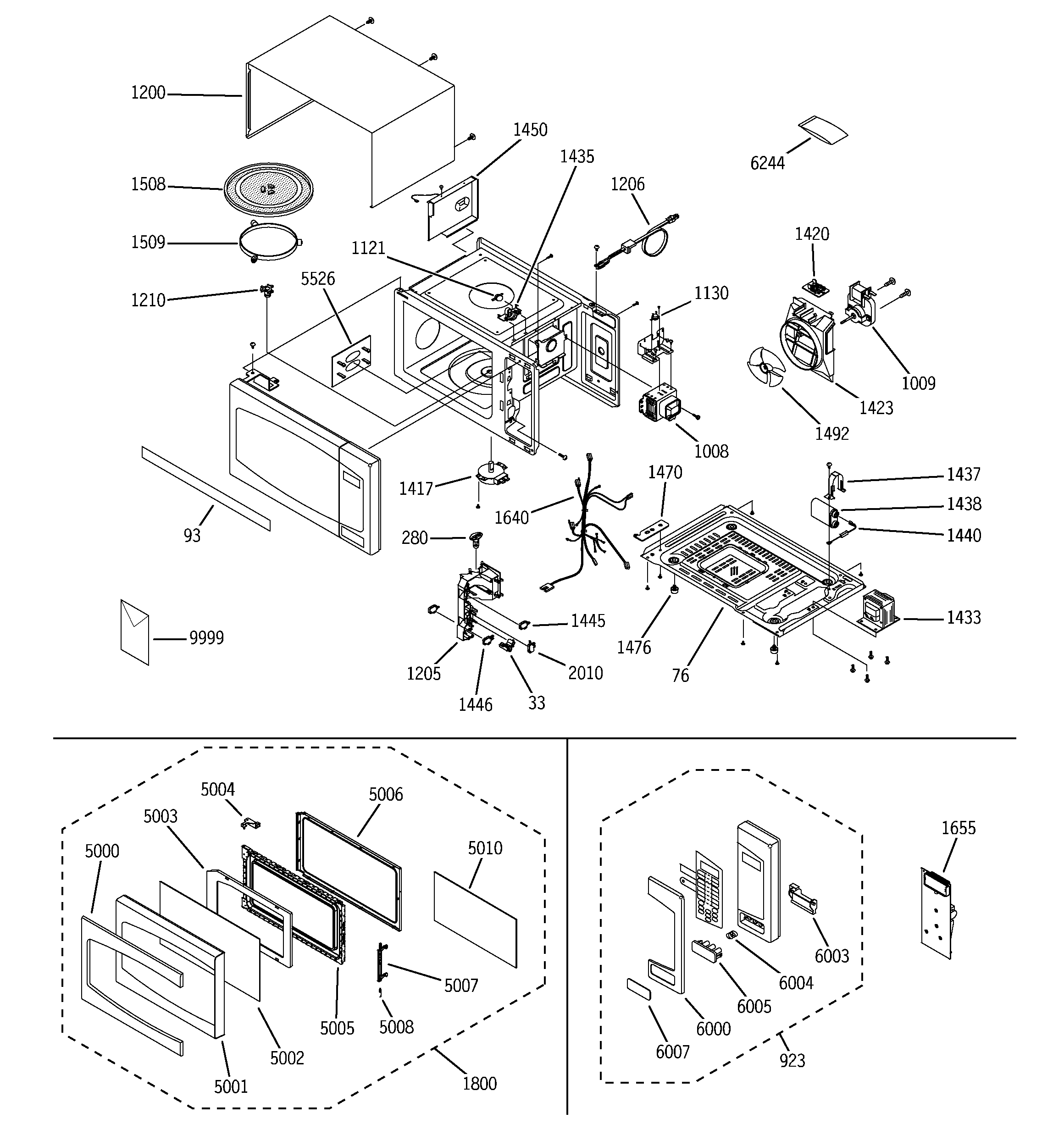

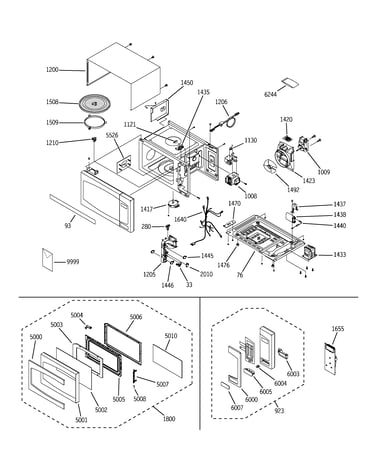

Microwave diagram

Microwave door release button

Part #WB03X10170

This item is not returnable
$23.09
18% OFF Phone Price : $28.09
In Stock
Microwave Door Interlock Switch WB24X10103
#1446

Microwave diagram

Microwave door interlock switch

Part #WB24X10103

This item is not returnable
$12.35
14% OFF Phone Price : $14.35
In Stock
Microwave Noise Filter WB27X10741
#1420

Microwave diagram

Microwave noise filter

Part #WB27X10741

$51.44
9% OFF Phone Price : $56.44
In Stock
Microwave Door Latch Body WB06X10498
#1205

Microwave diagram

Microwave door latch body

Part #WB06X10498

This item is not returnable
$16.33
11% OFF Phone Price : $18.33
In Stock
Hook WB05X10009
#5007

Microwave diagram

Hook

Part #WB05X10009

$7.39
12% OFF Phone Price : $8.39
In Stock
Microwave Cabinet WB56X10381
#1200

Microwave diagram

Microwave cabinet

Part #WB56X10381

In Stock
Hook Spring WB05X10010
#5008

Microwave diagram

Hook spring

Part #WB05X10010

In Stock
Shaded Motor WB36X10239
#1009

Microwave diagram

Shaded motor

Part #WB36X10239

In Stock
Decorator Burner WB06X10503
#6007

Microwave diagram

Decorator burner

Part #WB06X10503

In Stock
Foot WB06X10500
#1476

Microwave diagram

Foot

Part #WB06X10500

$7.88
11% OFF Phone Price : $8.88
In Stock
