Model # EB15B Official Coleman Evcon furnace

Here are the diagrams and repair parts for Official Coleman Evcon EB15B furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 41 parts  |
Cap Run 024-20045-000
#11

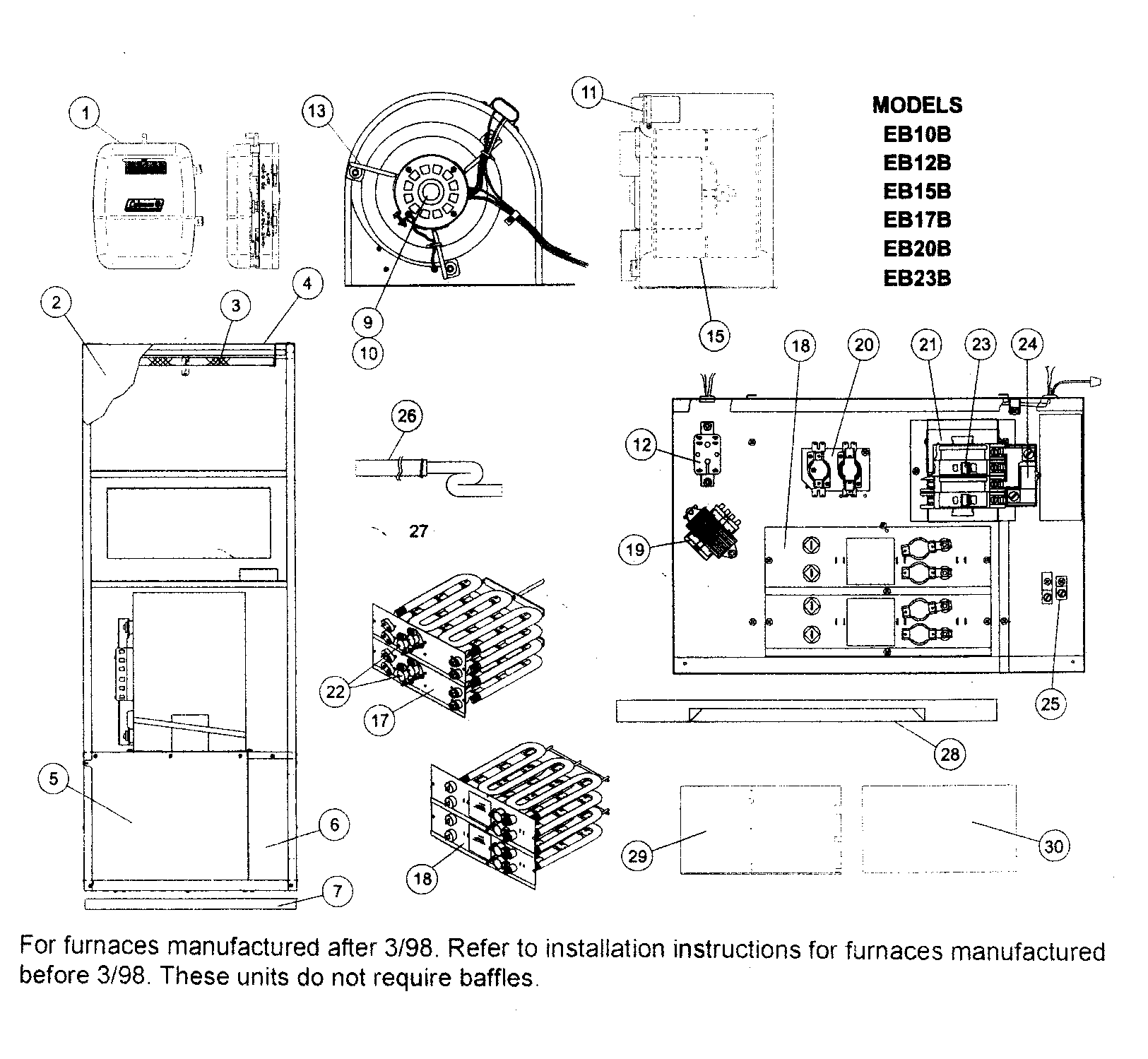

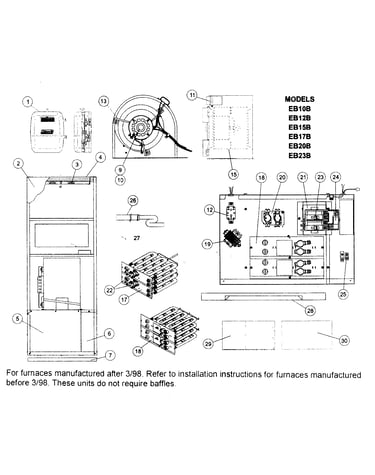

Furnace diagram

Cap run

Part #024-20045-000

Replaced by #12907

?
Manufacturer substitution
This part replaces 024-20045-000. Substitute parts can look different from the original.
This item is not returnable
$3.19 |
24% OFF Phone Price : $4.19
In Stock
Furnace Blower Fan Motor (replaces 1468-243p/a) 024-27651-000
#10

Furnace diagram

Furnace blower fan motor (replaces 1468-243p/a)

Part #024-27651-000

The manufacturer no longer makes this part, and there's no substitute part

Furnace Heater Element 3500-410P/A
Furnace heater element

Part #3500-410P/A

The manufacturer no longer makes this part, and there's no substitute part

Flr Sub Ba 3500-1071/B
#7

Furnace diagram

Flr sub ba

Part #3500-1071/B

The manufacturer no longer makes this part, and there's no substitute part

Heat Eleme 3500-4101
#17A

Furnace diagram

Heat eleme

Part #3500-4101

The manufacturer no longer makes this part, and there's no substitute part

Jumper Bar 3500-378P
#24

Furnace diagram

Jumper bar

Part #3500-378P

The manufacturer no longer makes this part, and there's no substitute part

Condst Tra 3240-3051
#27

Furnace diagram

Condst tra

Part #3240-3051

The manufacturer no longer makes this part, and there's no substitute part

Sequencer 3115-3571
#20

Furnace diagram

Sequencer

Part #3115-3571

The manufacturer no longer makes this part, and there's no substitute part

Cover 3500-1271
#6

Furnace diagram

Cover

Part #3500-1271

The manufacturer no longer makes this part, and there's no substitute part

Fuse 025-32746-026
Fuse

Part #025-32746-026

The manufacturer no longer makes this part, and there's no substitute part
