Model #FB7700XS1 Official Whirlpool canister vacuum

Here are the diagrams and repair parts for Whirlpool FB7700XS1 canister vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 45 parts

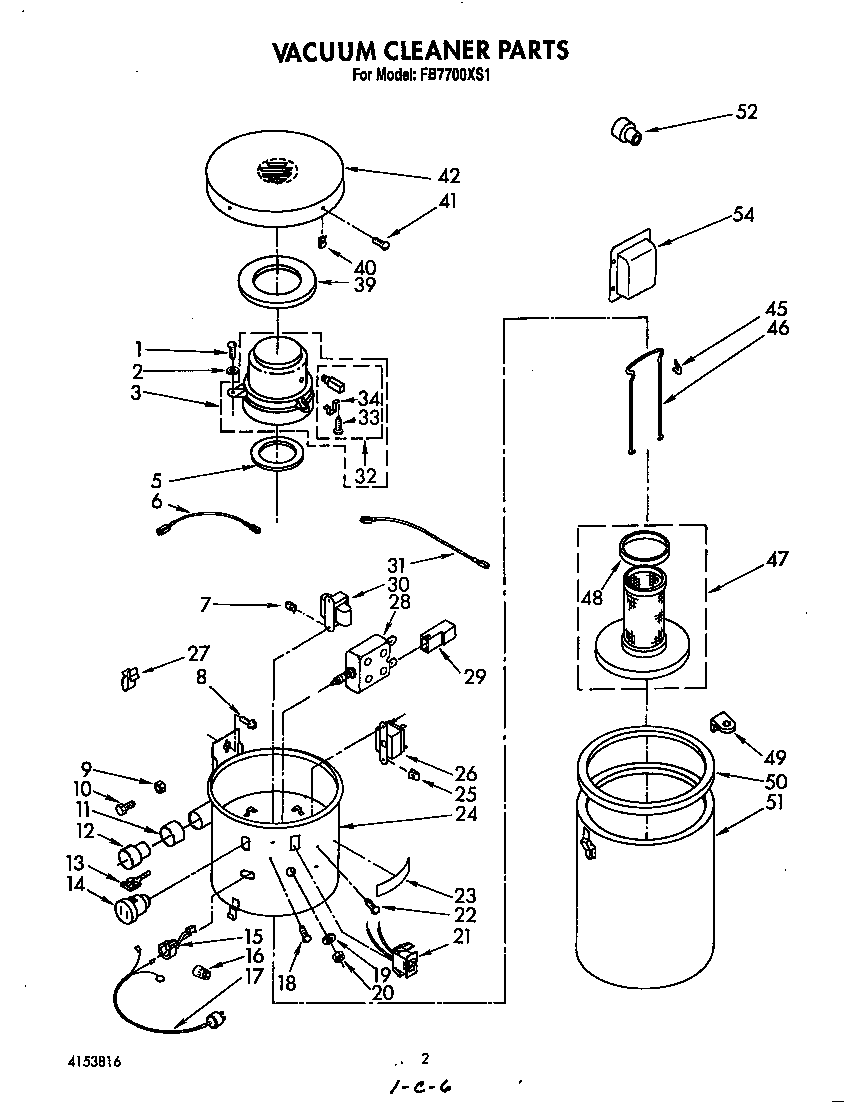

COUPLING, REDUCER#12

Unit parts Diagram

Coupling, reducer

Part #4152877

The manufacturer no longer makes this part, and there's no substitute part

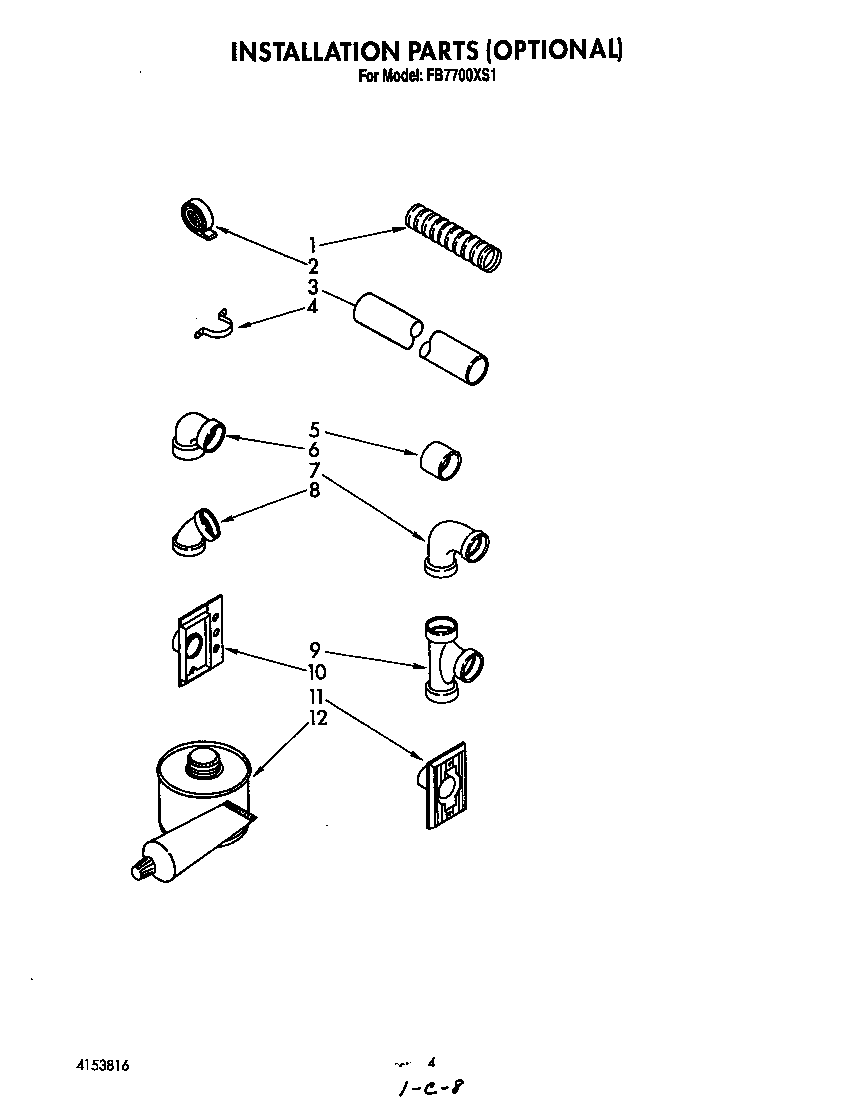

Mounting Plate#10

Optional parts Diagram

Mounting plate

Part #4147061

The manufacturer no longer makes this part, and there's no substitute part

CLAMP (2)#34

Unit parts Diagram

Clamp (2)

Part #568924

The manufacturer no longer makes this part, and there's no substitute part

Pipe Strap#4

Optional parts Diagram

Pipe strap

Part #4149982

The manufacturer no longer makes this part, and there's no substitute part

Motor Relay#26

Unit parts Diagram

Motor relay

Part #4153095

The manufacturer no longer makes this part, and there's no substitute part

COUPLING, 2"#5

Optional parts Diagram

Coupling, 2"

Part #4147065

The manufacturer no longer makes this part, and there's no substitute part

Exhaust Muffler#54

Unit parts Diagram

Exhaust muffler

Part #4150107

The manufacturer no longer makes this part, and there's no substitute part

ELBOW, 90O SWEEP, 2"#7

Optional parts Diagram

Elbow, 90o sweep, 2"

Part #4147063

The manufacturer no longer makes this part, and there's no substitute part

ELBOW, 90O SHORT 2"#6

Optional parts Diagram

Elbow, 90o short 2"

Part #4147069

The manufacturer no longer makes this part, and there's no substitute part

Rocker Switch#21

Unit parts Diagram

Rocker switch

Part #732162

The manufacturer no longer makes this part, and there's no substitute part
