Model #JY5502A39 Official Western Auto 12" boys' bmx bicycle

Here are the diagrams and repair parts for Western Auto JY5502A39 12" boys' bmx bicycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 34 parts

Frt Spoke#11

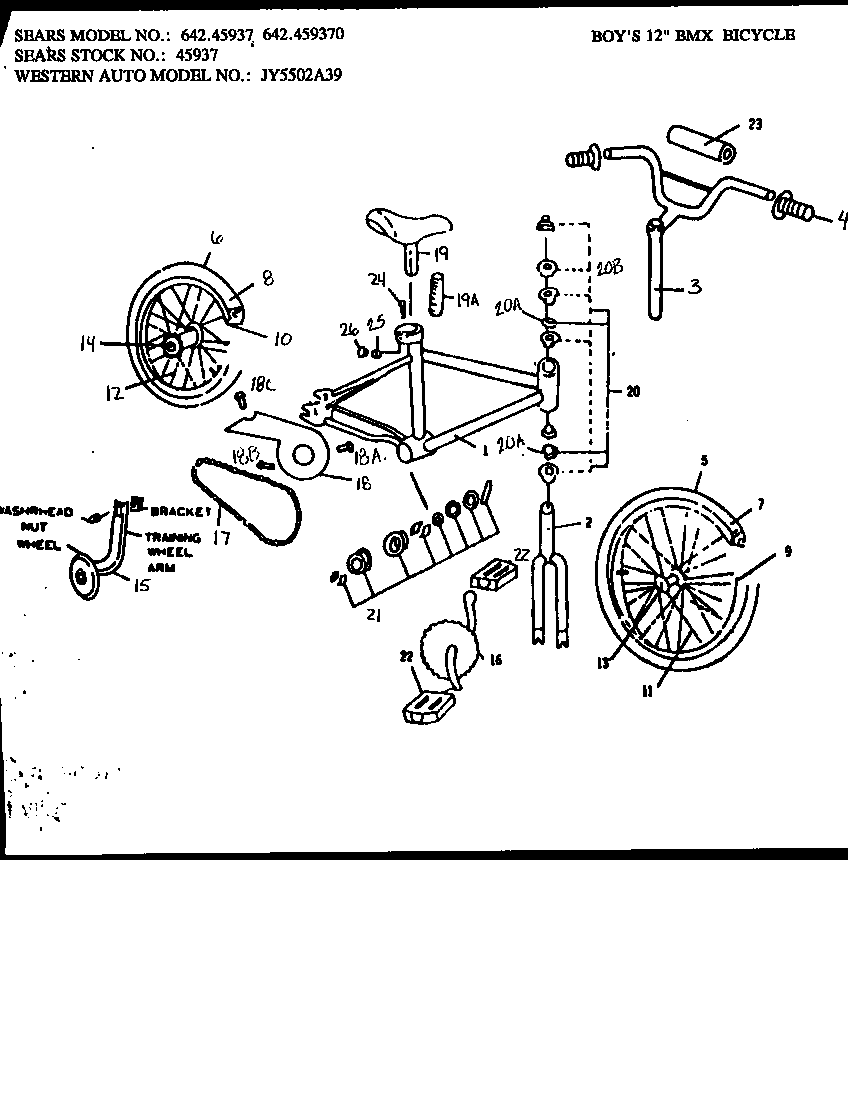

Boy's 12" bmx bicycle Diagram

Frt spoke

Part #JB302611

The manufacturer no longer makes this part, and there's no substitute part

Washer#25

Boy's 12" bmx bicycle Diagram

Washer

Part #JB302631

The manufacturer no longer makes this part, and there's no substitute part

Head Set#20B

Boy's 12" bmx bicycle Diagram

Head set

Part #JB302626

The manufacturer no longer makes this part, and there's no substitute part

Hndlebar Pad#23

Boy's 12" bmx bicycle Diagram

Hndlebar pad

Part #JB302629

The manufacturer no longer makes this part, and there's no substitute part

Screw#18B

Boy's 12" bmx bicycle Diagram

Screw

Part #JB302620

The manufacturer no longer makes this part, and there's no substitute part

Grip#4

Boy's 12" bmx bicycle Diagram

Grip

Part #JB302604

The manufacturer no longer makes this part, and there's no substitute part

Front Wheel#5

Boy's 12" bmx bicycle Diagram

Front wheel

Part #JB302605

The manufacturer no longer makes this part, and there's no substitute part

Seat Post#19

Boy's 12" bmx bicycle Diagram

Seat post

Part #JB302622

The manufacturer no longer makes this part, and there's no substitute part

Screw#18C

Boy's 12" bmx bicycle Diagram

Screw

Part #JB302621

The manufacturer no longer makes this part, and there's no substitute part

Chain#17

Boy's 12" bmx bicycle Diagram

Chain

Part #JB302617

The manufacturer no longer makes this part, and there's no substitute part
