Sony
Digital Camcorder

Model # DCR-DVD710 Official Sony digital camcorder

Here are the diagrams and repair parts for Official Sony DCR-DVD710 digital camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 111 parts  |
Lcx076ake1 875324114
#NI

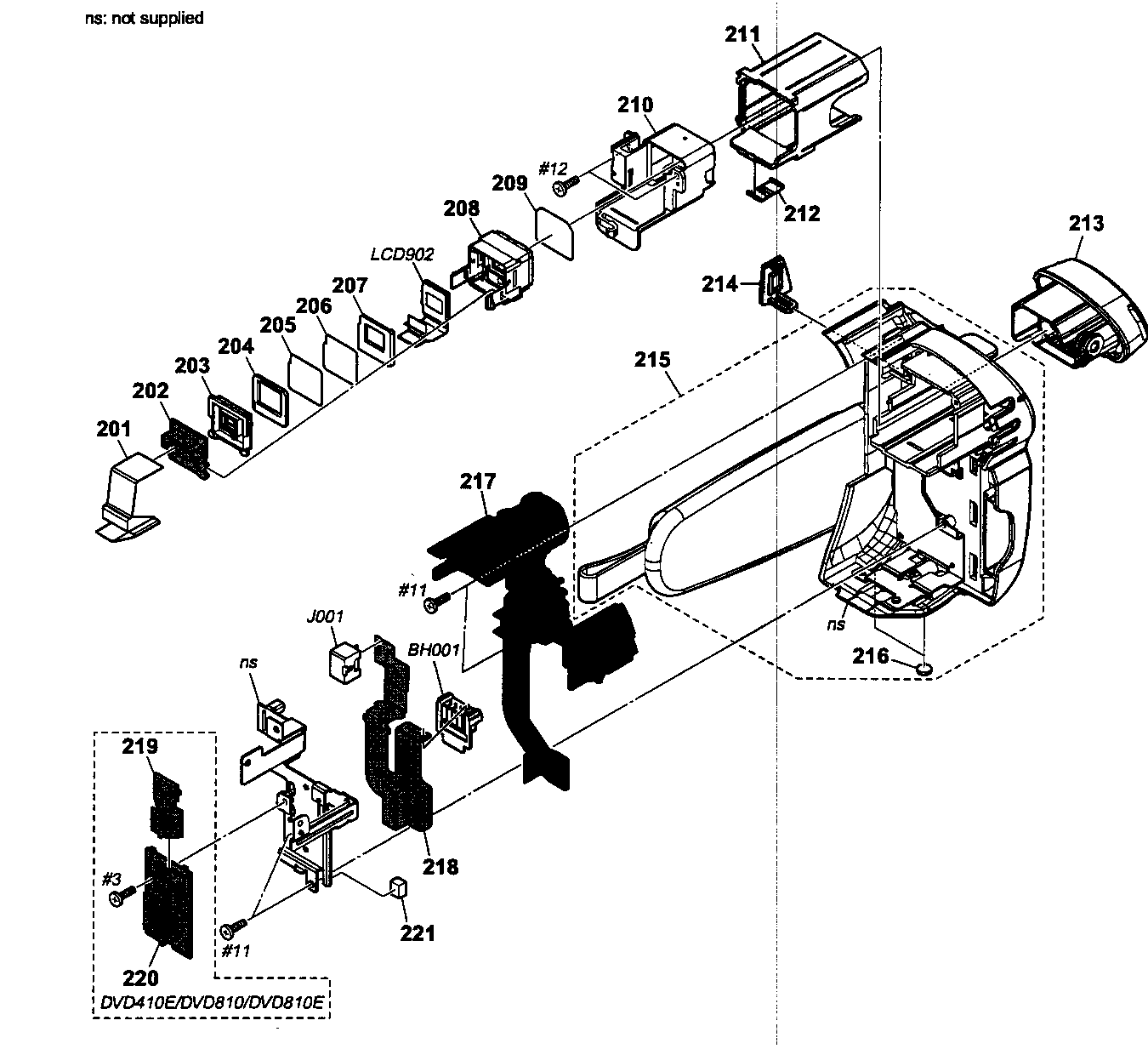

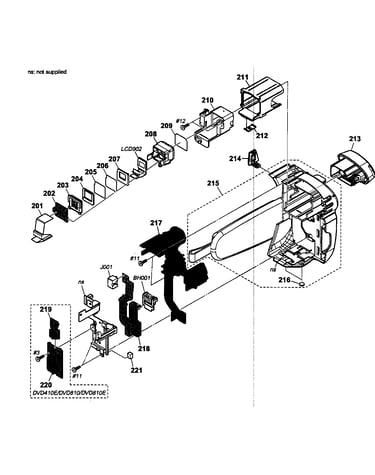

Bt/evf assy diagram

Lcx076ake1

Part #875324114

The manufacturer no longer makes this part, and there's no substitute part

Flex Cable 183486811
#201

Bt/evf assy diagram

Flex cable

Part #183486811

The manufacturer no longer makes this part, and there's no substitute part

Grille Microphone 328180601
#413

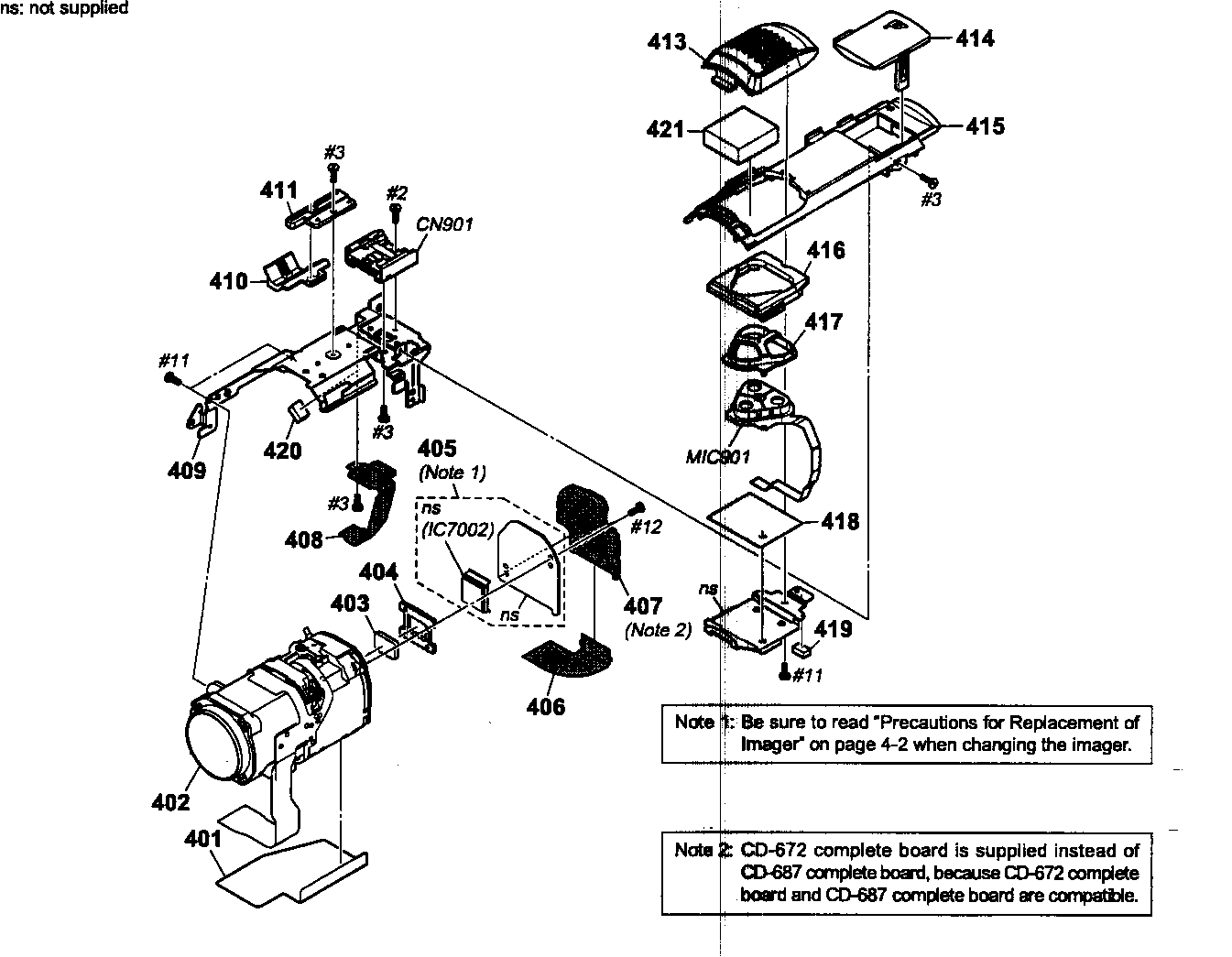

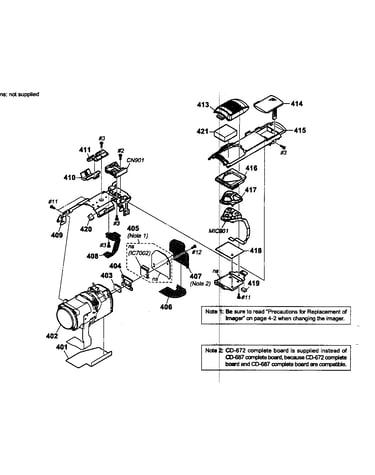

Lens assy diagram

Grille microphone

Part #328180601

The manufacturer no longer makes this part, and there's no substitute part

Harness 196496611
#112

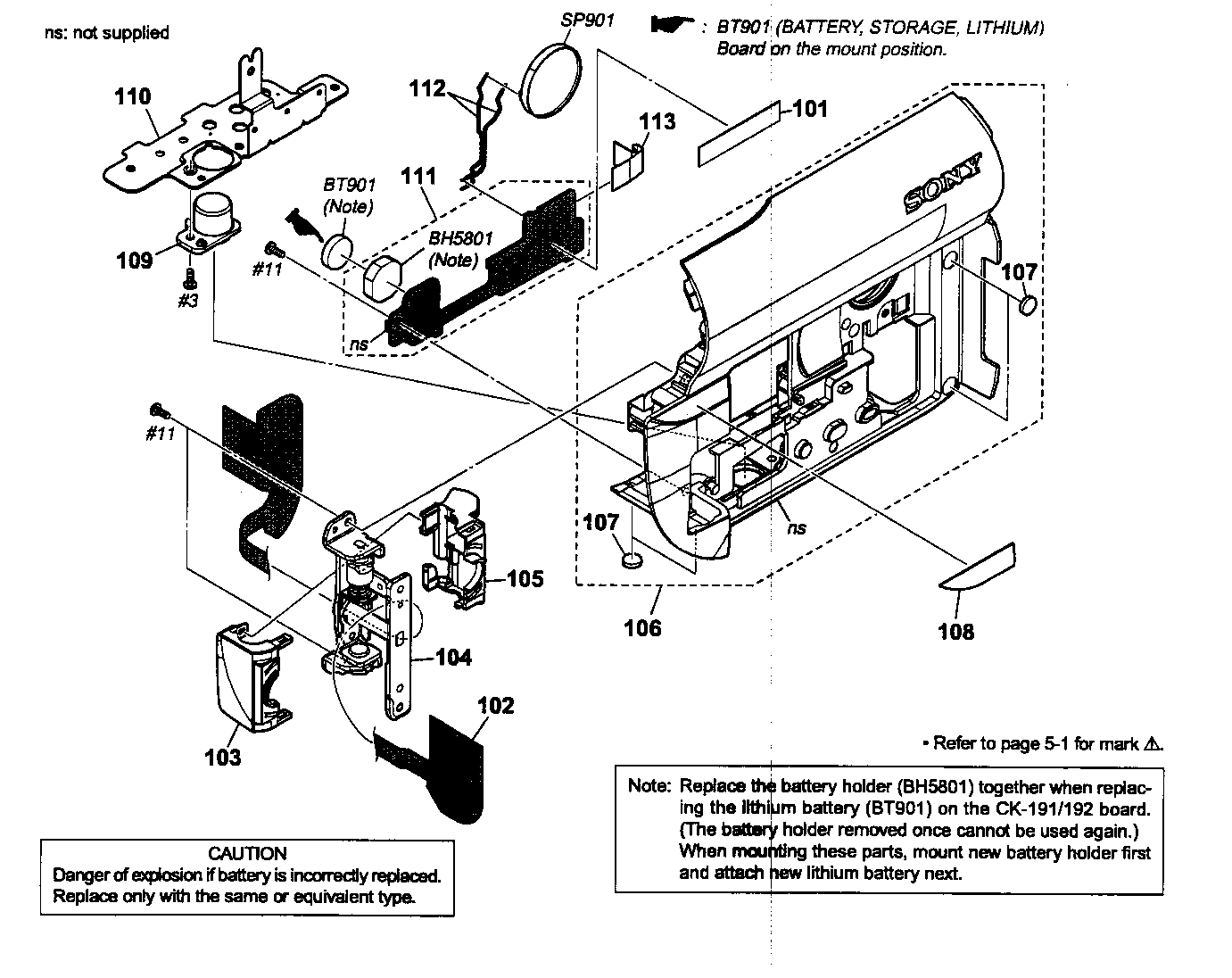

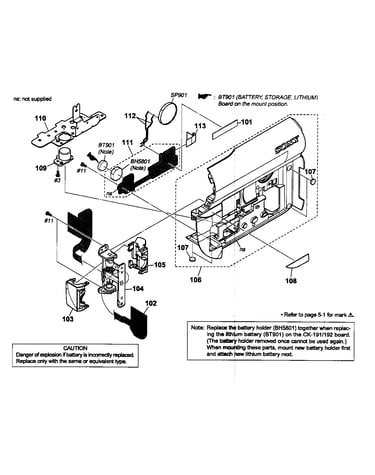

Cabinet parts rt diagram

Harness

Part #196496611

The manufacturer no longer makes this part, and there's no substitute part

Cushion-r 309609701
#221

Bt/evf assy diagram

Cushion-r

Part #309609701

The manufacturer no longer makes this part, and there's no substitute part

Connector 181889011
#NI

Lens assy diagram

Connector

Part #181889011

The manufacturer no longer makes this part, and there's no substitute part

Vc-520 Pcb A1439741A
#302

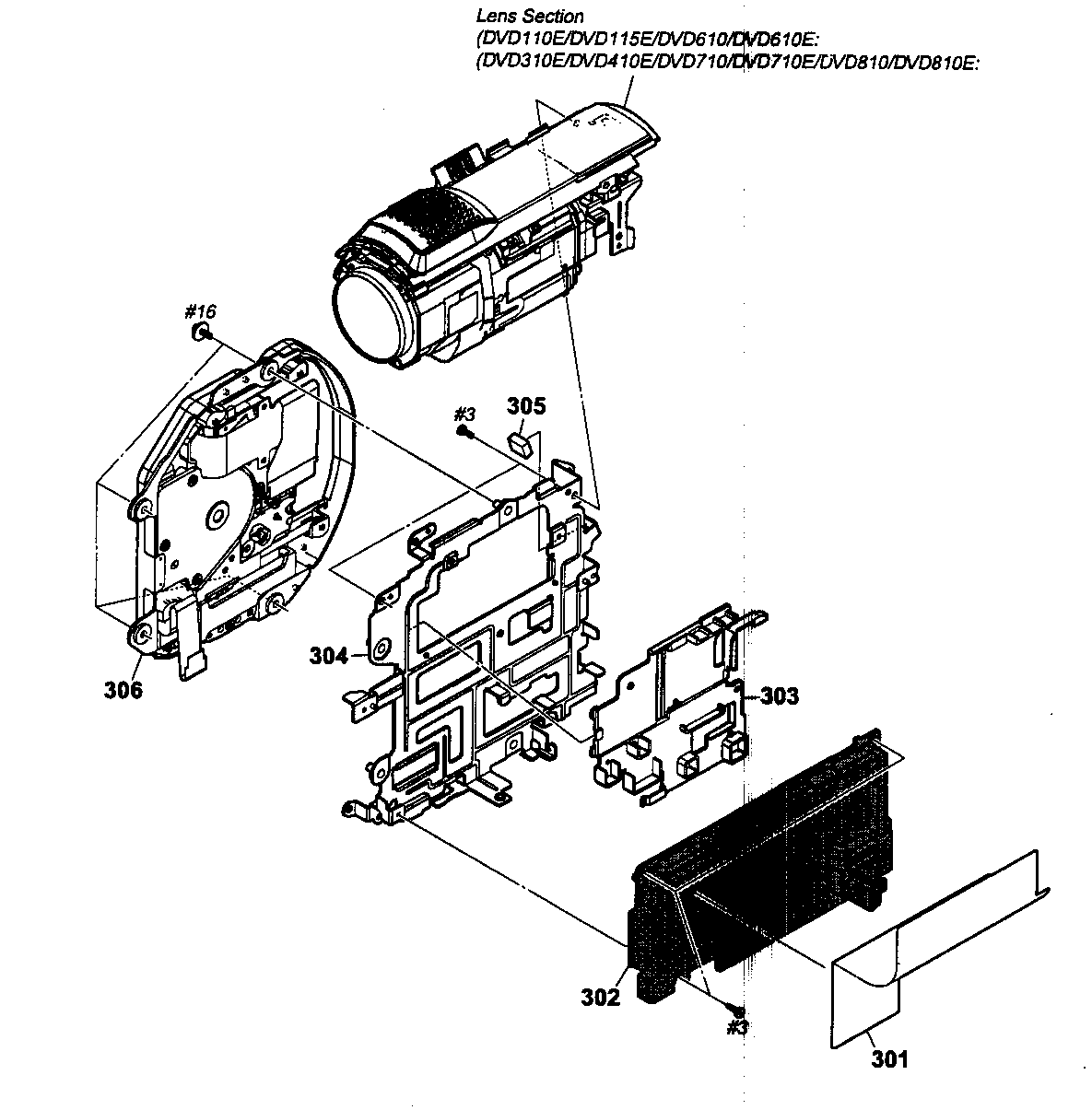

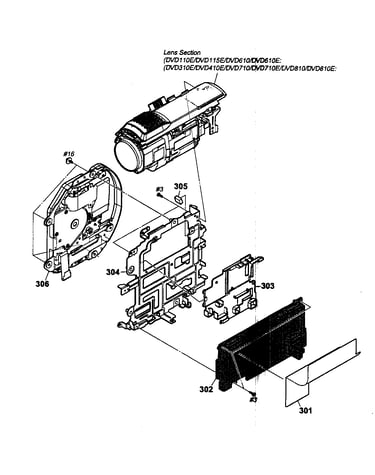

Md assy diagram

Vc-520 pcb

Part #A1439741A

The manufacturer no longer makes this part, and there's no substitute part

Usb Cable 182986831
#NI

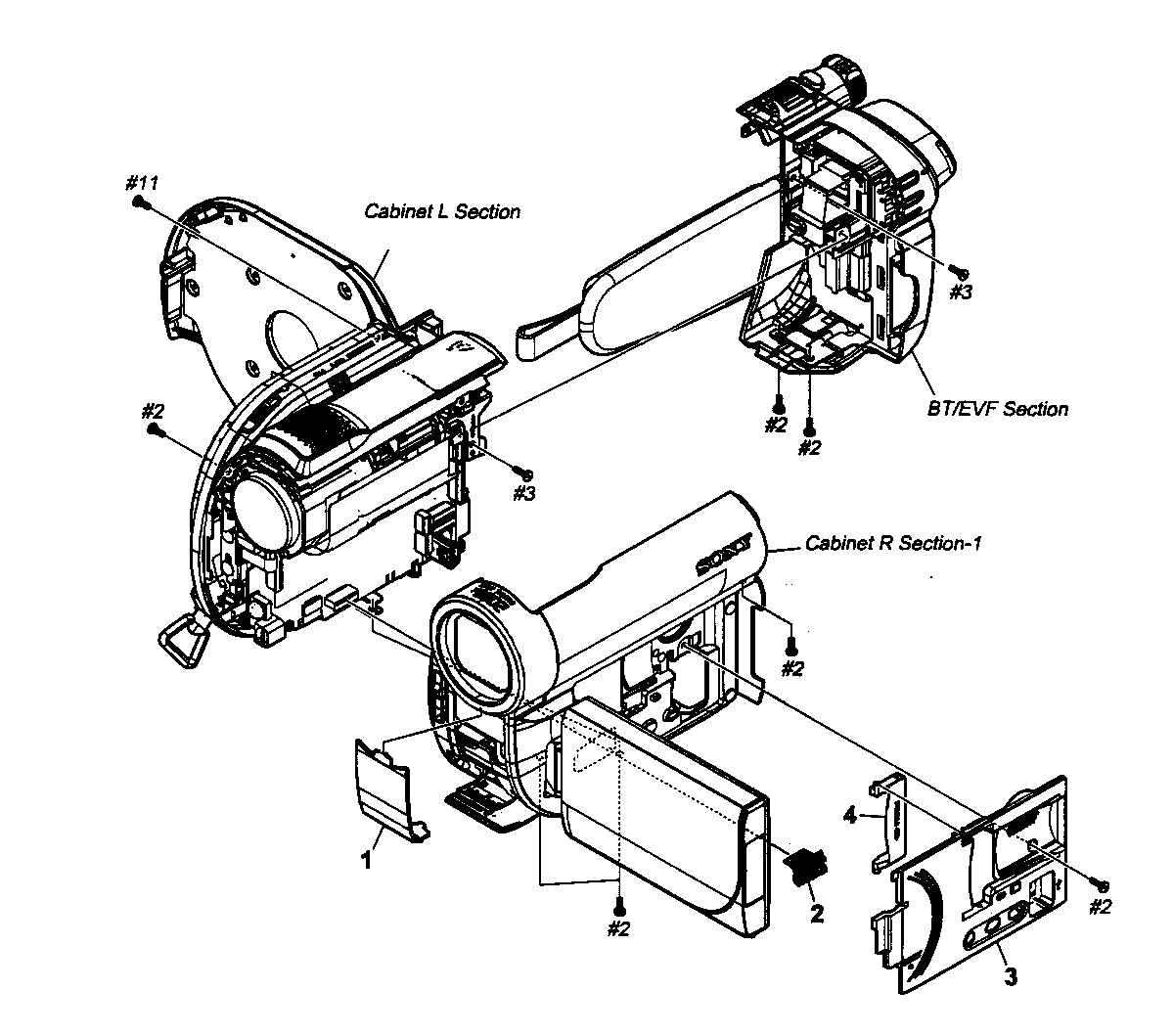

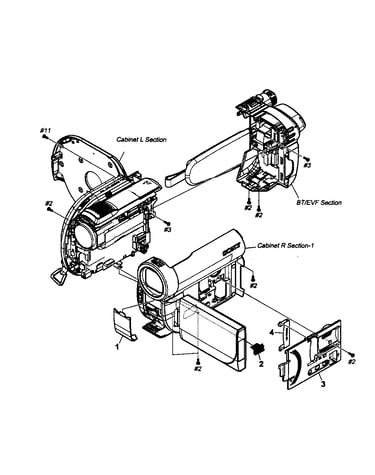

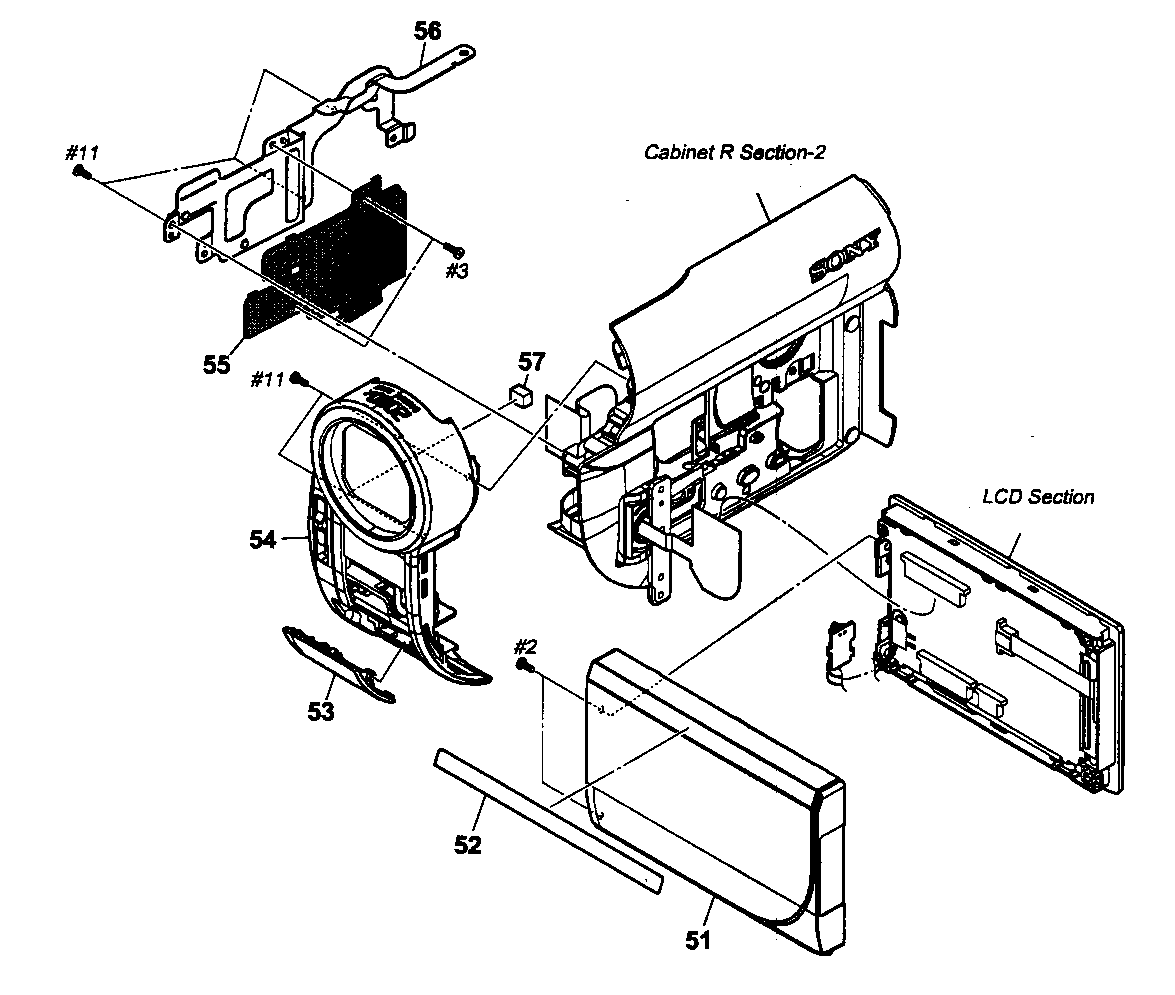

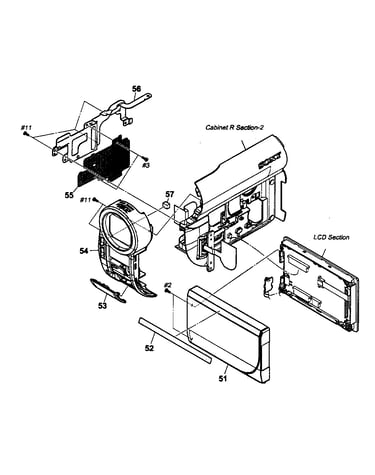

Cabinet parts diagram

Usb cable

Part #182986831

The manufacturer no longer makes this part, and there's no substitute part

Reflection Sheet 269451501
#155

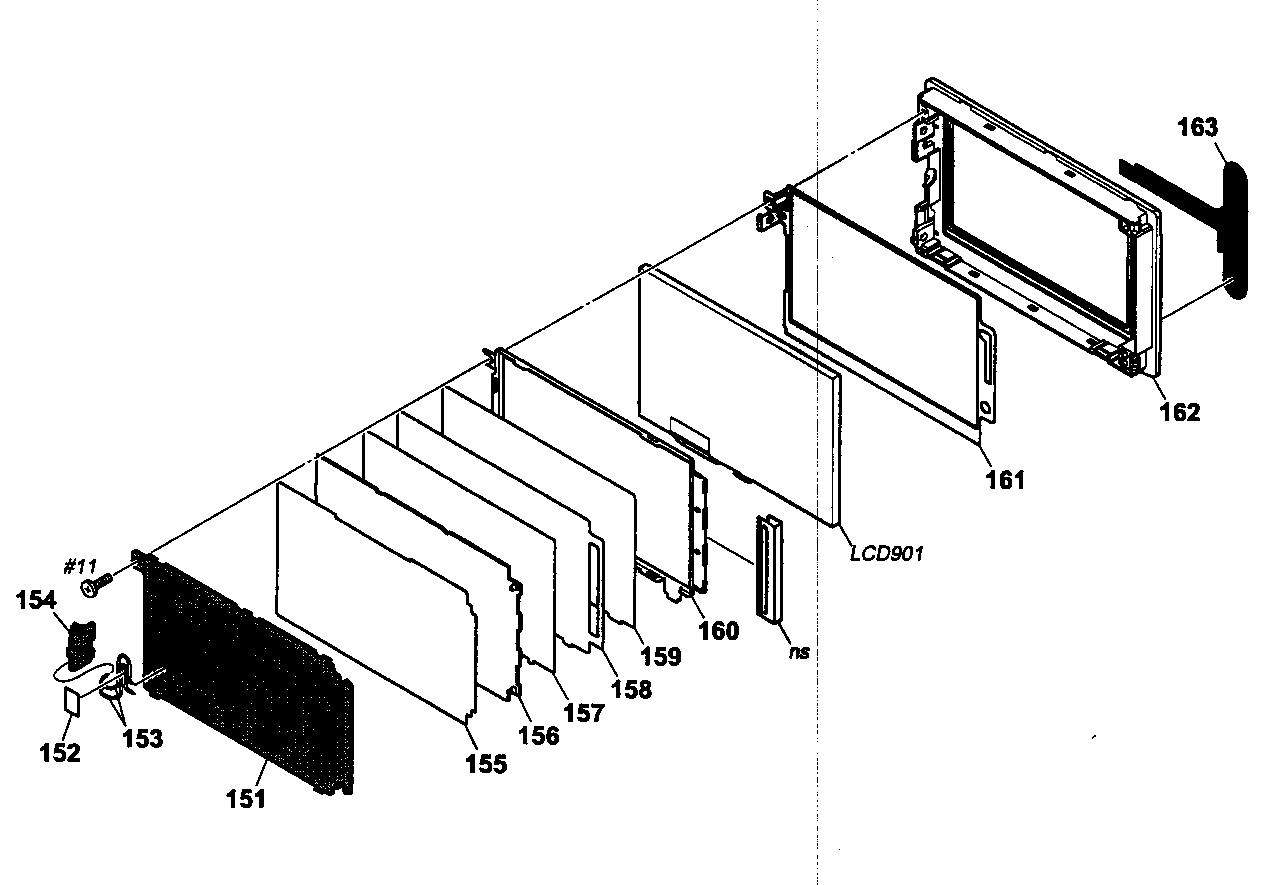

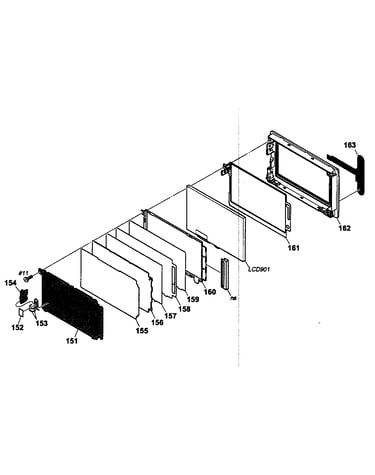

Lcd assy diagram

Reflection sheet

Part #269451501

The manufacturer no longer makes this part, and there's no substitute part

Flexible Pcb A1228528A
#254

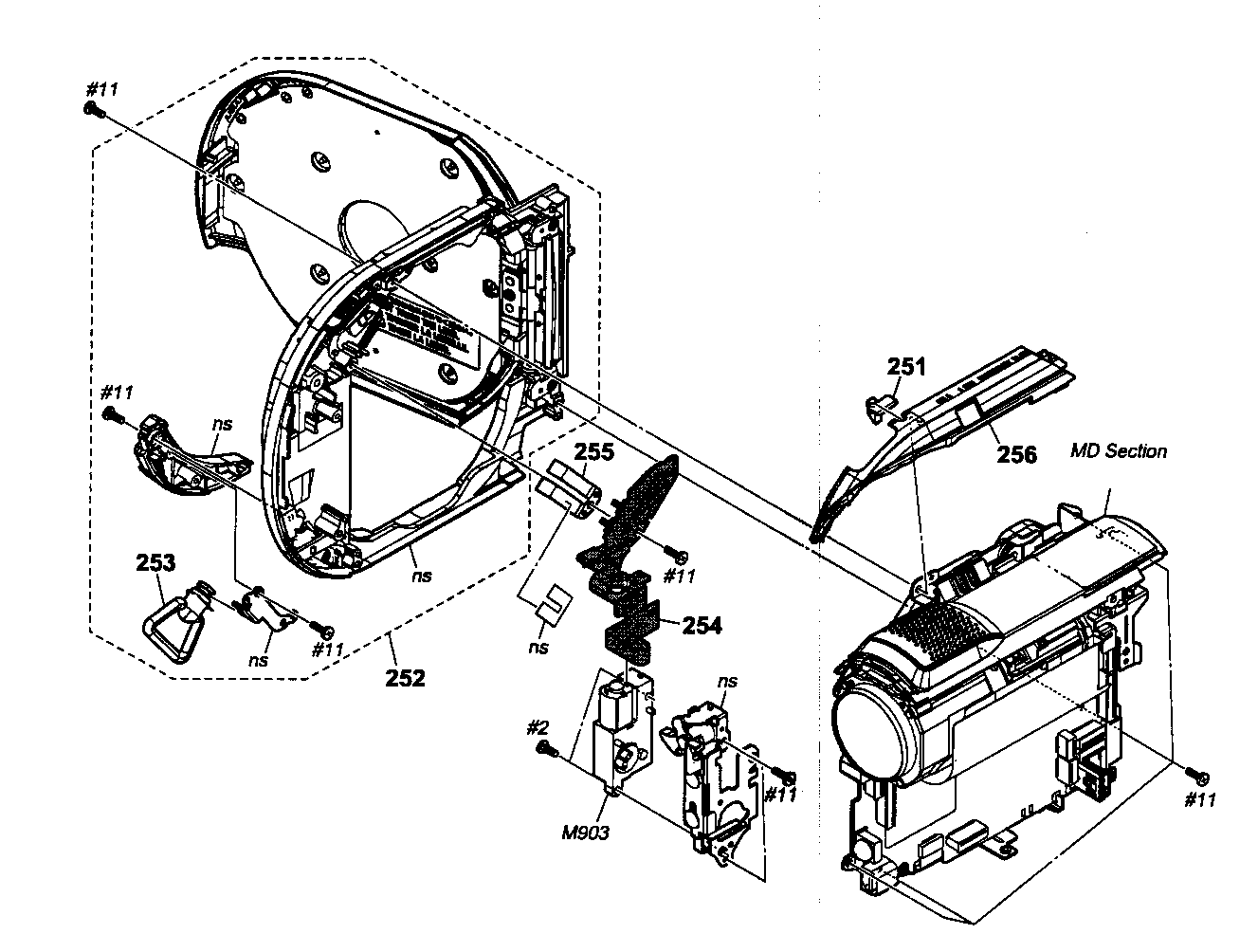

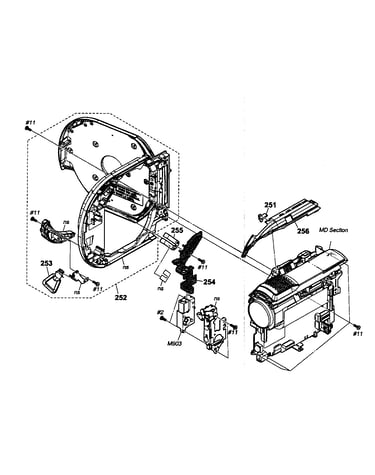

Cabinet parts lt diagram

Flexible pcb

Part #A1228528A

The manufacturer no longer makes this part, and there's no substitute part
