Model #FAV9800AWW Official Maytag washer

Here are the diagrams and repair parts for Maytag FAV9800AWW washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

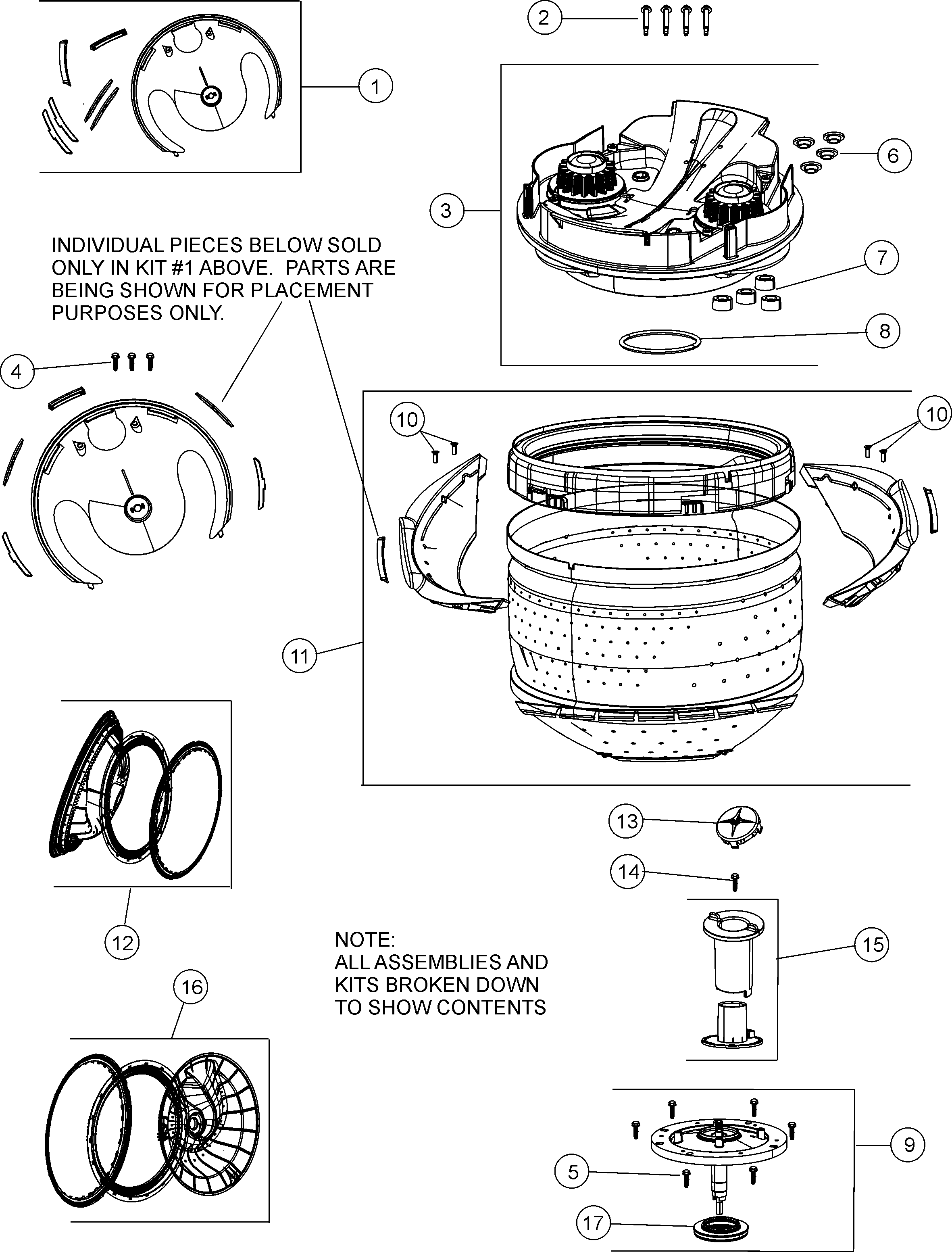

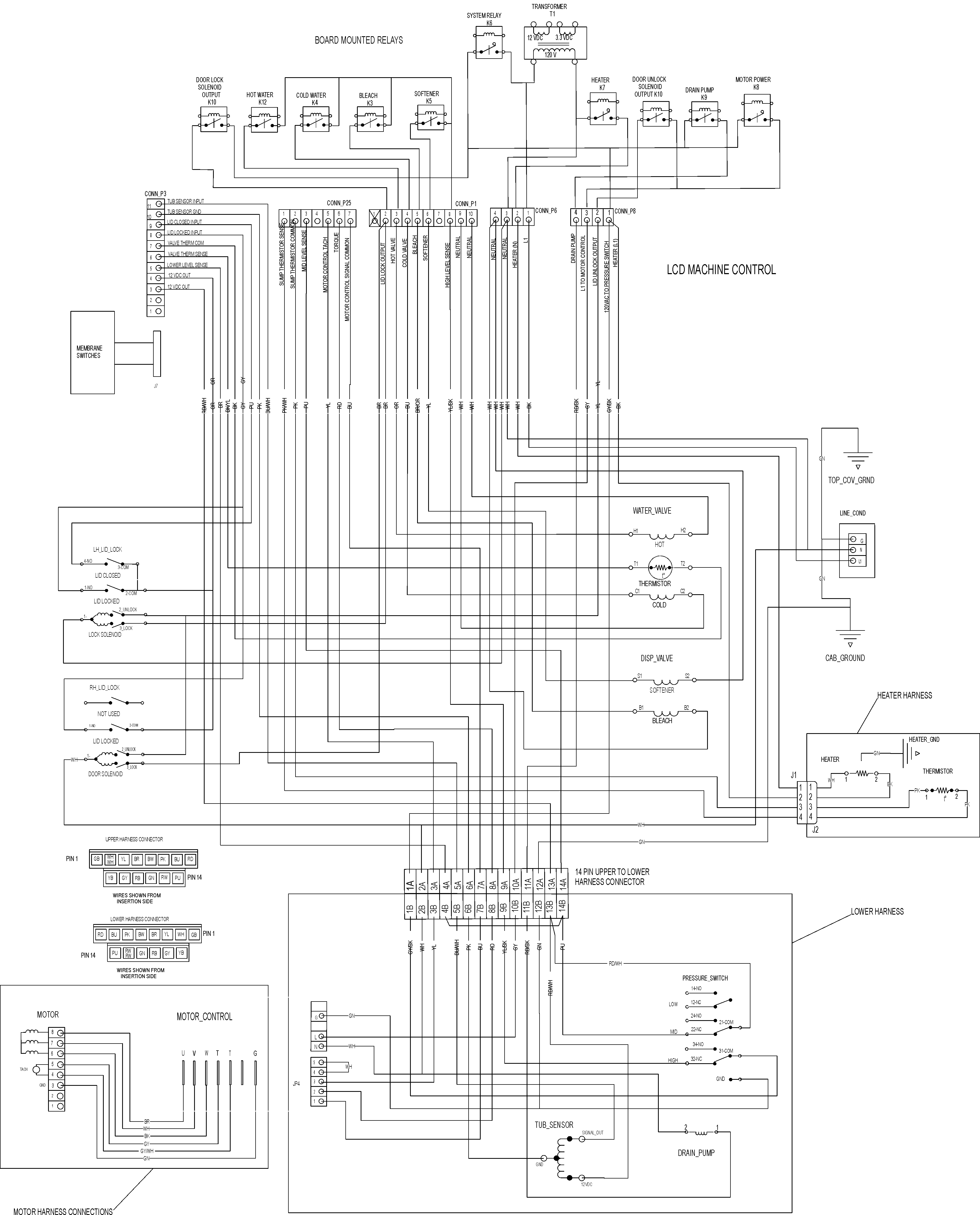

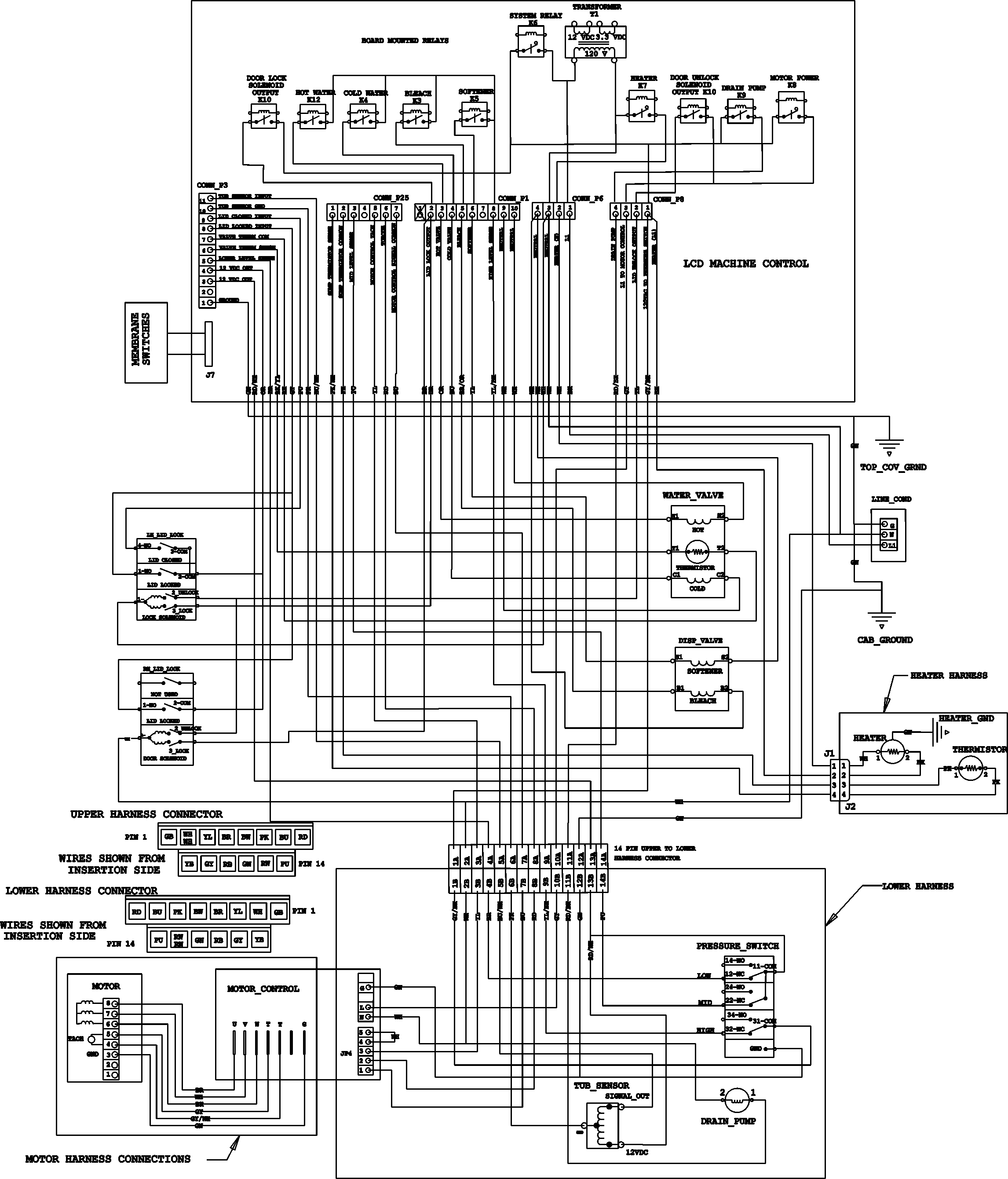

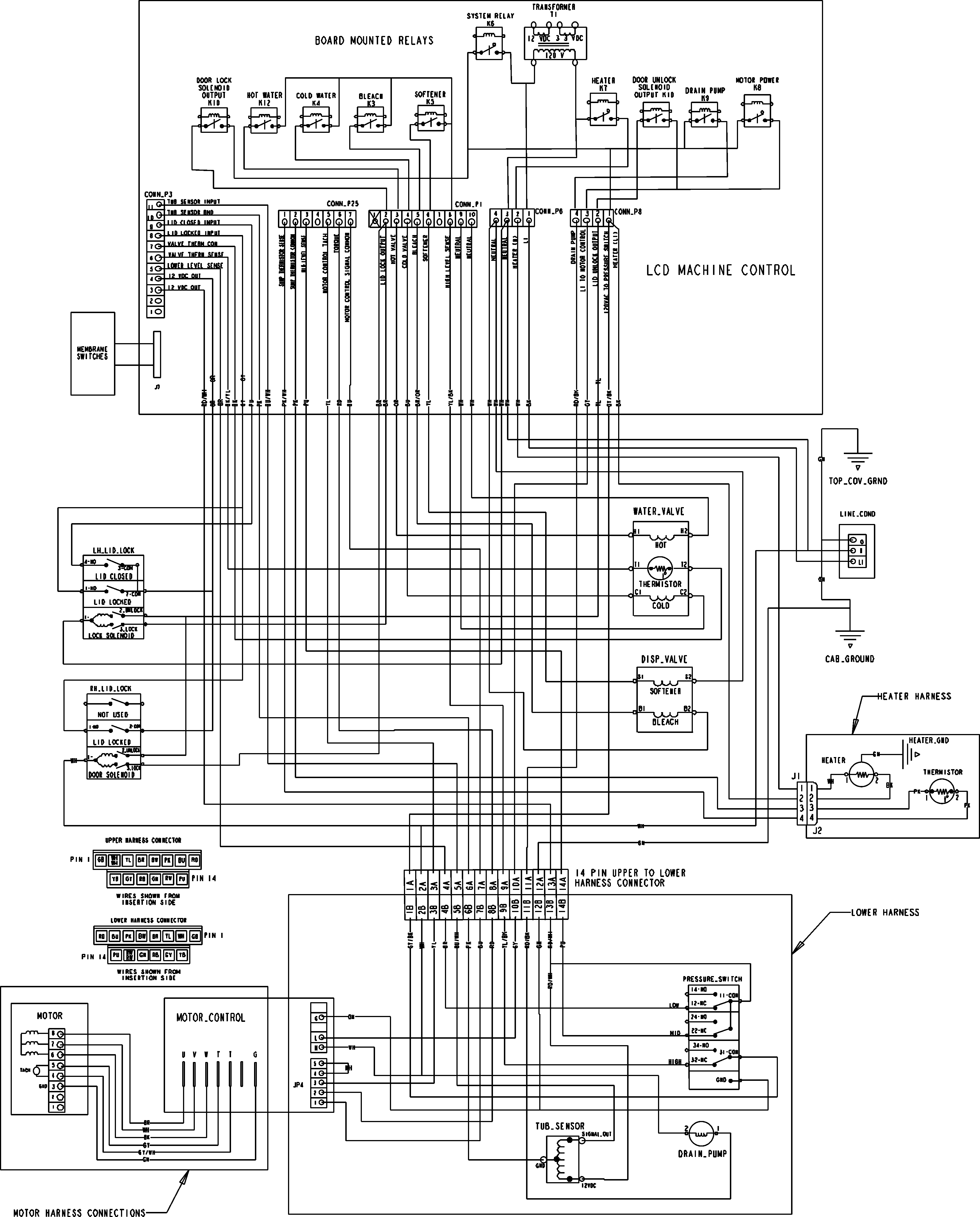

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

    Showing 10 of 155 parts

    Washer Hose Clamp#7

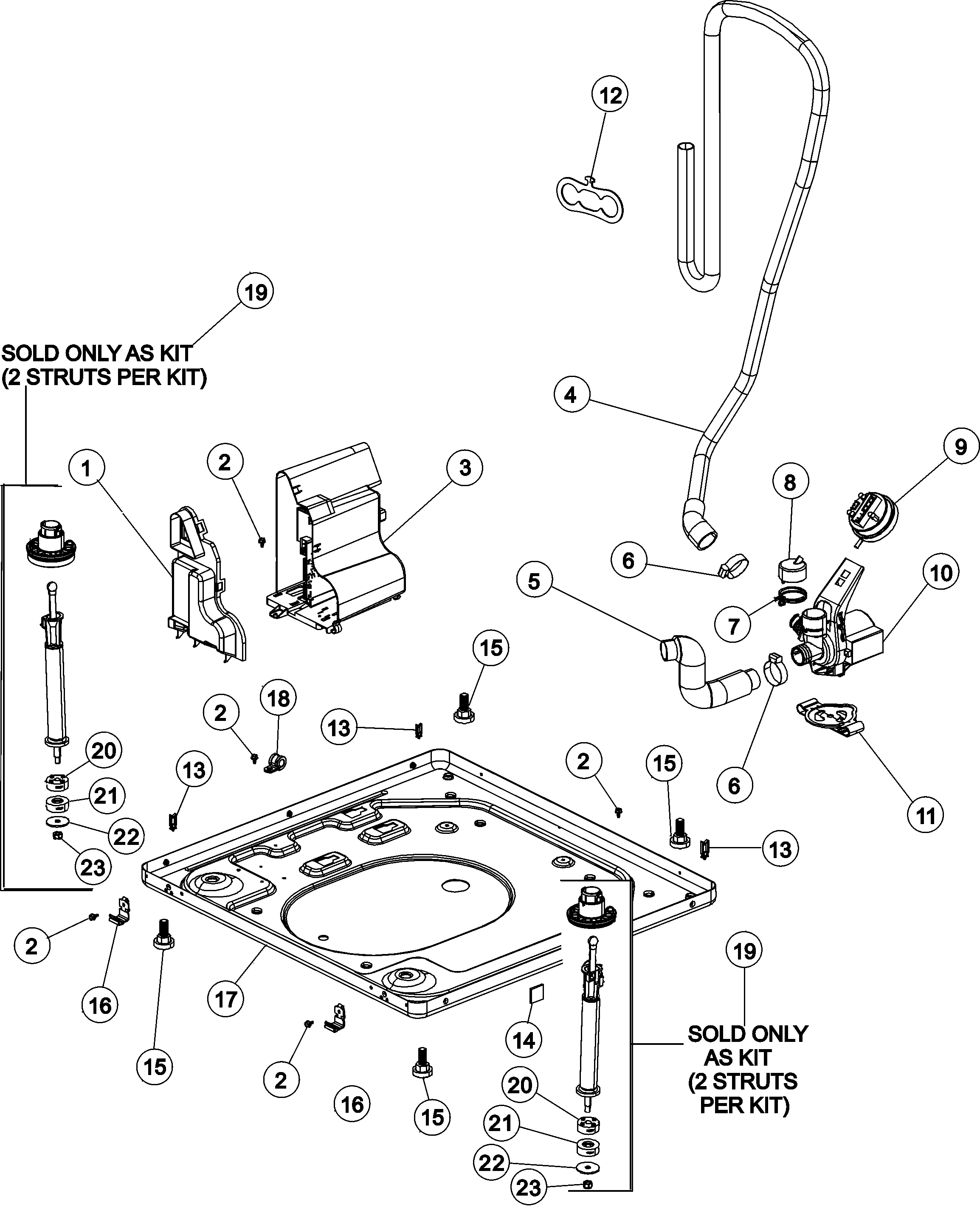

    Base Diagram

    Hose clamp

    Part #22002853
    Replaced by #WP285655
    ?
    Manufacturer substitution
    This part replaces 22002853. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $6.49 |
    13% OFF
    Phone Price: $7.49
    Washer Hose Clamp

    See All Related Diagrams

    Drain hose clamp

    Part #22001984
    Replaced by #WP285655
    ?
    Manufacturer substitution
    This part replaces 22001984. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $6.49 |
    13% OFF
    Phone Price: $7.49
    Washer Drain Pump#10

    Base Diagram

    Washer drain pump

    Part #25001052
    Replaced by #WP25001052
    ?
    Manufacturer substitution
    This part replaces 25001052. Substitute parts can look different from the original.
    In Stock
    $142.33 |
    9% OFF
    Was: $156.99
    Washer Screw#5

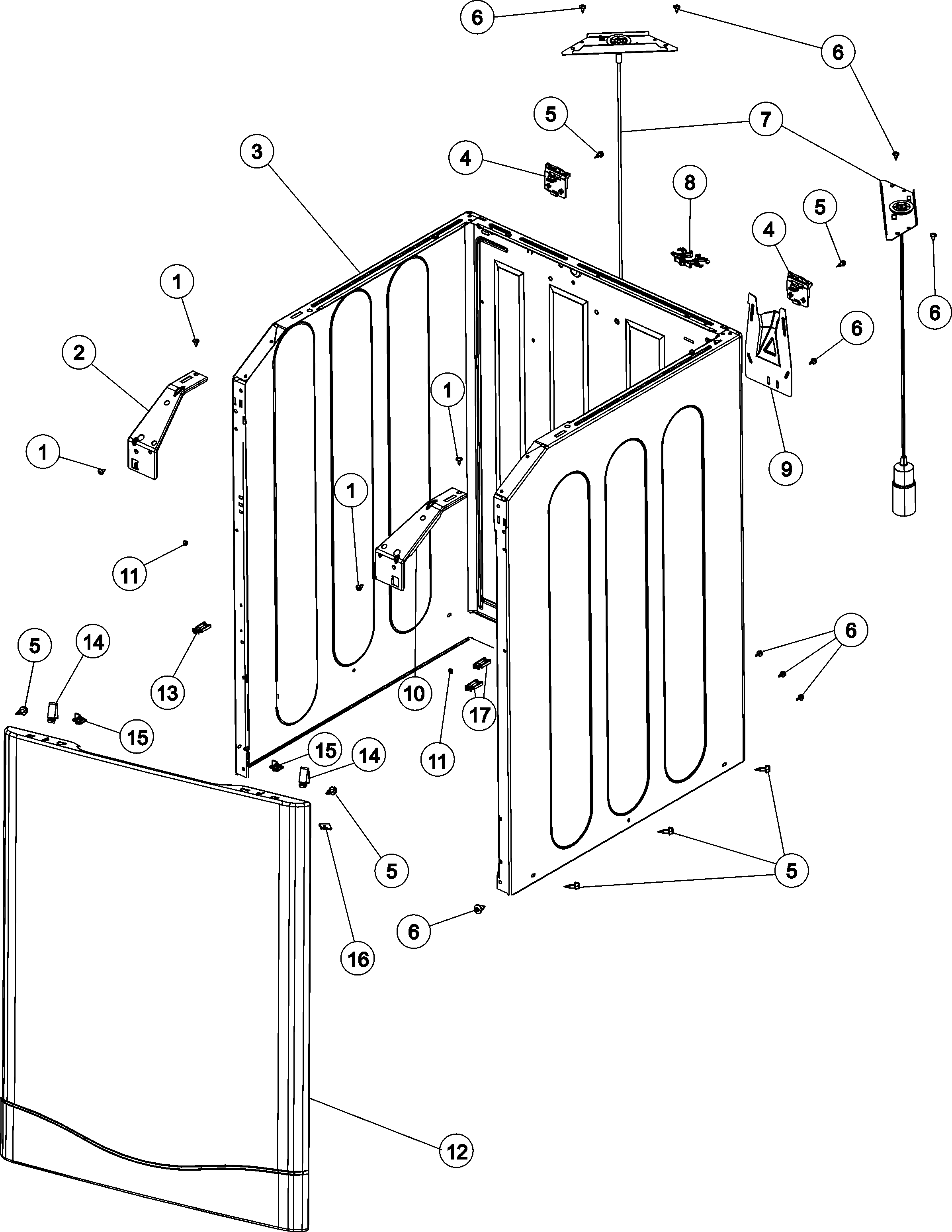

    Cabinet Diagram

    Washer screw

    Part #22001995
    Replaced by #WP22001995
    ?
    Manufacturer substitution
    This part replaces 22001995. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.39 |
    19% OFF
    Phone Price: $5.39
    Refrigerator Screw#5

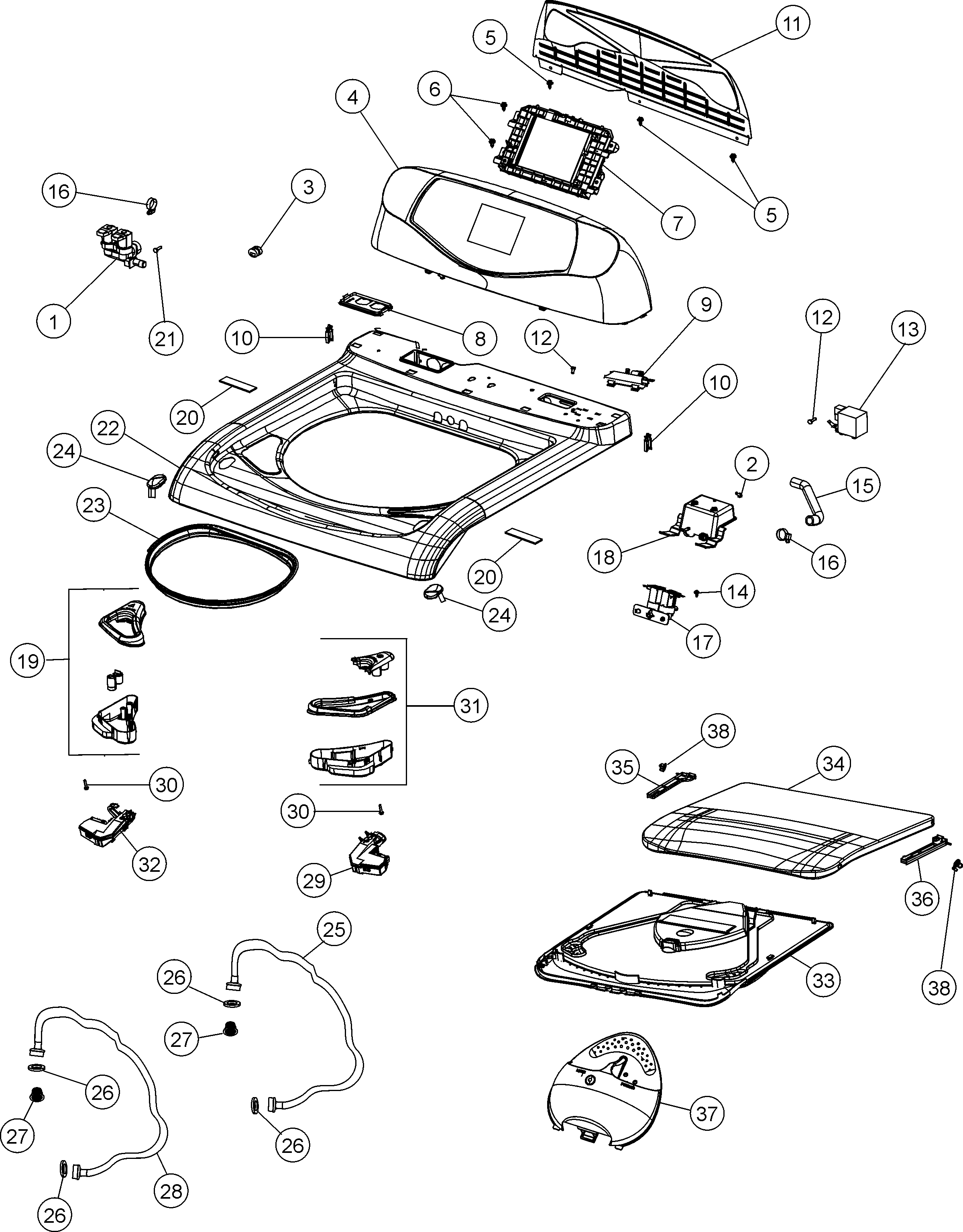

    Control panel, top & lid Diagram

    Screw

    Part #22002925
    Replaced by #WP489128
    ?
    Manufacturer substitution
    This part replaces 22002925. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $7.99 |
    11% OFF
    Phone Price: $8.99
    Refrigerator Screw#12

    Control panel, top & lid Diagram

    Screw, serra

    Part #22003817
    Replaced by #WP489128
    ?
    Manufacturer substitution
    This part replaces 22003817. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $7.99 |
    11% OFF
    Phone Price: $8.99
    Clutch Washer#7

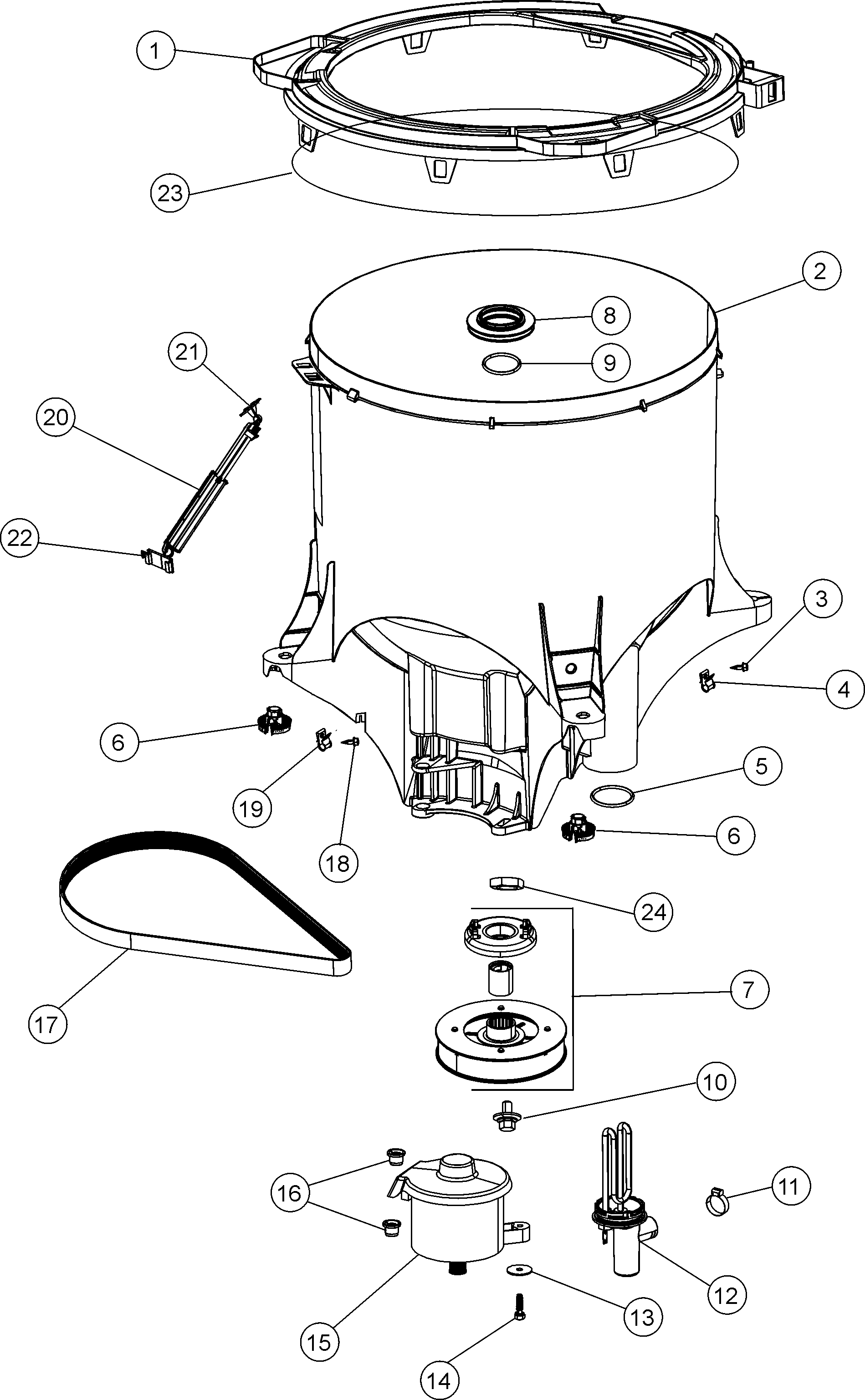

    Outer tub Diagram

    Clutch washer

    Part #12002211
    In Stock
    $221.49 |
    15% OFF
    MSRP: $260.00
    Dishwasher Screw#14

    Control panel, top & lid Diagram

    Insert screw

    Part #22002300
    Replaced by #WP9740848
    ?
    Manufacturer substitution
    This part replaces 22002300. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.39 |
    19% OFF
    Phone Price: $5.39
    Motor Bolt#14

    Outer tub Diagram

    Motor bolt

    Part #22003686
    In Stock
    $7.99 |
    11% OFF
    Phone Price: $8.99
    Softener Dis#31C

    Control panel, top & lid Diagram

    Softener dis

    Part #12002564
    In Stock
    $51.11

    Symptoms common to all washers

    Choose a symptom to see related washer repairs.

    Main causes: leaky water inlet valve, faulty water-level pressure switch, bad electronic control board
    Main causes: lack of electrical power, wiring failure, bad power cord, electronic control board failure, bad user interface board
    Main causes: water heater failure, bad water temperature switch, faulty control board, bad water valve, faulty water temperature sensor
    Main causes: unbalanced load, loose spanner nut, worn drive block, broken shock absorber or suspension spring, debris in drain pump
    Main causes: broken lid switch or lid lock, bad pressure switch, broken shifter assembly, faulty control system
    Main causes: clogged drain hose, house drain clogged, bad drain pump, water-level pressure switch failure, bad control board or timer
    Main causes: worn agitator dogs, bad clutch, broken motor coupler, shifter assembly failure, broken door lock, suspension component failure
    Main causes: no water supply, bad water valves, water-level pressure switch failure, control system failure, bad door lock or lid switch
    Main causes: bad lid switch or door lock, bad timer or electronic control board, wiring failure, bad water inlet valve assembly
