Frigidaire
Gas Wall Oven

Model # FGB24T3EBA Official Frigidaire wall oven

Here are the diagrams and repair parts for Official Frigidaire FGB24T3EBA wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

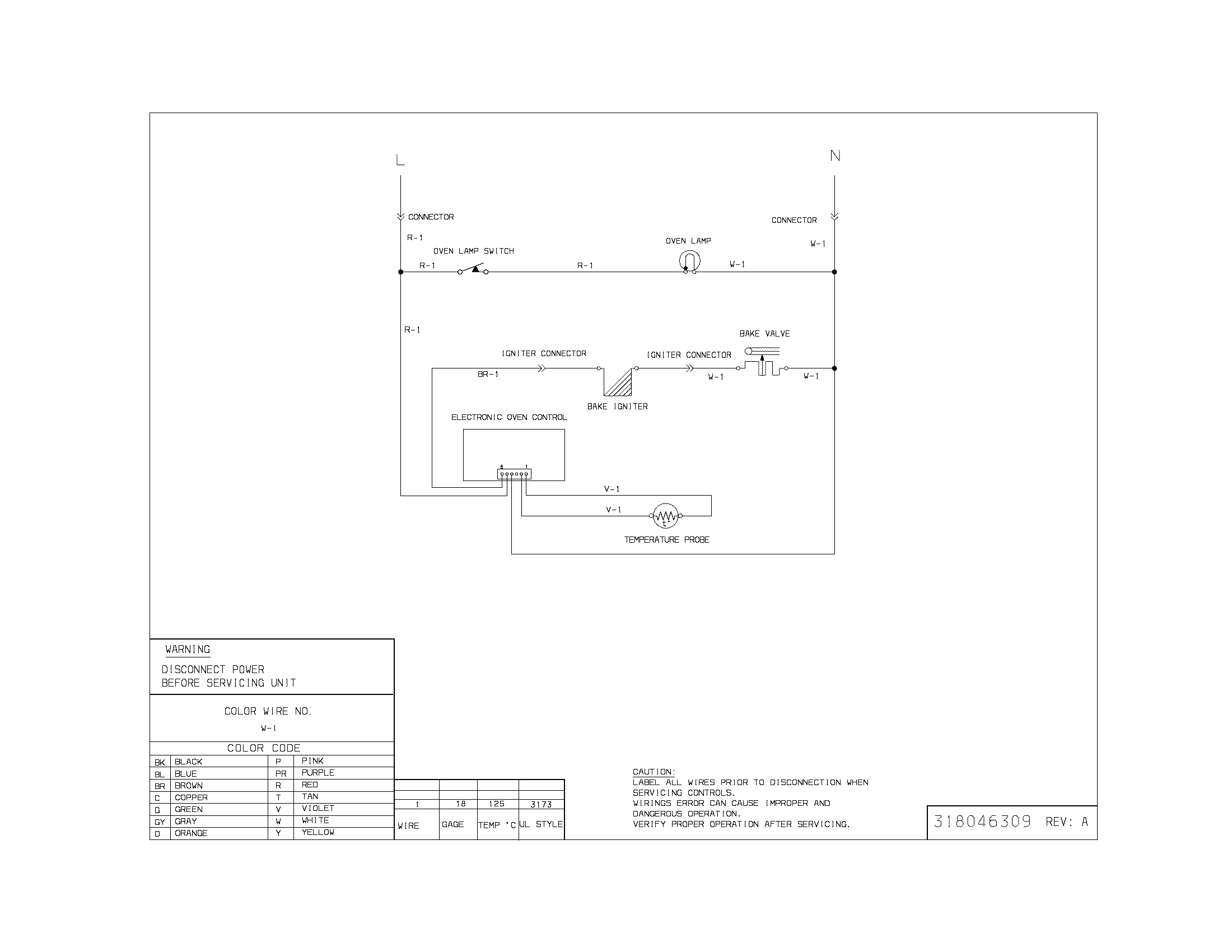

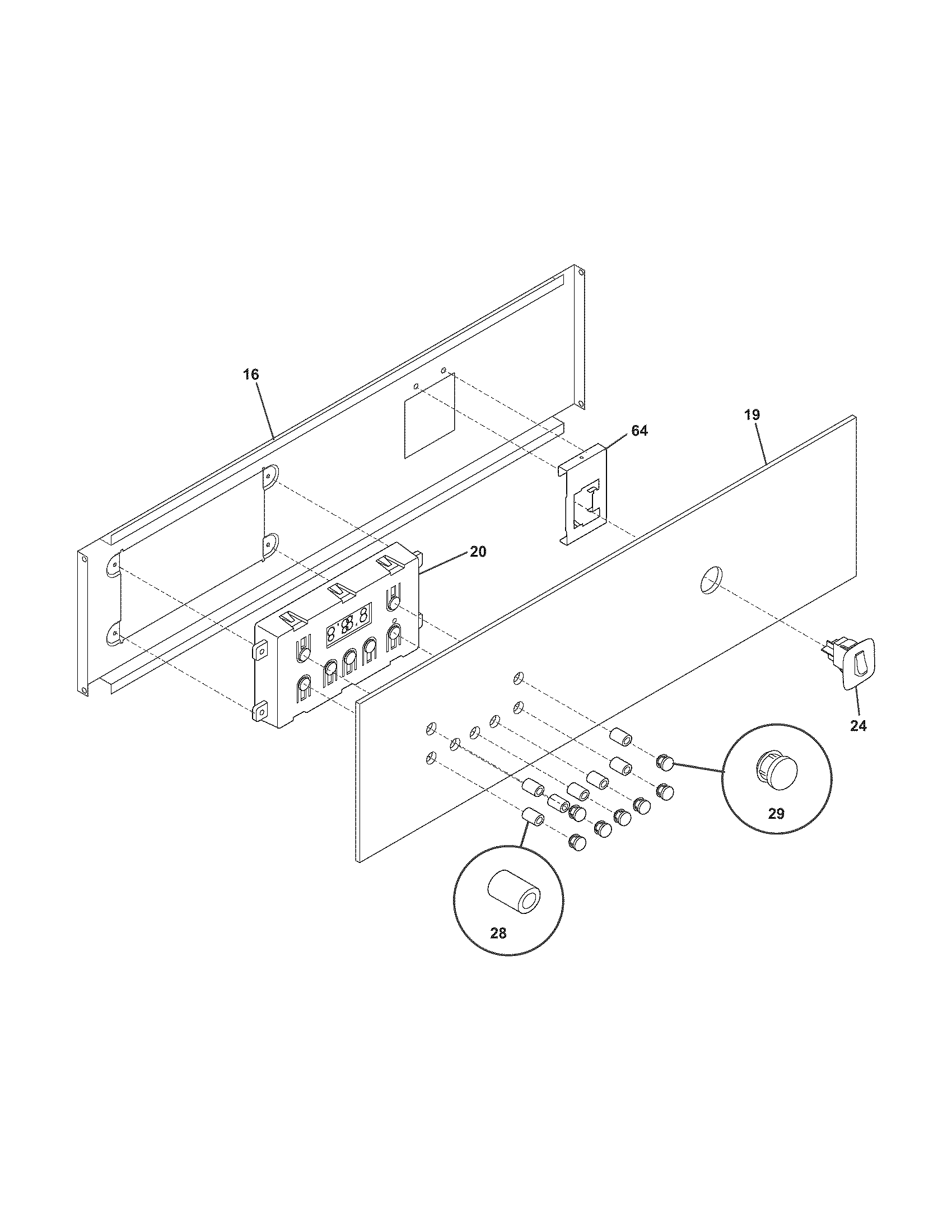

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 98 parts  |

Range Oven Light Bulb 5303013071
#15

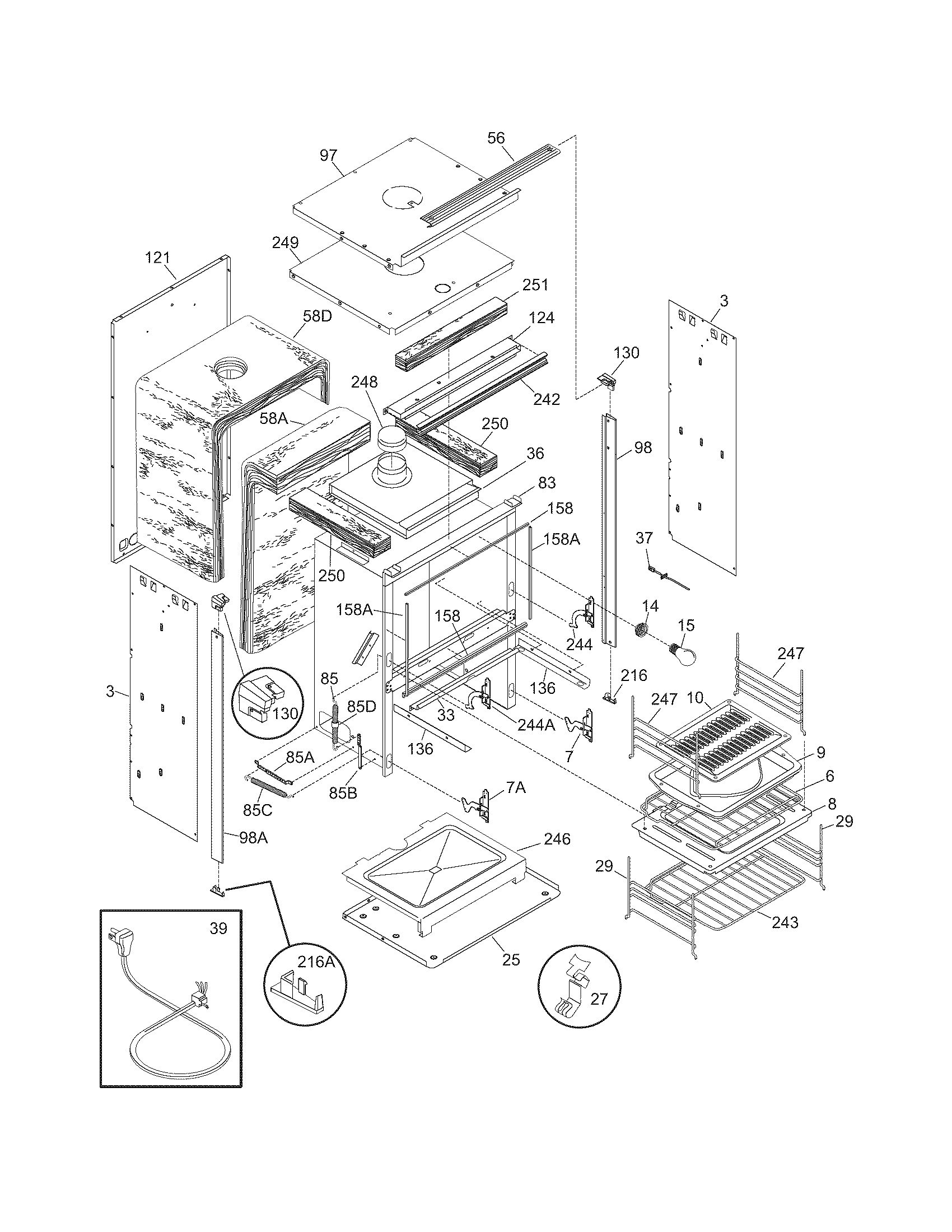

Body diagram

Range oven light bulb

Part #5303013071

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303013071. Substitute parts can look different from the original.
BEST SELLER
$15.31
12% OFF Phone Price : $17.31
In Stock
Range Oven Burner Igniter (replaces 316428600, 5303308452, 5303308468, 7316428600, 7318177710) 318177710
#26

Burner diagram

Range oven burner igniter (replaces 316428600, 5303308452, 5303308468, 7316428600, 7318177710)

Part #318177710

BEST SELLER
$162.04
6% OFF Phone Price : $172.04
In Stock
Cord 3202006
#39

Body diagram

Cord

Part #3202006

Replaced by #5304515659

?
Manufacturer substitution
This part replaces 3202006. Substitute parts can look different from the original.
BEST SELLER
$29.60
14% OFF Phone Price : $34.60
In Stock
Cord 318144008
#39

Body diagram

Cord

Part #318144008

Replaced by #5304515659

?
Manufacturer substitution
This part replaces 318144008. Substitute parts can look different from the original.
BEST SELLER
$29.60
14% OFF Phone Price : $34.60
In Stock
Screw 5303317175
#54

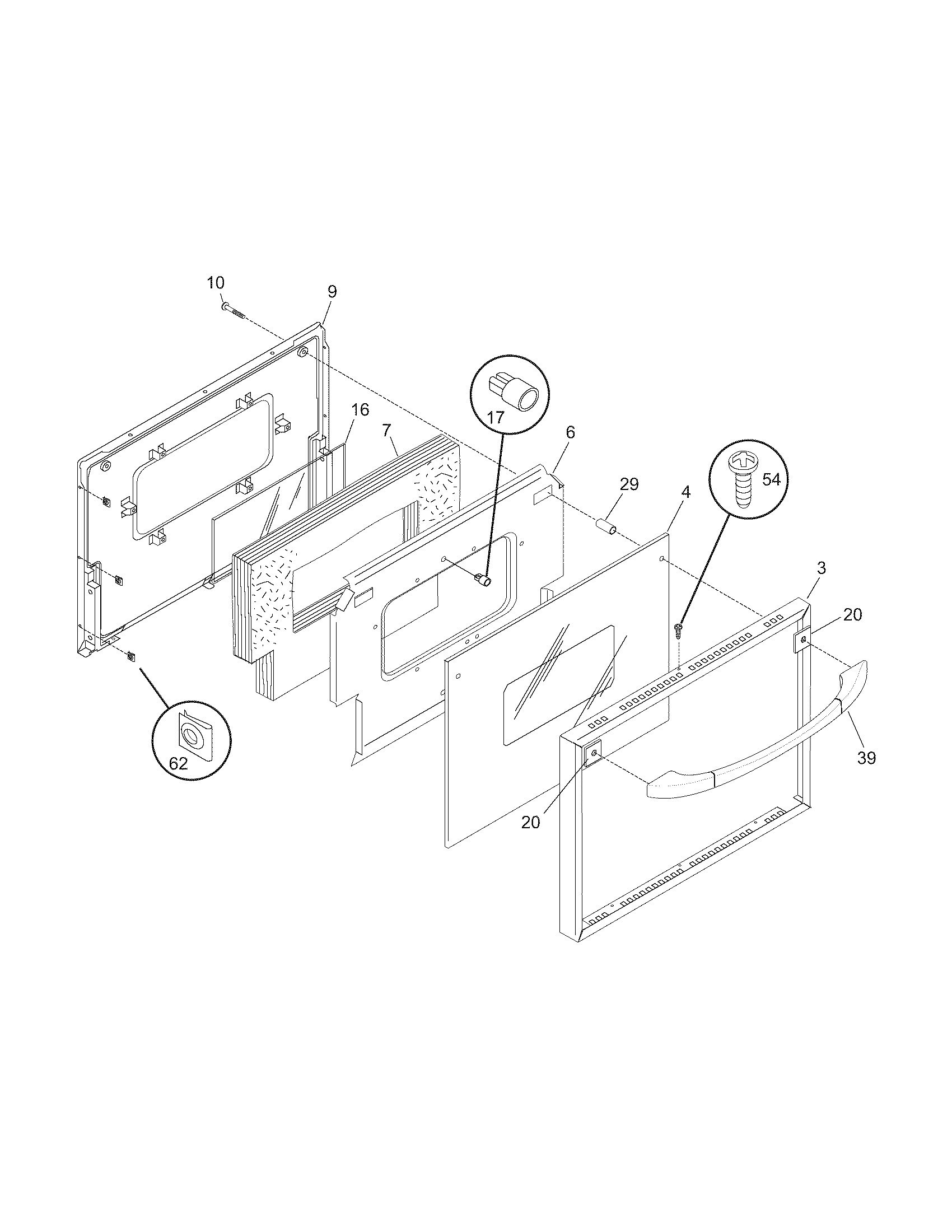

Doors diagram

Screw

Part #5303317175

Replaced by #316021109

?
Manufacturer substitution
This part replaces 5303317175. Substitute parts can look different from the original.
BEST SELLER
$14.89
12% OFF Phone Price : $16.89
In Stock
Range Screw, 10-24 X 1-3/4-in (replaces 75304416408) 5304416408
#10

Doors diagram

Range screw, 10-24 x 1-3/4-in (replaces 75304416408)

Part #5304416408

Replaced by #5304500008

?
Manufacturer substitution
This part replaces 5304416408. Substitute parts can look different from the original.
In Stock
Range Screw 5303300265
#NI

Body diagram

Range screw

Part #5303300265

This item is not returnable
In Stock
Range Oven Control Thermostat Bulb Clip 5303284616
#27

Body diagram

Range oven control thermostat bulb clip

Part #5303284616

This item is not returnable
$9.59
9% OFF Phone Price : $10.59
In Stock
Range Oven Light Socket (replaces 7318224000) 318224000
#14

Body diagram

Range oven light socket (replaces 7318224000)

Part #318224000

This item is not returnable
$64.33
7% OFF Phone Price : $69.33
In Stock
Oven Spring 5303317711
#85

Body diagram

Oven spring

Part #5303317711

In Stock
