Model #1720-6 Official Bissell little green clean machine with turbo brush

Here are the diagrams and repair parts for Bissell 1720-6 little green clean machine with turbo brush, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 24 parts

Window#5

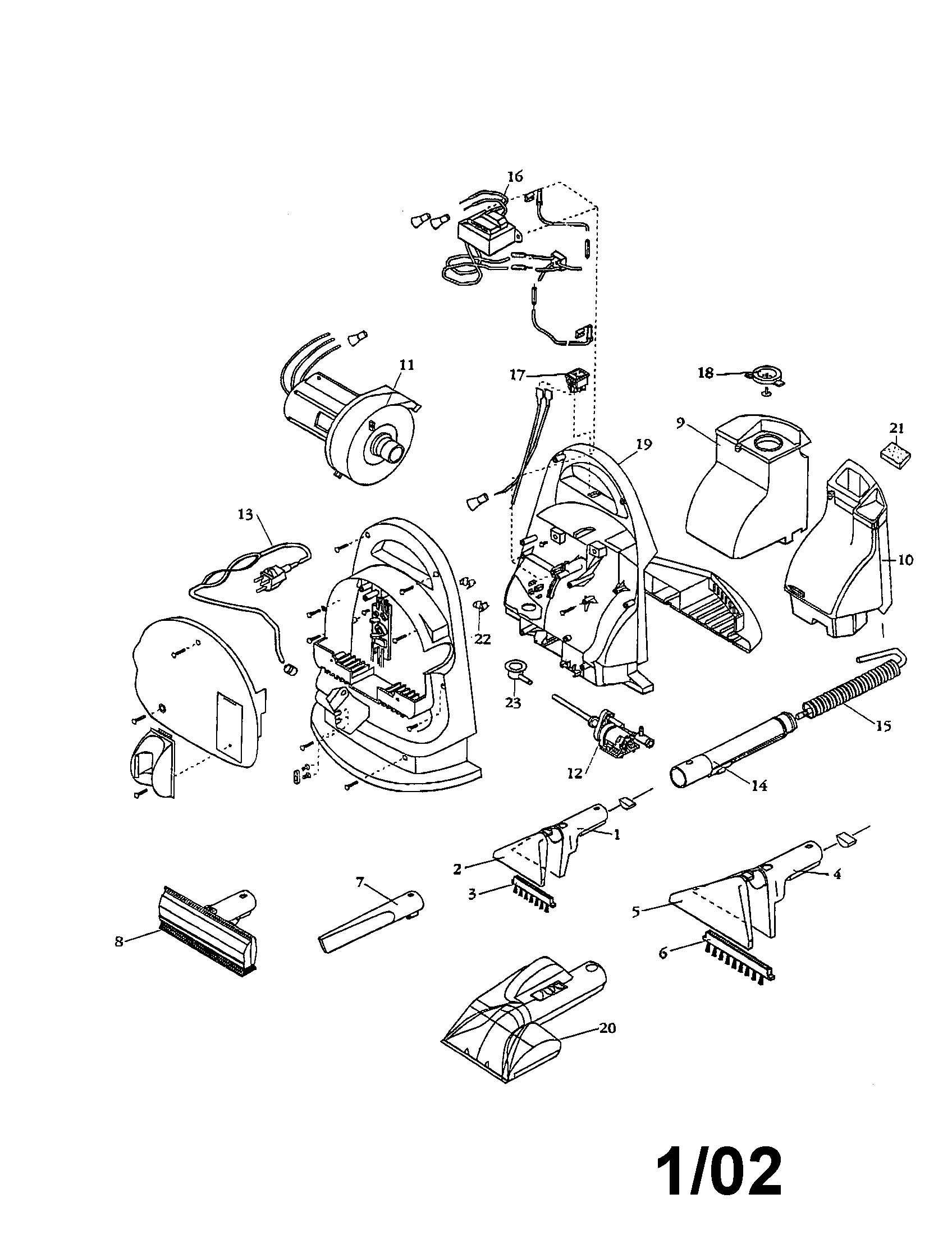

Portable deep cleaner Diagram

Window

Part #603-0912

The manufacturer no longer makes this part, and there's no substitute part

Window#2

Portable deep cleaner Diagram

Window

Part #603-0961

The manufacturer no longer makes this part, and there's no substitute part

Upholstery Tool#4

Portable deep cleaner Diagram

Upholstery tool

Part #603-0985

The manufacturer no longer makes this part, and there's no substitute part

Brush#3

Portable deep cleaner Diagram

Brush

Part #603-0984

The manufacturer no longer makes this part, and there's no substitute part

Nozzle Green#1

Portable deep cleaner Diagram

Nozzle green

Part #603-0983

The manufacturer no longer makes this part, and there's no substitute part

Turbo Brush#20

Portable deep cleaner Diagram

Turbo brush

Part #010-1183

The manufacturer no longer makes this part, and there's no substitute part

Transformer#16

Portable deep cleaner Diagram

Transformer

Part #603-9169

The manufacturer no longer makes this part, and there's no substitute part

Flex Hose#15

Portable deep cleaner Diagram

Flex hose

Part #603-4683

The manufacturer no longer makes this part, and there's no substitute part

Cordset#13

Portable deep cleaner Diagram

Cordset

Part #603-2890

The manufacturer no longer makes this part, and there's no substitute part

Brush#6

Portable deep cleaner Diagram

Brush

Part #603-0986

The manufacturer no longer makes this part, and there's no substitute part
