Model #113213210 Official Craftsman 20" drill press

Here are the diagrams and repair parts for Craftsman 113213210 20" drill press, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 133 parts

Screw

See All Related Diagrams

Screw

Part #817391

The manufacturer no longer makes this part, and there's no substitute part

Crank Handle#6

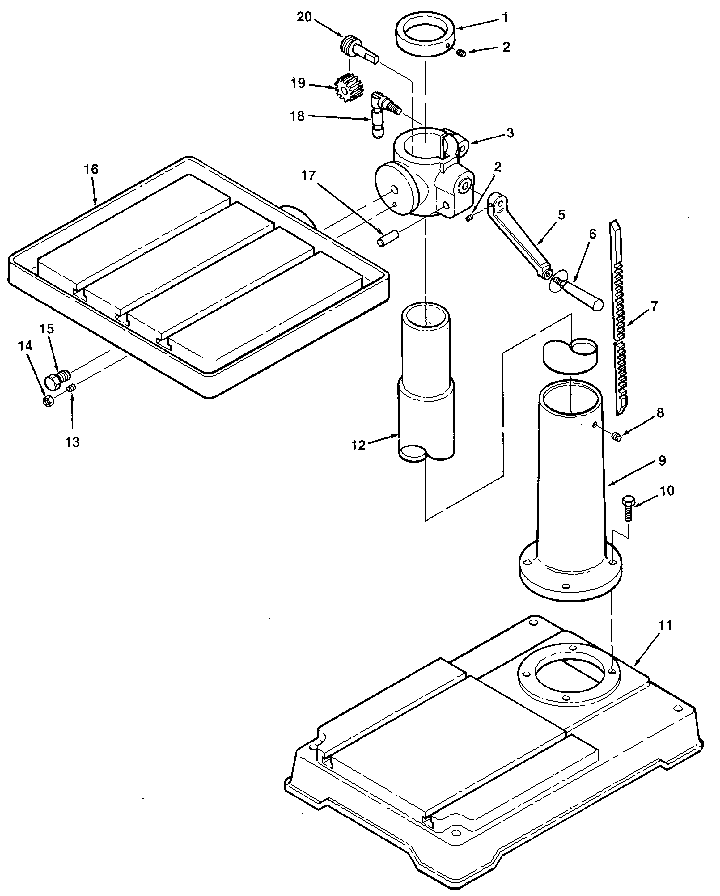

Figure 2 Diagram

Crank handle

Part #817713

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Washer#1

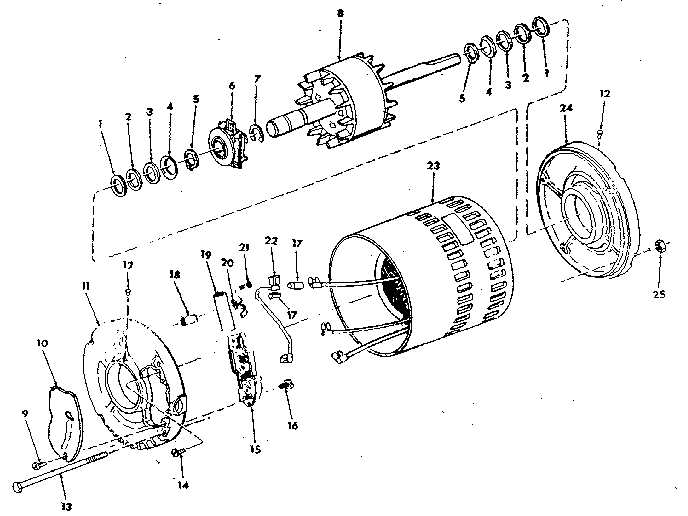

Motor 817719 Diagram

Power tool washer

Part #30767

The manufacturer no longer makes this part, and there's no substitute part

Drill Press Knob#18

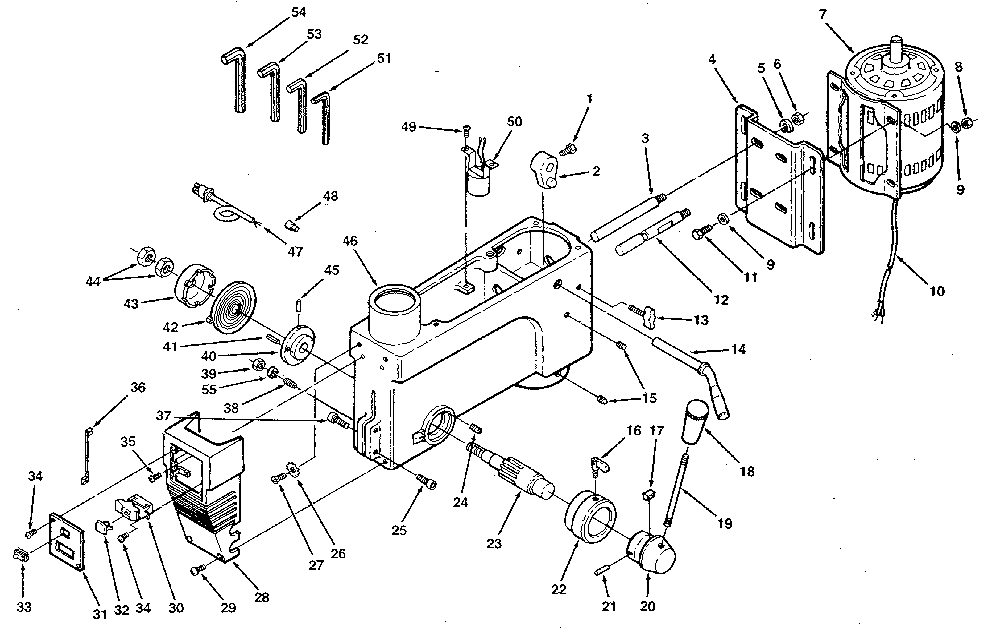

Figure 1 Diagram

Drill press knob

Part #817711

The manufacturer no longer makes this part, and there's no substitute part

Screw#17

Figure 4 Diagram

Screw

Part #816755-3

The manufacturer no longer makes this part, and there's no substitute part

Screw#21

Motor 817719 Diagram

Screw

Part #80048

The manufacturer no longer makes this part, and there's no substitute part

Drill Press On/Off Switch#33

Figure 1 Diagram

Drill press on/off switch

Part #817354

The manufacturer no longer makes this part, and there's no substitute part

Drill Press Quill Tube Drift Key#7

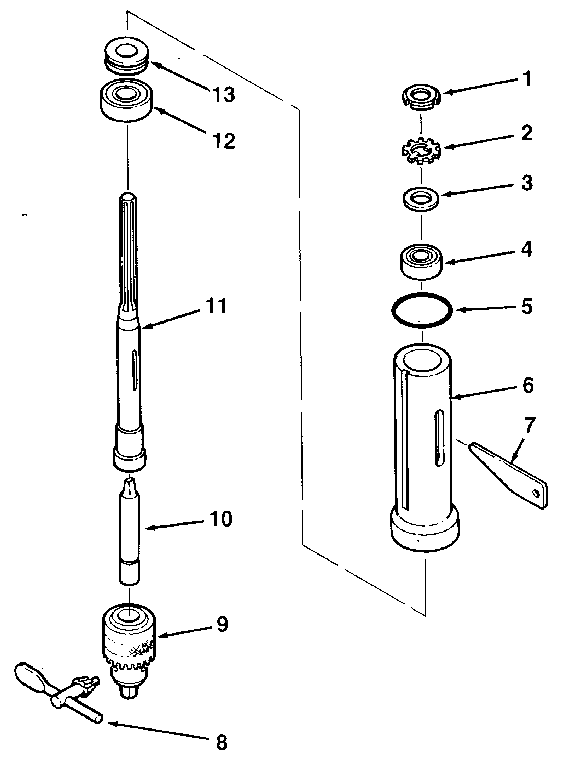

Figure 3 Diagram

Drill press quill tube drift key

Part #817326

The manufacturer no longer makes this part, and there's no substitute part

Pulley Nut#15

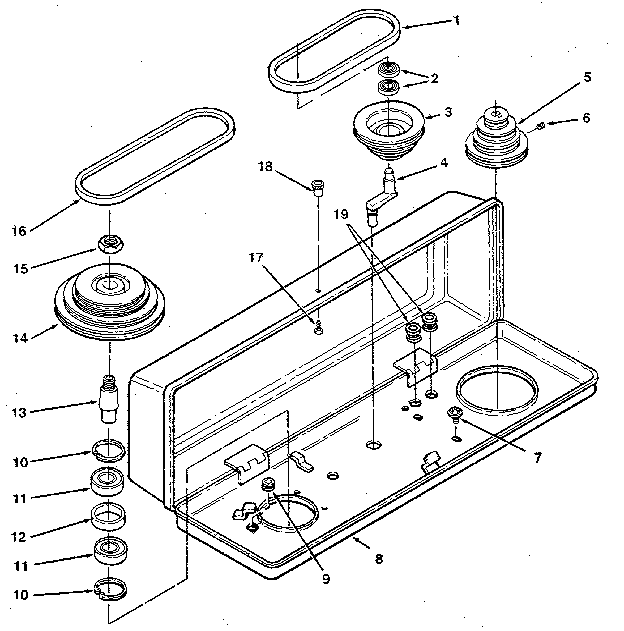

Figure 4 Diagram

Pulley nut

Part #817706

The manufacturer no longer makes this part, and there's no substitute part

Pn-roll 5x16#21

Figure 1 Diagram

Pn-roll 5x16

Part #813249-128

The manufacturer no longer makes this part, and there's no substitute part
