Model # MMC5193AAQ Official Maytag microwave

Here are the diagrams and repair parts for Official Maytag MMC5193AAQ microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 49 parts  |

Microwave Light Bulb 4713-001102
#9

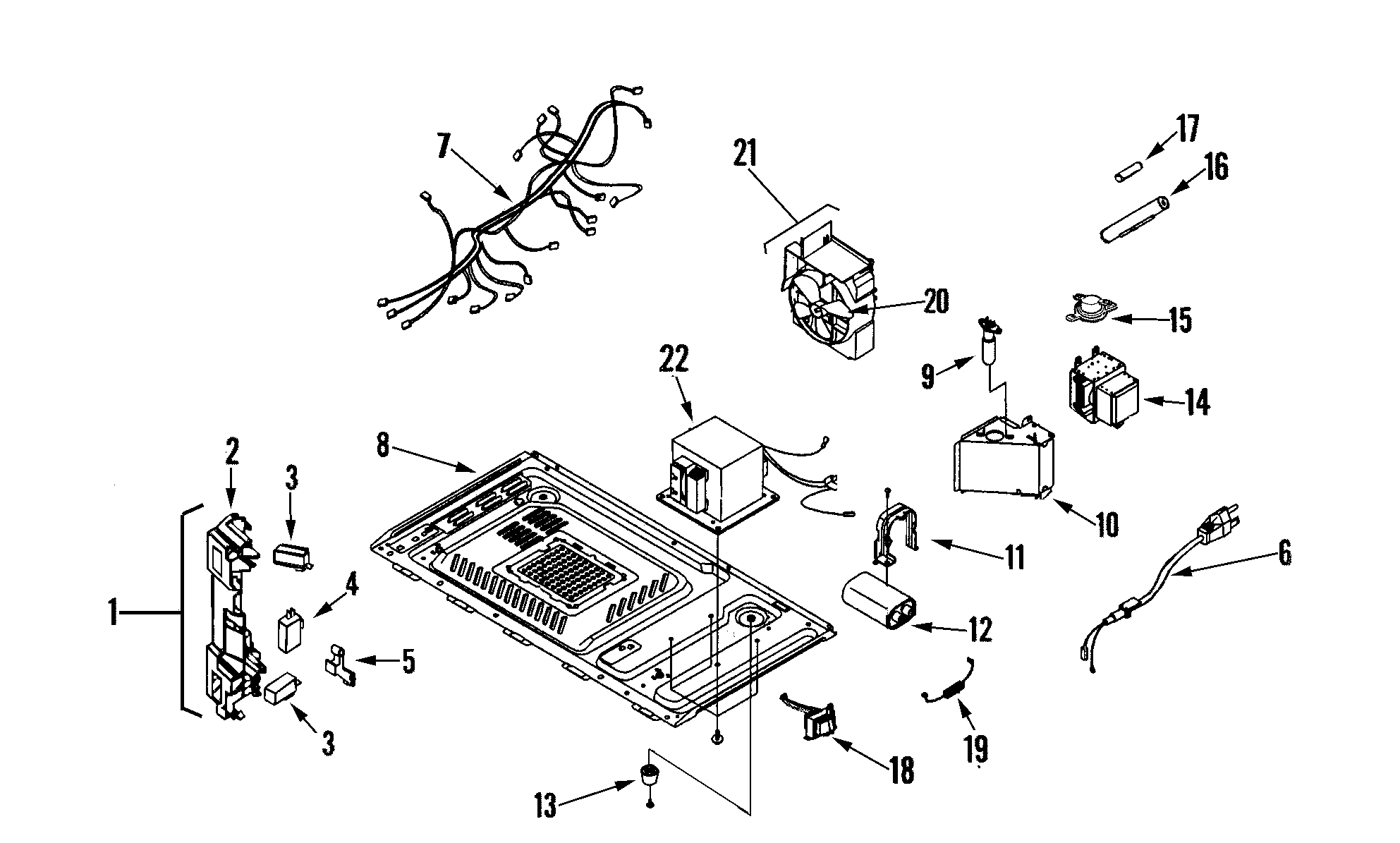

Internal controls/latch asy./base diagram

Microwave light bulb

Part #4713-001102

This item is not returnable
$13.62
13% OFF Phone Price : $15.62
In Stock
Switch 3405-001033
#4

Internal controls/latch asy./base diagram

Switch

Part #3405-001033

Replaced by #DE34-20019A

?
Manufacturer substitution
This part replaces 3405-001033. Substitute parts can look different from the original.
This item is not returnable
$15.06
12% OFF Phone Price : $17.06
In Stock
Gas Sensor DE32-60013A
#11

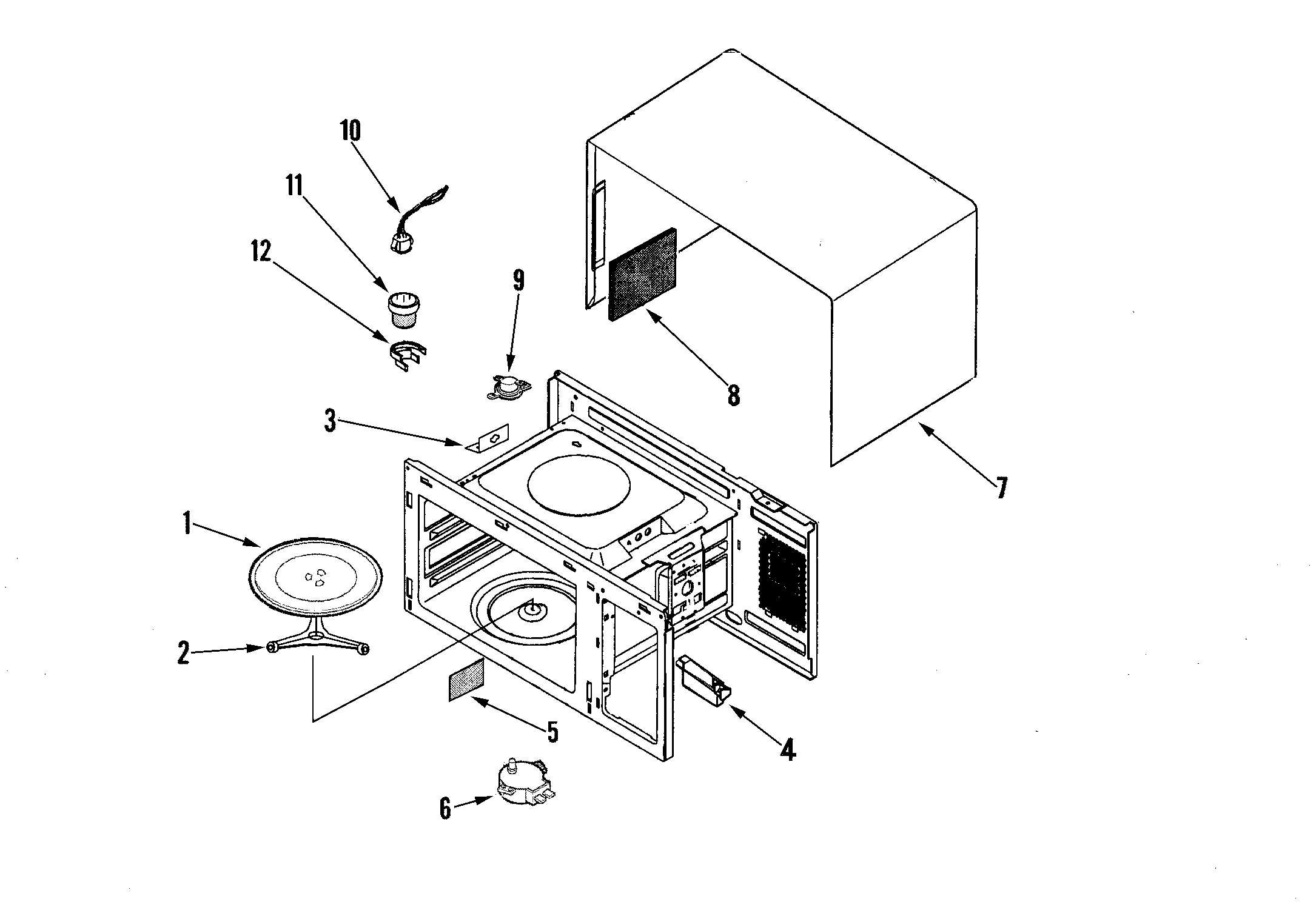

Body/cavity diagram

Gas sensor

Part #DE32-60013A

Replaced by #DE32-60011A

?
Manufacturer substitution
This part replaces DE32-60013A. Substitute parts can look different from the original.
$77.48
6% OFF Phone Price : $82.48
In Stock
Microwave Fuse 3601-001198
#17

Internal controls/latch asy./base diagram

Microwave fuse

Part #3601-001198

Replaced by #WPM0805101

?
Manufacturer substitution
This part replaces 3601-001198. Substitute parts can look different from the original.
$6.68
13% OFF Phone Price : $7.68
In Stock
Holder Sensor DE61-90111A
#12

Body/cavity diagram

Holder sensor

Part #DE61-90111A

Replaced by #DE61-90111A

?
Manufacturer substitution
This part replaces DE61-90111A. Substitute parts can look different from the original.
This item is not returnable
In Stock
Micro-switch 3405-001034
#3

Internal controls/latch asy./base diagram

Micro-switch

Part #3405-001034

In Stock
Diode DE91-70063A
#19

Internal controls/latch asy./base diagram

Diode

Part #DE91-70063A

Replaced by #DE91-70063D

?
Manufacturer substitution
This part replaces DE91-70063A. Substitute parts can look different from the original.
$15.79
11% OFF Phone Price : $17.79
In Stock
Fan Blade DE31-90051A
#20

Internal controls/latch asy./base diagram

Fan blade

Part #DE31-90051A

Replaced by #DE31-90051A

?
Manufacturer substitution
This part replaces DE31-90051A. Substitute parts can look different from the original.
This item is not returnable
In Stock
Transformer DE26-00061B
#22

Internal controls/latch asy./base diagram

Transformer

Part #DE26-00061B

Replaced by #DE26-00061B

?
Manufacturer substitution
This part replaces DE26-00061B. Substitute parts can look different from the original.
$184.67
5% OFF Phone Price : $194.67
In Stock
Spring DE61-70076A
#2

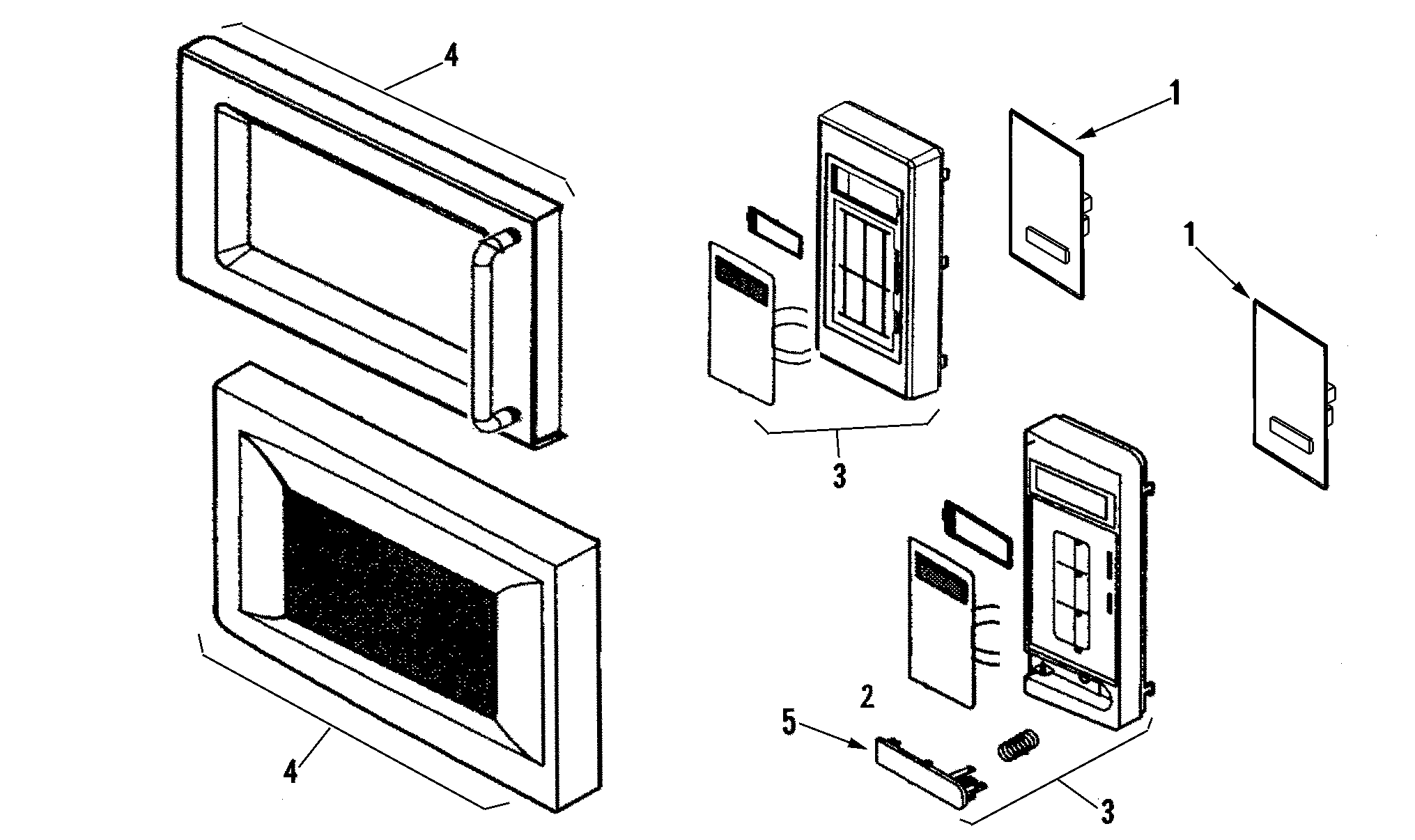

Control panel/door assembly diagram

Spring

Part #DE61-70076A

Replaced by #DE61-70076A

?
Manufacturer substitution
This part replaces DE61-70076A. Substitute parts can look different from the original.
In Stock
