Model # E24RD75HPS0 Official Electrolux drawer

Here are the diagrams and repair parts for Official Electrolux E24RD75HPS0 drawer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

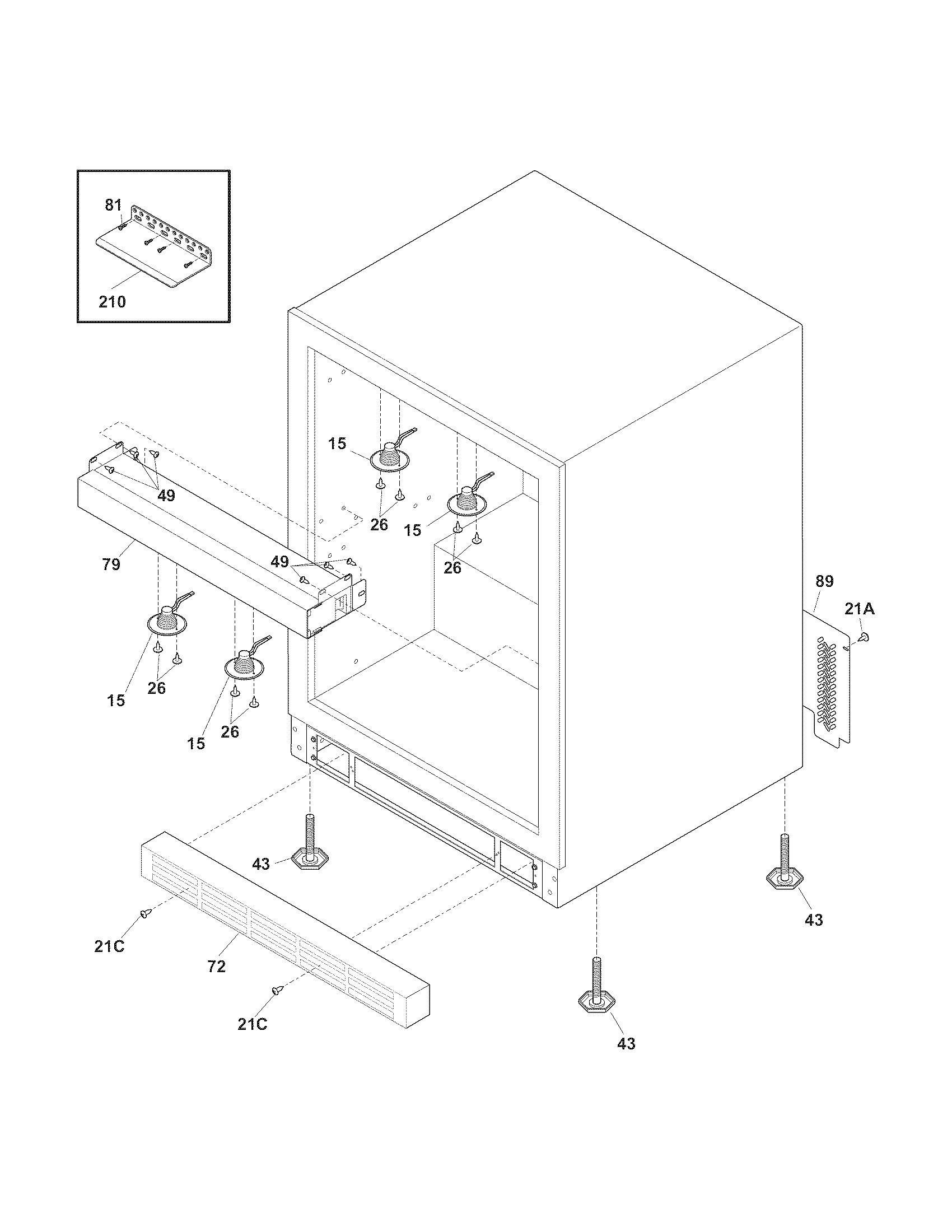

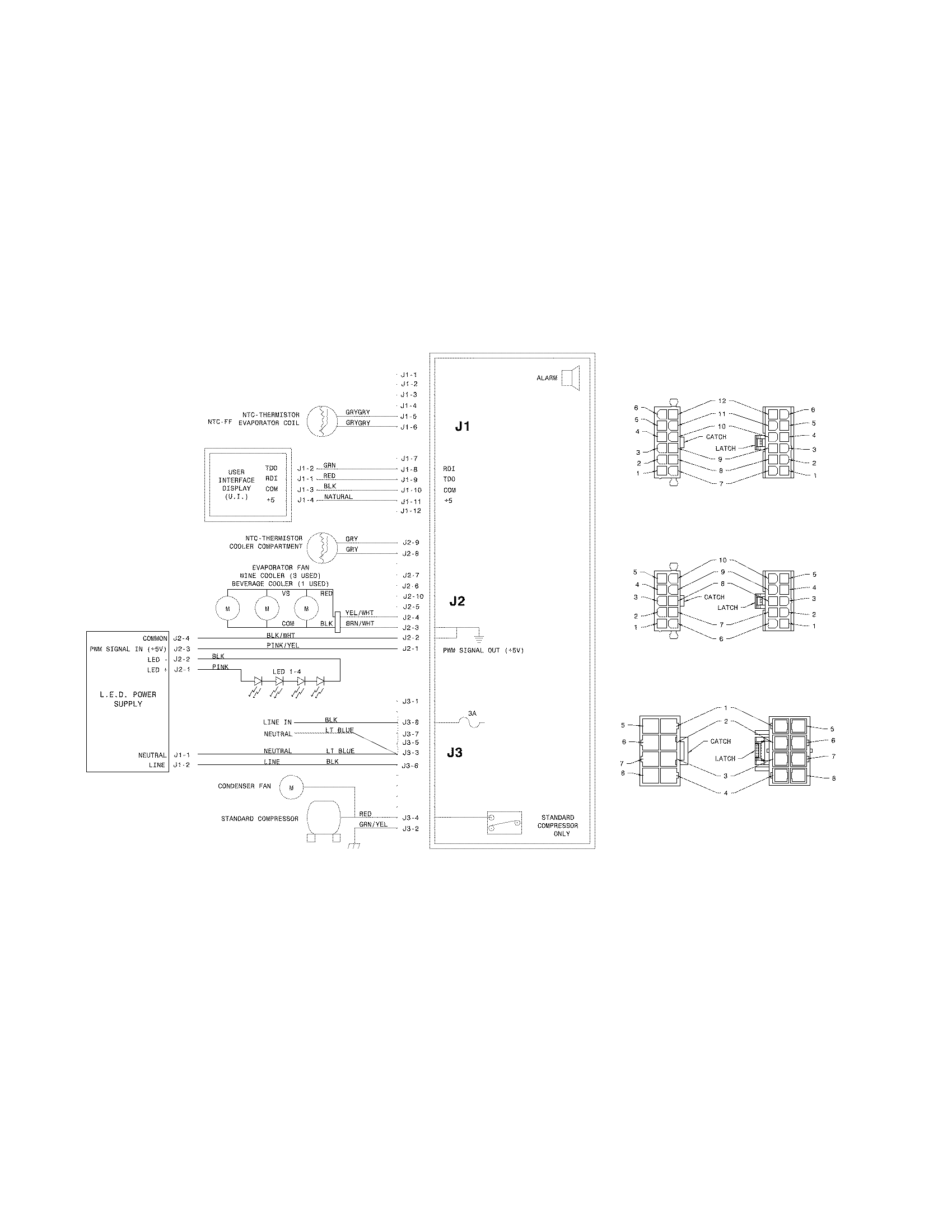

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 90 parts  |

Filter Housing 241904001
#94

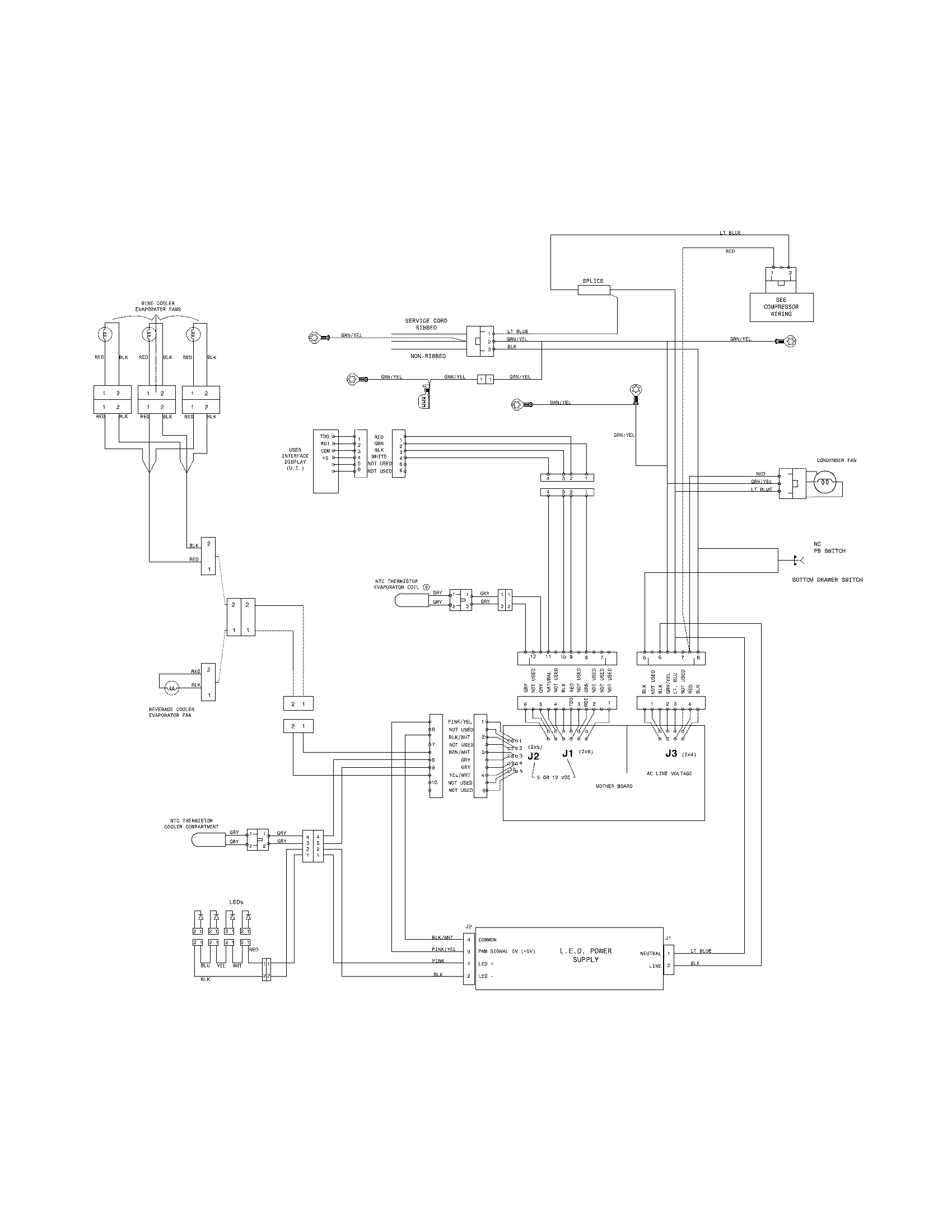

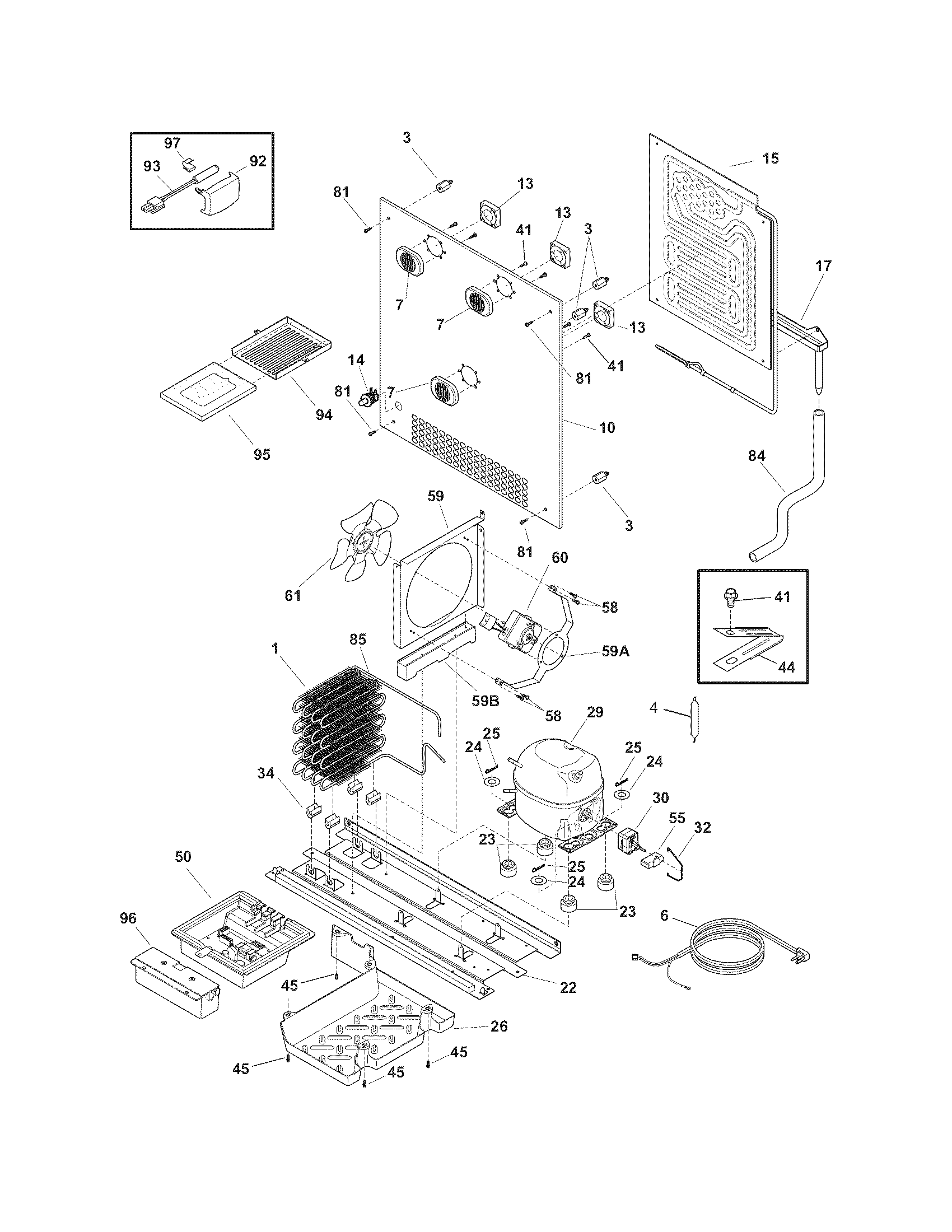

System diagram

Filter housing

Part #241904001

In Stock
Refrigerator Nameplate 241603101
#12

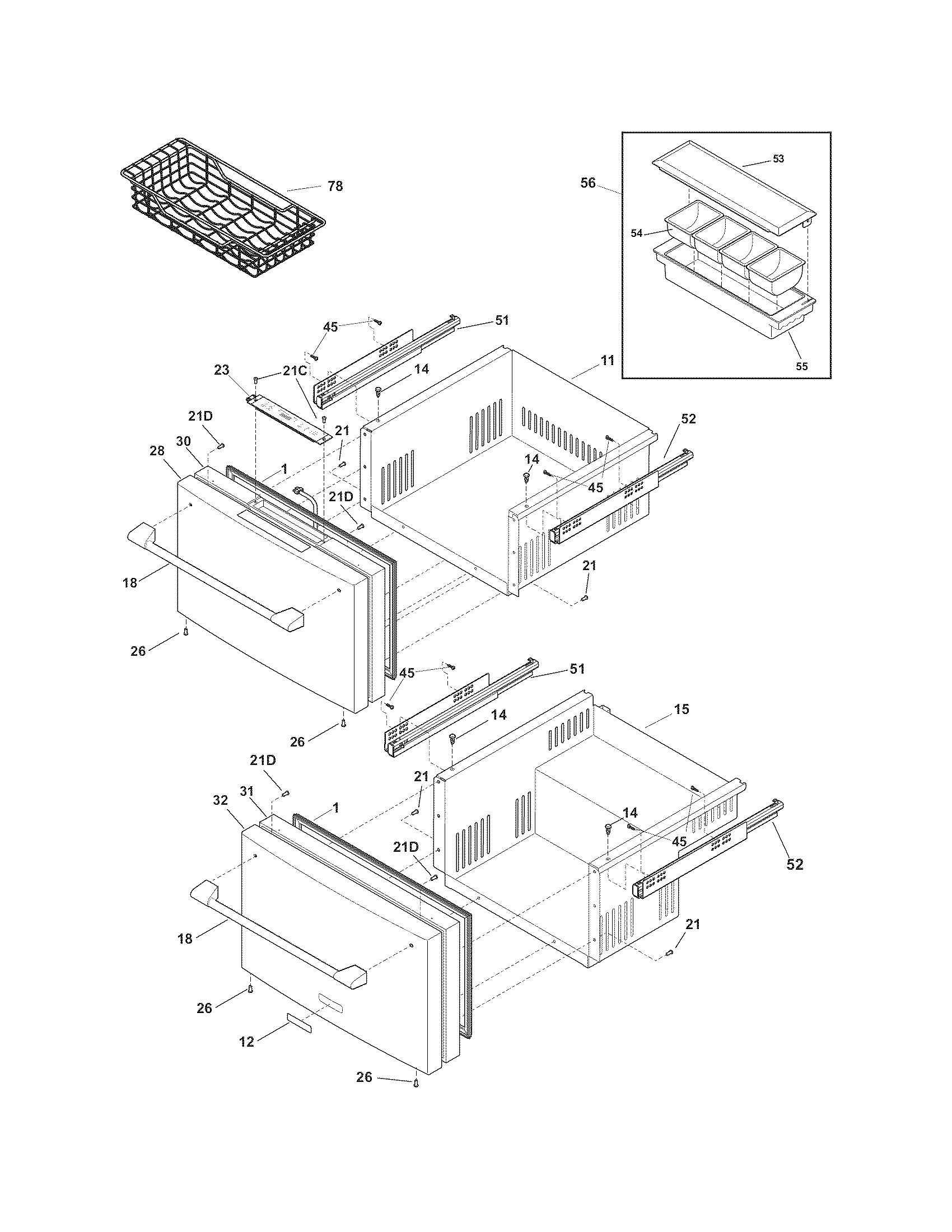

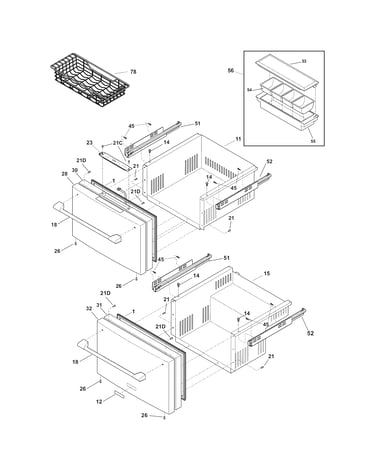

Door diagram

Refrigerator nameplate

Part #241603101

In Stock
Refrigerator Drawer 241965802
#11

Door diagram

Refrigerator drawer

Part #241965802

In Stock
Refrigerator Condenser Motor Bracket Screw 240433203
#58

System diagram

Refrigerator condenser motor bracket screw

Part #240433203

This item is not returnable
In Stock
Clamp 241919901
#NI

System diagram

Clamp

Part #241919901

This item is not returnable
In Stock
Refrigerator Display Control Board Screw 241918201
#21C

Door diagram

Refrigerator display control board screw

Part #241918201

This item is not returnable
In Stock
Screw-#10 X 241906101
Screw-#10 x

Part #241906101

This item is not returnable
In Stock
Refrigerator Wire Harness Channel 241532401
#NI

System diagram

Refrigerator wire harness channel

Part #241532401

In Stock
Refrigerator Evaporator Harness 241961801
#NI

System diagram

Refrigerator evaporator harness

Part #241961801

In Stock
Evaporator Harness 241900201
#NI

System diagram

Evaporator harness

Part #241900201

In Stock
