Model # HW-J550/ZA-ZZ01 Official Samsung home theater soundbar

Here are the diagrams and repair parts for Official Samsung HW-J550-ZA-ZZ01 home theater soundbar, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 56 parts |

#NI

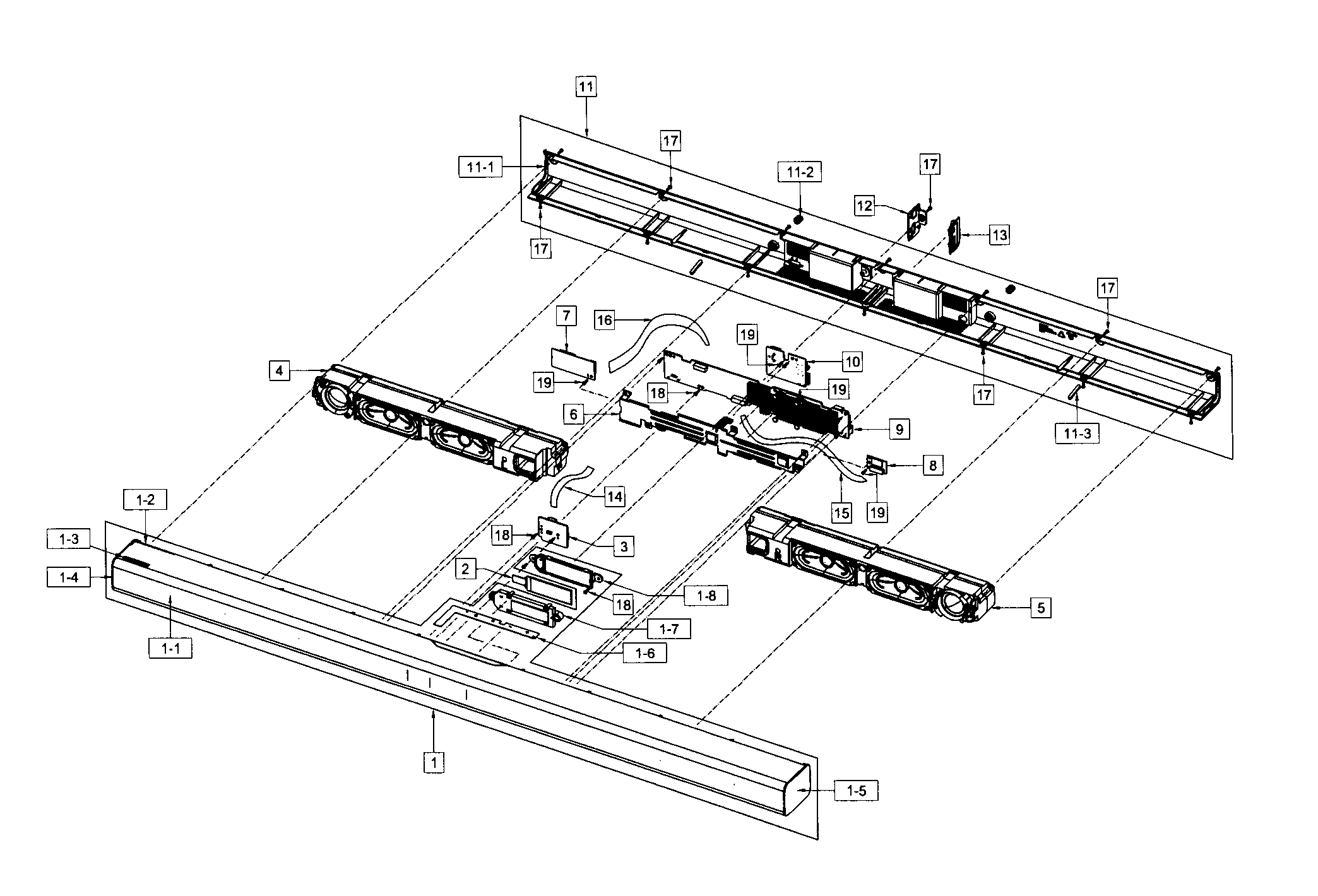

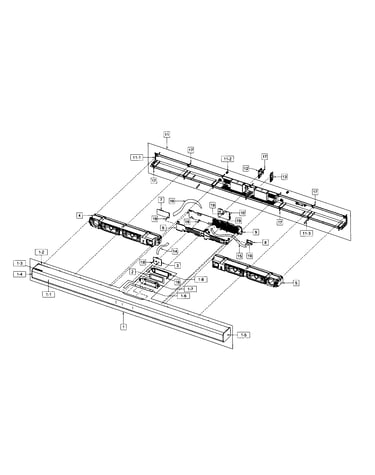

Main asy diagram

Screw

Part #6002-000126

The manufacturer no longer makes this part, and there's no substitute part

#1-6

Main asy diagram

Memory switch

Part #AH34-00032A

The manufacturer no longer makes this part, and there's no substitute part

#NI

Main asy diagram

Pcb

Part #AH94-03589A

The manufacturer no longer makes this part, and there's no substitute part

#NI

Main asy diagram

Cover

Part #AH96-03064D

The manufacturer no longer makes this part, and there's no substitute part

#NI

Main asy diagram

Pcb

Part #AH94-03611A

The manufacturer no longer makes this part, and there's no substitute part

#15

Main asy diagram

Lead connector

Part #AH39-01237A

The manufacturer no longer makes this part, and there's no substitute part

#NI

Main asy diagram

Ic,vol.det

Part #1203-004364

The manufacturer no longer makes this part, and there's no substitute part

Home Theater System Remote Control AH59-02692E

#NI

Main asy diagram

Home theater system remote control

Part #AH59-02692E

The manufacturer no longer makes this part, and there's no substitute part

#NI

Main asy diagram

Ic,tps5433

Part #1203-007144

The manufacturer no longer makes this part, and there's no substitute part

#17

Main asy diagram

Screw

Part #6003-000275

The manufacturer no longer makes this part, and there's no substitute part
